Gazelle AvignonC8 HMB
From £3,329Maximum range 145 km
Comfortable city e-bike with automatic chain tensioner
Avignon C8 HMB
The Avignon C8 HMB ensures comfort on your bike rides. Getting on and off the bike is a doddle, and the wide tyres, gel seat and suspension make for a very comfortable ride.
Maximum range
145 km
Frame shape
Low-step
Gears
8
Brake Rear
Disc brake with hydraulic control
From £3,329
Craftsmanship
With over 130 years of expertise, we know precisely what we're doing. Creating bicycles that you can rely on. What begins with a design comes together in our factory. Where we work everyday to create the perfect Gazelle for you.
Discover the Avignon
)

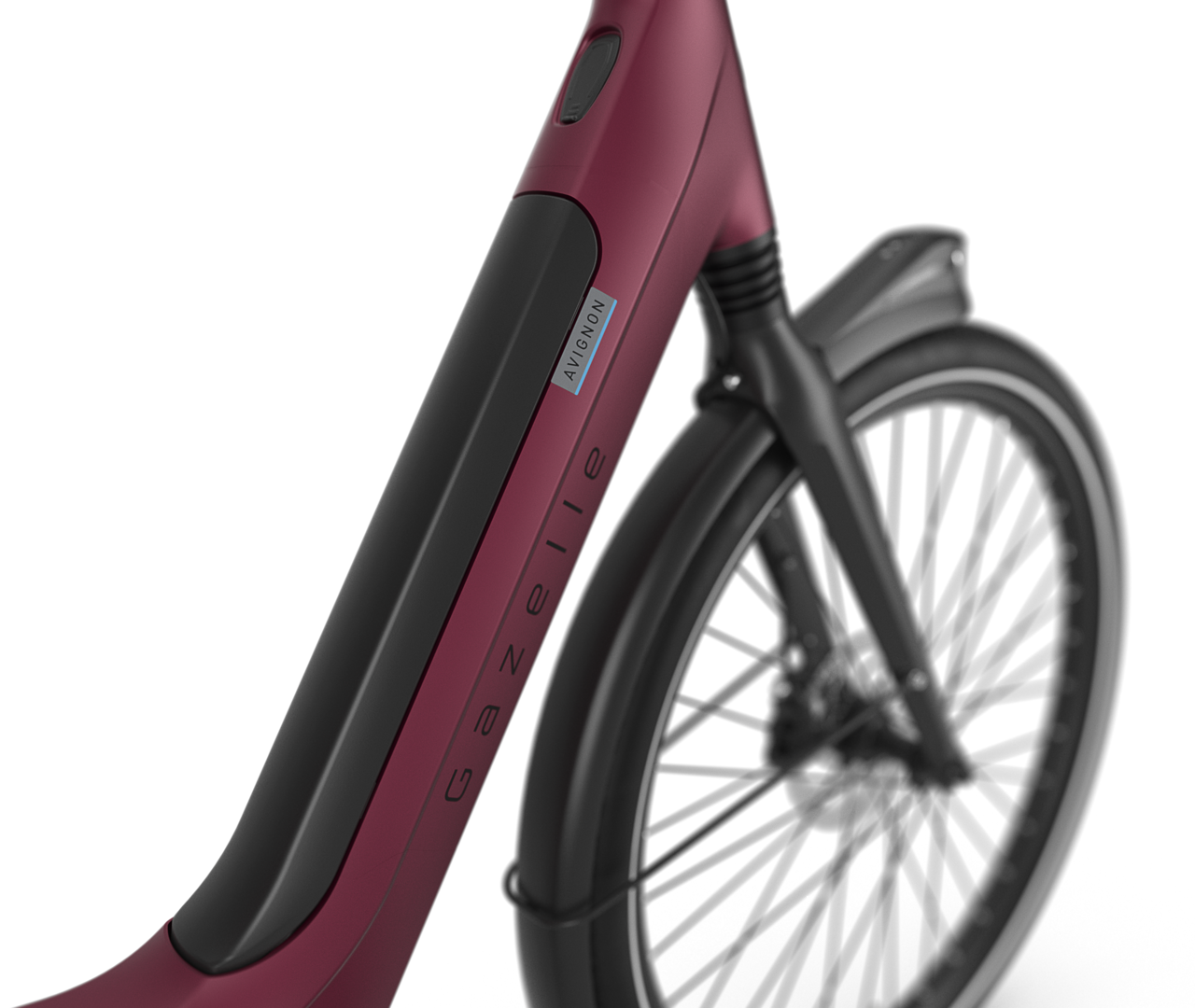

Efficient, integrated power source
Bosch's lithium-ion batteries are among the most advanced on the market. The intelligent battery management system protects them against overheating, overloading and complete discharge, guaranteeing a long battery life. The high energy density and efficient operation ensure optimum range. With the Avignon's integrated 625-Wh battery, you'll always have enough range. The battery is secured in the frame with a lock. You can easily remove it from the bike using the bike key, so you can recharge the battery anywhere.

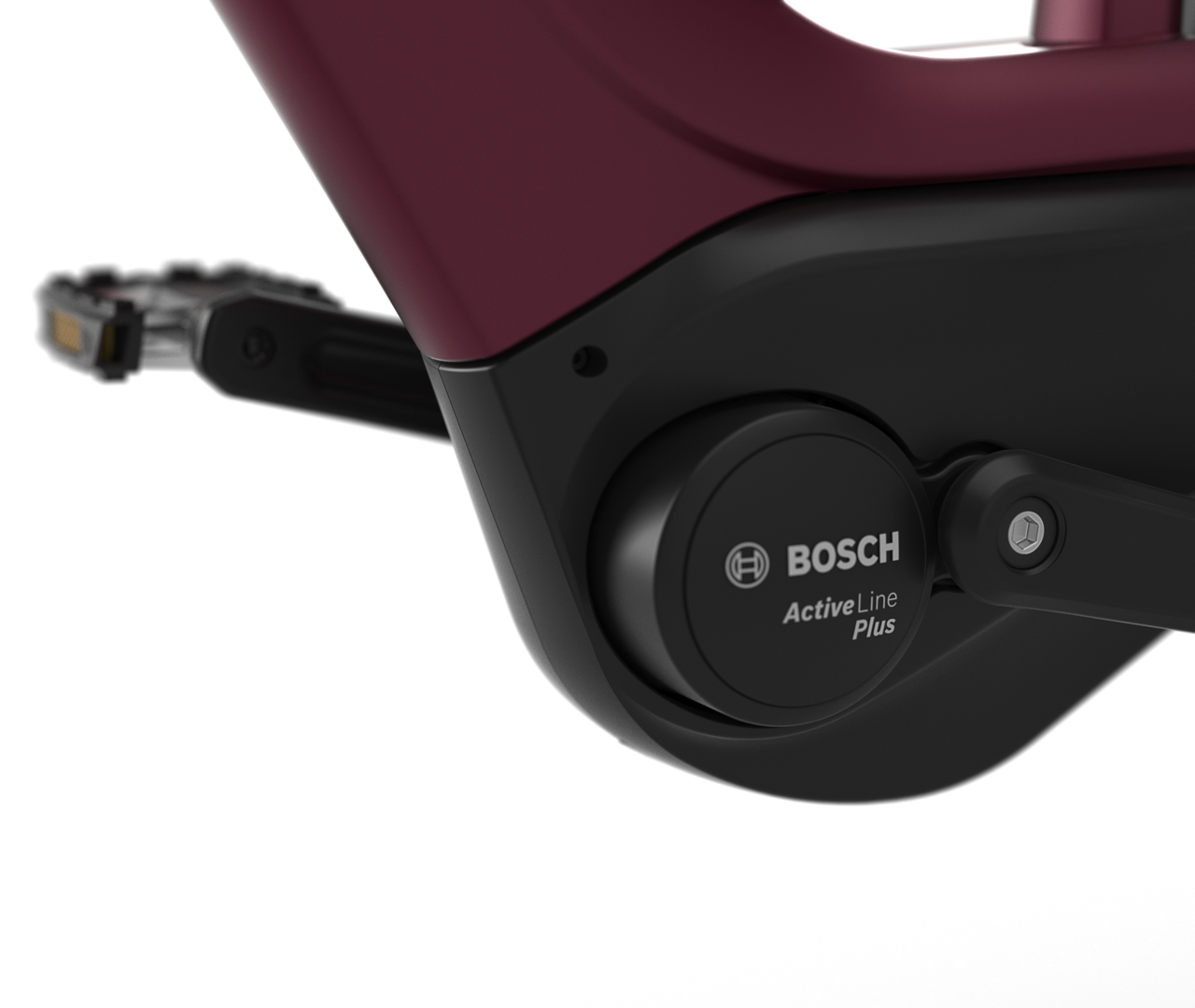

Discover new places with Bosch's quiet, yet powerful motor
The Bosch Active Line Plus gives natural and silent assistance. With a torque of 50 Nm you can handle practically any terrain. Whether flat or hilly, with this motor you arrive comfortably at your destination.
Battery and range
Platinum
- Maximum range145 km
- Watt-hours500 Wh
- Capacity13,8
- Eco range145 km
- Tour range85 km
- Sport range65 km
- Turbo range55 km
- Additional price (excluding disposal fee)Price: This is included in the MSRP
Diamond
- Maximum range175 km
- Watt-hours625 Wh
- Capacity16,7 Ah
- Eco range175 km
- Tour range105 km
- Sport range80 km
- Turbo range70 km
- Additional price (excluding disposal fee)£170
Platinum
Diamond
Maximum range
145 km
175 km
Watt-hours
500 Wh
625 Wh
Capacity
13,8
16,7 Ah
Eco range
145 km
175 km
Tour range
85 km
105 km
Sport range
65 km
80 km
Turbo range
55 km
70 km
Additional price (excluding disposal fee)
Price: This is included in the MSRP
£170

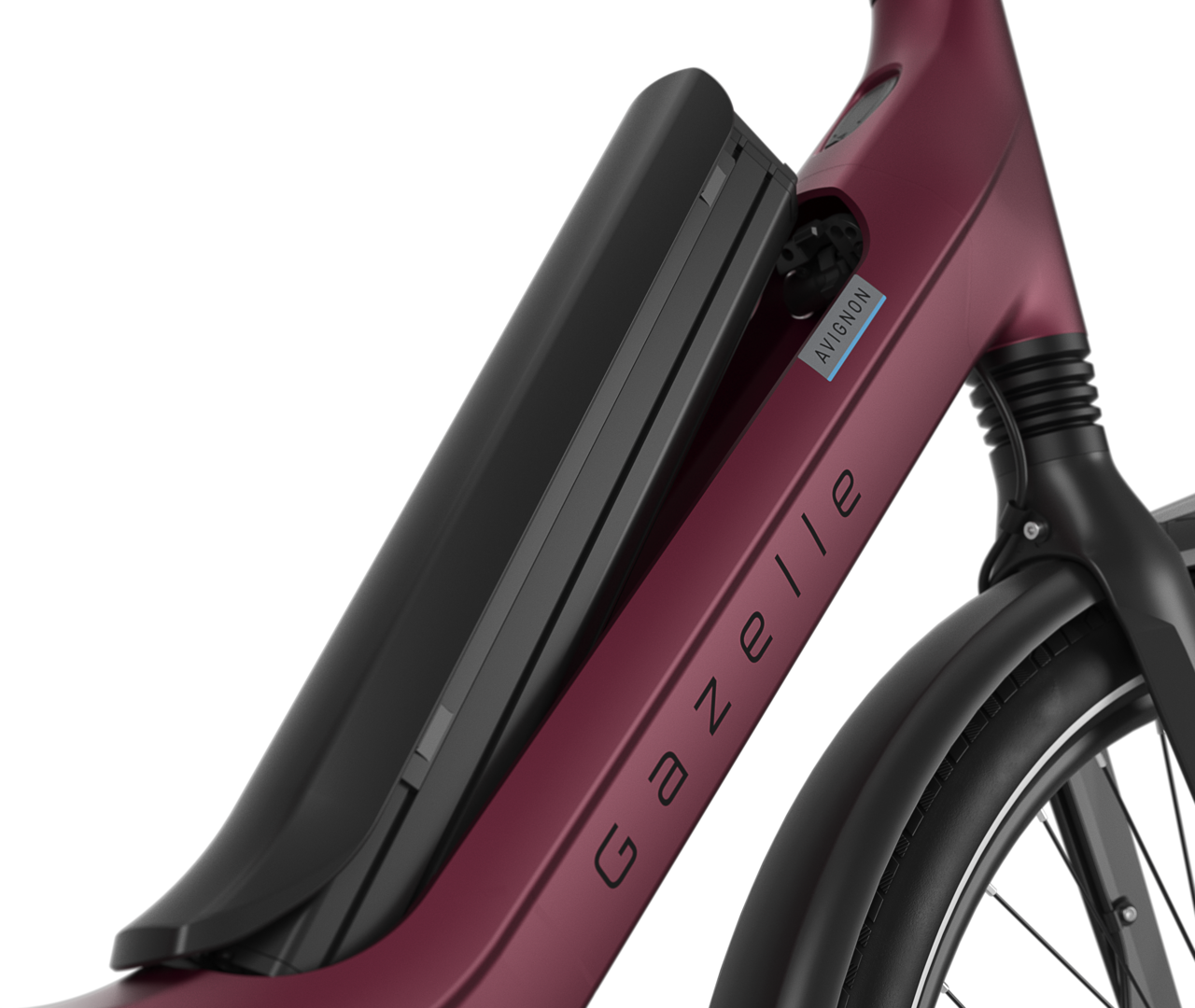

Stable frame with low, wide step-through
Comfort and safety go hand in hand with the Avignon C8 HMB. The low, wide step-through makes it easy to get on and off. And on the road you'll experience great stability and good road holding. This is because the battery is integrated in the down tube, creating a low centre of gravity. The battery is easy to remove from the bike for charging — simply take it out from the top. Want to charge it in the bike? No problem. The charging point is positioned high up.

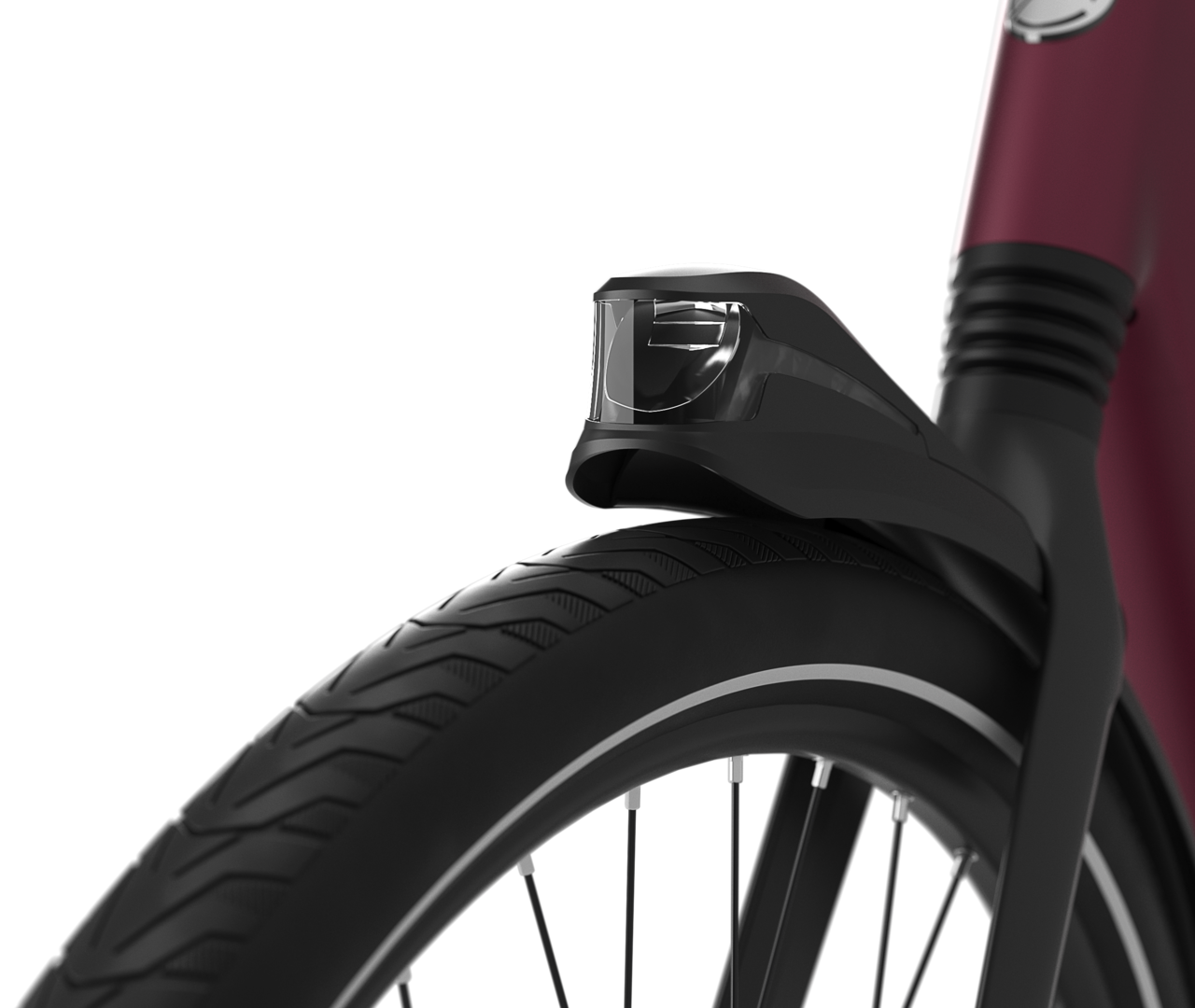

Integrated lighting makes you easier to see
The daytime running lights on the Avignon C8 HMB do their job, day and night. The powerful front light (70 lux) is integrated into the mudguard. And with the rear light in the carrier, you are easily visible not only from behind but also from the side.

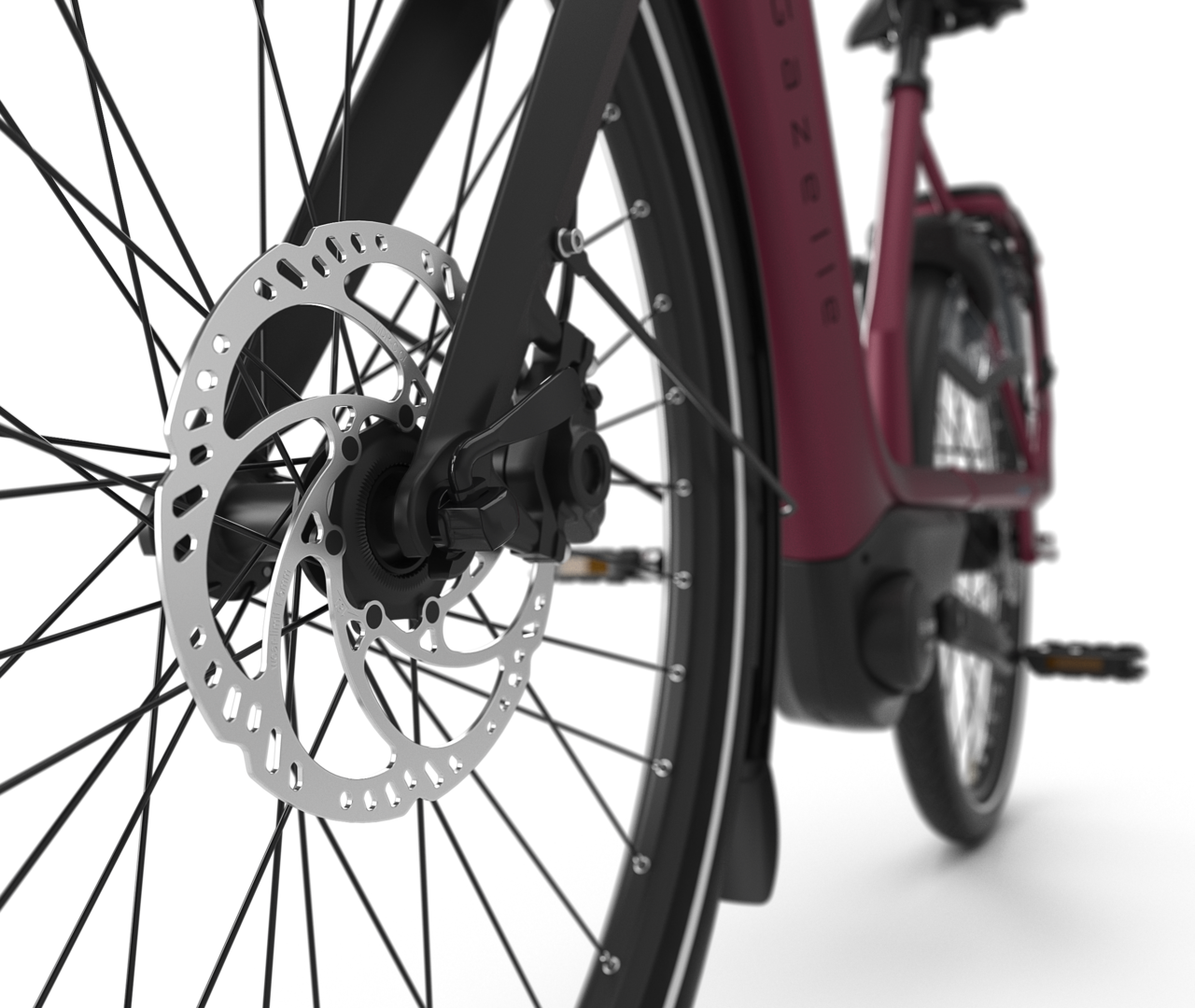

Wide tyres and powerful disc brakes for a safe feeling
The Avignon C8 HMB has extra-wide tyres for good road holding and increased comfort. The Magura disc brakes provide excellent, easy-to-modulate braking power in all conditions. The large brake levers are also easy to operate. You are always in control.

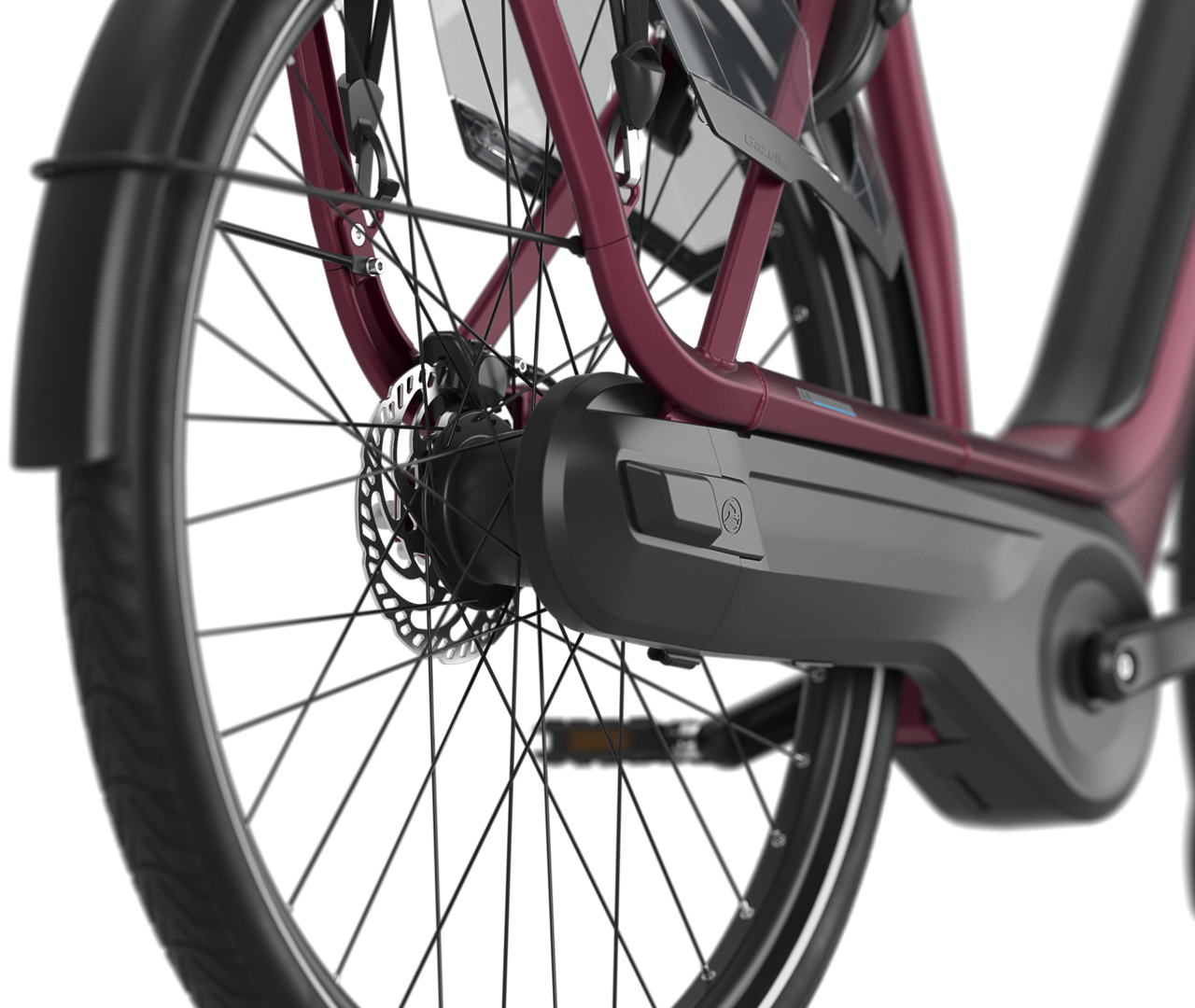

Quiet and maintenance-free
The Avignon C8 HMB features an innovative chain tensioner. It keeps your chain at the perfect tension at all times. The chain operates silently and little or no maintenance is required. The chain case and mid-drive motor are also perfectly integrated!
"All in all a very attractive and sturdy bike. Not the cheapest, but you pay for the quality you get."
Gazelle's customer
)
Specifications
- Gear system description
- 8-speed Shimano Nexus
- Engine model
- Bosch Active Line Plus (50Nm)
- Model
- Avignon
- Colorname
- Coral red, midnight blue
- Fork suspension type
- Internal to headset
- Model
- Avignon
- Weight in kg.
- 28.1 kgs
- Colorname
- Coral red, midnight blue
- Segment
- Electric bicycles
- Sitting position
- Upright
- Integrated lights
- Yes
- Frame shape
- Low-step
- Size
- 46, 49, 53, 57, 61, 65
- Frame description
- Stable aluminium frame with 68.5° head tube angle and 69.5° saddle tube angle. Cables are nicely concealed through the unique cable integration system. Battery integrated in the frame for large capacity (625 Wh)
- Frame material
- Aluminium
- Cabels integrated
- Yes
- Fork material
- Aluminium
- Fork suspension type
- Internal to headset
- Travel of suspension fork
- 40 mm
Frame
Fork
- Wheelsize
- 28"
- Rims
- Ryde Zac 25, Double-walled aluminium for extra strong and efficient cycling performance
- Spoke description
- Stainless steel, extra strong
- Tires
- Scalato Mondano
- Tire color
- Black
- Tires puncture resistant
- Yes
Wheels
Tires
- Gear system description
- 8-speed Shimano Nexus
- Gear type
- Hub
- Gears
- 8
- Front chainwheel
- 38
- Rear chainwheel
- 18
- Drivetrain
- Chain
- Brake Front
- Disc brake with hydraulic control
- Brake Rear
- Disc brake with hydraulic control
- Disc brake rotor size front
- 180 mm
- Disc brake rotor size rear
- 160 mm
- Brake system description front
- Magura MT-C4, 2 piston
- Brake system description rear
- Magura MT-C4 2 piston
Number of gears
Drivetrain
Brakes
- Handlebar description
- Aluminium, comfort curved model
- Adjustable stem
- Yes
- Grip type
- Gazelle Aero leather
- Grips
- Luxury leather handlebar grips for a sophisticated feel and extra comfort
- Saddle
- Selle Royal Essenza Plus gel
- Seatpost suspension
- Yes
- Seatpost description
- Sprung
- Seatpost diameter
- 27,2 mm
Handlebar
Saddle
- Light front description
- LED headlight with daytime running lights, always on
- Front light powersource
- Battery
- Front light lux
- 70
- Front light type
- Gazelle Fendervision
- Rear light powersource
- Battery
Front light
Rear light
- Ebike system short description
- Bosch
- Engine location
- Mid-drive motor
- Torque
- 50
- Engine model
- Bosch Active Line Plus (50Nm)
- Ebike sensors
- Pedal force sensor, rotation sensor, speed sensor
- Max Speed (km/h)
- 25 km/h
- Battery type
- Li-ion
- Battery position
- Integrated into frame
- Battery replaceable
- Yes
- Battery system
- Bosch
- Ebike charger description
- 4 Ah
- Amount of support levels
- 4
- Display control unit
- Yes
- Walk assist
- Yes
- Display Model
- Bosch Intuvia LCD center
- Display detachable
- Yes
Engine
Battery
Display
- Warranty frame
- 10 years’ warranty
- Warranty fork
- 5 years’ warranty
- Warranty paint
- 5 years’ warranty
- Warranty other parts
- 2 years’ warranty
- Warranty battery
- 2 years’ warranty
- Warranty motor
- 2 years’ warranty
- Warranty diplay
- 2 years’ warranty
Garantie
- Lock description
- Ring lock
- Lock safety level
- ART ** certified
- Lock Type
- Abus 4750L
- Chaincase description
- 100% recycled plastic, with automatic chain tensioner
- Coat protector
- Yes
- Kickstand type
- Drop-down rear stand
- Kickstand
- Ursus Mooi
- Chaincase type
- Chain case
- Rear carrier description
- Aluminum MIK HD system carrier
- Carrier MIK system
- Yes
Lock
Other
Carrier
Made by hand, for a superb result every single time.
Awards
Our Avignon C8 HMB surprised our judges
Take our word for it. Or take a ride.
We've done our best to capture the Gazelle experience in words, but there is nothing like the real thing. So why not book a test ride at one of our Gazelle bike stores?
)
