Gazelle ArroyoC380 Elite
$5,999
Elegant and luxurious

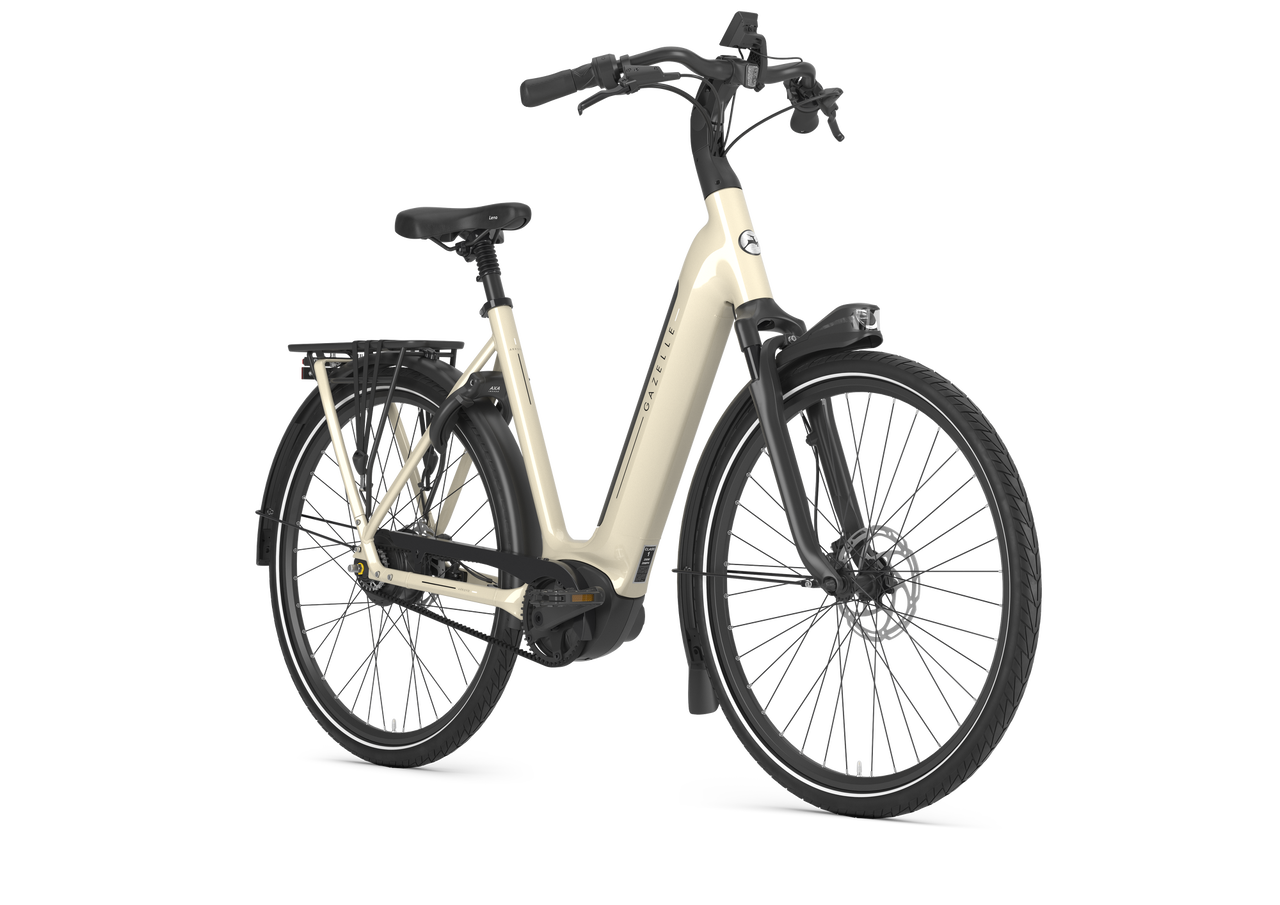

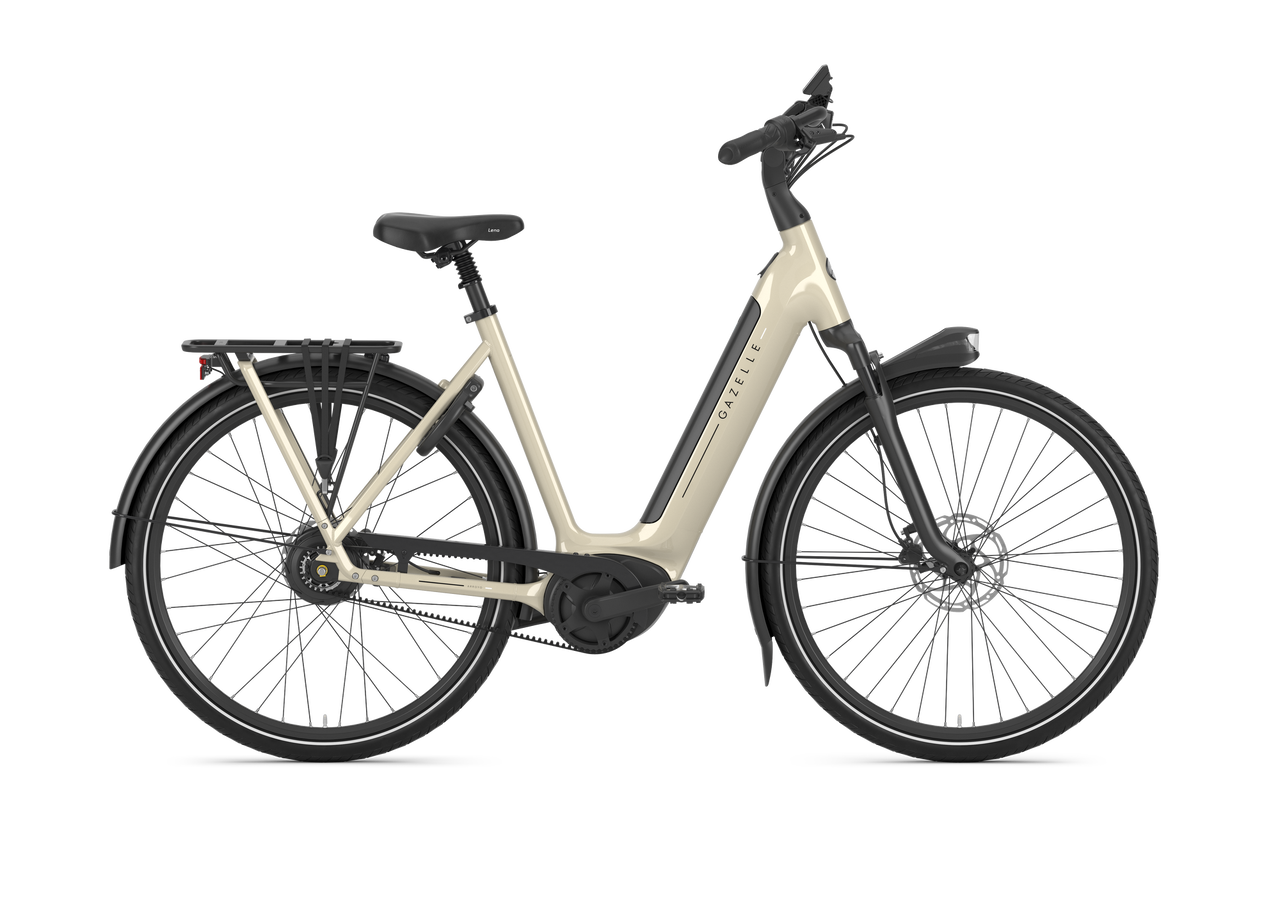

Arroyo C380 Elite
Choosing the Arroyo C380 Elite means opting for elegance and luxury. Beautiful design lines combined with a low-maintenance belt, stepless shifting, and powerful mid-motor offer optimal comfort.
Frame shape
Low-Step
Number of gears
Stepless
Easy shifting

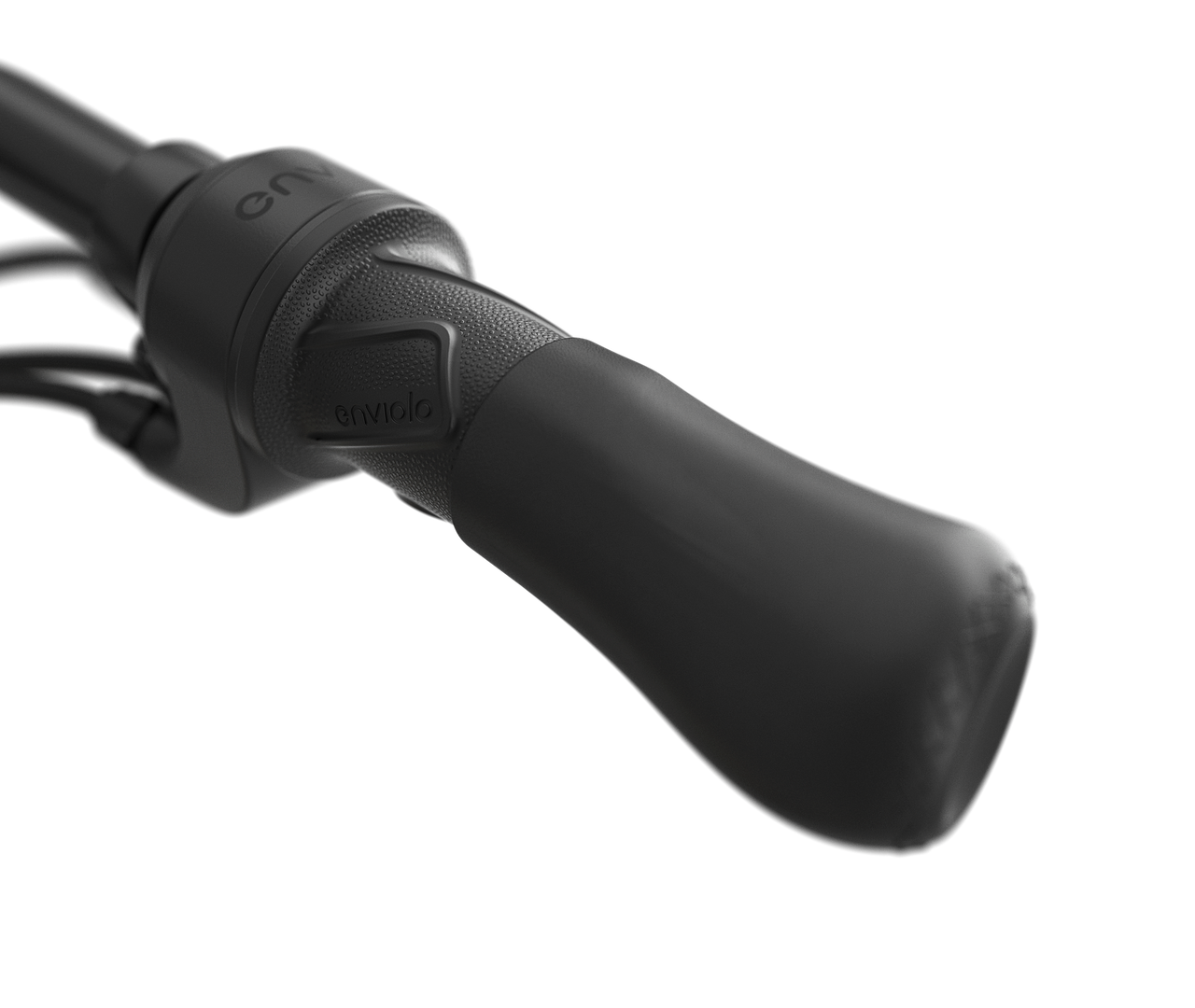

Always in the right gear, the Arroyo C380 Elite is equipped with the stepless Enviolo Trekking system. This provides endless gear options, allowing you to shift while riding without stopping pedaling. It's particularly handy when encountering an unexpected or sudden hill!
Display full of possibilities

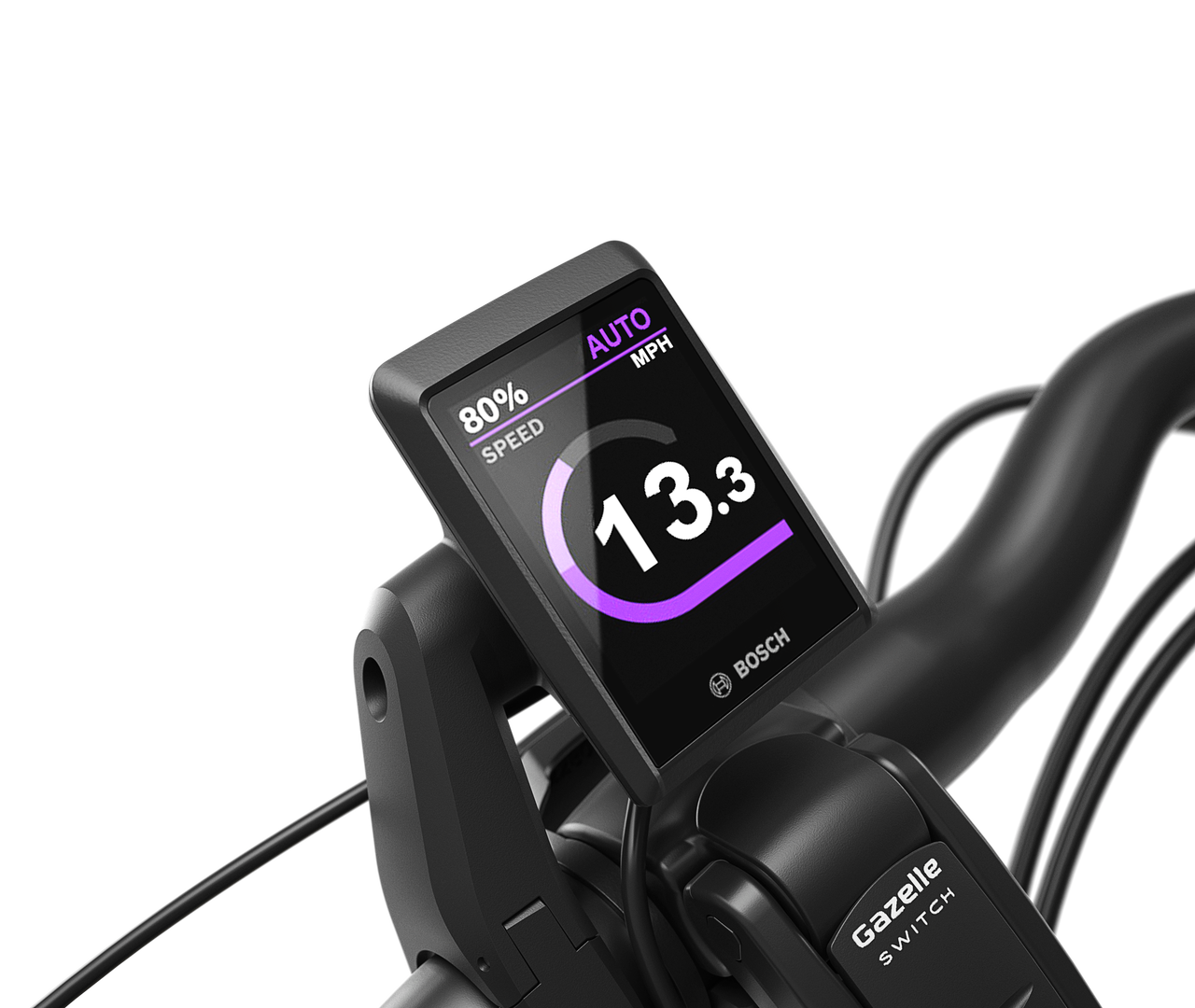

The centrally placed large Kiox 300 screen always shows ride and ebike data. Easily scroll through different screens with the buttons close to the handlebars. By connecting your smartphone to the system, you can navigate or even replace the display with your smartphone.
Always natural support
Wherever and whenever you cycle, you'll always feel that welcome push. For instance, when tackling a steep slope or cycling home with luggage. How can we be so sure? We've equipped the Arroyo C380 Elite with the Bosch Performance Line mid-drive motor (torque: 75 Nm). It provides powerful support that feels remarkably natural. The motor and battery are seamlessly integrated into the frame.
Integration and comfort

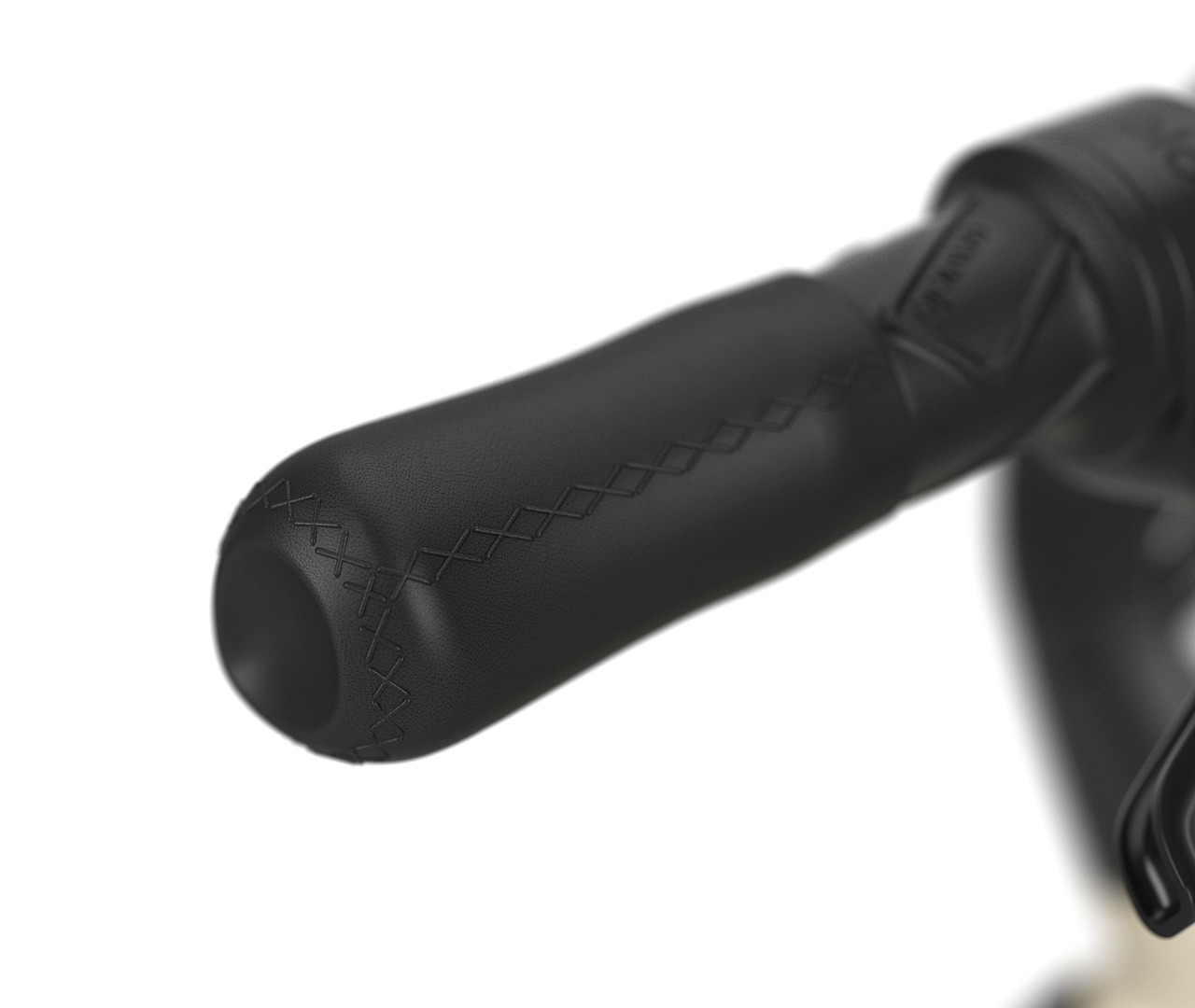

When designing the Arroyo C380 Elite, extra attention was paid to integration. Cables are neatly hidden, and the elegantly integrated battery displays its charge status on top. The leather handles and gel saddle ensure a luxurious finish and extra comfort.
:focus(true))
Efficient built-in power source
Bosch's lithium-ion batteries are among the most modern on the market. Their intelligent battery management system guarantees a long lifespan, and efficient energy control ensures optimal range. With the integrated 540 Wh battery, you have more than enough range. The battery is securely locked in the frame with a lock. Use the bike key to easily remove it for charging wherever you wish.

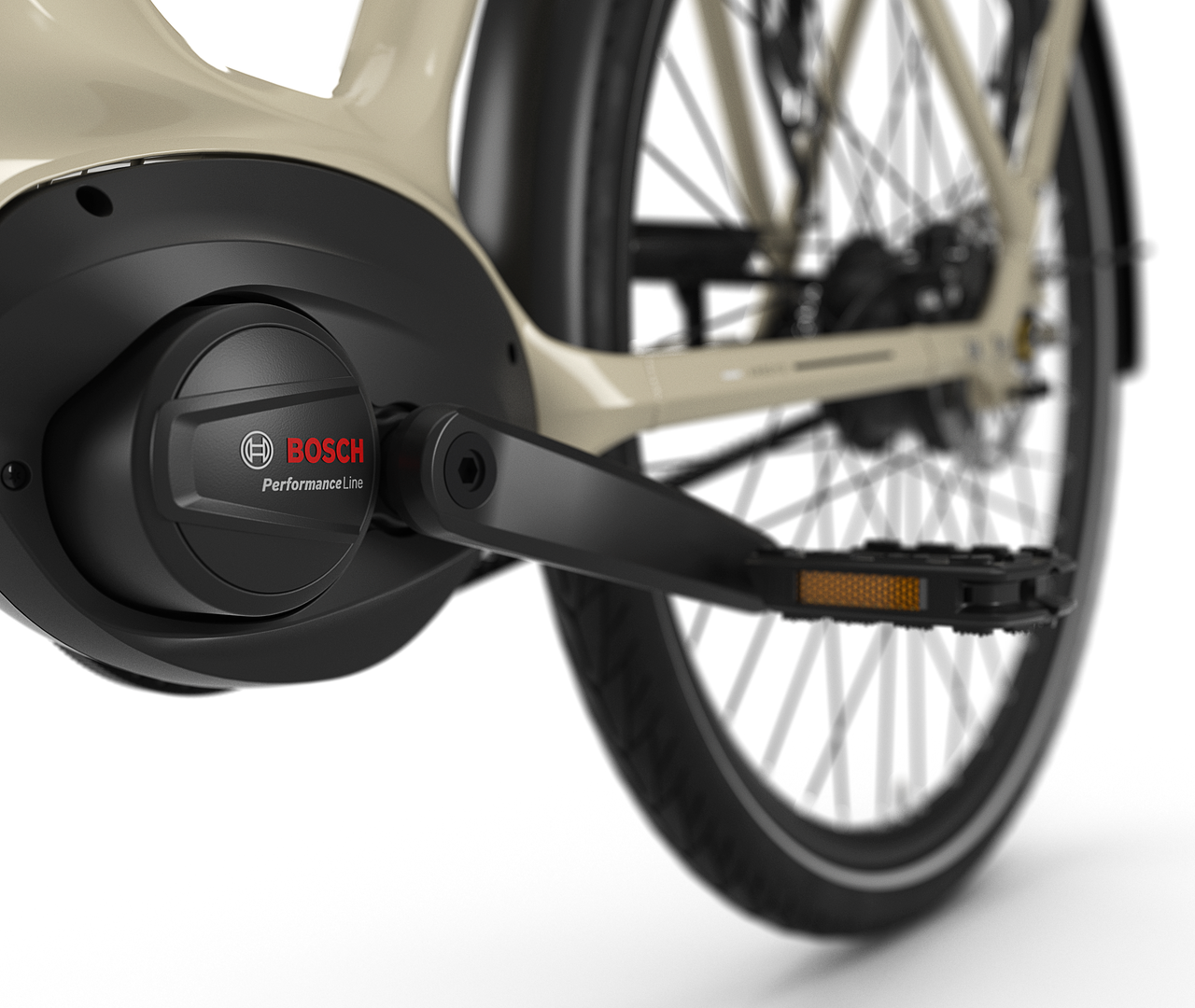

Always assisted by the Bosch Performance Line motor
The Bosch Performance Line motor offers everything your cycling heart desires. Smooth and powerful support that never lets you down. With a torque of 75 Nm, you can tackle any terrain. It's our recommendation for the demanding cyclist.
Battery and range
- Watt-hours540 Wh
- Battery positionintegrated in the frame
- Battery brandBosch
- Battery modelIntube
- Battery voltage36V
Watt-hours
540 Wh
Battery position
integrated in the frame
Battery brand
Bosch
Battery model
Intube
Battery voltage
36V
Specifications
- Color
- Caramel khaki gloss, metallic orange matte
- Fork suspension
- Telescope, spiral spring
- Weight
- 27.6 excl. battery
- Color
- Caramel khaki gloss, metallic orange matte
- Front Light Integrated
- Yes
- Bike Max. Total Weight (kg)
- 130
- Sitting Position
- Upright
- Frame description
- Stable, lightweight hydro-formed aluminium frame with 68.5° headset angle and 69.5° seat tube angle for relaxed and comfortable riding. This is a low-step and spacious frame, single tube and lovely integrated cables
- Frame material
- Aluminum
- Cockpit Cable Integration
- Yes
- Frame shape
- Low-Step
- Frame Size CM
- 46, 53, 57
- Fork Material
- Aluminum
- Fork suspension
- Telescope, spiral spring
- Fork lockout
- No
Frame
Fork
- Front wheel
- 46, Gates
- Rear wheel
- 24, Gates
- Front rim
- Ryde ZAC 421, Double-walled aluminium for extra strong and efficient cycling performance
- Rear rim
- Ryde ZAC 421, Double-walled aluminium for extra strong and efficient cycling performance
- Front hub
- Shimano
- Rear hub
- Enviolo Trekking Manual
- WheelSize Front
- 28"
- Wheels Tyre Front Etrto
- 50-622
- Front tire
- Schwalbe Energizer Active Plus
- Rear tire
- Schwalbe Energizer Active Plus
Wheels
Tyres
- Brand shifters
- Enviolo
- Gear Type
- Hub
- Number of gears
- Stepless
- Front chainwheel
- 46
- Drivetrain
- Belt
- Front Brake Type
- Hydraulic disc brake
- Brake sytem code
- SE
- Front Brake Brand
- Tektro
- Primary Rear Brake Model
- HD-T280
- Front brake
- Tektro HD-T280, 180 mm
- Rear brake
- Tektro HD-T280, 160 mm
- Rear Brake Lever
- Tektro
Gears
Transmission
Brakes
- Handlebar
- Gazelle Aero Leather, luxury leather handlebar grips for a sophisticated feel and extra comfort
- Stem adjustable
- Yes
- Steering lock
- Yes
- Cockpit Handlebar Grip Brand
- Gazelle
- Saddle
- Selle Royal Lena Gel
- Seatpost suspension
- Yes
Handlebar
Seat
- Front light
- Gazelle Fendervision
- Front Light Energy Source
- Battery
- Front Light Lux
- 70
- Rear Light Energy Source
- Battery
- Rear light
- Spanninga Pimento
Front light
Rear light
- Motor
- Bosch Smart System Performance Line
- System Model
- Performance Line
- Ebike System Brand
- Bosch Smart System
- Ebike Engine Position
- Mid
- Ebike Max Speed kmh
- 25
- Ebike Max Speed mph
- 20
- Engine Max Torque (Nm)
- 75
- Charger
- Bosch Standard Charger,
- Ebike Battery Charger Description
- 4 Ah
- Battery Position
- Integrated in the frame
- Display
- Bosch Kiox 300
- Display Removable
- Yes
- Ebike Walk Assist
- Yes
- Display Type
- LCDc
Motor
Battery
Display
- Frame warranty
- 10 year's warranty
- Fork warranty
- 5 year's warranty
- Paint warranty
- 5 year's warranty
- Other parts warranty
- 2 year's warranty
- Battery warranty
- 2 year's warranty
- Motor warranty
- 2 year's warranty
- Display warranty
- 2 year's warranty
Garantie
- Lock
- Axa
- Lock brand
- Axa
- ART classification
- ART**
- Kickstand
- Ursus Mooi
- pim_productchaincase
- Yes
- Coat protector
- Yes
- Rear carrier description
- Aluminum MIK HD system carrier
- Carrier MIK Profile
- Yes
- Rear carrier max load (kg)
- 27
- Rear carrier
- Yes
Lock
Other
Luggage rack
Craftsmanship
With over 130 years of expertise, we know precisely what we're doing. Creating bicycles that you can rely on. What begins with a design comes together in our factory. Where we work everyday to create the perfect Gazelle for you.
Made by hand, for a superb result every single time.
Take our word for it. Or take a ride.
We've done our best to capture the Gazelle experience in words, but there is nothing like the real thing. So why not book a test ride at one of our Gazelle bike stores?
