Gazelle ArroyoC5 HMB Elite
Price $5,399
Comfort and sport in one bike

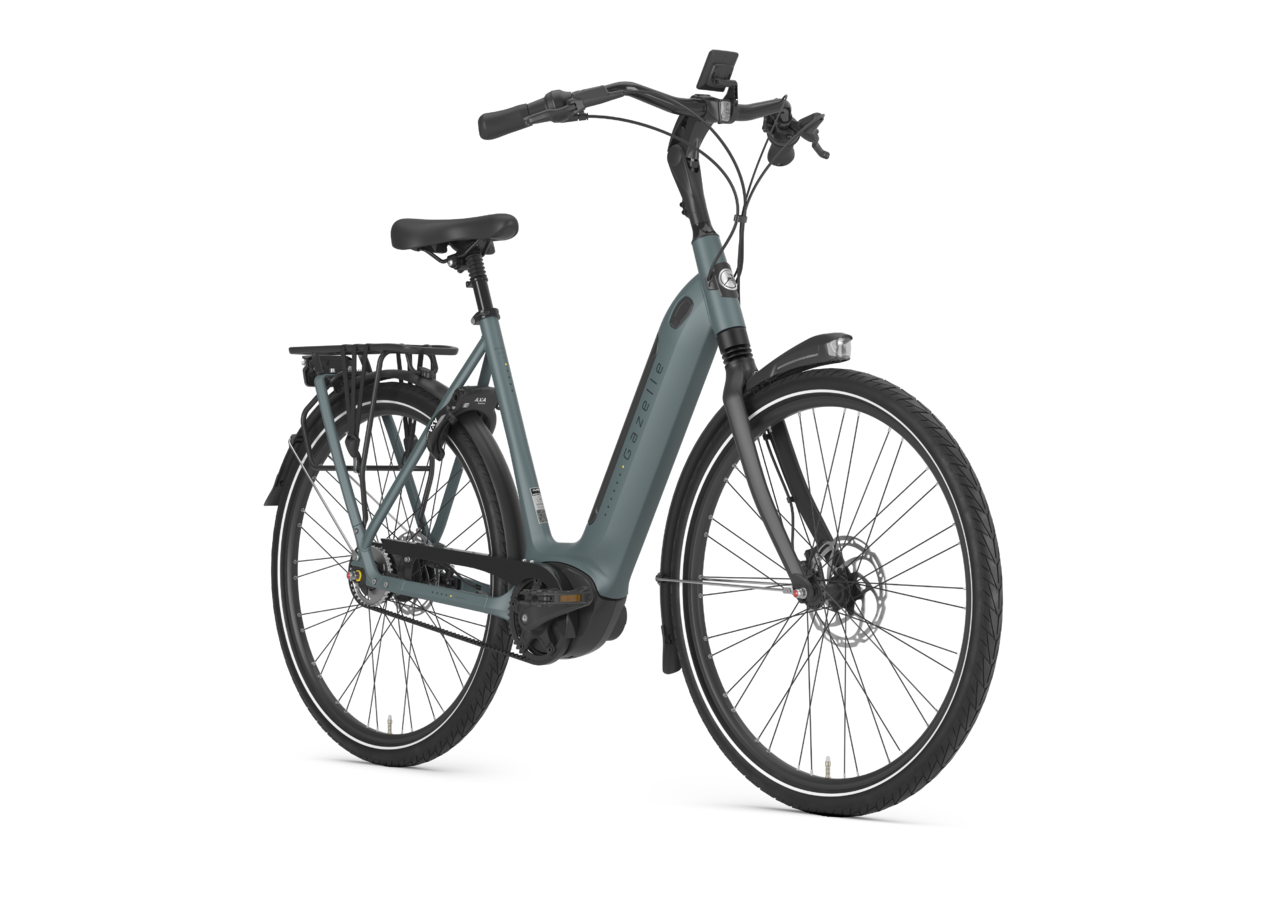

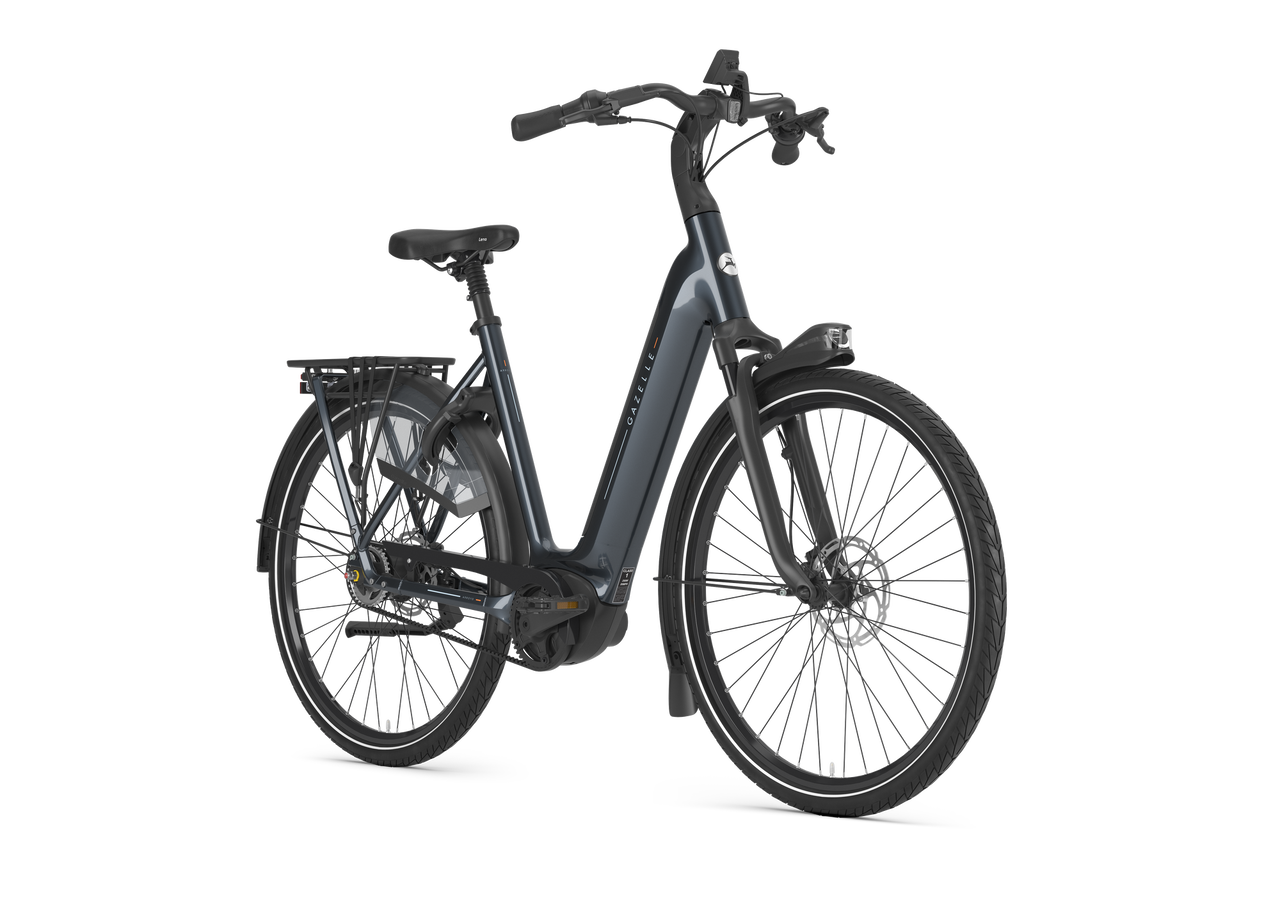

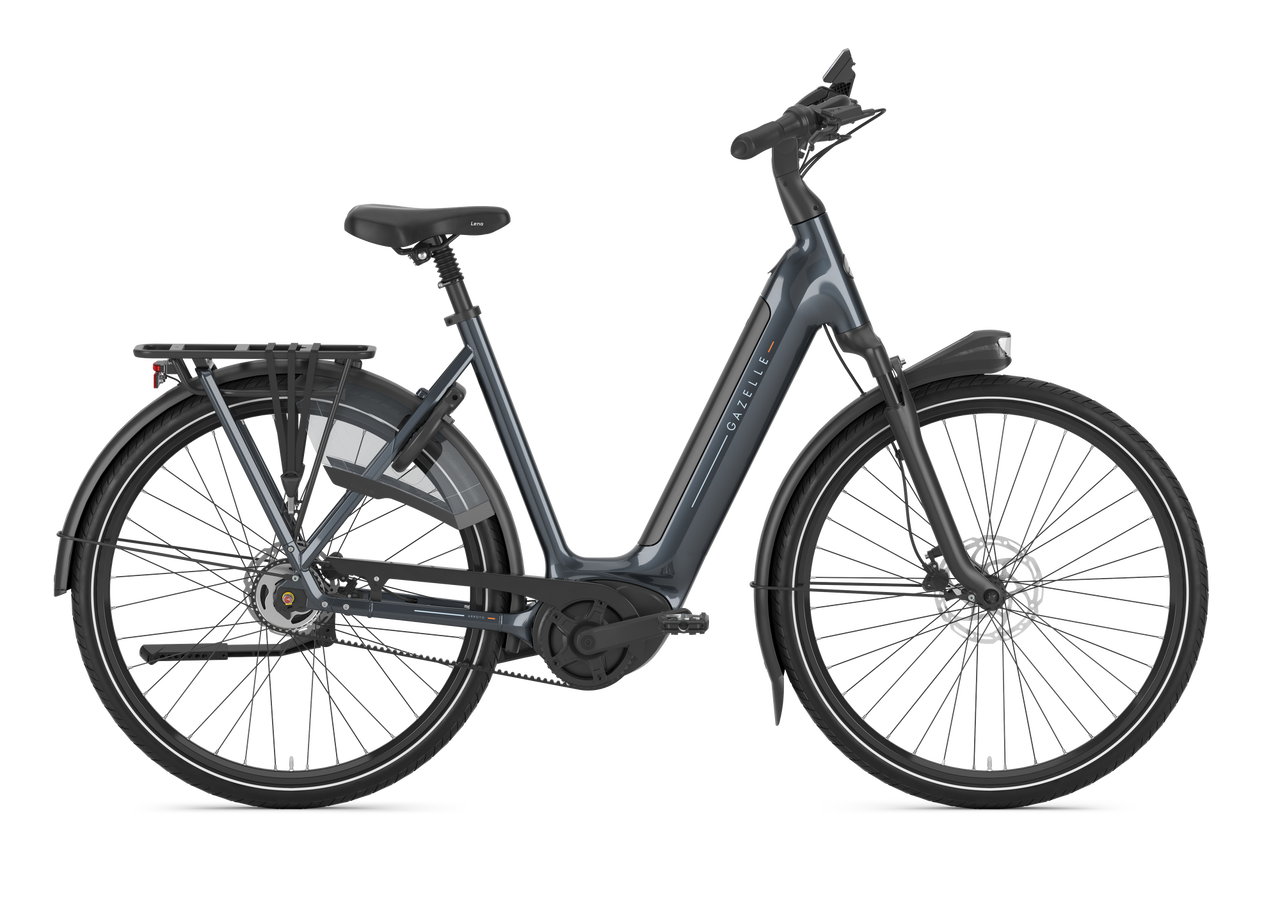

Arroyo C5 HMB Elite
Touring is a pleasure with the Gazelle Arroyo C5 HMB Elite. You can get on and off easily, sit upright comfortably, and have a good view of your surroundings. Thanks to the powerful motor, you can stop and go wherever you want.
Frame shape
Low-Step
Number of gears
5
Price $5,399
Craftsmanship
With over 130 years of expertise, we know precisely what we're doing. Creating bicycles that you can rely on. What begins with a design comes together in our factory. Where we work everyday to create the perfect Gazelle for you.
"This is, by far, the most comfortable bike I've ever ridden. And it just *flies* up hills."
Daniel

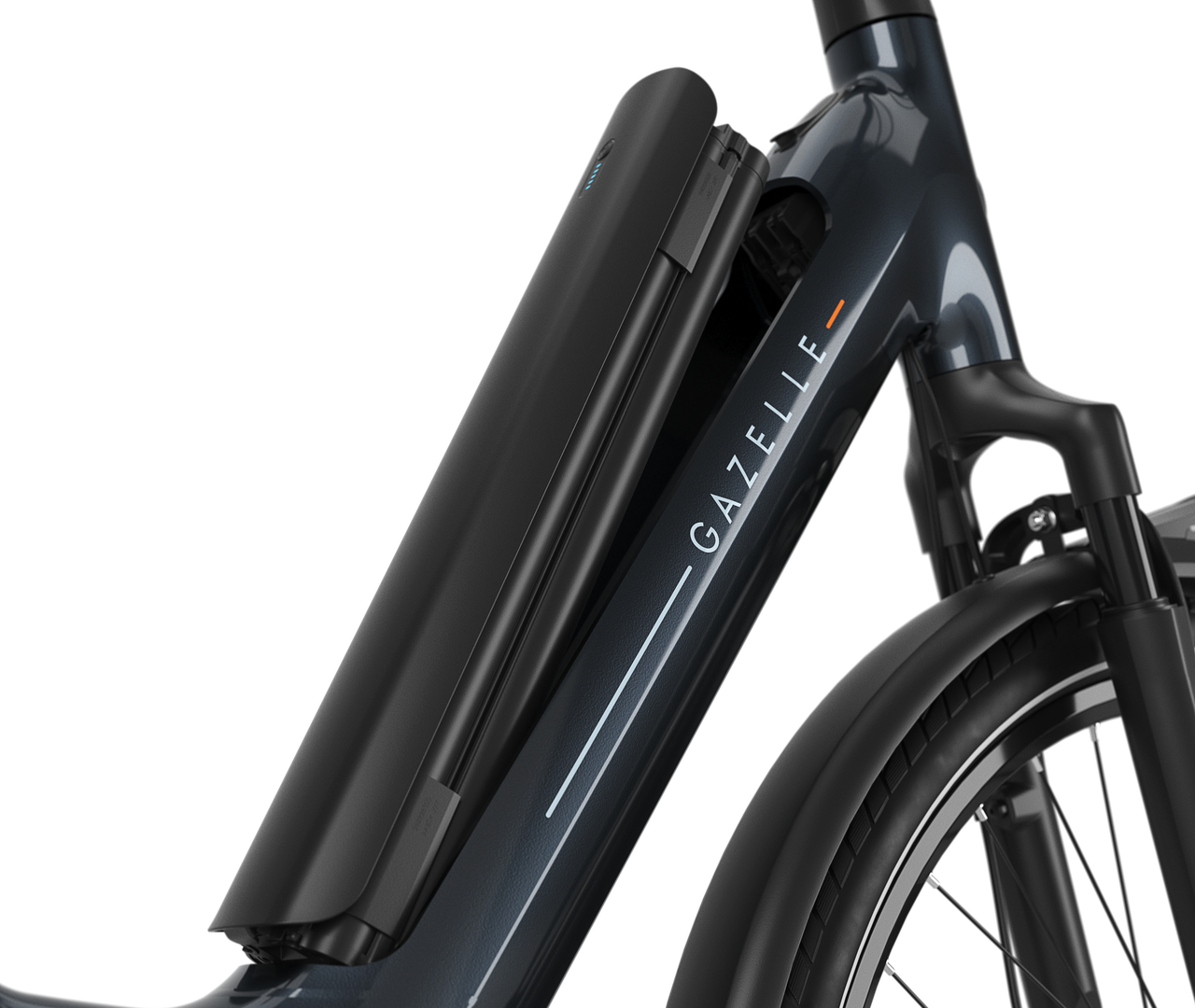

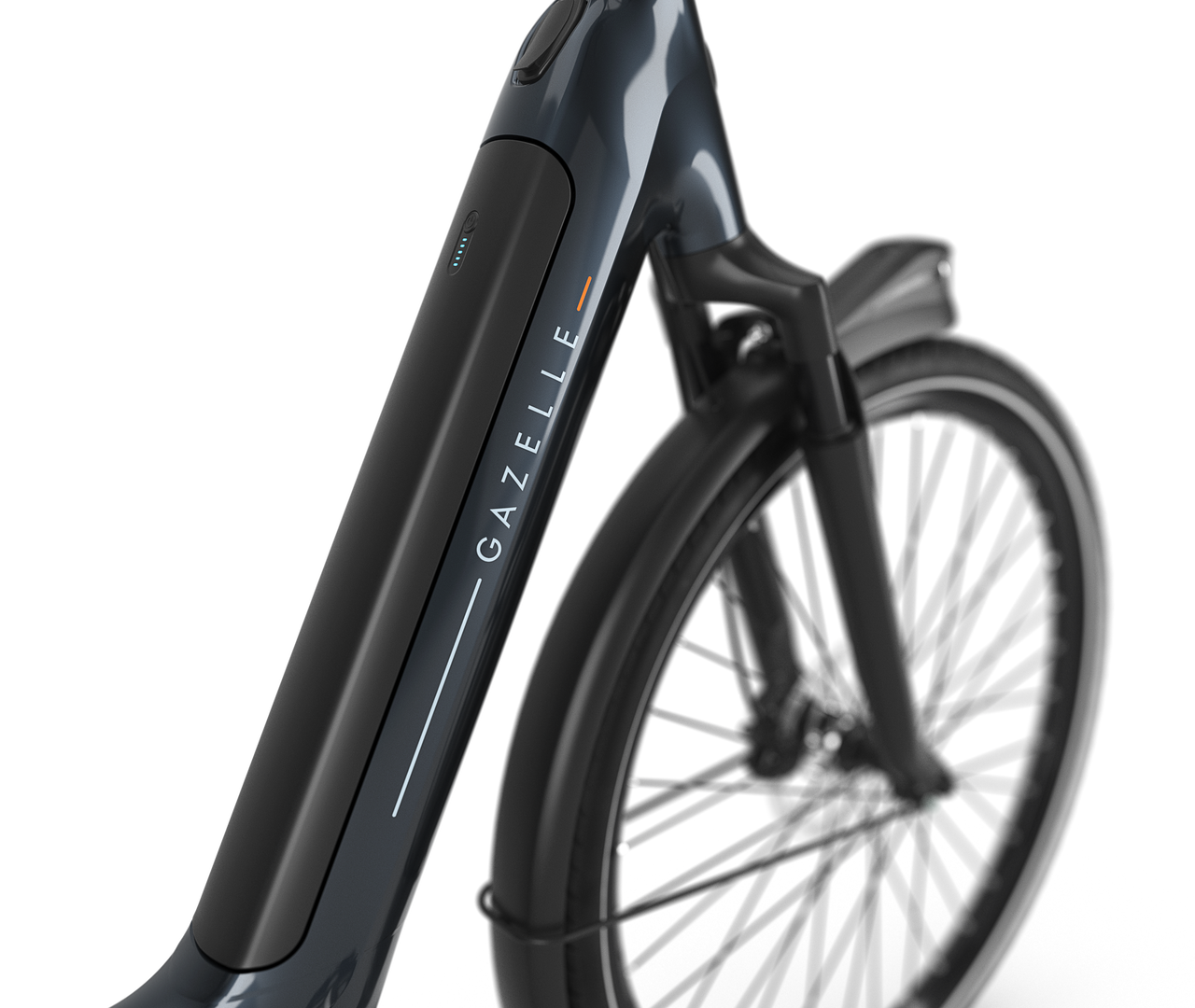

Efficient, integrated power source
Bosch's lithium-ion batteries are among the most advanced on the market. Their intelligent battery management system guarantees a long life, while the efficient energy control optimizes your bike's range. With the integrated 500 Wh battery, you'll always have enough range. The battery is secured in the frame with a lock. You can easily remove it from the bike with a key that also works on the café lock. Convenient, as you can charge the battery either on or off the bike.

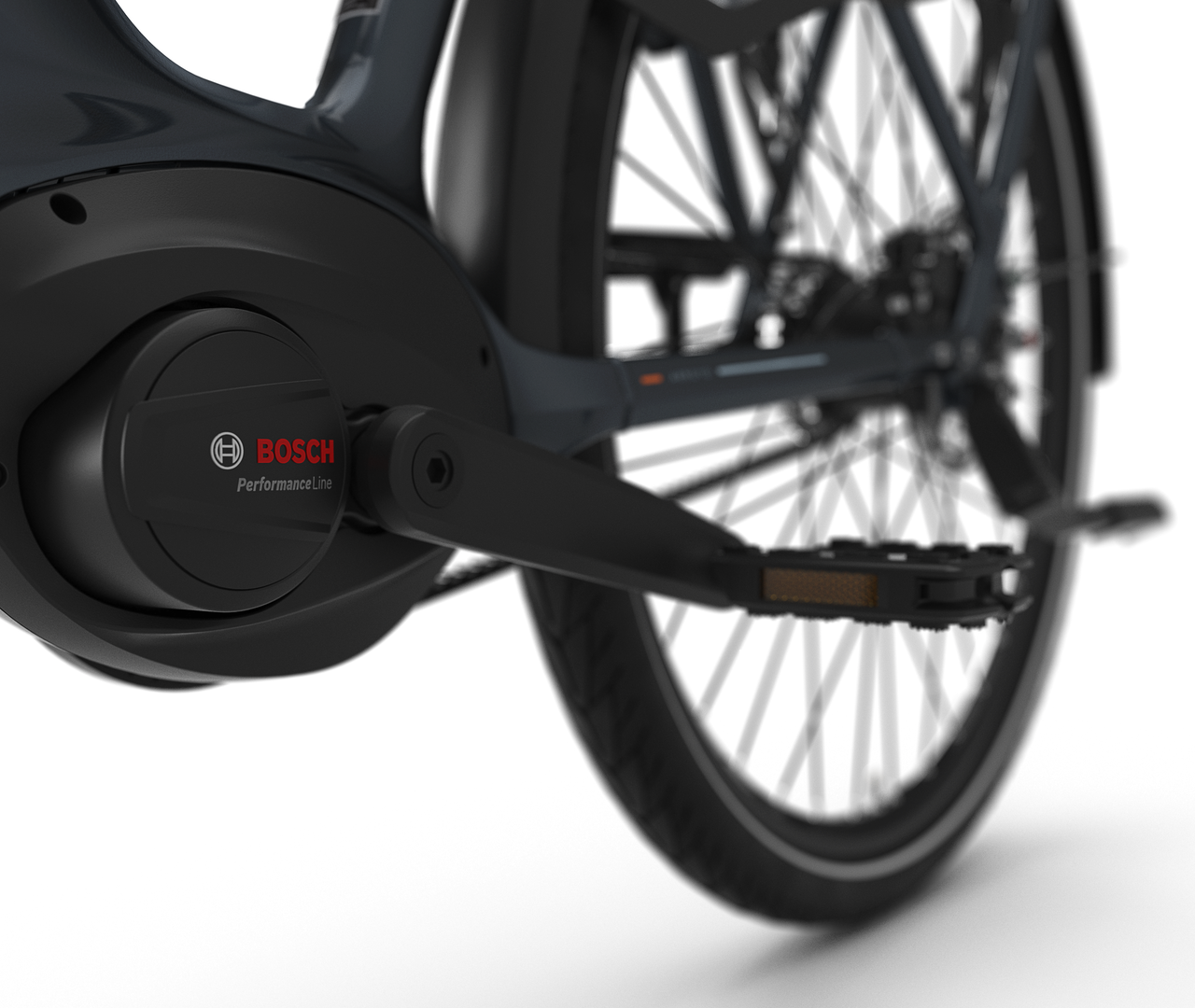

Discover new places with Bosch's quiet yet powerful motor
The Bosch Performance Line gives you everything your cyclist's heart desires. Smooth and powerful assistance that will never let you down. With 75 Nm torque you can handle any terrain. Highly recommended for the demanding cyclist.
Battery and range
- Watt-hours500 Wh
- Capacity13,4 Ah
- Battery charging time with 2A7 h 30 m
- Battery charging time with 4A4 h 30 m
- Battery positionintergrated in the frame
- Battery brandBosch
- Battery modelIntube
- Battery voltage36V
- Eco80 mi
- Tour50 mi
- Auto35 mi
- Turbo30 mi
Watt-hours
500 Wh
Capacity
13,4 Ah
Battery charging time with 2A
7 h 30 m
Battery charging time with 4A
4 h 30 m
Battery position
intergrated in the frame
Battery brand
Bosch
Battery model
Intube
Battery voltage
36V
Eco
80 mi
Tour
50 mi
Auto
35 mi
Turbo
30 mi

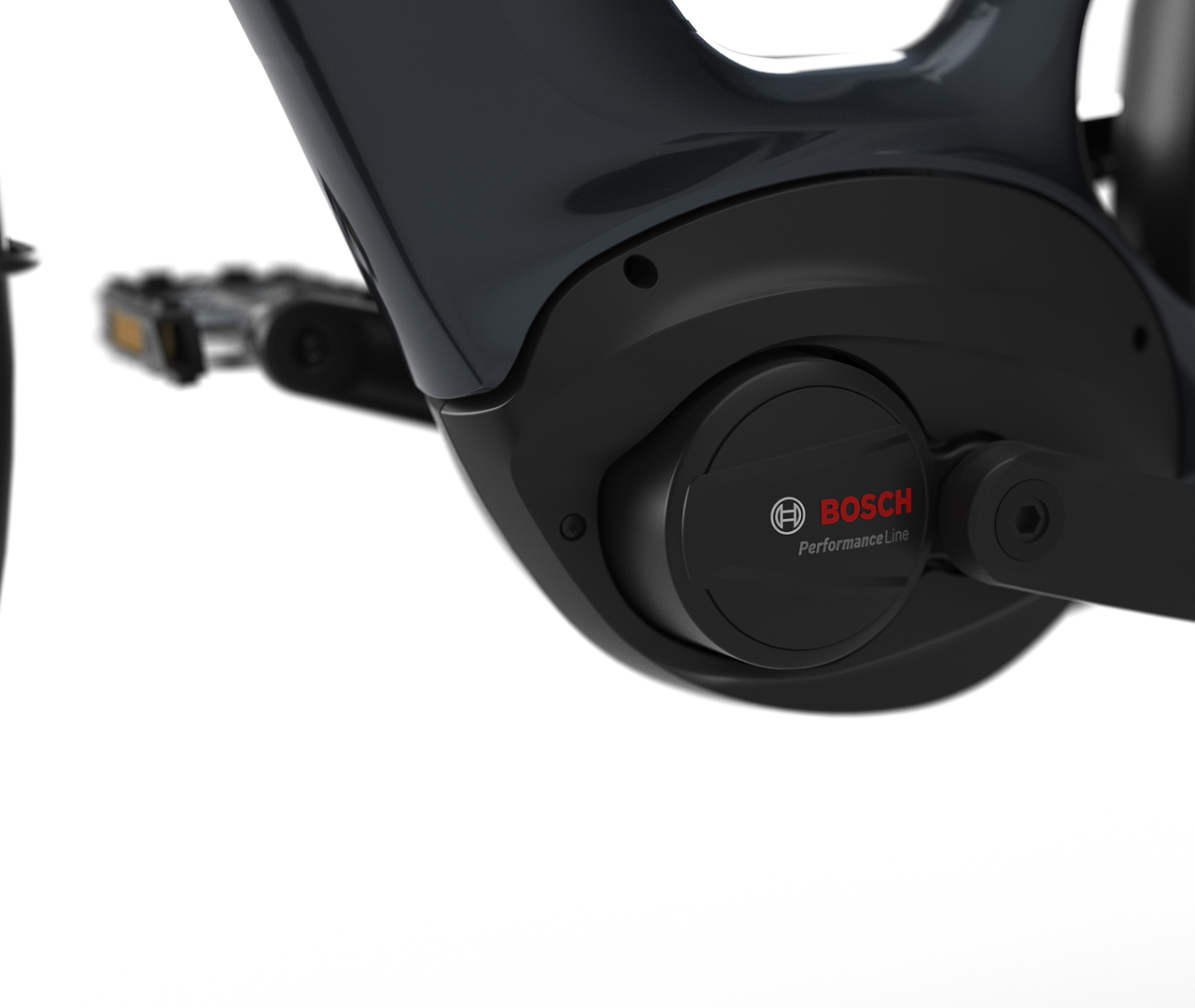

Powerful, mid-drive motor
The Arroyo C5 HMB Elite features a powerful Bosch Performance Line mid-drive motor. Neither headwinds nor hills are a problem with this bike. The battery is integrated into the frame, lowering the center of gravity to improve stability, while providing a sleek look.
Belt drive: quiet and low maintenance
A key feature of the Arroyo C5 HMB Elite is the Gates belt drive. Belt drives have several advantages over chain drives including durability and being low-maintenance. They don't require lubrication and last 3-5 times longer. Additionally, shifting with a belt drive is especially smooth and quiet.

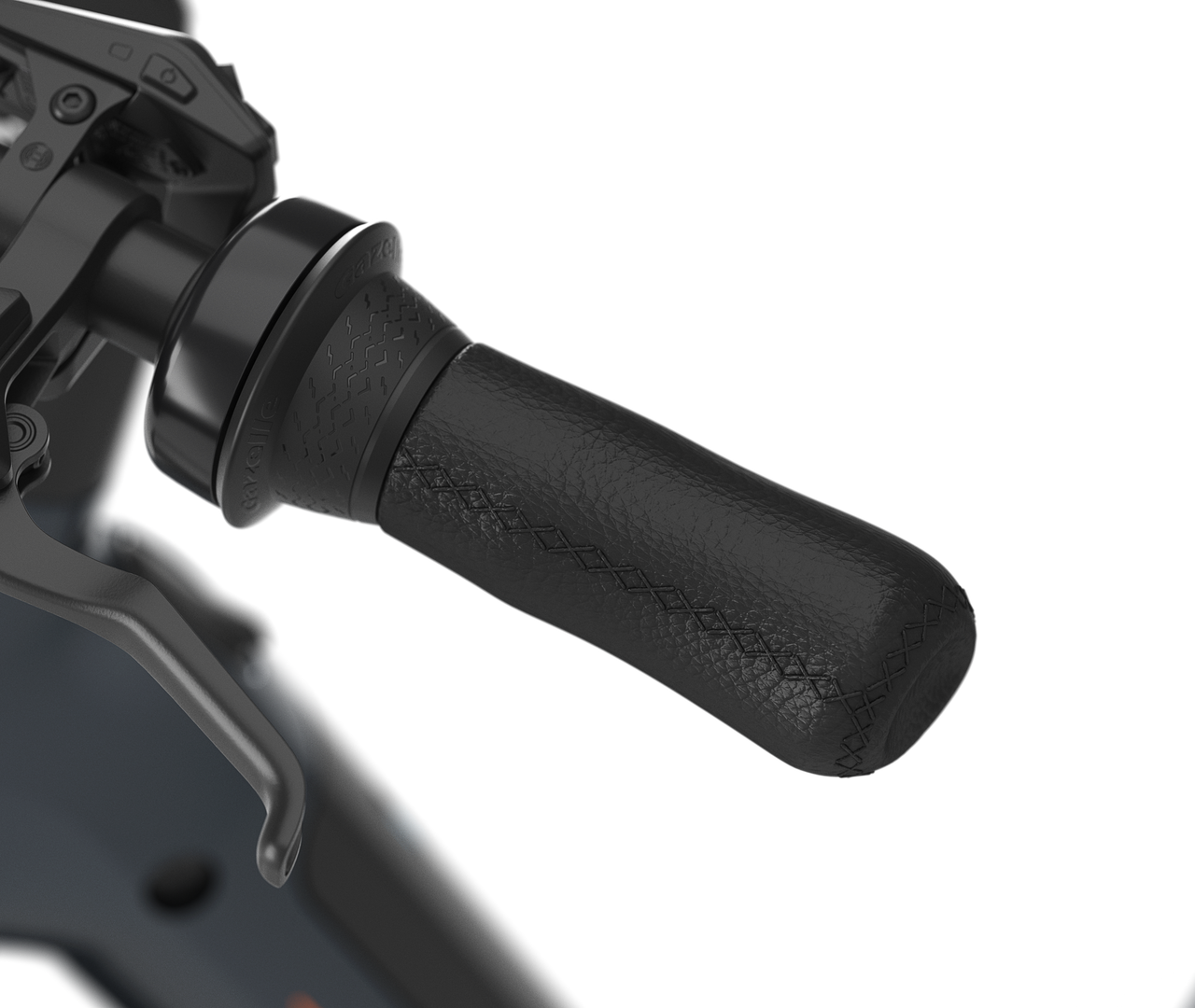

Luxurious finish, more comfort
Details make the difference. The Arroyo C5 HMB Elite has delightful details including leather handlebar grips that fit nicely in the hand and also give the ebike a luxurious touch. The gel seat also improves the comfort level and with attractive appearance. This saddle absorbs bumps and vibrations, easing the impact of the road, even on longer rides.
Powerful and controlled braking
If you're descending or riding in busy traffic, then you'll want to be able to brake safely without thinking about it. Hydraulic disc brakes offer braking power and precision, so you can slow down in a controlled manner at any time — even when it's raining.
)
Specifications
- Color
- Anthracite grey gloss, petrol blue gloss
- Fork suspension
- Mono Integrated
- System Model
- Performance Line
- Motor
- Bosch Smart System Performance Line
- Bike weight description
- Excl. battery
- Weight (kg)
- 24.4 kgs
- Weight
- 24.4 excl. battery
- Color
- Anthracite grey gloss, petrol blue gloss
- Front Light Integrated
- Yes
- Bike Max. Total Weight (kg)
- 130
- Sitting Position
- Upright
- Frame description
- Stable, lightweight hydro-formed aluminium frame with 68.5° headset angle and 69.5° saddle tube angle for relaxed and comfortable riding. This is a low-step and spacious frame, single tube and lovely integrated cables.
- Frame material
- Aluminum
- Cockpit Cable Integration
- Yes
- Frame shape
- Low-Step
- Frame Size CM
- 46, 53, 57
- Fork description
- Aluminium, binnenbalhoofd vering, lichtgewicht
- Fork Material
- Aluminum
- Fork suspension
- Mono Integrated
Frame
Fork
- Front wheel
- 46, Gates
- Rear wheel
- 34, Gates
- Front rim
- Rodi Viper, Double-walled aluminium for extra strong and efficient cycling performance
- Rear rim
- Rodi Viper, Double-walled aluminium for extra strong and efficient cycling performance
- Front hub
- Shimano
- Rear hub
- Shimano Nexus 5, coasterbrake
- WheelSize Front
- 28"
- Wheels Tire Front Etrto
- 47-622
- Front tire
- Schwalbe Energizer Active Plus
- Rear tire
- Schwalbe Energizer Active Plus
- Wheels Tire Front Description
- Schwalbe Energizer Active Plus
Wheels
Tires
- Brand shifters
- Shimano
- Front chainwheel
- 46
- Gear Type
- Hub
- Number of gears
- 5
- Drivetrain
- Belt
- Front Brake Type
- Hydraulic disc brake
- Brake sytem code
- S5
- Front Brake Brand
- Tektro
- Primary Rear Brake Model
- HD-T280
- Front brake
- Tektro HD-T280, 180 mm
- Rear brake
- Tektro HD-T280, 160 mm
- Rear Brake Lever
- Tektro
Gears
Transmission
Brakes
- Handlebar
- Gazelle Aero leather, Luxury leather handlebar grips for a sophisticated feel and extra comfort
- Stem adjustable
- Yes
- Cockpit Handlebar Grip Brand
- Gazelle
- Saddle
- Selle Royal Essenza Plus
Handlebar
Seat
- Front light
- Gazelle Fendervision
- Front Light Energy Source
- Battery
- Front Light Lux
- 50
- Rear Light Energy Source
- Battery
- Rear light
- Spanninga Brasa
Front light
Rear light
- System Model
- Performance Line
- Motor
- Bosch Smart System Performance Line
- Ebike System Brand
- Bosch Smart System
- Ebike Engine Position
- Mid
- Ebike Max Speed mph
- 20
- Engine Max Torque (Nm)
- 75
- Charger
- Bosch
- Ebike Battery Charger Description
- 4 Ah
- Battery Position
- Intergrated in the frame
- Display
- Bosch Intuvia 100
- Display Removeable
- Yes
- Ebike Walk Assist
- Yes
- Display Type
- LCDc
Motor
Battery
Display
- Frame warranty
- 10 year's warranty
- Fork warranty
- 5 year's warranty
- Paint warranty
- 5 year's warranty
- Other parts warranty
- 2 year's warranty
- Battery warranty
- 2 year's warranty
- Motor warranty
- 2 year's warranty
- Display warranty
- 2 year's warranty
Garantie
- Lock
- Axa
- Lock brand
- Axa
- ART classification
- ART**
- Kickstand
- Ursus Mooi
- Coat protector
- Yes
- Rear carrier description
- Aluminum MIK HD system carrier
- Carrier MIK Profile
- Yes
- Rear carrier max load (kg)
- 27
- Rear carrier
- Yes
Lock
Other
Luggage rack
Made by hand, for a superb result every single time.
Take our word for it. Or take a ride.
We've done our best to capture the Gazelle experience in words, but there is nothing like the real thing. So why not book a test ride at one of our Gazelle bike stores?
)
