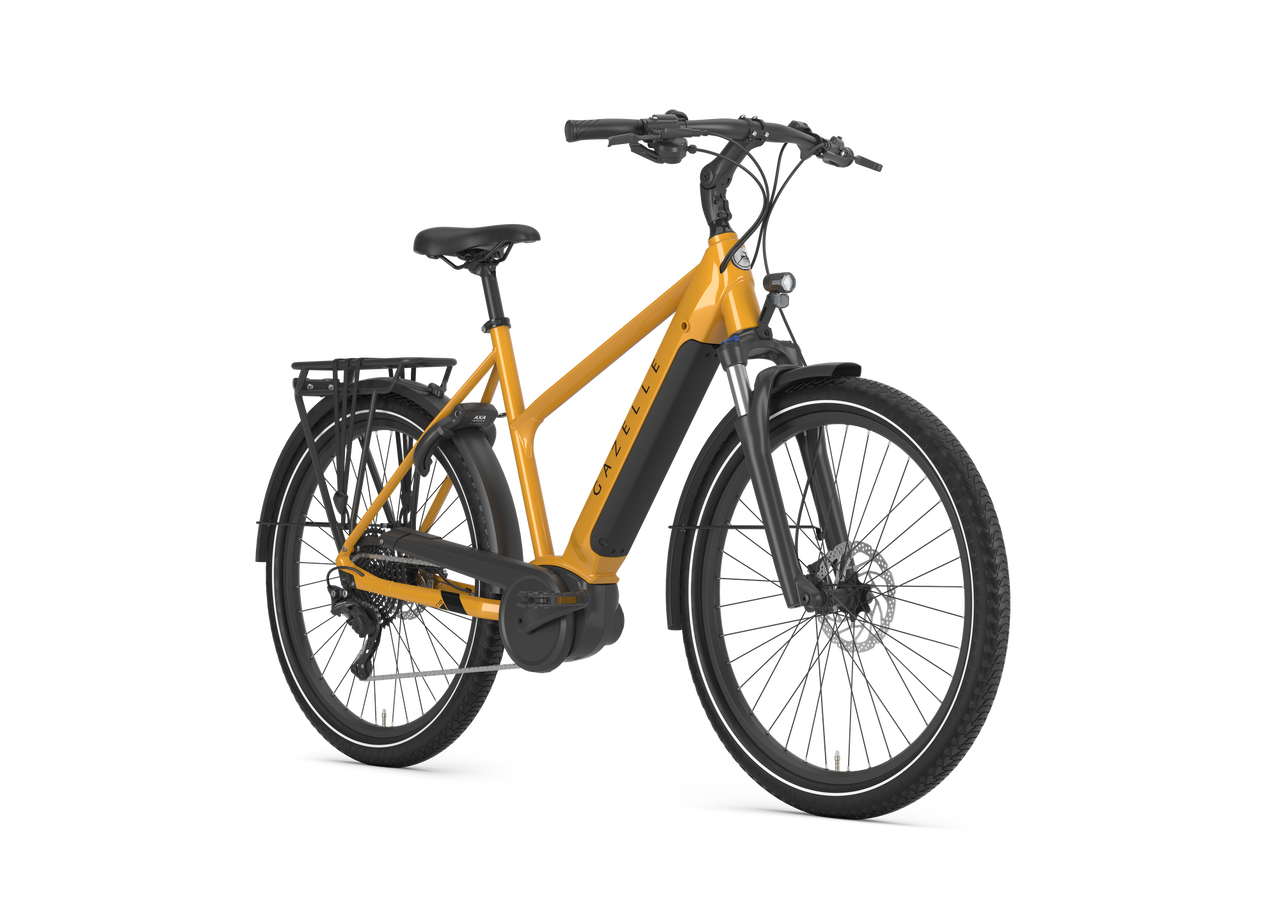

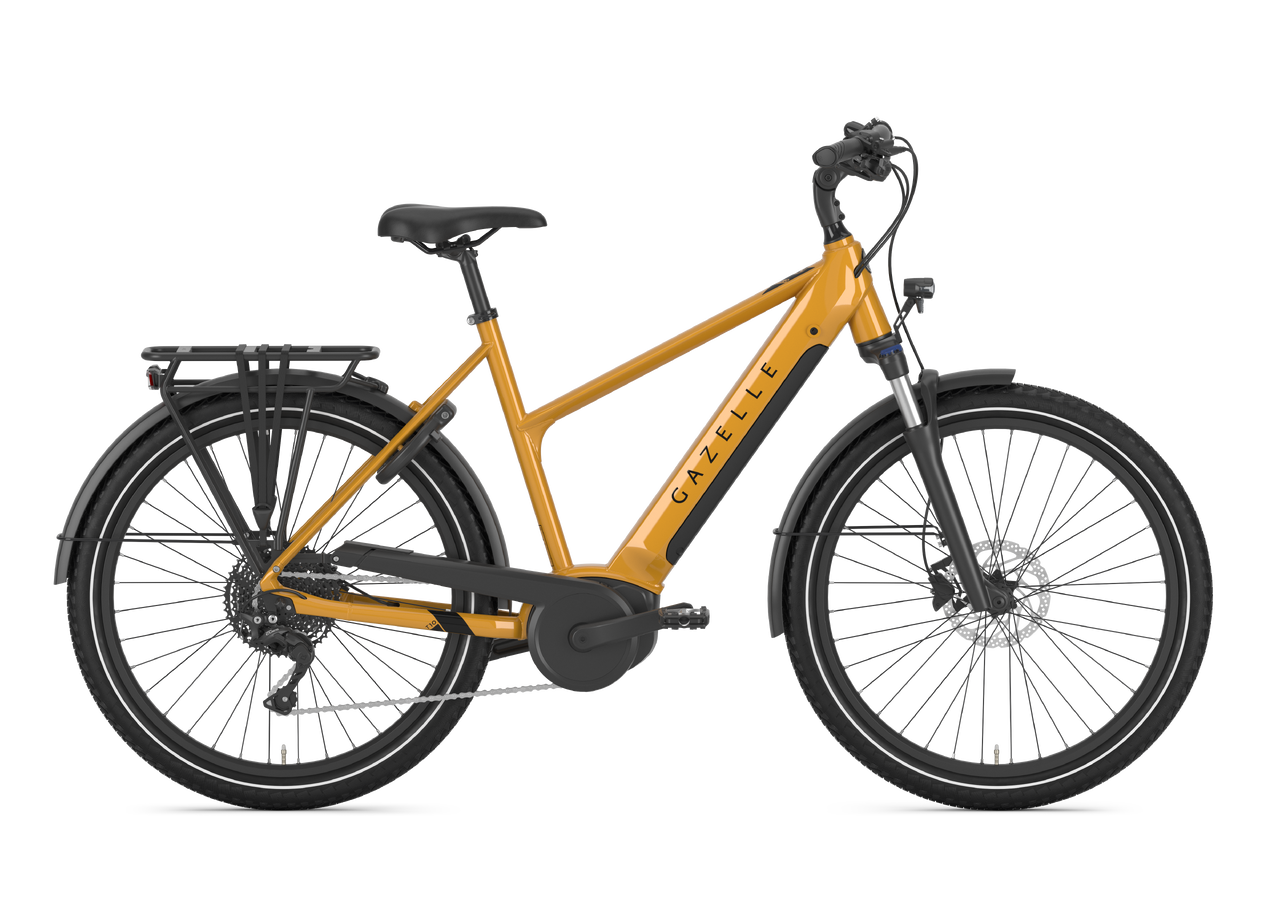

Gazelle MedeoT10 LTD
$4,999$4,799
A multi-purpose, sporty model
Medeo T10 LTD
You are sporty, versatile and stylish. Just like the Medeo T10 HMB. With its derailleur system, beautiful styling and powerful motor, it's as versatile as you are.
Frame shape
High-Step, Mid-Step
Number of gears
10

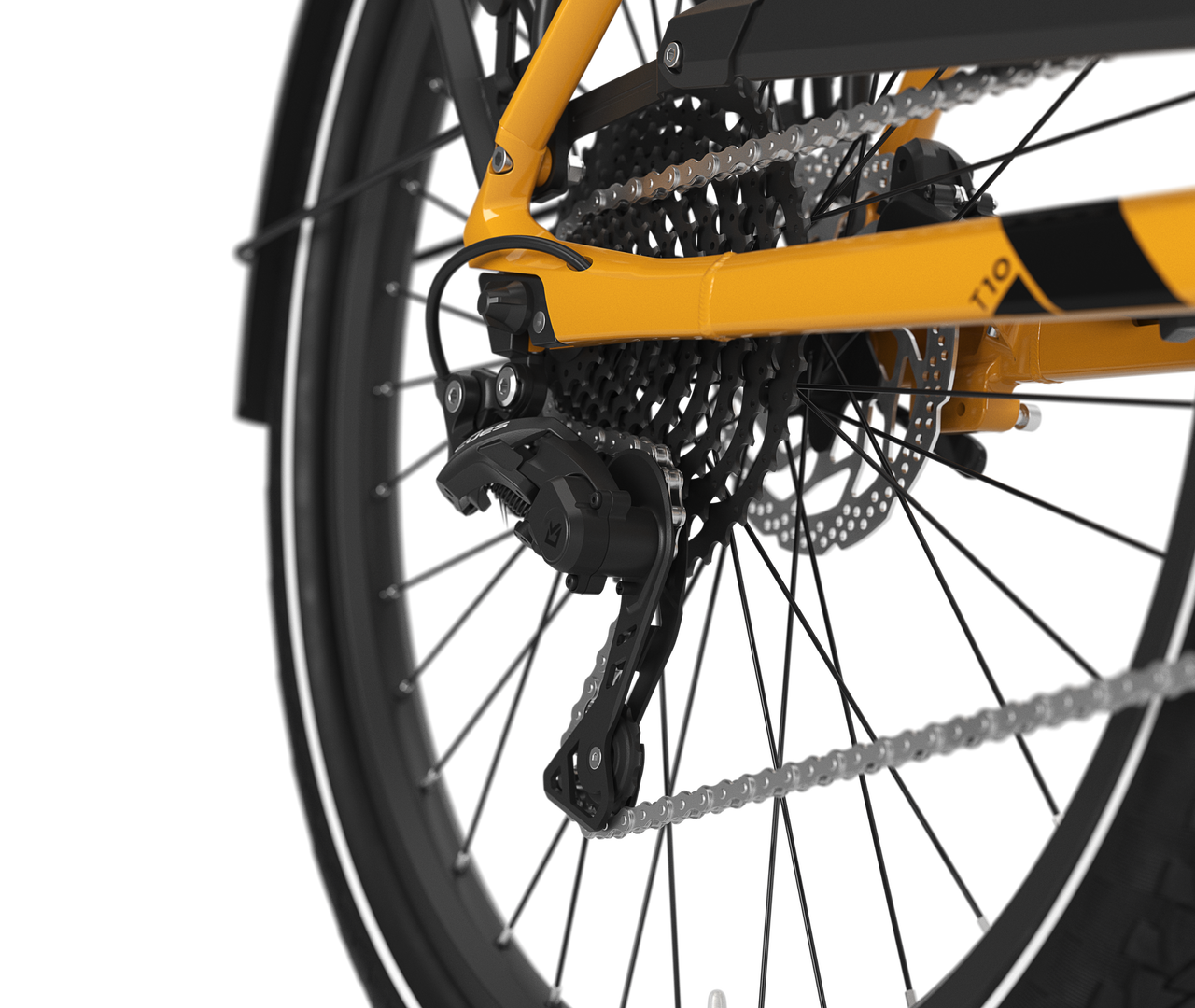

Choose your optimum gear
With the tried-and-tested Shimano derailleur gearing system, you can choose the gear that feels right for you, at any time. Shimano guarantees reliable shifting performance and years of flawless operation. You have 10 gears at your disposal that are easy to operate from the handlebars. The chain is specially reinforced for e-bikes and is designed to cope with the forces generated when shifting gears under load.

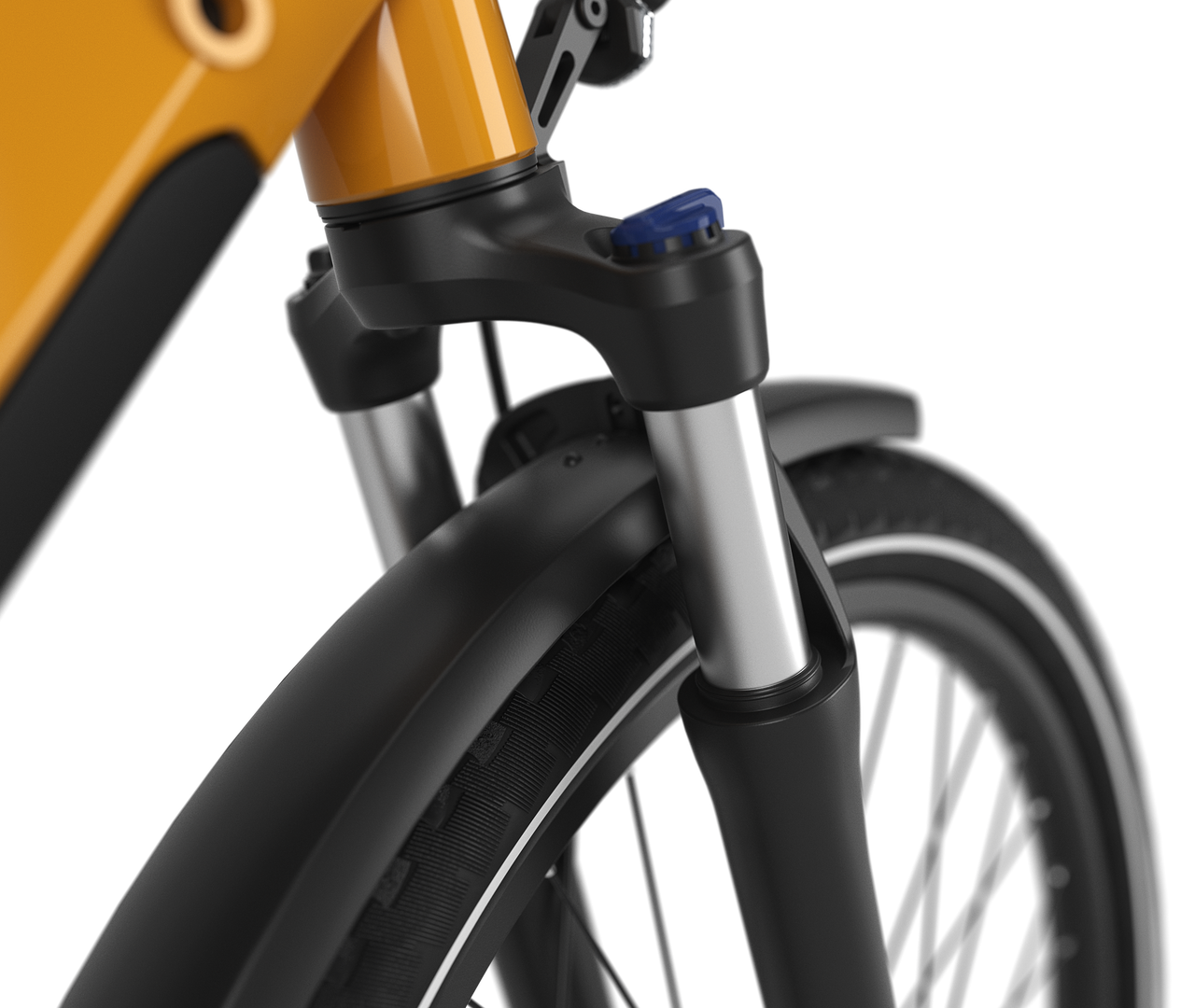

Less jarring on bumpy roads
In terms of comfort, the Medeo T10 LTD is a great choice. The e-bike has wide, anti-puncture tyres that make it a little bit easier to ride over bumps in the road surface. In addition, the bike has a front suspension fork. A cobbled path will feel like cycling on a smooth tarmacked road. With such great riding comfort, you'll also get off the bike fresher and fitter after your commute or a long ride.
Hit the road with confidence

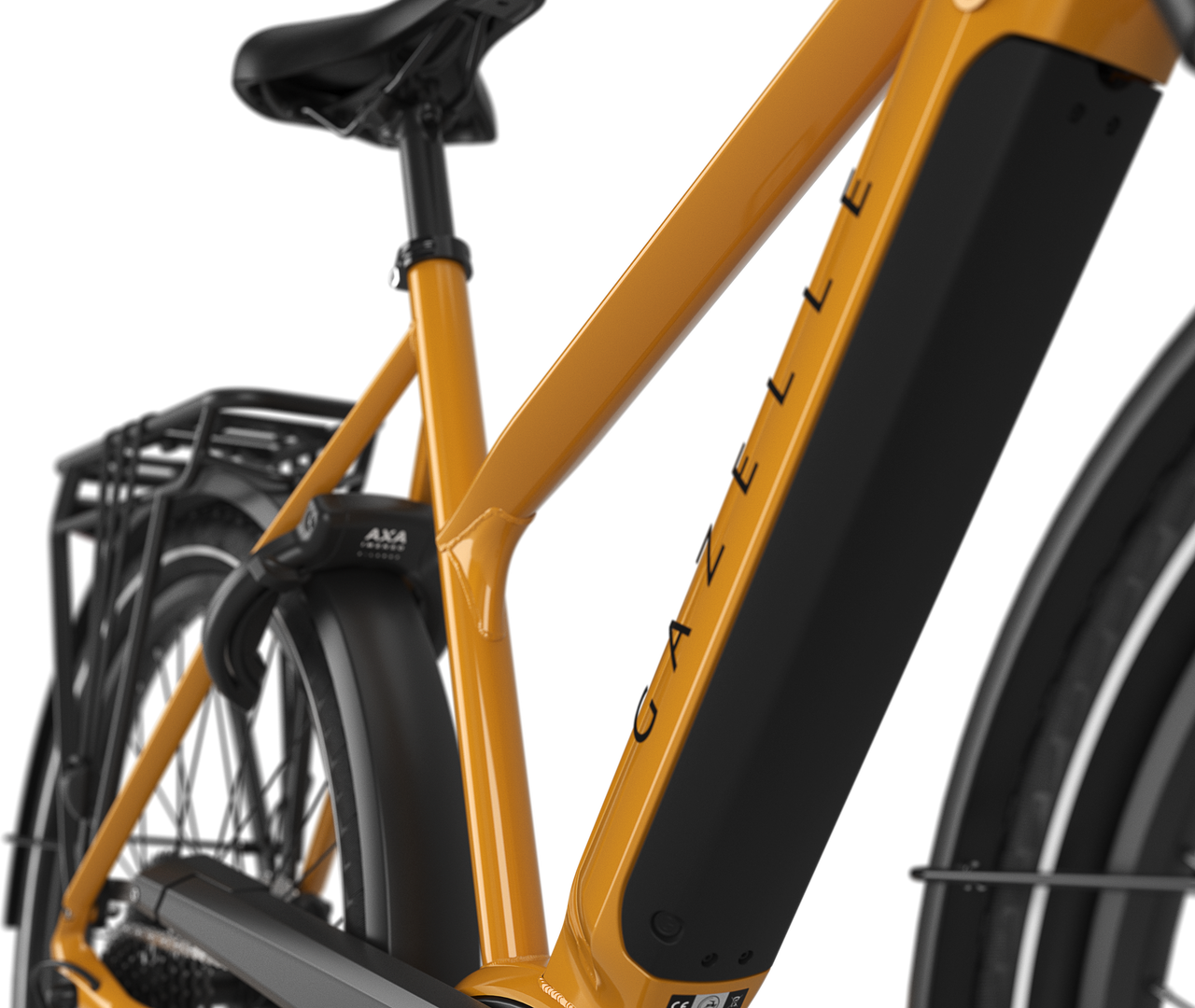

When you look at it, you may not immediately notice that the Medeo T10 LTD is an e-bike. The mid-drive motor is integrated into the frame design and the battery is housed in the robust down tube. Not only does this give the bike a nice appearance, it also ensures good handling. How? The low position of the motor and battery, in the centre of the bike, lowers the centre of gravity. You therefore experience more stability and better road holding.

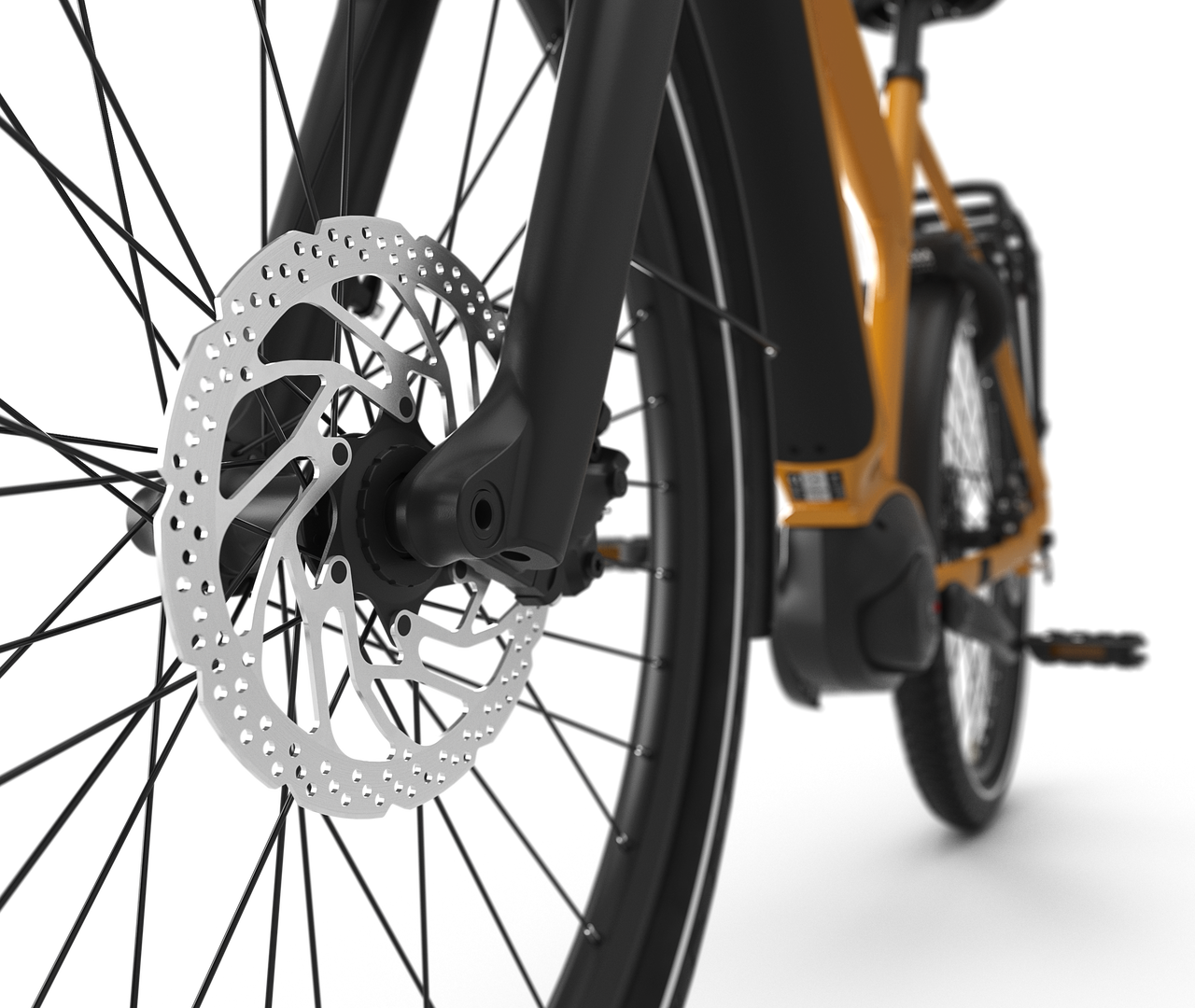

Stop safely every time
With an advanced e-bike like the Medeo T10 LTD, you want to be able to brake safely without even thinking about it. Hydraulic disc brakes are therefore indispensable, as they provide the braking power and the precision for controlled braking at all times — even when it's raining or the roads are wet.
)
)

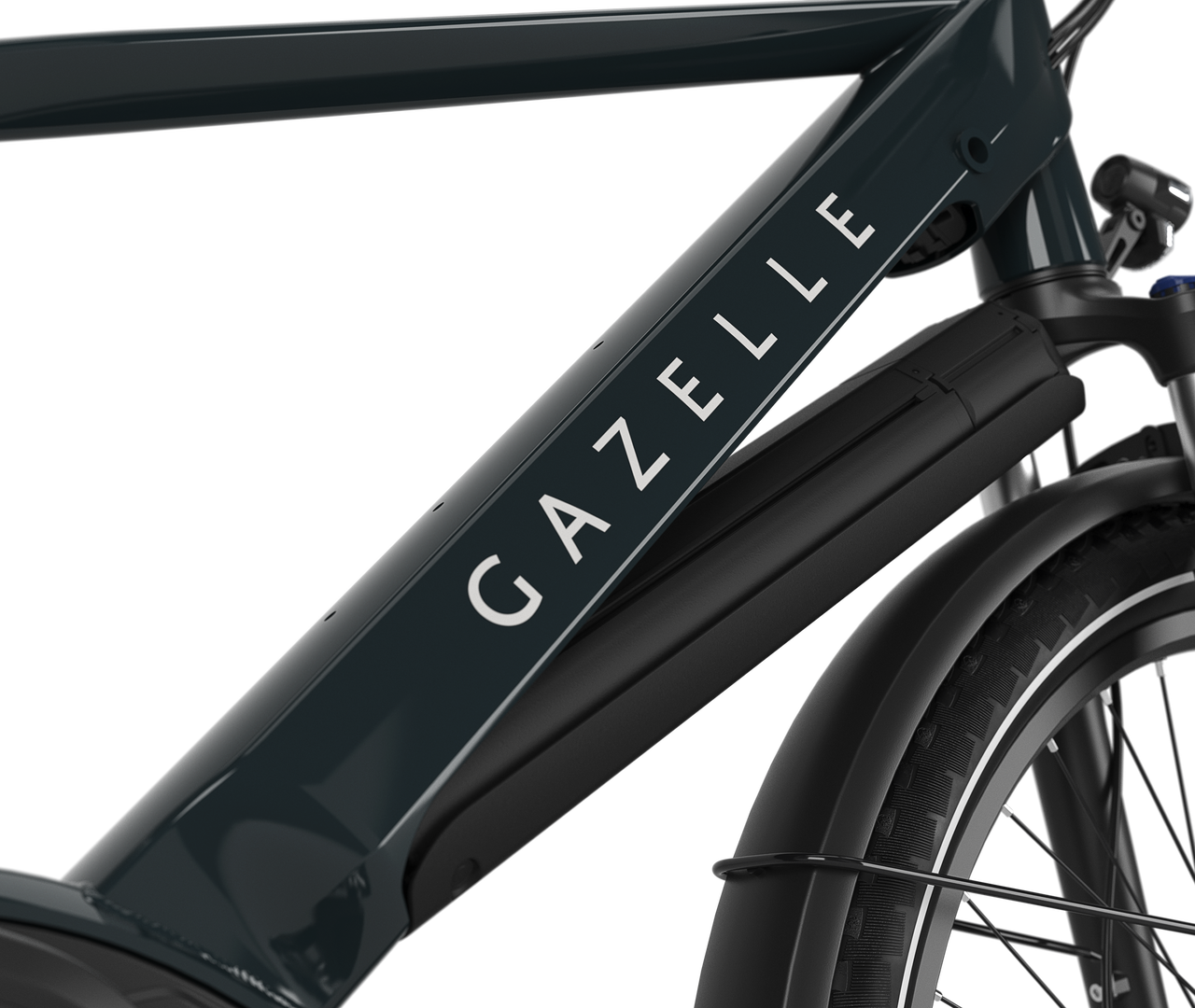

Efficient, integrated power source

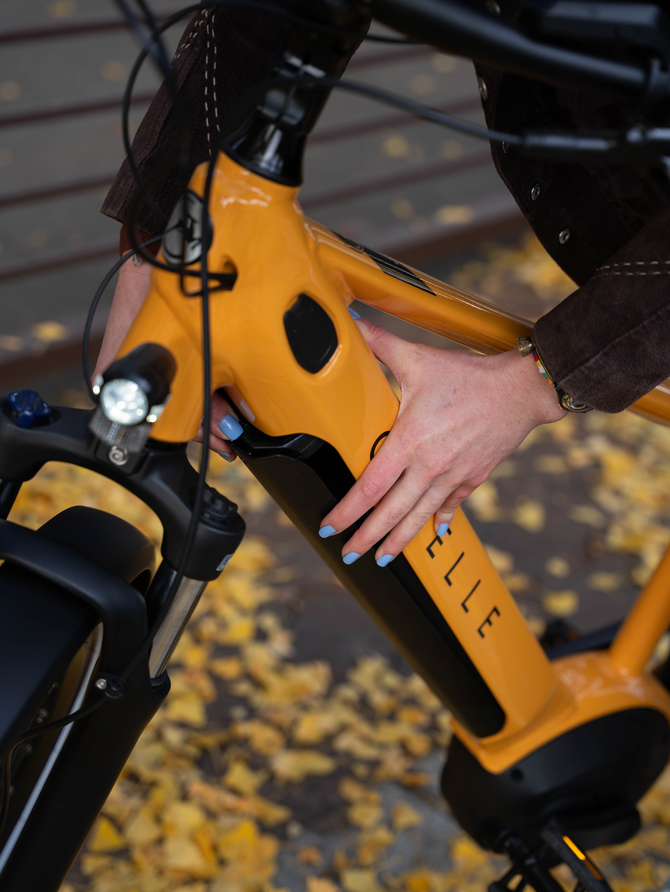

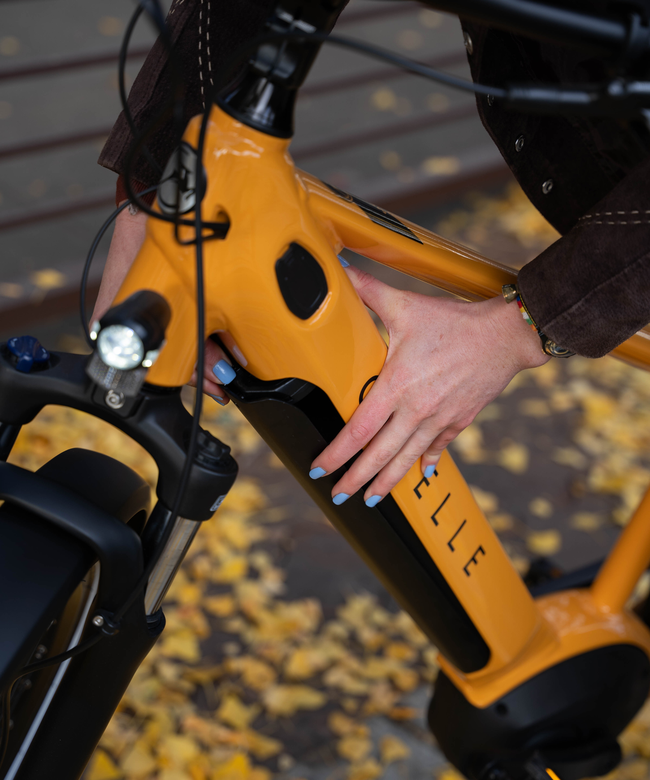

Bosch's lithium-ion batteries are among the most advanced on the market. Their intelligent battery management system guarantees a long life, while the efficient energy control optimises your bike's range. With the integrated 500 Wh battery, you'll always have enough range. The battery is secured in the frame with a lock. You can easily remove it from the bike using the bike key, so you can recharge the battery anywhere.

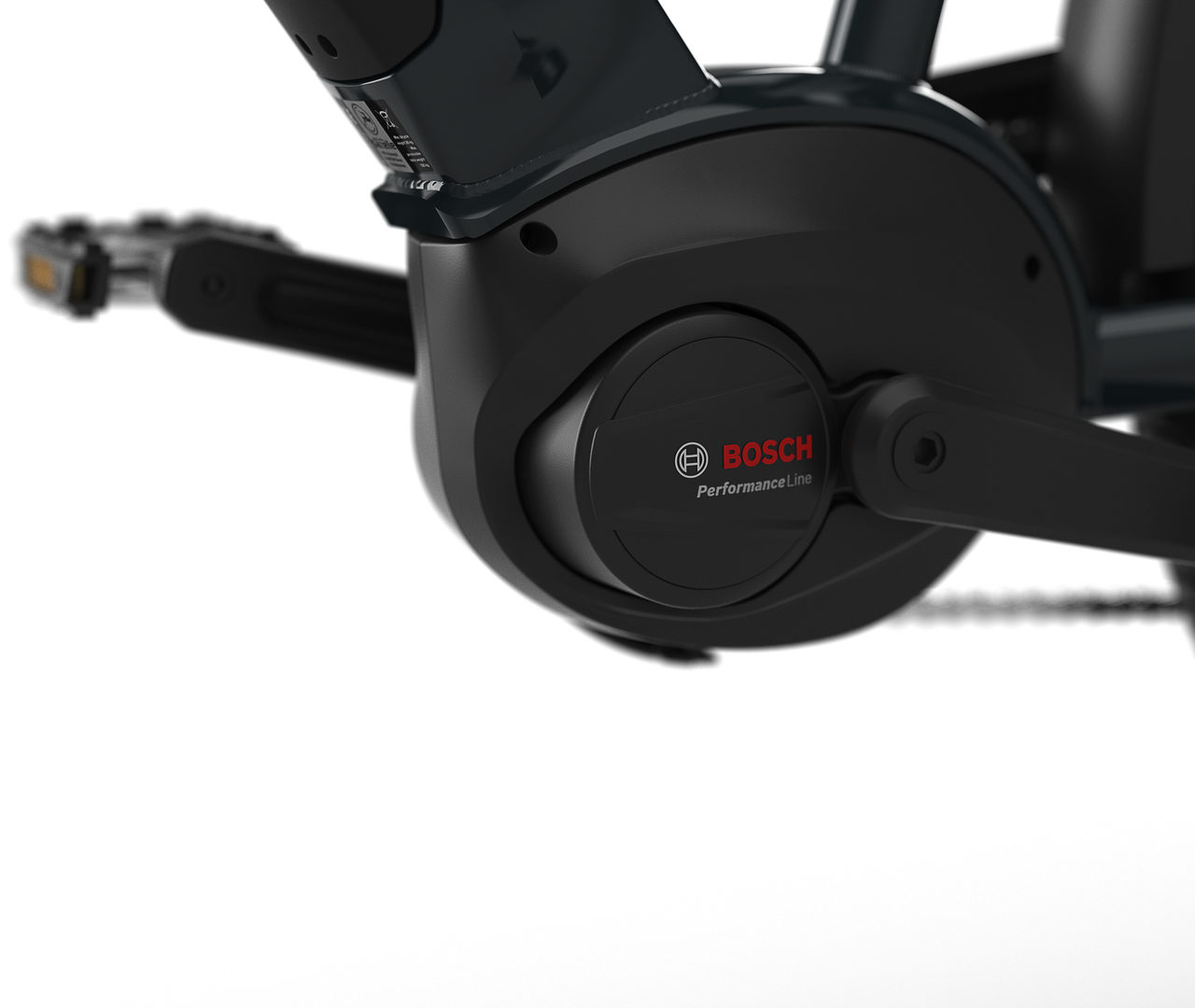

Discover new places with Bosch's quiet, yet powerful motor
The Bosch Performance Line gives you everything your cyclist's heart desires. Smooth and powerful assistance that will never let you down. With 75 Nm torque you can handle any terrain. Highly recommended for the demanding cyclist.
Battery and range
- Watt-hours500 Wh
- Capacity13,4 Ah
- Battery charging time with 2A7 h 30 m
- Battery charging time with 4A4 h 30 m
- Battery positionintegrated in the frame
- Battery brandBosch
- Battery modelIntube
- Battery voltage36V
- Eco80 mi
- Tour50 mi
- Auto35 mi
- Turbo30 mi
Watt-hours
500 Wh
Capacity
13,4 Ah
Battery charging time with 2A
7 h 30 m
Battery charging time with 4A
4 h 30 m
Battery position
integrated in the frame
Battery brand
Bosch
Battery model
Intube
Battery voltage
36V
Eco
80 mi
Tour
50 mi
Auto
35 mi
Turbo
30 mi
Specifications
Model
Medeo
Weight
25.2 excl. battery
Color
pine green gloss, turmeric yellow gloss
segment
Electric bicycles, Trekking
Sitting Position
Sportive
Motor
Ebike System Brand
Bosch Smart System
Motor
Performance Line
Engine Max Torque (Nm)
75
Ebike Engine Position
Mid
Ebike Max Speed mph
20
Battery
Battery Position
integrated in the frame
Charger
Bosch, 2 Ah
Display
Support levels
4
support_values
Eco, Tour, Auto, Turbo
Ebike Walk Assist
Yes
Display
Bosch Purion 200
Display Type
LCD
display_removable
No
Wheels
WheelSize Front
28"
rear_wheel_size
28"
Front rim
Ryde Big Bull, double-walled aluminium for extra strong and efficient cycling performance
Rear rim
Ryde Big Bull, double-walled aluminium for extra strong and efficient cycling performance
Front hub
Shimano
Tyres
Front tire
Continental Contact Plus
Rear tire
Continental Contact Plus
Wheels Tire Front Etrto
62-584
etrto_tire_rear
62-584
Gears
Number of gears
10
Gear Type
Derailleur
Gear
Shimano Deore
Brakes
Front Brake Type
hydraulic disc brake
Rear brake type
hydraulic disc brake/
Front brake
Shimano BR-MT200
Rear brake
Shimano BR-MT200
front_brake_piston_number
2
rear_brake_piston_number
2
Front brake
180 mm
Rear brake
160 mm
front_brake_lever
Shimano BL-MT200
Rear Brake Lever
Shimano BL-MT200
Transmission
Transmission
chain
Drivetrain
Shimano CN-LG500
front_sprocket
38
Frame
Frame shape
High-Step, Mid-Step
Frame Size CM
L(55), M(50), S(45)
Frame description
Stable lightweight aluminium sloping frame with 70, 5° headset angle and 73° seat tube angle for a sporty posture and precise handling. Cables beautifully integrated into the frame.
Frame material
aluminum
Fork
Fork
SR Suntour MOBIE A32 DS
Fork Material
aluminum
Fork suspension
Telescope, spiral spring
fork_travel
75 mm
Fork lockout
Yes
Handlebar
handlebar_description
aluminum, slightly curved
Stem adjustable
Yes
Cockpit Handlebar Grip Brand
Herrmans DD36, plastic wear-resistant handlebar grips for a firm grasp
Seat
Saddle
DDK
Front light
Front light
AXA Compactline 35
Front Light Energy Source
battery
Rear light
Rear light
AXA Blueline
Rear Light Energy Source
battery
Frame warranty
10 year's warranty
Fork warranty
5 year's warranty
Paint warranty
5 year's warranty
Battery warranty
2 year's warranty
Motor warranty
2 year's warranty
Display warranty
2 year's warranty
Other parts warranty
2 year's warranty
Lock
Lock
Axa
lock_description
ring lock with an option for a plug-in cable to attach your bike to a fixed object for extra protection against theft
ART classification
ART**
Other
Kickstand
Ursus Mooi
kickstand_type
drop-down rear stand
Luggage rack
Rear carrier
Yes
Carrier MIK Profile
Yes
Rear carrier description
aluminum MIK HD system carrier
front_carrier
No
| 500 Wh | |
|---|---|
| Capacity | 13,4 Ah |
| Battery charging time with 2A | 7 h 30 m |
| Battery charging time with 4A | 4 h 30 m |
| Battery brand | Bosch |
| Battery model | Intube |
| Battery voltage | 36V |
| Eco | 150 |
| Tour | 90 |
| Auto | 70 |
| Turbo | 60 |
500 Wh
Capacity
13,4 Ah
Battery charging time with 2A
7 h 30 m
Battery charging time with 4A
4 h 30 m
Battery brand
Bosch
Battery model
Intube
Battery voltage
36V
Eco
150
Tour
90
Auto
70
Turbo
60
)
Made by hand, for a superb result every single time.
Take our word for it. Or take a ride.
We've done our best to capture the Gazelle experience in words, but there is nothing like the real thing. So why not book a test ride at one of our Gazelle bike stores?
