Gazelle MedeoT9 City
$3,499
Medeo T9 City
An ebike with sporty DNA that's also good value for money: Medeo T9 City HMB. Go for reliable assistance, nine-speed derailleur, powerful disc brakes and great riding comfort.
Frame shape
Low-Step
Number of gears
9
Easy on, easy off
The Medeo T9 City's updated, reengineered frame removes the secondary supporting tube to make this bike a true low-step.The result is a sporty yet accessible ebike. The new, slightly beefier frame offers improved stiffness and stability, while lowering the center of gravity for a balanced ride feel. The addition of a rear hub lock adds security and peace of mind for the rider.
Expand your possibilities

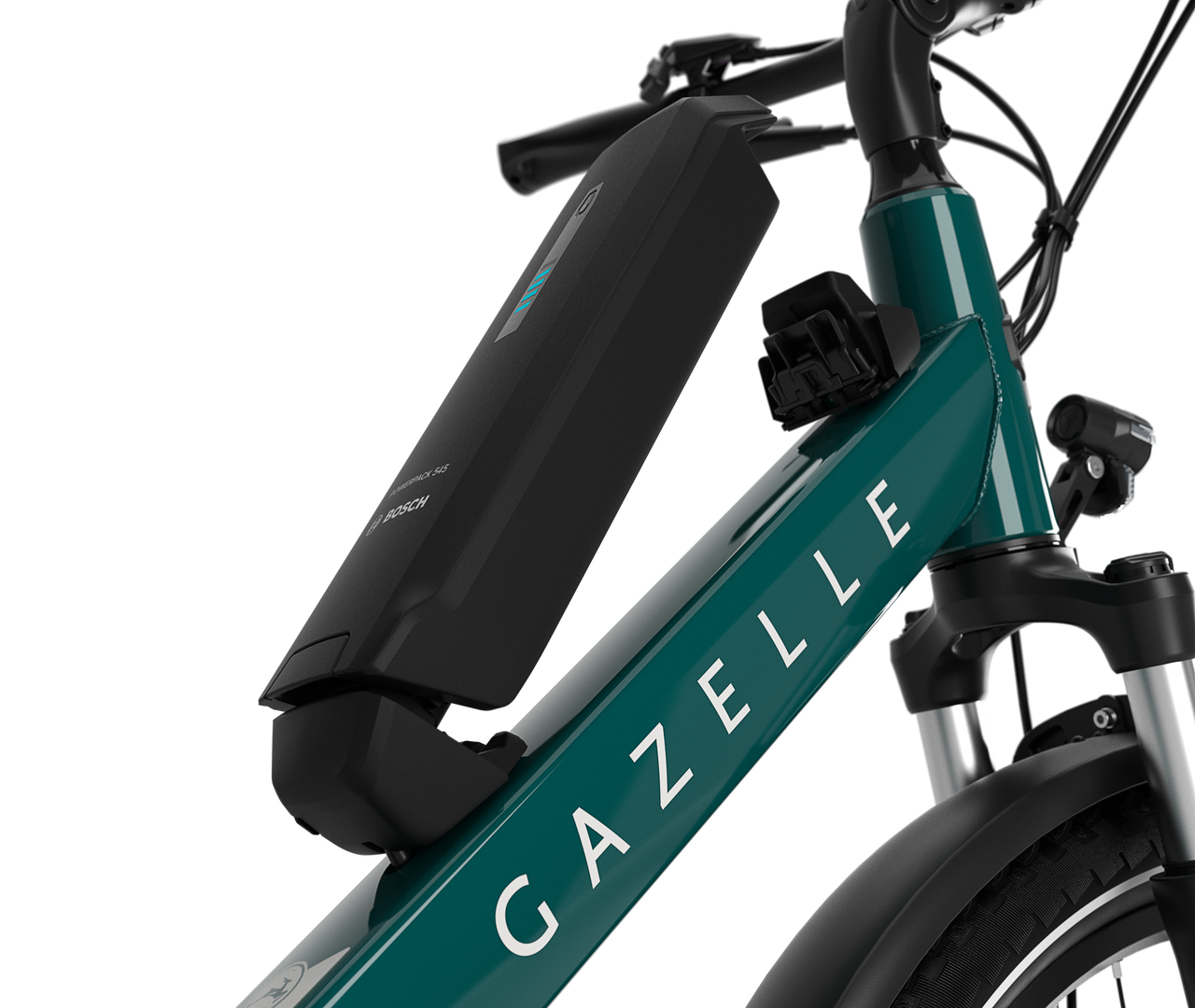

With the new edition Medeo T9 City, we have moved the 400 Wh battery from the rear rack to the down tube. The on-tube battery placement frees up space on the rear rack, allowing us to spec an MIK rack, offering the option to carry more cargo for big trips and big shops alike.
Hit the road with confidence
We developed the Medeo T9 City with accessibility in mind. To enhance this even further with this next generation, we have specced smaller wheels (27.5") and our widest tires to date, 62mm Continental Contact Plus tires. In addition, we have added a new XS frame size offer smaller riders (4'9 - 5'2) a chance to experience the joy of Gazelle.
Smooth and silent support
Bosch’s updated Smart System Active Line motor offers smooth and silent support with up to 40 Nm of torque for the Medeo T9 City, and expanded functionality to enhance the ride experience. This includes the popular adaptive Auto Mode, which delivers a customized, optimized ride based on unique rider inputs measured by the ebike system in real time.
Craftsmanship
With over 130 years of expertise, we know precisely what we're doing. Creating bicycles that you can rely on. What begins with a design comes together in our factory. Where we work everyday to create the perfect Gazelle for you.
Modern, efficient energy source
Bosch's lithium-ion batteries are among the most advanced on the market. The intelligent battery management system protects them against overheating, overloading and complete discharge, guaranteeing a long battery life. The high energy density and efficient operation ensure optimum range. With the 400-Wh battery, you'll always have enough range. The battery is reliably secured with a lock on your frame and is easily removed using your bike key. Convenient, as you can charge the battery either on or off the bike.

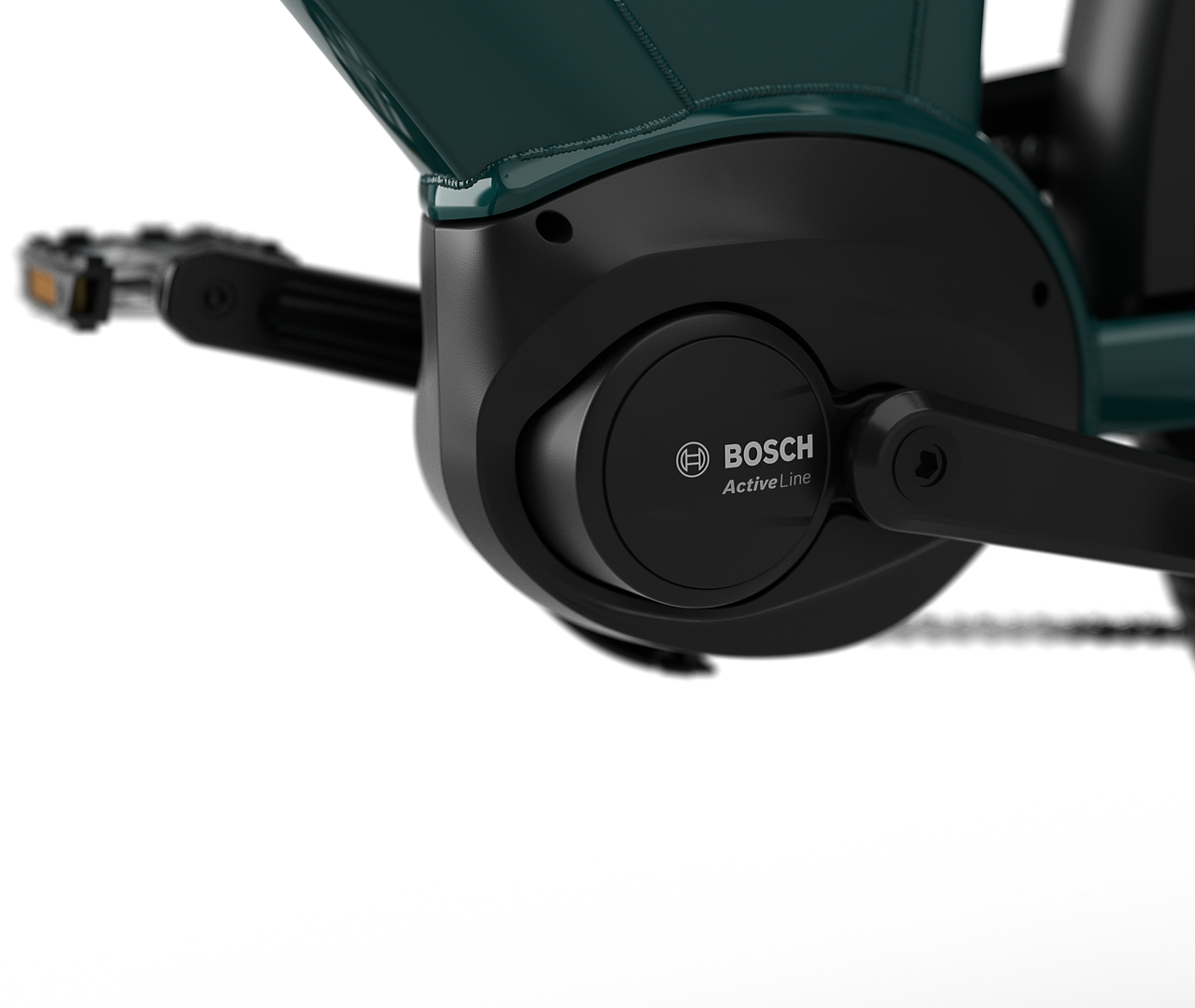

With the Bosch Active Line motor, cycling is always a relaxing experience
With the Bosch Active Line (40 Nm) you can cycle effortlessly through traffic. The low positioning gives the bike excellent road-holding and manoeuvrability. This motor is highly suited for the city or gently hilly terrains.
Battery and range
- Watt-hours400 Wh
- Capacity11,1 Ah
- Battery charging time with 2A6 h 30 m
- Battery charging time with 4A3 h 30 m
- Battery positionon the frame
- Battery brandBosch
- Battery modelIntube
- Battery voltage36V
- Eco75 mi
- Tour45 mi
- Auto35 mi
- Turbo30 mi
Watt-hours
400 Wh
Capacity
11,1 Ah
Battery charging time with 2A
6 h 30 m
Battery charging time with 4A
3 h 30 m
Battery position
on the frame
Battery brand
Bosch
Battery model
Intube
Battery voltage
36V
Eco
75 mi
Tour
45 mi
Auto
35 mi
Turbo
30 mi
Specifications
- Color
- Caramel khaki gloss, thyme green gloss
- Fork suspension
- Telescope, spiral spring
- Bike weight description
- Excl. battery
- Weight (kg)
- 22.9 kgs
- Weight
- 22.9 excl. battery
- Color
- Caramel khaki gloss, thyme green gloss
- Bike Max. Total Weight (kg)
- 130
- Sitting Position
- Sportive
- Frame description
- Stable lightweight aluminium sloping frame with 70,5° headset angle and 73° saddle tube angle for a sporty posture and precise handling. Cables beautifully integrated into the frame.
- Frame material
- Aluminum
- Cockpit Cable Integration
- Yes
- Frame shape
- Low-Step
- Frame Size CM
- 40, 45, 50, 55
- Fork
- SR Suntour MOBIE A32 DS
- Fork Material
- Aluminum
- Fork suspension
- Telescope, spiral spring
- Fork lockout
- Yes
Frame
Fork
- Front rim
- Ryde Big Bull, double-walled aluminium for extra strong and efficient cycling performance
- Rear rim
- Ryde Big Bull, double-walled aluminium for extra strong and efficient cycling performance
- Front hub
- Shimano
- WheelSize Front
- 27.5"
- Wheels Tire Front Etrto
- 62-584
- Front tire
- Continental Contact Plus
- Rear tire
- Continental Contact Plus
Wheels
Tires
- Brand shifters
- Shimano
- Cassette Range
- 11-36
- Gear Type
- Derailleur
- Number of gears
- 9
- Rear derailleur
- Shimano Alivio M3100
- Drivetrain
- Chain
- Front Brake Type
- Hydraulic disc brake
- Brake sytem code
- S9
- Front Brake Brand
- Shimano
- Primary Rear Brake Model
- BR-MT200
- Front brake
- Shimano BR-MT200, 180 mm
- Rear brake
- Shimano BR-MT200, 160 mm
- Rear Brake Lever
- BLMT200
Gears
Transmission
Brakes
- Handlebar
- Herrmans DD36, plastic wear-resistant handlebar grips for a firm grasp
- Stem adjustable
- Yes
- Cockpit Handlebar Grip Brand
- Herrmans
- Saddle
- DDK
Handlebar
Seat
- Front light
- AXA Compactline 35
- Front Light Energy Source
- Battery
- Front Light Lux
- 35
- Rear Light Energy Source
- Battery
- Rear light
- AXA Blueline
Front light
Rear light
- Motor
- Bosch Smart System Active Line
- System Model
- Active Line
- Ebike System Brand
- Bosch Smart System
- Ebike Engine Position
- Mid
- Ebike Max Speed kmh
- 25
- Ebike Max Speed mph
- 20
- Engine Max Torque (Nm)
- 40
- Charger
- Bosch Compact Charger,
- Ebike Battery Charger Description
- 2 Ah
- Battery Position
- On the frame
- Display
- Bosch Purion 200
- Ebike Walk Assist
- Yes
- Display Type
- LED
Motor
Battery
Display
- Frame warranty
- 10 year's warranty
- Fork warranty
- 5 year's warranty
- Paint warranty
- 5 year's warranty
- Other parts warranty
- 2 year's warranty
- Battery warranty
- 2 year's warranty
- Motor warranty
- 2 year's warranty
- Display warranty
- 2 year's warranty
Garantie
- ART classification
- ART**
- Kickstand
- Ursus Mooi
- Rear carrier description
- Aluminum MIK system carrier
- Carrier MIK Profile
- Yes
- Rear carrier max load (kg)
- 25
- Rear carrier
- Yes
Lock
Other
Luggage rack
Made by hand, for a superb result every single time.
Take our word for it. Or take a ride.
We've done our best to capture the Gazelle experience in words, but there is nothing like the real thing. So why not book a test ride at one of our Gazelle bike stores?
