Gazelle UltimateT10
$5,999$5,499
The ebike for long recreational trips
Ultimate T10
The Ultimate T10 is perfect for getting out in the great outdoors. Enjoy hills or flat terrain for as long as you want. This sporty bike has an award-winning frame and high-quality finish.
Frame shape
High-Step, Low-Step
Number of gears
10
Craftsmanship
With over 130 years of expertise, we know precisely what we're doing. Creating bicycles that you can rely on. What begins with a design comes together in our factory. Where we work everyday to create the perfect Gazelle for you.
)
Discover the Ultimate
)
:focus(true):quality(70))
)
"This e-bike is the best purchase I've made in years! I love the auto-function and have ridden it almost daily since I've gotten it."
Karen
Efficient, integrated power source

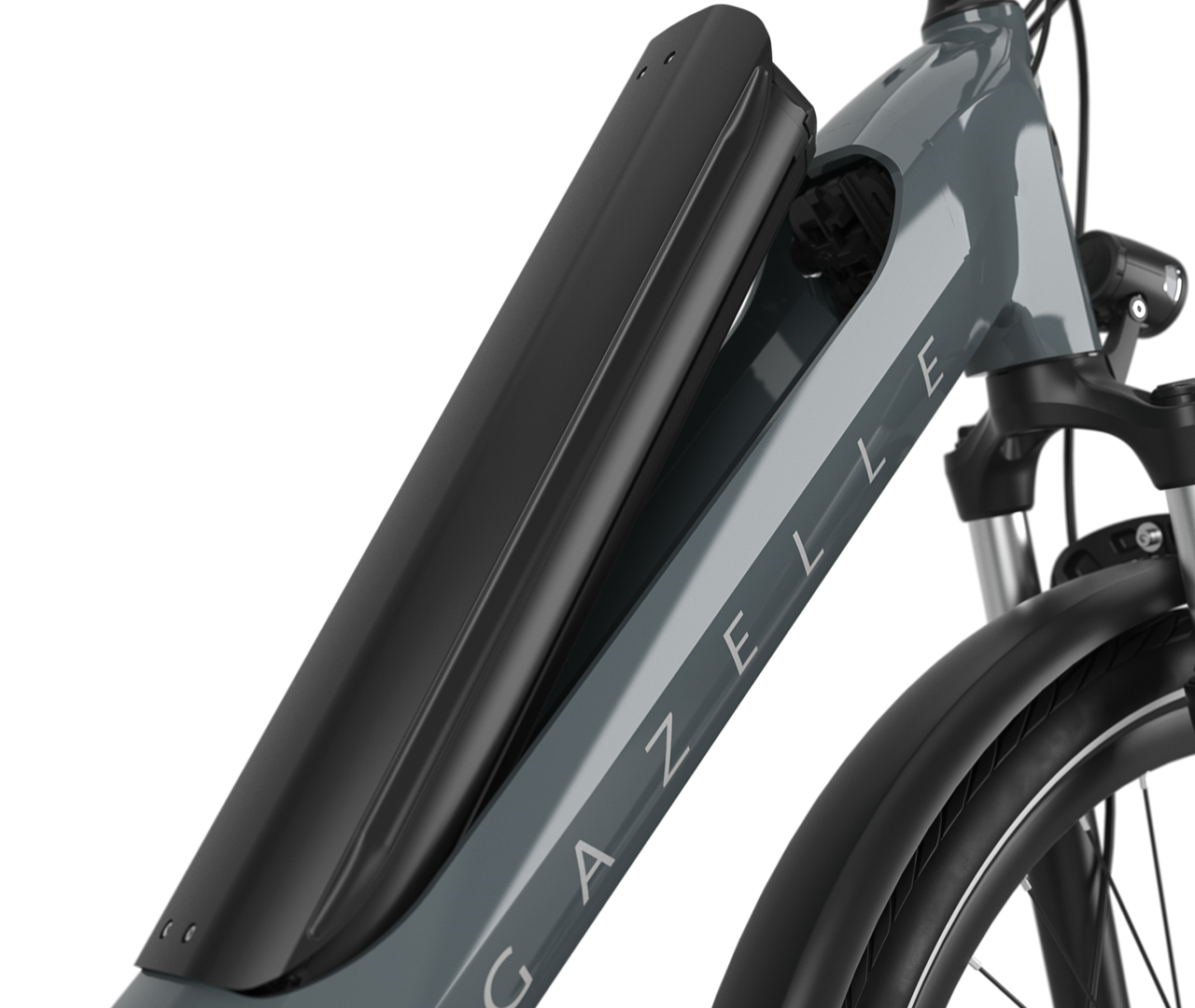

Bosch's lithium-ion batteries are among the most advanced on the market. Their intelligent battery management system guarantees a long life, while the efficient energy control optimizes your bike's range. With the integrated 625 Wh battery, you'll always have enough range. The battery is secured in the frame with a lock. You can easily remove it from the bike using a key that also works on the café lock, so you can recharge the battery anywhere.
The wind is always at your back with a Bosch Performance Line motor
The Bosch Performance Line gives you everything your cyclist's heart desires. Smooth and powerful assistance that will never let you down. With 75 Nm torque you can handle any terrain. Highly recommended for the demanding cyclist.
Battery and range
- Watt-hours625 Wh
- Capacity16,7 Ah
- Battery charging time with 4A4 h 54 m
- Battery positionintegrated in the frame
- Battery brandBosch
- Battery modelIntube
- Battery voltage36V
- Eco100 mi
- Tour60 mi
- Auto45 mi
- Turbo40 mi
Watt-hours
625 Wh
Capacity
16,7 Ah
Battery charging time with 4A
4 h 54 m
Battery position
integrated in the frame
Battery brand
Bosch
Battery model
Intube
Battery voltage
36V
Eco
100 mi
Tour
60 mi
Auto
45 mi
Turbo
40 mi
)
:focus(true):quality(70))
Specifications
Model
Ultimate
Weight
24.3 excl. battery
Color
thunder grey gloss, frozen white gloss
segment
Electric bicycles, Trekking
Sitting Position
Active
Motor
Ebike System Brand
Bosch Smart System
Motor
Performance Line
Engine Max Torque (Nm)
75
Ebike Engine Position
Mid
Ebike Max Speed mph
20
Battery
Battery Position
integrated in the frame
Charger
Bosch, 4 Ah
Display
Support levels
4
support_values
Eco, Tour, Auto, Turbo
Ebike Walk Assist
Yes
Display
Bosch Kiox 300
Display Type
LCD colour
display_removable
Yes
Wheels
WheelSize Front
28"
rear_wheel_size
28"
Front rim
Dutch 19 Dutch 19, double-walled aluminium for extra strong and efficient cycling performance
Rear rim
Dutch 19 Dutch 19, double-walled aluminium for extra strong and efficient cycling performance
Front hub
Shimano
rear_hub
Shimano Deore
Tyres
Front tire
Schwalbe Energizer Plus
Rear tire
Schwalbe Energizer Plus
Wheels Tire Front Etrto
50-622
etrto_tire_rear
50-622
Gears
Number of gears
10
Gear Type
Derailleur
Gear
Shimano Shimano
Brakes
Front Brake Type
hydraulic disc brake
Rear brake type
hydraulic disc brake/
Front brake
Shimano BR-MT420
Rear brake
Shimano BR-MT410
front_brake_piston_number
4
rear_brake_piston_number
4
Front brake
180 mm
Rear brake
160 mm
front_brake_lever
Shimano BL-MT420
Rear Brake Lever
Shimano BL-MT420
Transmission
Transmission
chain
Drivetrain
KMC E10
front_sprocket
38
Frame
Frame shape
High-Step, Low-Step
Frame Size CM
M(53), S(46), L(57)
Frame description
Stable aluminium frame with 70, 5° headset angle and 71, 5° seat tube angle for sporty cycling characteristics. Battery, motor and cables harmoniously integrated into the frame. High-quality finish with attention to detail.
Frame material
aluminum
Fork
Fork
SR Suntour NVX30
Fork Material
aluminum
Fork suspension
Telescope, spiral spring
fork_travel
75 mm
Fork lockout
Yes
Handlebar
handlebar_description
aluminum, slightly curved
Stem adjustable
Yes
Cockpit Handlebar Grip Brand
Ergon GP1-L ergonomic, plastic handlebar grips with ergonomic form for a better distribution of pressure on the hands
Seat
Saddle
Selle Royal Essenza Plus
Front light
Front light
Herrmans MR8
Front Light Energy Source
battery
Rear light
Rear light
Spanninga Commuter Glow
Rear Light Energy Source
battery
Frame warranty
10 year's warranty
Fork warranty
5 year's warranty
Paint warranty
5 year's warranty
Battery warranty
2 year's warranty
Motor warranty
2 year's warranty
Display warranty
2 year's warranty
Other parts warranty
2 year's warranty
Lock
Lock
Axa
lock_description
ring lock with an option for a plug-in cable to attach your bike to a fixed object for extra protection against theft
ART classification
ART**
Other
Kickstand
Ursus Mooi
kickstand_type
drop-down rear stand
Luggage rack
Rear carrier
Yes
Carrier MIK Profile
Yes
Rear carrier description
aluminum MIK HD system carrier
front_carrier
No
| 625 Wh | |
|---|---|
| Capacity | 16,7 Ah |
| Battery charging time with 4A | 4 h 54 m |
| Battery brand | Bosch |
| Battery model | Intube |
| Battery voltage | 36V |
| Eco | 185 |
| Tour | 110 |
| Auto | 85 |
| Turbo | 75 |
625 Wh
Capacity
16,7 Ah
Battery charging time with 4A
4 h 54 m
Battery brand
Bosch
Battery model
Intube
Battery voltage
36V
Eco
185
Tour
110
Auto
85
Turbo
75
)
Made by hand, for a superb result every single time.
Take our word for it. Or take a ride.
We've done our best to capture the Gazelle experience in words, but there is nothing like the real thing. So why not book a test ride at one of our Gazelle bike stores?
