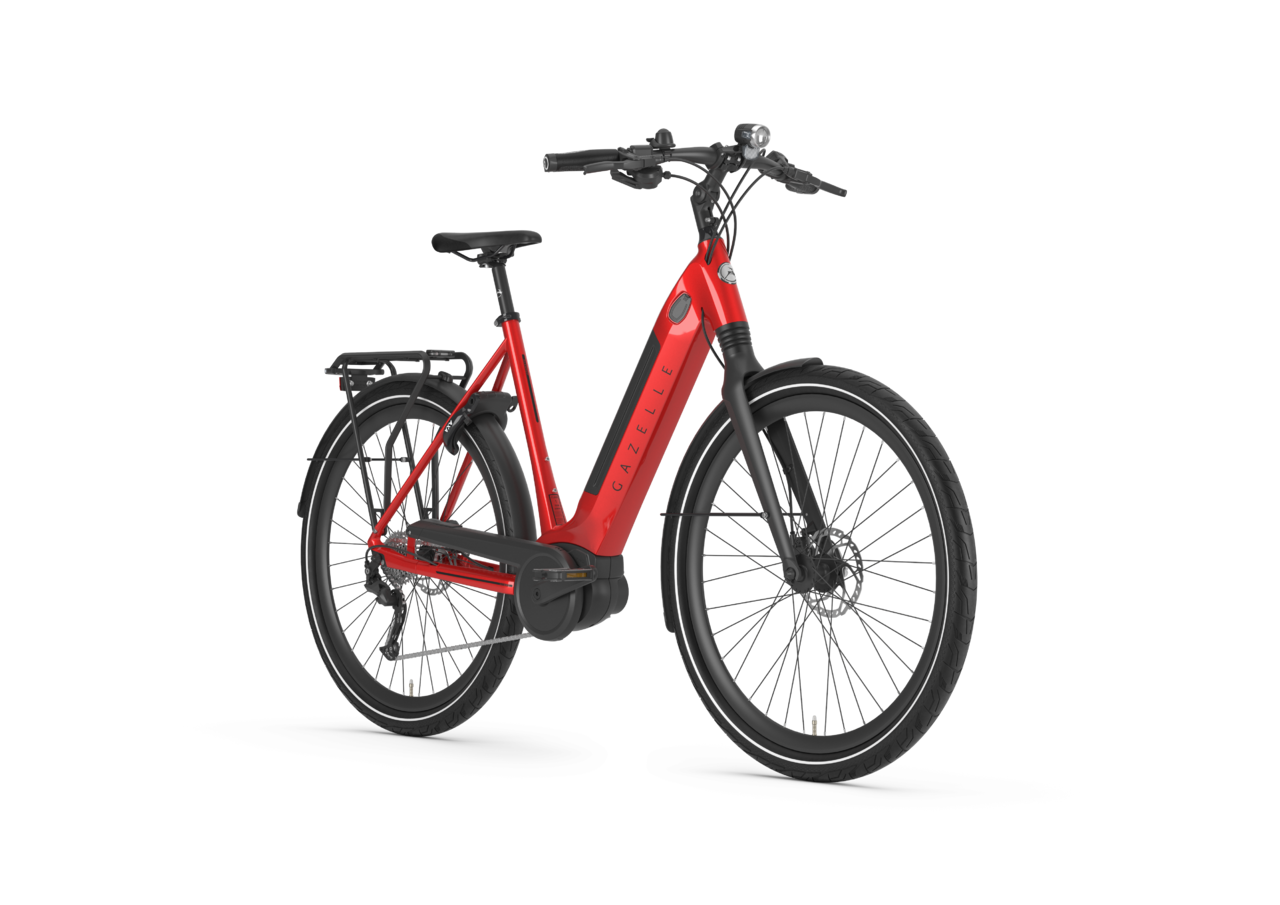

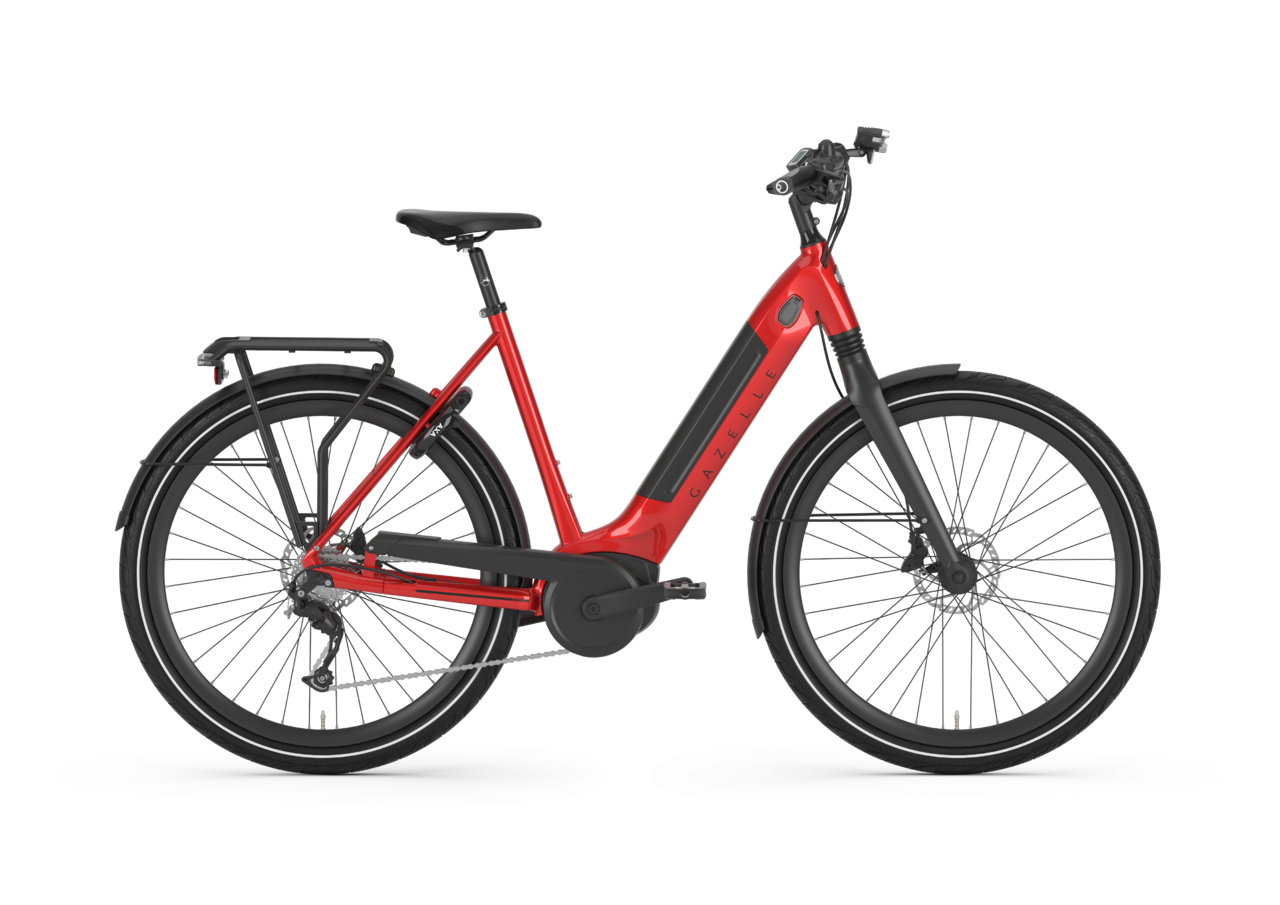

Gazelle UltimateT10 HMB
$5,399$3,999
Ultimate T10 HMB
Frame shape
High-Step, Low-Step
Number of gears
10
Craftsmanship
With over 130 years of expertise, we know precisely what we're doing. Creating bicycles that you can rely on. What begins with a design comes together in our factory. Where we work everyday to create the perfect Gazelle for you.
)
Discover the Ultimate
)
:focus(true):quality(70))
)
"Have had the T10HMB for 2 1/2 years, 14,000 + km on the bike and not an issue."
Don
Battery and range
Platina
- Watt-hours500 Wh
- Capacity13,5 Ah
- Battery charging time with 2A7 h 30 m
- Battery charging time with 4A4 h 30 m
- Battery positionintegrated in the frame
- Battery brandBosch
- Battery modelIn de buis
- Battery voltage36V
- Eco80 mi
- Tour50 mi
- Sport35 mi
- Turbo30 mi
Watt-hours
500 Wh
Capacity
13,5 Ah
Battery charging time with 2A
7 h 30 m
Battery charging time with 4A
4 h 30 m
Battery position
integrated in the frame
Battery brand
Bosch
Battery model
In de buis
Battery voltage
36V
Eco
80 mi
Tour
50 mi
Sport
35 mi
Turbo
30 mi
)
:focus(true):quality(70))
Specifications
- Color
- 322 Gloss, 851 Gloss, ivory white glans
- Fork suspension
- Mono Integrated
- Gear Type
- Derailleur
- Weight
- 23 WithoutBattery, 23 excl. accu
- Color
- 322 Gloss, 851 Gloss, ivory white glans
- Bike Max. Total Weight (kg)
- 130
- Sitting Position
- Sportive
- Grips
- Ergon ErgonGP1L, Plastic handlebar grips with ergonomic form for a better distribution of pressure on the hands
- Frame description
- Stable aluminium frame with 70,5° headset angle and 71,5° saddle tube angle for sporty cycling characteristics. Battery, motor and cables harmoniously integrated into the frame. High-quality finish with attention to detail.
- Frame material
- Aluminum
- Cockpit Cable Integration
- Yes
- Frame shape
- High-Step, Low-Step
- Frame sizes
- L (57) , M (53)
- Frame Size CM
- 46, 53, 57
- Fork description
- Aluminium, binnenbalhoofd vering, lichtgewicht
- Fork Material
- Aluminum
- Fork suspension
- Mono Integrated
Frame
Fork
- Front wheel
- 38
- Rear wheel
- Front rim
- Ryde Dutch, Dubbelwandig aluminium voor extra sterkte en goede rij-eigenschappen, Ryde Rydedutch, Double-walled aluminium for extra strong and efficient cycling performance
- Rear rim
- Ryde Dutch, Dubbelwandig aluminium voor extra sterkte en goede rij-eigenschappen, Ryde Rydedutch, Double-walled aluminium for extra strong and efficient cycling performance
- Front hub
- Shimano
- Rear hub
- Shimano Deore, Shimano ShimanoDeore
- WheelSize Front
- 28"
- Wheels Tire Front Etrto
- 47-622
- Front tire
- Schwalbe Energizer Plus, Schwalbe SchwalbeEnergizerPlus
- Rear tire
- Schwalbe Energizer Plus, Schwalbe SchwalbeEnergizerPlus
- Wheels Tire Front Description
- Schwalbe Energizer Plus
Wheels
Tyres
- Brand shifters
- Shimano
- Gear
- Shimano ShimanoDeore
- Shifter
- Shimano Deore
- Cassette Range
- 11-36
- Gear Type
- Derailleur
- Number of gears
- 10
- Rear derailleur
- Shimano Deore
- Rear brake type
- HydrDiscBrake
- Front brake
- Shimano ShimanoBRMT420
- Rear brake
- Shimano ShimanoBRMT420
- Front sprocket
- 38
- Front chainwheel
- 38
- Drivetrain
- Chain
- Crankset Model
- Delta
- Crankset description
- Miranda Delta
- Front Brake Type
- Hydraulic disc brake
- Brake sytem code
- S10
- Front Brake Brand
- Shimano
- Primary Rear Brake Model
- BR-MT420
- Front brake
- Shimano BR-MT420, 180 mm, Shimano ShimanoBRMT420, 180
- Rear brake
- Shimano BR-MT420, 160 mm, Shimano ShimanoBRMT420, 160
Gears
Transmission
Brakes
- Handlebar
- Ergon ErgonGP1L, Plastic handlebar grips with ergonomic form for a better distribution of pressure on the hands, Ergon GP1-L ergonomic, Kunststof handvatten met ergonomische vorm voor betere verdeling van druk op de handen
- Stem adjustable
- Yes
- Steering lock
- Yes
- Cockpit Handlebar Grip Brand
- Ergon
- Saddle
- Selle Royal Loire, SelleRoyal SRLoire
Handlebar
Seat
- Front light
- AXA Blue Line 50, Axa AxaBlueLine50
- Front Light Energy Source
- Battery
- Front Light Lux
- 50
- Rear Light Energy Source
- Battery
- Rear light
- Herrmans H-Cargo, Herrmans HerrmansHCargo
Front light
Rear light
- Motor
- Bosch Performance Line
- System Model
- Performance Line
- Ebike System Brand
- Bosch
- Ebike Engine Position
- Mid
- Ebike Max Speed mph
- 20
- Engine Max Torque (Nm)
- 65
- Charger
- Bosch, Bosch4 Ah
- Ebike Battery Charger Description
- 4 Ah
- Battery Position
- Integrated in the frame
- Display
- Bosch Purion
- Support levels
- Eco, Tour, Sport, Turbo
- Ebike Walk Assist
- Yes
- Display Type
- LCD
Motor
Battery
Display
- Frame warranty
- 10 year's warranty
- Fork warranty
- 5 year's warranty
- Paint warranty
- 5 year's warranty
- Other parts warranty
- 2 year's warranty
- Battery warranty
- 2 year's warranty
- Motor warranty
- 2 year's warranty
- Display warranty
- 2 year's warranty
Warranty
- Lock
- Axa
- Lock brand
- Axa
- ART classification
- ART**
- Kickstand
- Ursus Mooi, UrsusMooi UrsusMooi
- Rear carrier description
- Aluminum
- Rear carrier max load (kg)
- 25
- Rear carrier
- Yes
Lock
Other
Luggage rack
)
Made by hand, for a superb result every single time.
Take our word for it. Or take a ride.
We've done our best to capture the Gazelle experience in words, but there is nothing like the real thing. So why not book a test ride at one of our Gazelle bike stores?
