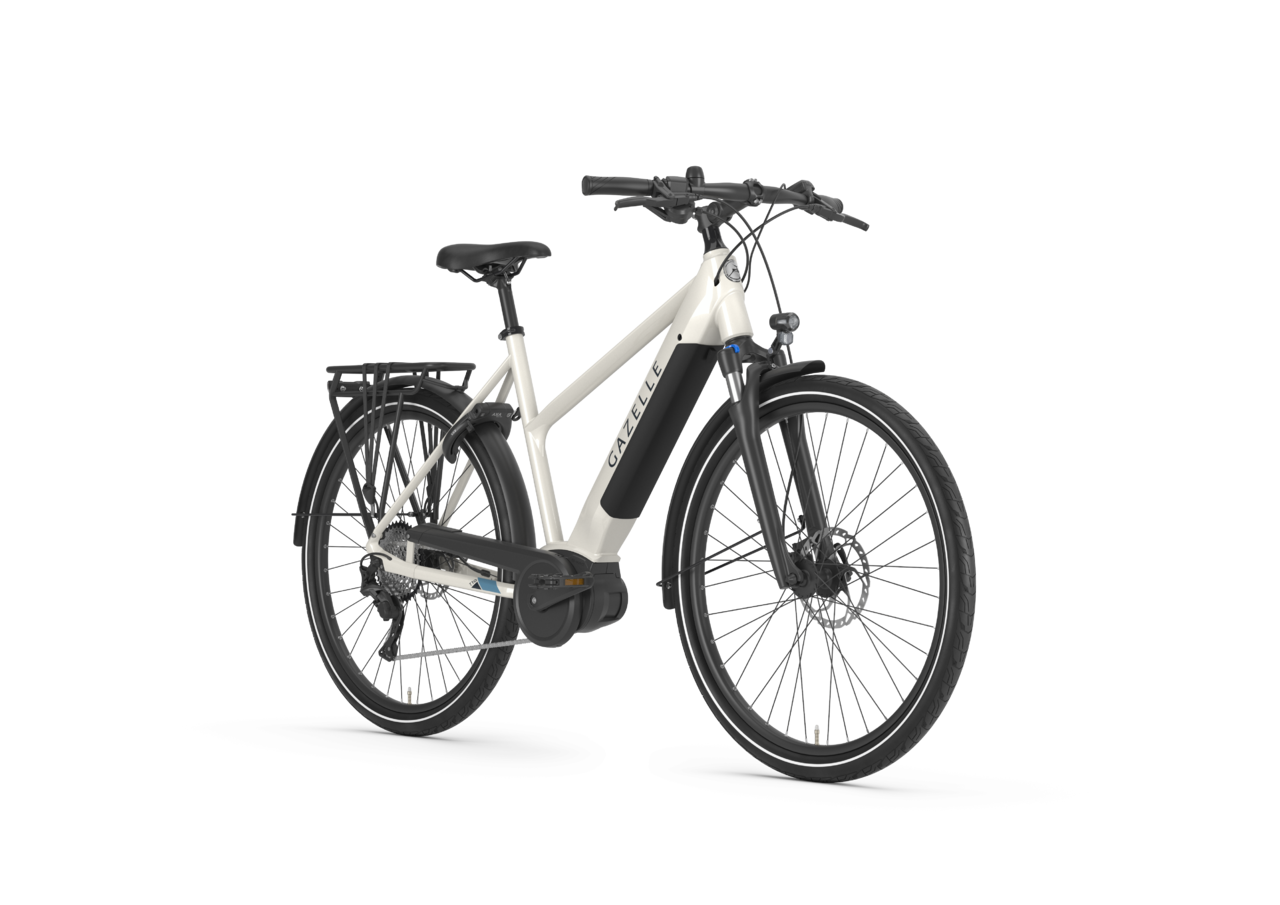

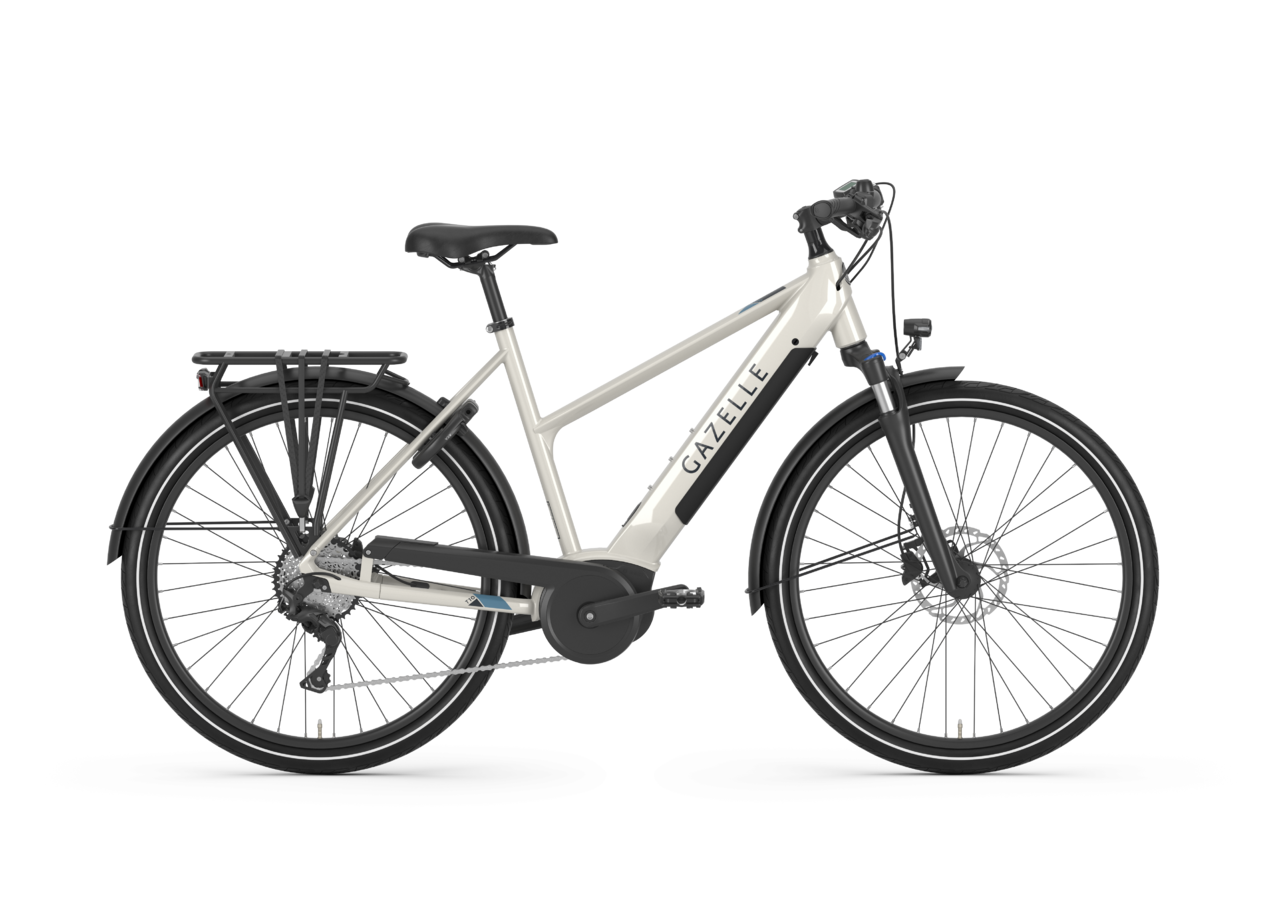

Medeo T10
You are sporty, versatile, and stylish. Just like the Medeo T10 HMB. With its derailleur system, beautiful styling, and powerful motor, it's as versatile as you are.
Craftsmanship
With over 130 years of expertise, we know precisely what we're doing. Creating bicycles that you can rely on. What begins with a design comes together in our factory. Where we work everyday to create the perfect Gazelle for you.
)
Discover the Medeo
:focus(true):quality(70))
:focus(true):quality(70))
)
"I have almost 900 miles on the bike, every day I can't wait for the next ride"
Glenn

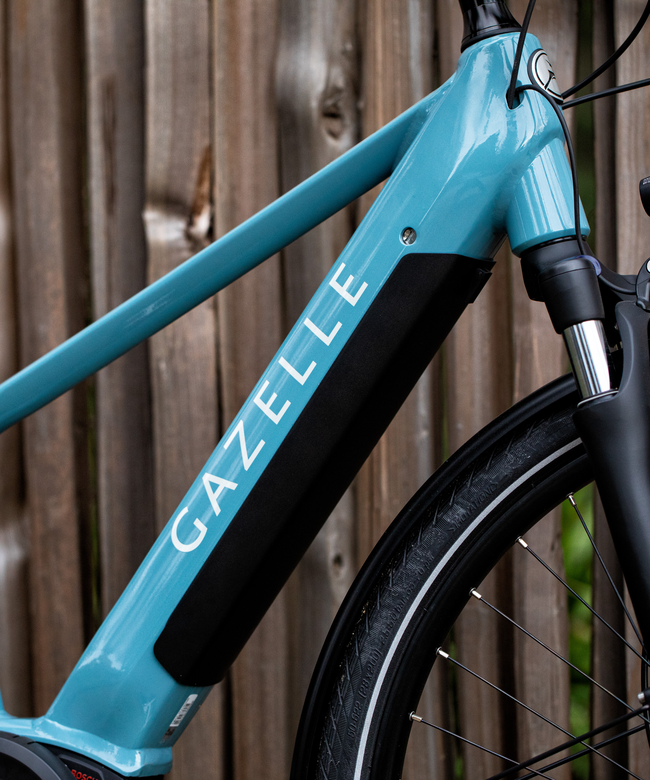

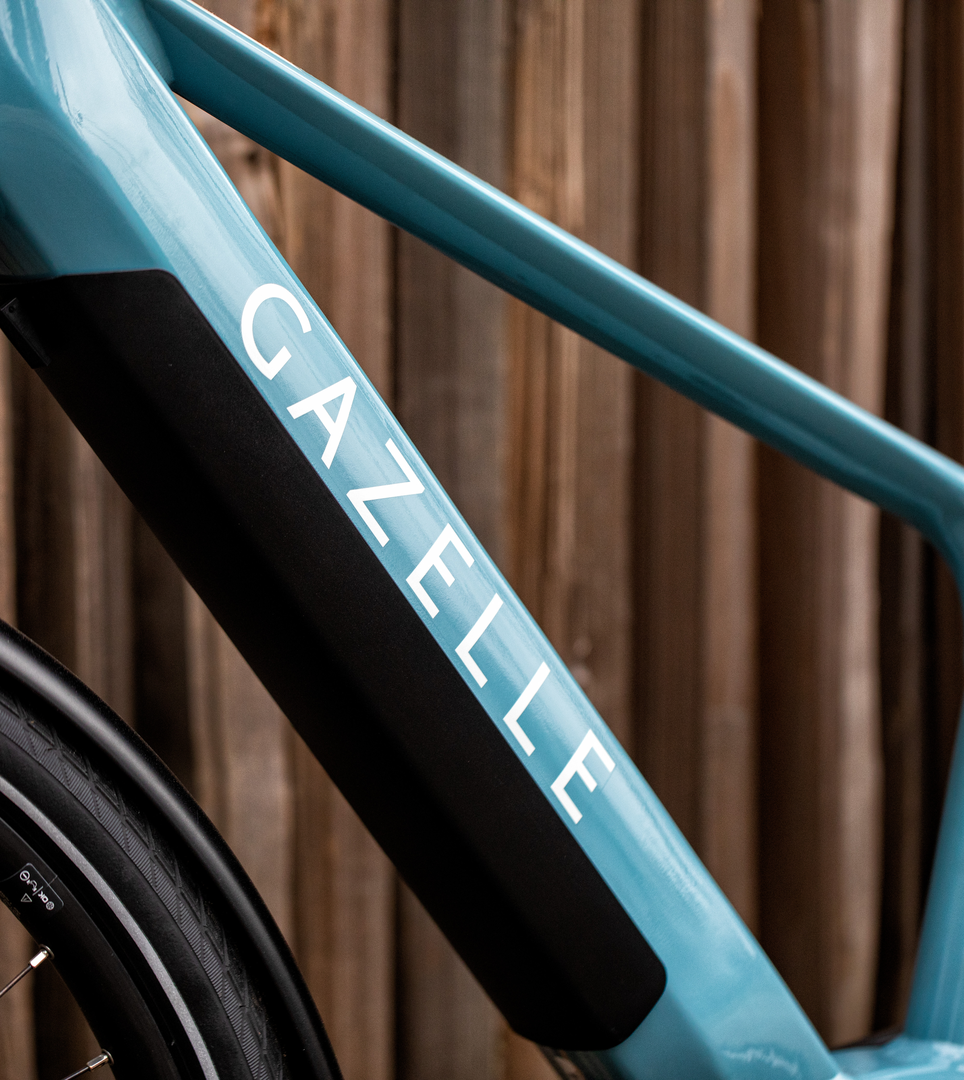

Efficient, integrated power source
Bosch's lithium-ion batteries are among the most advanced on the market. Their intelligent battery management system guarantees a long life, while the efficient energy control optimizes your bike's range. With the integrated 500 Wh battery, you'll always have enough range. The battery is secured in the frame with a lock. You can easily remove it from the bike with a key that also works on the café lock. Convenient, as you can charge the battery either on or off the bike.
)
)

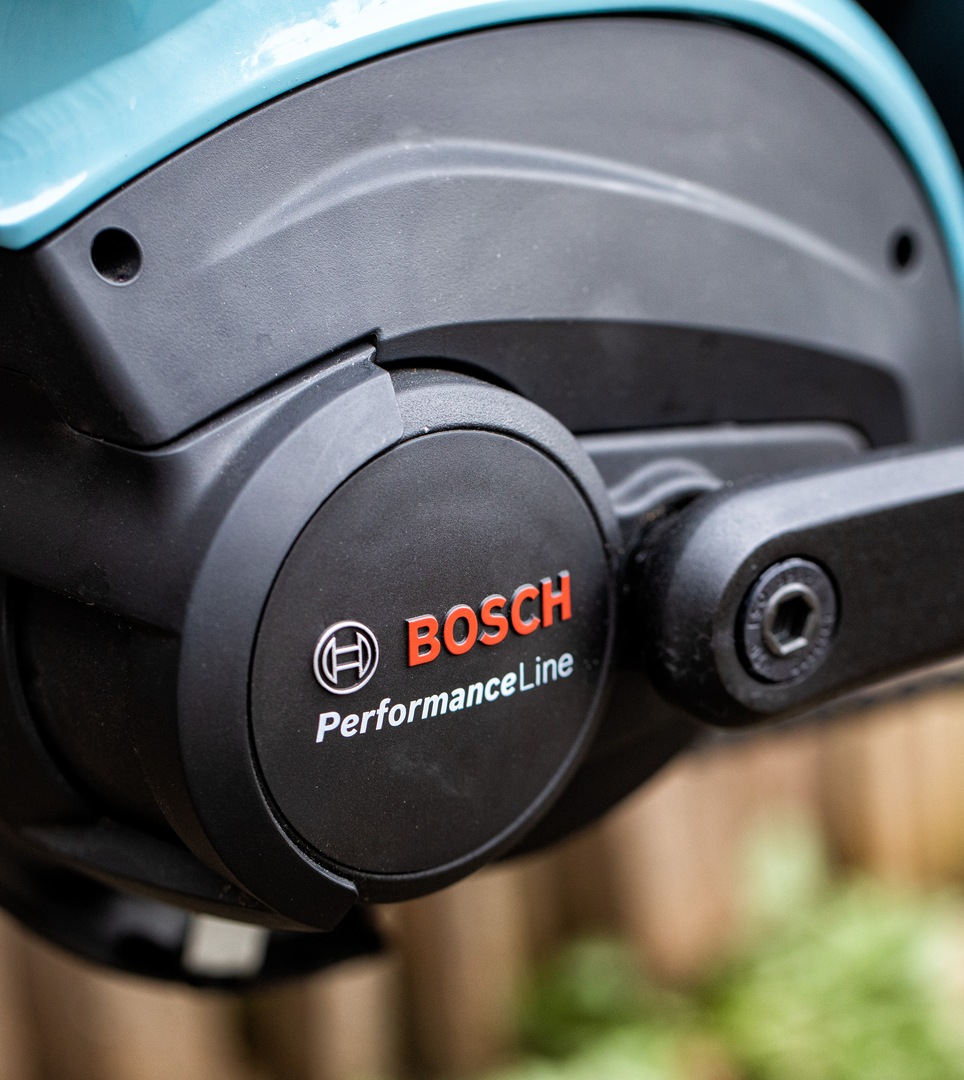

Discover new places with Bosch's quiet yet powerful motor
The Bosch Performance Line gives you everything your cyclist's heart desires. Smooth and powerful assistance that will never let you down. With 65 Nm torque you can handle any terrain. Highly recommended for the demanding cyclist.
Battery and range
Platina
- Watt-hours500 Wh
- Capacity13,5 Ah
- Battery charging time with 2A7 h 30 m
- Battery charging time with 4A4 h 30 m
- Battery positionintegrated in the frame
- Battery brandBosch
- Battery modelIntube
- Battery voltage36V
- Eco80 mi
- Tour50 mi
- Sport35 mi
- Turbo30 mi
)
:focus(true):quality(70))
Specifications
- Color
- 322 Gloss, 820 Gloss, 822 Gloss
- Fork suspension
- Telescope, spiral spring
- Gear Type
- Derailleur
- Weight
- 22.5 WithoutBattery
- Color
- 322 Gloss, 820 Gloss, 822 Gloss
- Bike Max. Total Weight (kg)
- 130
- Sitting Position
- Sportive
- Grips
- Herrmans HerrmannsDD36, Plastic wear-resistant handlebar grips for a firm grasp
- Frame description
- Stable lightweight aluminium sloping frame with 70,5° headset angle and 73° saddle tube angle for a sporty posture and precise handling. Cables beautifully integrated into the frame.
- Frame material
- Aluminum
- Cockpit Cable Integration
- Yes
- Frame shape
- High-Step, Mid-Step
- Frame sizes
- L (55) , M (50) , S (45)
- Frame Size CM
- 45, 50, 55
- Fork
- SRSuntour SuntourNEXE25
- Fork description
- Suntour NEX E25 HLO 50mm
- Fork Material
- Aluminum
- Fork suspension
- Telescope, spiral spring
- Fork lockout
- Yes
Frame
Fork
- Front wheel
- 38
- Rear wheel
- Front rim
- Mach1 MACH1ER10, Double-walled aluminium for extra strong and efficient cycling performance
- Rear rim
- Mach1 MACH1ER10, Double-walled aluminium for extra strong and efficient cycling performance
- Front hub
- Shimano
- WheelSize Front
- 28"
- Wheels Tire Front Etrto
- 47-622
- Front tire
- Schwalbe SchwalbeEnergizerPlus
- Rear tire
- Schwalbe SchwalbeEnergizerPlus
- Wheels Tire Front Description
- Schwalbe Energizer Plus
Wheels
Tyres
- Brand shifters
- Shimano
- Gear
- Shimano ShimanoDeore
- Shifter
- Shimano Deore
- Cassette Range
- 11-42
- Gear Type
- Derailleur
- Number of gears
- 10
- Rear derailleur
- Shimano Deore
- Rear brake type
- HydrDiscBrake
- Front brake
- Shimano MT2000
- Rear brake
- Shimano MT2000
- Front sprocket
- 38
- Front chainwheel
- 38
- Drivetrain
- Chain
- Front Brake Type
- Hydraulic disc brake
- Brake sytem code
- S10
- Front Brake Brand
- Shimano
- Primary Rear Brake Model
- BR-MT200
- Front brake
- Shimano MT2000, 180
- Rear brake
- Shimano MT2000, 160
- Rear Brake Lever
- ShimanoBRMT200
Gears
Transmission
Brakes
- Handlebar
- Herrmans HerrmannsDD36, Plastic wear-resistant handlebar grips for a firm grasp
- Stem adjustable
- Yes
- Steering lock
- Yes
- Cockpit Handlebar Grip Brand
- Herrmans
- Saddle
- DDKsportive
Handlebar
Seat
- Front light
- Axa AxaCL35
- Front Light Energy Source
- Battery
- Front Light Lux
- 35
- Rear Light Energy Source
- Battery
- Rear light
- Axa AxaBluelineGAZ
Front light
Rear light
- Motor
- Bosch Performance Line
- System Model
- Performance Line
- Ebike System Brand
- Bosch
- Ebike Engine Position
- Mid
- Ebike Max Speed mph
- 20
- Engine Max Torque (Nm)
- 65
- Charger
- Bosch4 Ah
- Ebike Battery Charger Description
- 4 Ah
- Battery Position
- Integrated in the frame
- Display
- Bosch Purion
- Support levels
- Eco, Tour, Sport, Turbo
- Ebike Walk Assist
- Yes
- Display Type
- LCD
Motor
Battery
Display
- Frame warranty
- 10 year's warranty
- Fork warranty
- 5 year's warranty
- Paint warranty
- 5 year's warranty
- Other parts warranty
- 2 year's warranty
- Battery warranty
- 2 year's warranty
- Motor warranty
- 2 year's warranty
- Display warranty
- 2 year's warranty
Warranty
- Lock
- Axa
- Lock brand
- Axa
- ART classification
- ART**
- Kickstand
- UrsusMooi UrsusMooi
- Rear carrier description
- Aluminum MIK system carrier
- Carrier MIK Profile
- Yes
- Rear carrier max load (kg)
- 25
- Rear carrier
- Yes
Lock
Other
Luggage rack
)
Take our word for it. Or take a ride.
We've done our best to capture the Gazelle experience in words, but there is nothing like the real thing. So why not book a test ride at one of our Gazelle bike stores?
