Gazelle ArroyoC7 Elite
$4,599$3,999

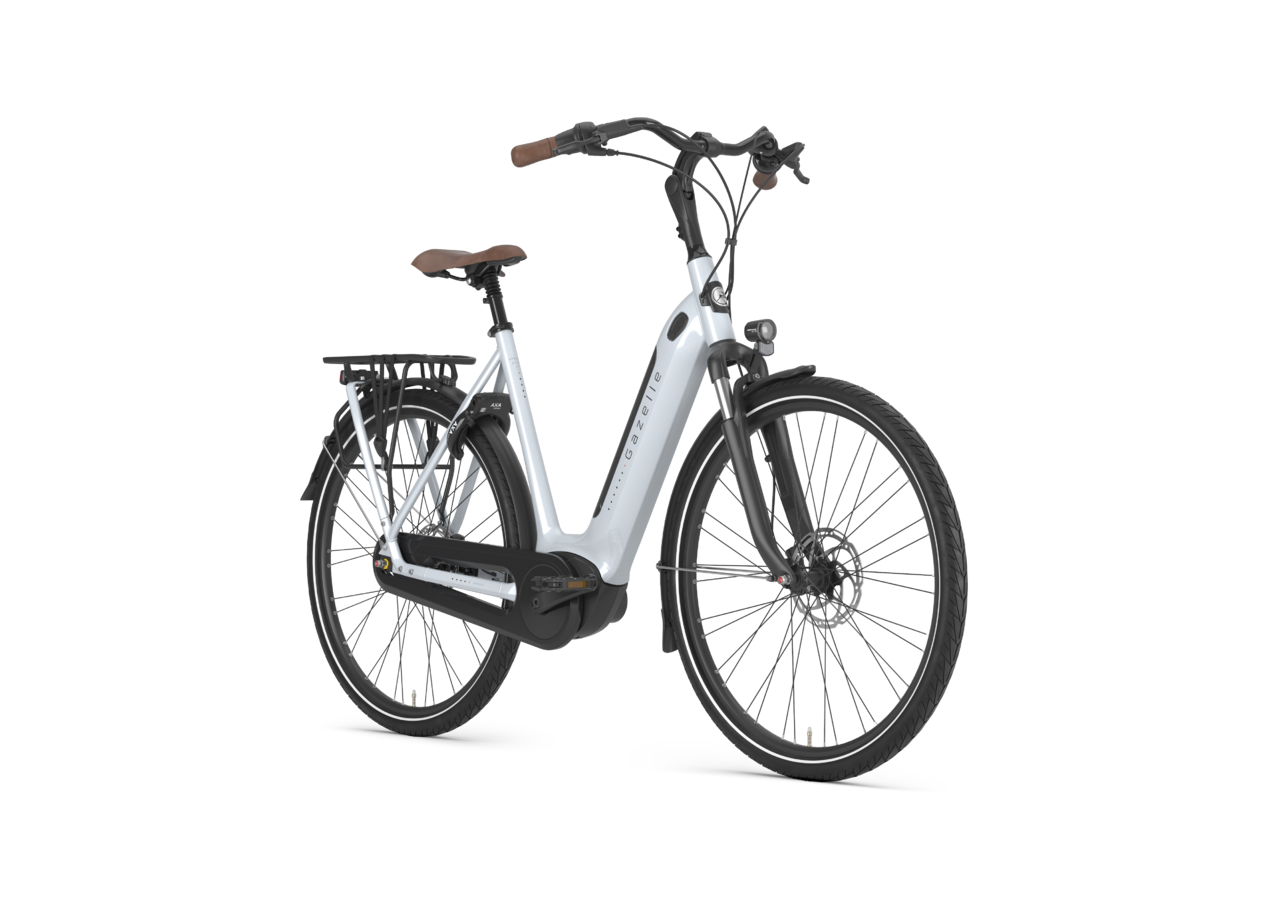

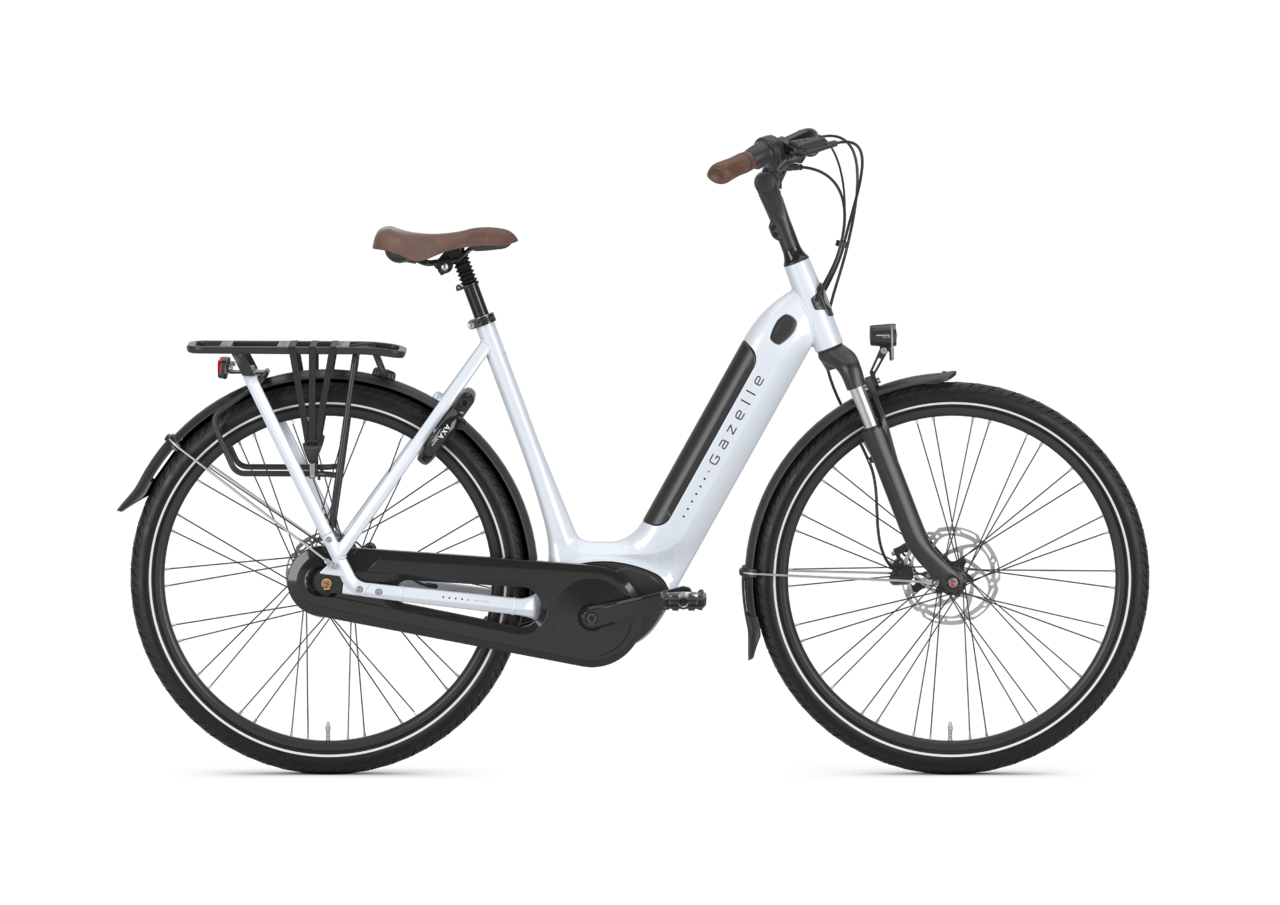

Arroyo C7 Elite
Whether you're commuting or taking a leisurely ride, the Arroyo C7 Elite is made for enjoyment. This ebike excels in comfort.
Frame shape
Low-Step
Number of gears
7
Craftsmanship
With over 130 years of expertise, we know precisely what we're doing. Creating bicycles that you can rely on. What begins with a design comes together in our factory. Where we work everyday to create the perfect Gazelle for you.
)
)
)
"Smooth ride, I like the quality of the Gazelle bike line. I really like the “low step” it provides for easy on and easy off."
Ed

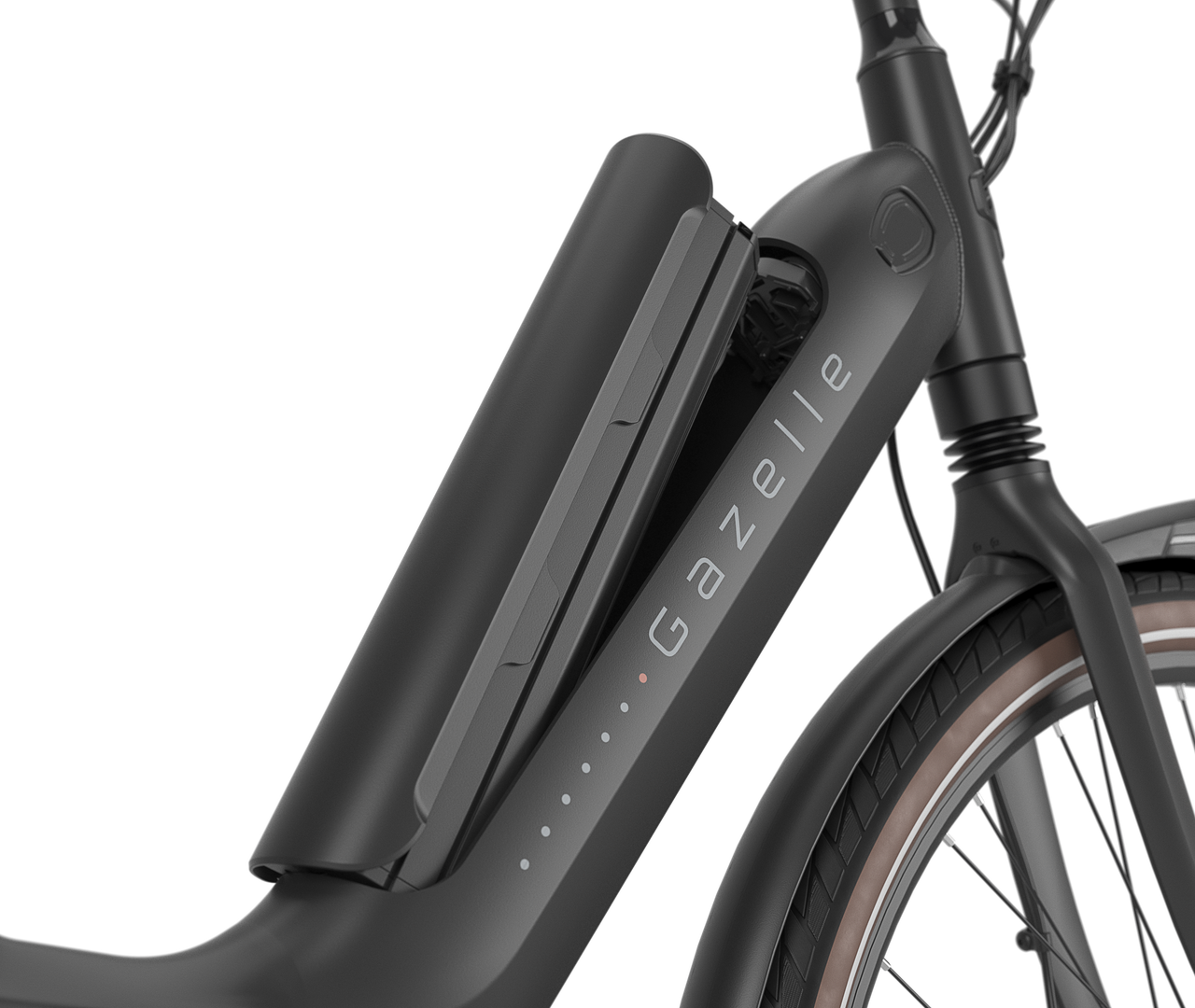

Efficient, integrated power source
Bosch's lithium-ion batteries are among the most advanced on the market. Their intelligent battery management system guarantees a long life, while the efficient energy control optimizes your bike's range. With the integrated 500 Wh battery, you'll always have enough range. The battery is secured in the frame with a lock. You can easily remove it from the bike with a key that also works on the café lock. Convenient, as you can charge the battery either on or off the bike.

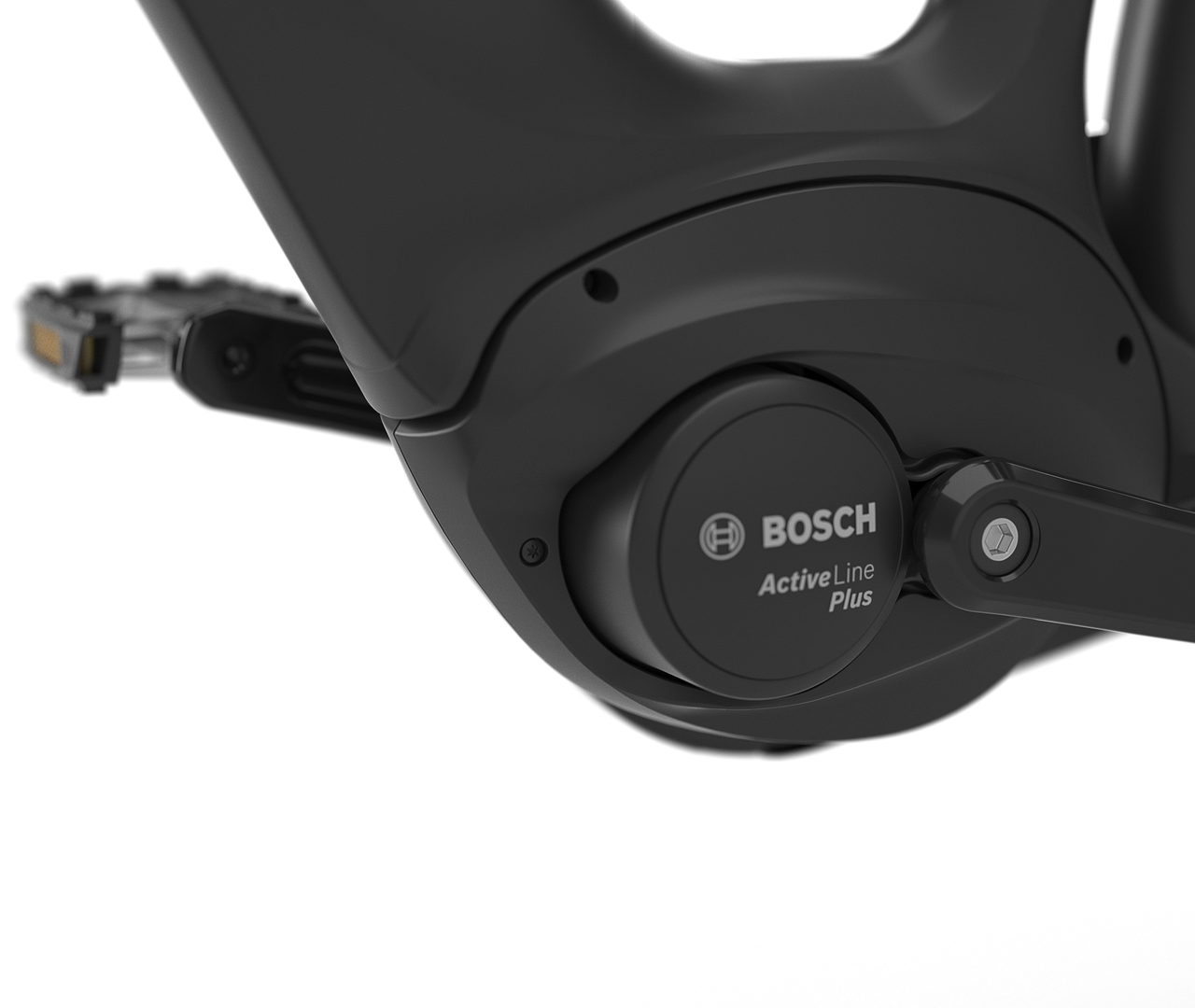

The wind is always at your back with a Bosch Active Line Plus motor
The Bosch Active Line Plus gives natural and silent assistance. With a torque of 50 Nm you can handle practically any terrain. Whether flat or hilly, with this motor you arrive comfortably at your destination.
Battery and range
Platina
- Watt-hours500 Wh
- Capacity13,5 Ah
- Battery charging time with 2A7 h 30 m
- Battery charging time with 4A4 h 30 m
- Battery positionintegrated in the frame
- Battery brandBosch
- Battery modelIntube
- Battery voltage36V
- 90 mi
- 55 mi
- 40 mi
- 35 mi
Watt-hours
500 Wh
Capacity
13,5 Ah
Battery charging time with 2A
7 h 30 m
Battery charging time with 4A
4 h 30 m
Battery position
integrated in the frame
Battery brand
Bosch
Battery model
Intube
Battery voltage
36V
-
90 mi
-
55 mi
-
40 mi
-
35 mi
Hit the road with confidence

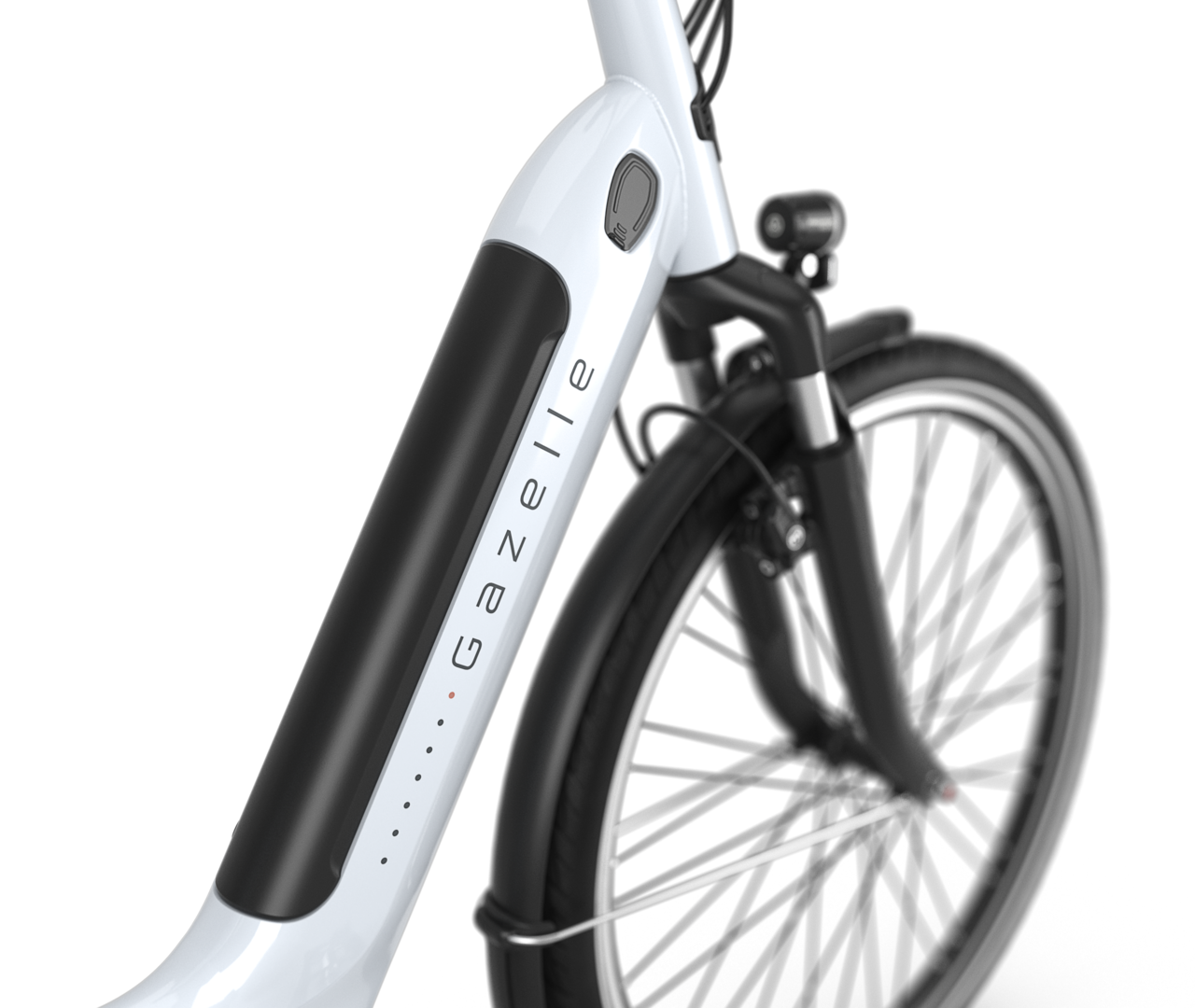

When you look at it, you may not immediately notice that the Arroyo C7 HMB Elite is an ebike. The mid-drive motor is integrated into the frame design and the battery is housed in the robust down tube. This not only gives it a nice appearance, it also ensures good riding characteristics. How? The low position of the motor and battery, in the center of the bike, lowers the center of gravity. You therefore experience more stability and improved balance.
Comfortable on the go

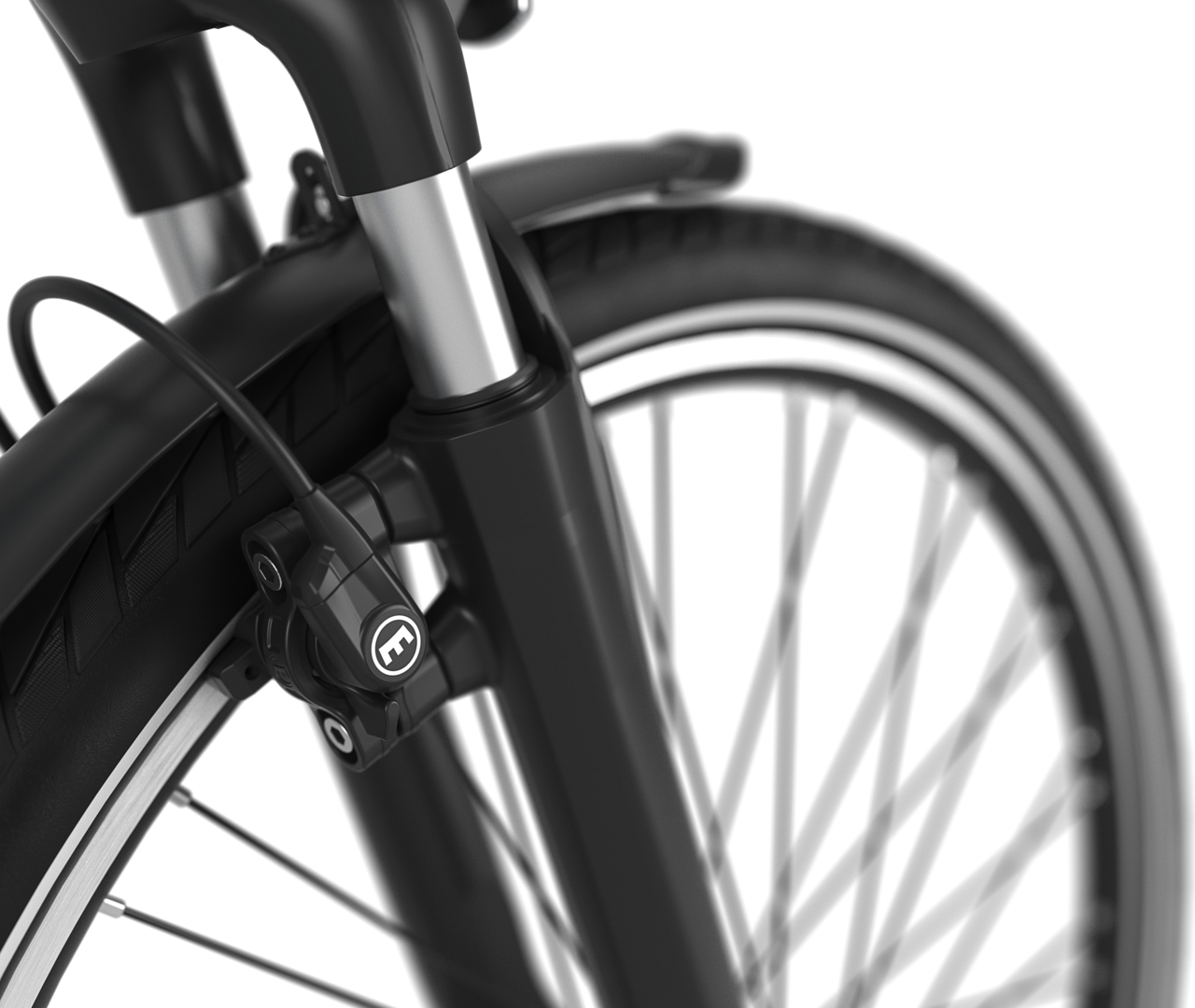

The roads you cycle on are not always smooth. But, of course, you want to be able to keep cycling comfortably in such situations. That's why the Arroyo C7 HMB Elite is fitted with front fork suspension and a sprung seat post. These high-quality components dampen the bumps as much as possible. So, you can keep your attention on the road.
Powerful and controlled braking
If you're cycling downhill or in busy city traffic, then you'll want to be able to brake safely without thinking about it. Hydraulic disc brakes offer braking power and precision, so you can slow down in a controlled manner at any time — even when it's raining.
)
:focus(true):quality(70))
Specifications
Model
Arroyo
Weight
23.1 excl. battery
Color
frozen white gloss, saturn blue matte
segment
Electric bicycles, City bikes
Sitting Position
Upright
Motor
Ebike System Brand
Bosch
Motor
Active Line Plus
Engine Max Torque (Nm)
50
Ebike Engine Position
Mid
Ebike Max Speed mph
20
Battery
Battery Position
integrated in the frame
Charger
Bosch, 2 Ah
Display
Support levels
4
Ebike Walk Assist
Yes
Display
Bosch Purion
Display Type
LCD
display_removable
No
Wheels
WheelSize Front
28"
rear_wheel_size
28"
Front rim
Rodi Viper, Double-walled aluminium for extra strong and efficient cycling performance
Rear rim
Rodi Viper, Double-walled aluminium for extra strong and efficient cycling performance
Front hub
Shimano
rear_hub
Shimano Nexus 7
Tyres
Front tire
Schwalbe Energizer Active Plus
Rear tire
Schwalbe Energizer Active Plus
Wheels Tire Front Etrto
47-622
etrto_tire_rear
47-622
Gears
Number of gears
7
Gear Type
Hub
Gear
Shimano Nexus 7
Brakes
Front Brake Type
hydraulic disc brake
Rear brake type
hydraulic disc brake/
Front brake
Tektro HD-T280
Rear brake
Tektro HD-T280
front_brake_piston_number
2
rear_brake_piston_number
2
Front brake
180 mm
Rear brake
160 mm
front_brake_lever
Tektro
Rear Brake Lever
Tektro
Transmission
Transmission
chain
Drivetrain
KMC
front_sprocket
38
rear_sprocket
18
Frame
Frame shape
Low-Step
Frame Size CM
S(46), L(57), M(53)
Frame description
Stable, lightweight hydro-formed aluminium frame with 68.5° headset angle and 69.5° saddle tube angle for relaxed and comfortable riding. This is a low-step and spacious frame, single tube and lovely integrated cables.
Frame material
aluminum
Fork
Fork Material
aluminum
Fork suspension
Telescope, spiral spring
fork_travel
40 mm
Handlebar
handlebar_description
Aluminium, comfort curved model
Stem adjustable
Yes
Cockpit Handlebar Grip Brand
Gazelle Aerowing, Plastic wear-resistant handlebar grips for a firm grasp
Seat
Saddle
Selle Royal Herz
seatpost_suspension
Yes

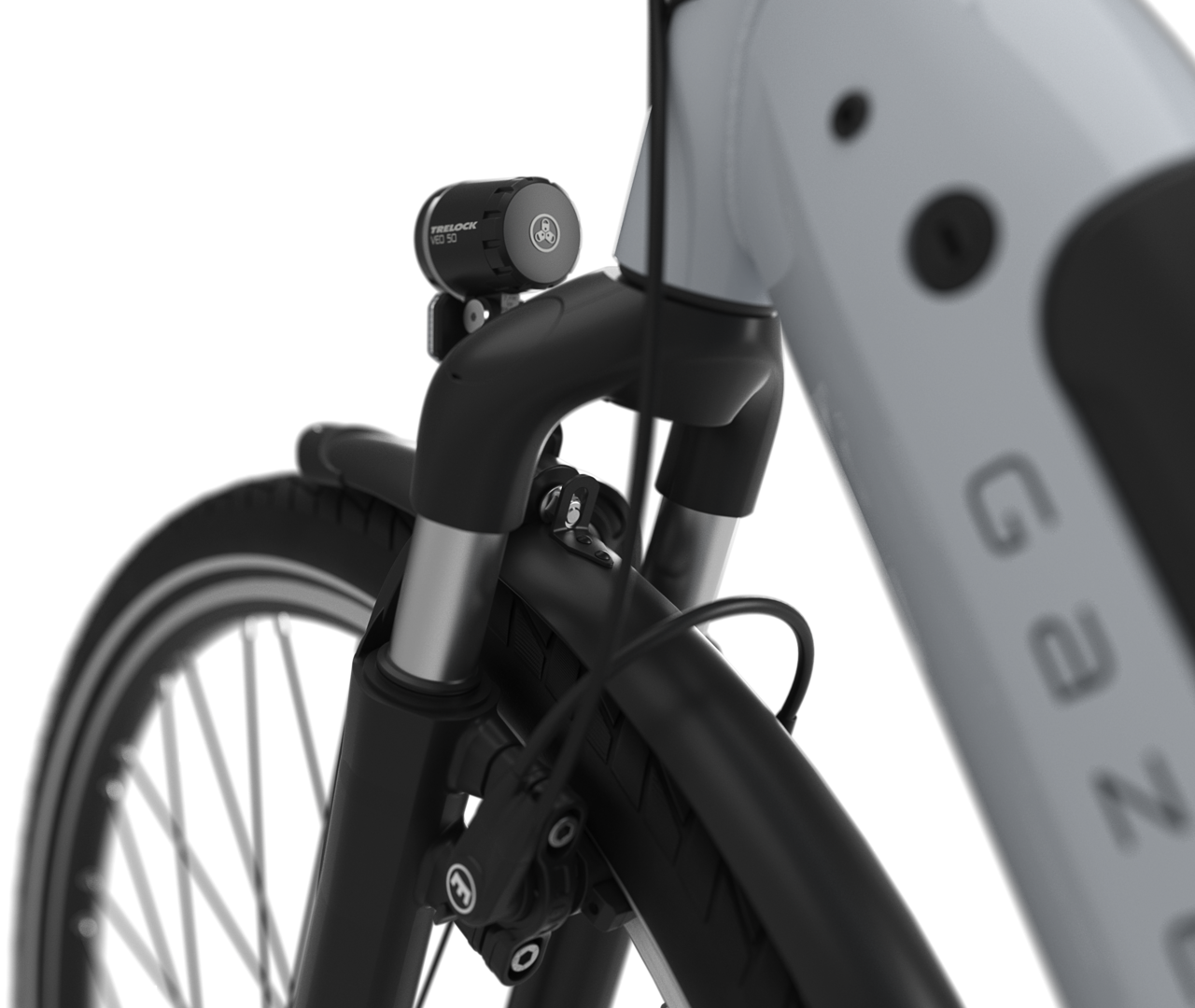

Front light
Front light
Trelock Veo 50
Front Light Energy Source
battery
Rear light
Rear light
Spanninga Solo
Rear Light Energy Source
battery
Frame warranty
10 year's warranty
Fork warranty
5 year's warranty
Paint warranty
5 year's warranty
Battery warranty
2 year's warranty
Motor warranty
2 year's warranty
Display warranty
2 year's warranty
Other parts warranty
2 year's warranty
Lock
Lock
Axa
lock_description
Ring lock with an option for a plug-in cable to attach your bike to a fixed object for extra protection against theft
ART classification
ART**
Other
Kickstand
Ursus Mooi
kickstand_type
drop-down rear stand
Luggage rack
Rear carrier
Yes
Carrier MIK Profile
Yes
Rear carrier description
Aluminum MIK HD system carrier
front_carrier
No
| 500 Wh | |
|---|---|
| Capacity | 13,5 Ah |
| Battery charging time with 2A | 7 h 30 m |
| Battery charging time with 4A | 4 h 30 m |
| Battery brand | Bosch |
| Battery model | Intube |
| Battery voltage | 36V |
| battery_support_range_1_kms | 150 |
| battery_support_range_2_kms | 90 |
| battery_support_range_3_kms | 70 |
| battery_support_range_4_kms | 60 |
500 Wh
Capacity
13,5 Ah
Battery charging time with 2A
7 h 30 m
Battery charging time with 4A
4 h 30 m
Battery brand
Bosch
Battery model
Intube
Battery voltage
36V
battery_support_range_1_kms
150
battery_support_range_2_kms
90
battery_support_range_3_kms
70
battery_support_range_4_kms
60
)
Made by hand, for a superb result every single time.
Take our word for it. Or take a ride.
We've done our best to capture the Gazelle experience in words, but there is nothing like the real thing. So why not book a test ride at one of our Gazelle bike stores?
