Gazelle AvignonC380 HMB
From £3,829Maximum range 130 km
Gazelle's most comfortable e-bike
Avignon C380 HMB
Ride comfortably upright with the Avignon C380 HMB and enjoy its many other comfortable features. That's what makes choosing this bike very easy.
Maximum range
130 km
Frame shape
Low-step
Gears
Stepless
Brake Rear
Disc brake with hydraulic control
From £3,829
Craftsmanship
With over 130 years of expertise, we know precisely what we're doing. Creating bicycles that you can rely on. What begins with a design comes together in our factory. Where we work everyday to create the perfect Gazelle for you.
Discover the Avignon
)

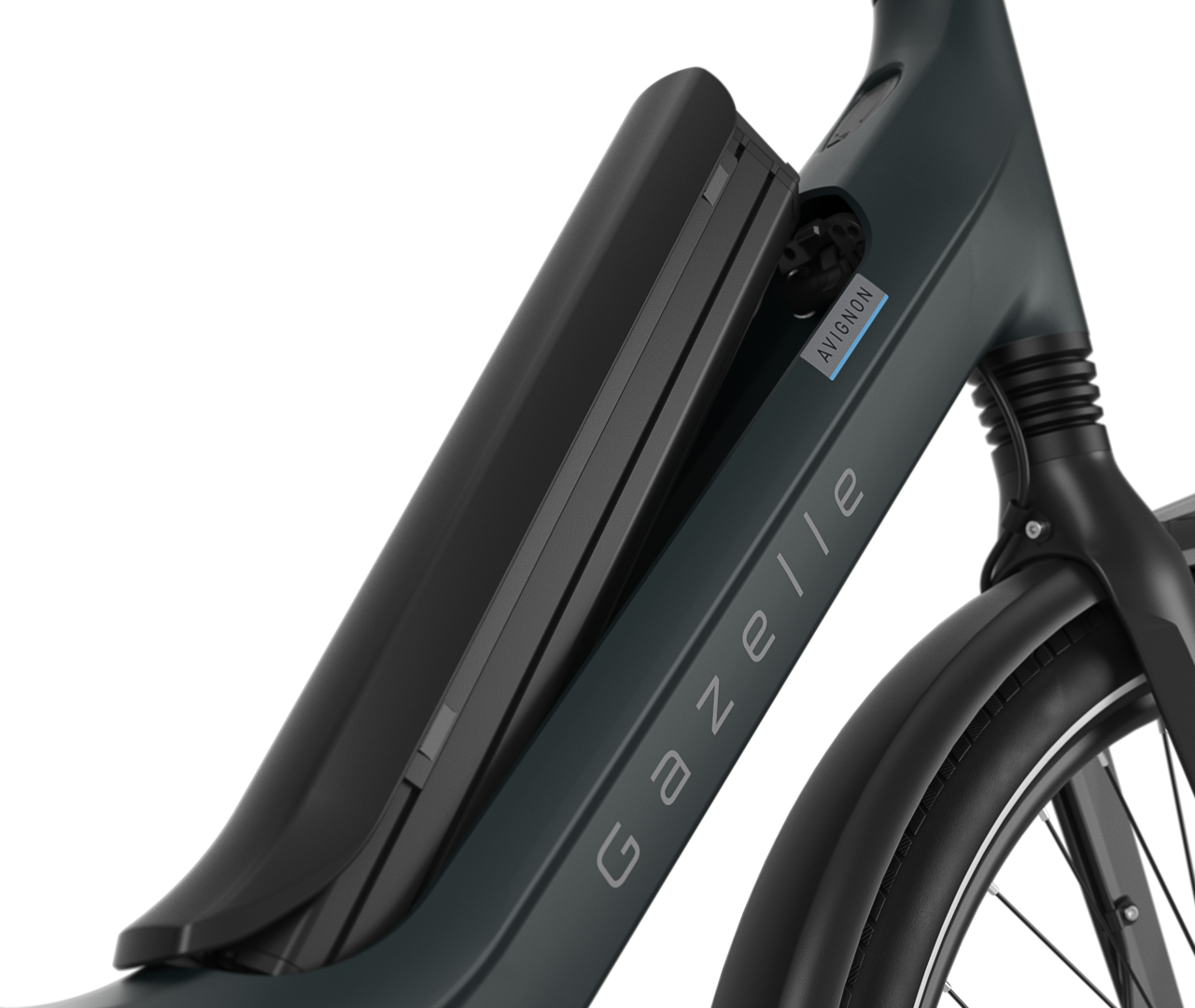

Efficient, integrated power source
Bosch's lithium-ion batteries are among the most advanced on the market. Their intelligent battery management system guarantees a long life, while the efficient energy control optimises your bike's range. With the integrated, 500 or 625-Wh battery, you'll always have enough range. The battery is secured in the frame with a lock. You can easily remove it from the bike with the bike key. Convenient, as you can charge the battery either on or off the bike.

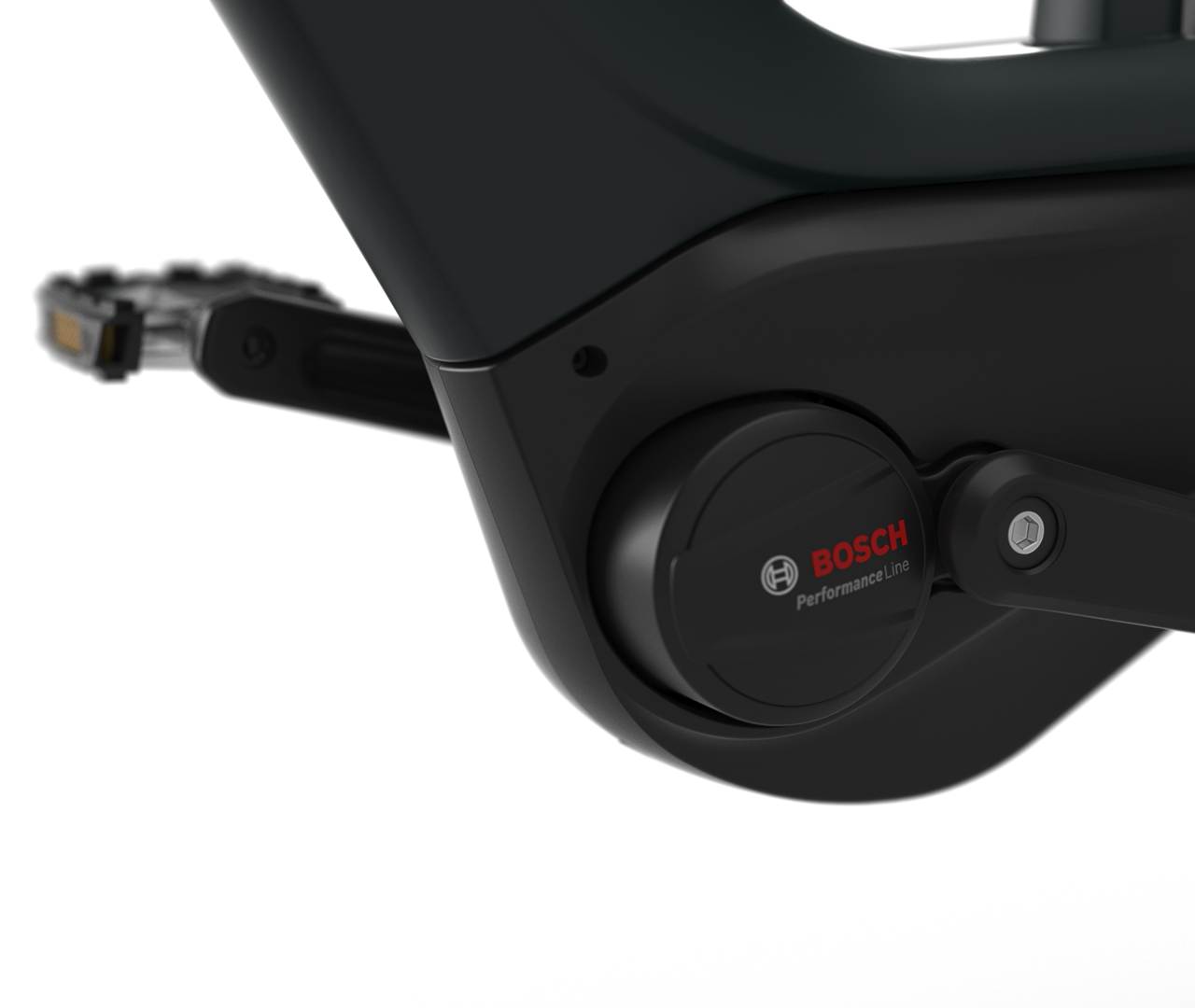

Discover new places with Bosch's quiet, yet powerful motor
The Bosch Performance Line gives you everything your cyclist's heart desires. Smooth and powerful assistance that will never let you down. With 75 Nm torque you can handle any terrain. Highly recommended for the demanding cyclist.
Battery and range
Platinum
- Maximum range130 km
- Watt-hours500 Wh
- Capacity13,4
- Eco range130 km
- Tour range75 km
- Sport range60 km
- Turbo range50 km
- Additional price (excluding disposal fee)Price: This is included in the MSRP
Diamond
- Maximum range155 km
- Watt-hours625 Wh
- Capacity17,4
- Eco range155 km
- Tour range95 km
- Sport range70 km
- Turbo range65 km
- Additional price (excluding disposal fee)£170
Platinum
Diamond
Maximum range
130 km
155 km
Watt-hours
500 Wh
625 Wh
Capacity
13,4
17,4
Eco range
130 km
155 km
Tour range
75 km
95 km
Sport range
60 km
70 km
Turbo range
50 km
65 km
Additional price (excluding disposal fee)
Price: This is included in the MSRP
£170

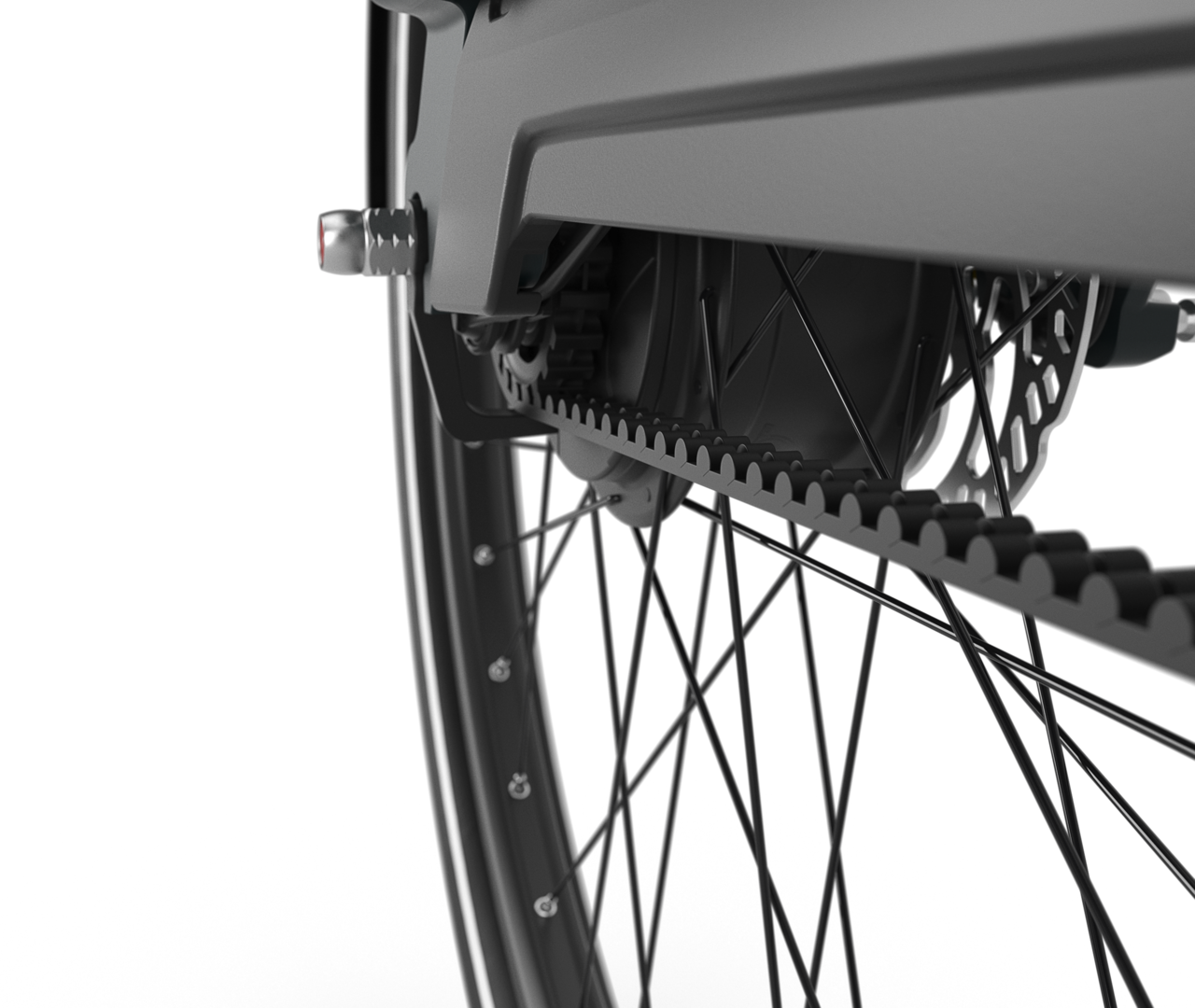

Always in the right gear
Enviolo's robust, stepless shifting gear hub lets you switch between gears without going through the intermediate gears — whether you are pedalling or stationary. The drive system uses a Gates CDX belt. It quietly does its job and is low maintenance. Nice and convenient!

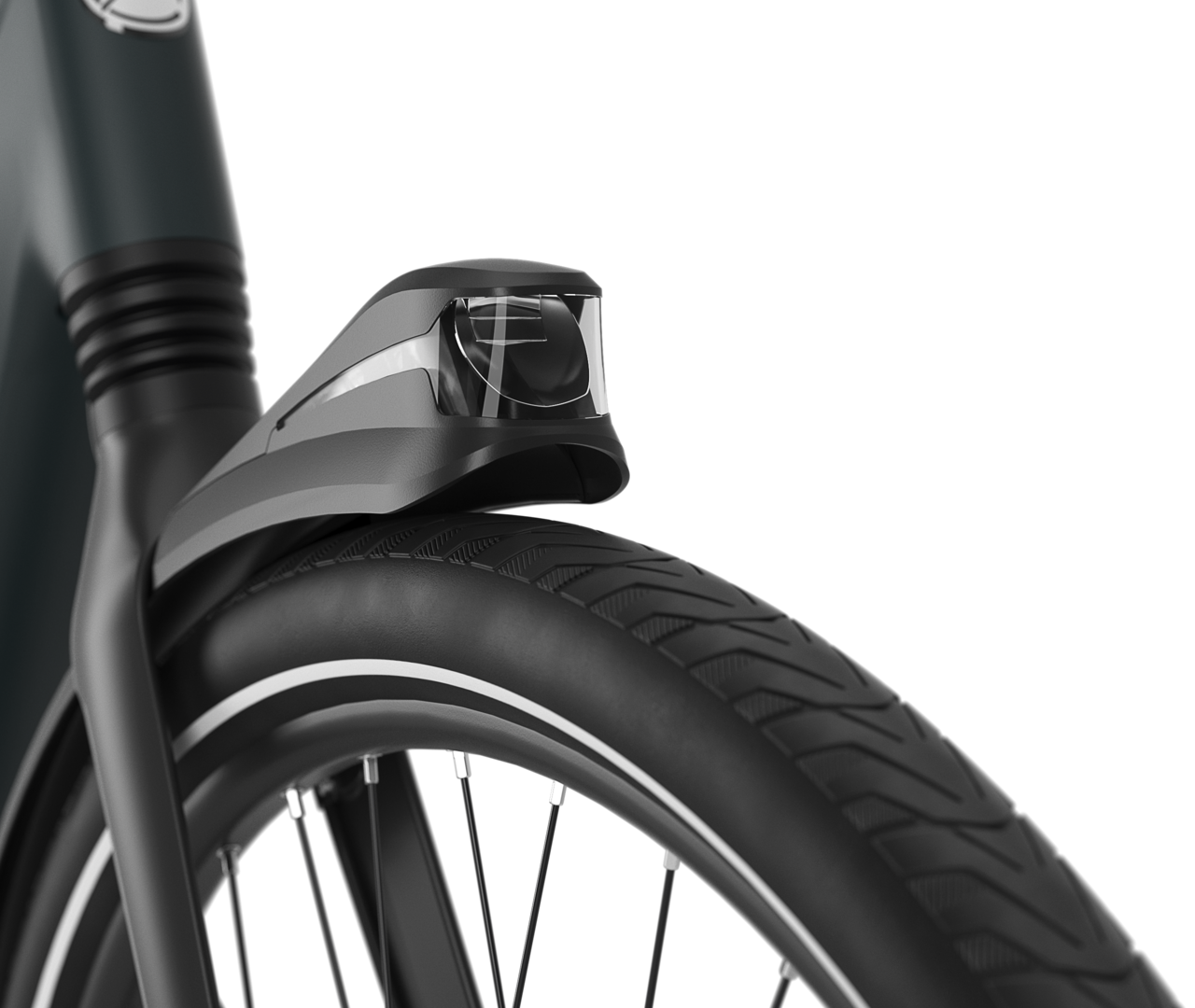

Integrated LED lighting
The daytime running lights on the Avignon C380 HMB do their job, day and night. The powerful 70 lux front light is integrated into the mudguard. And with the rear light in the carrier, you are easily visible not only from behind but also from the side.

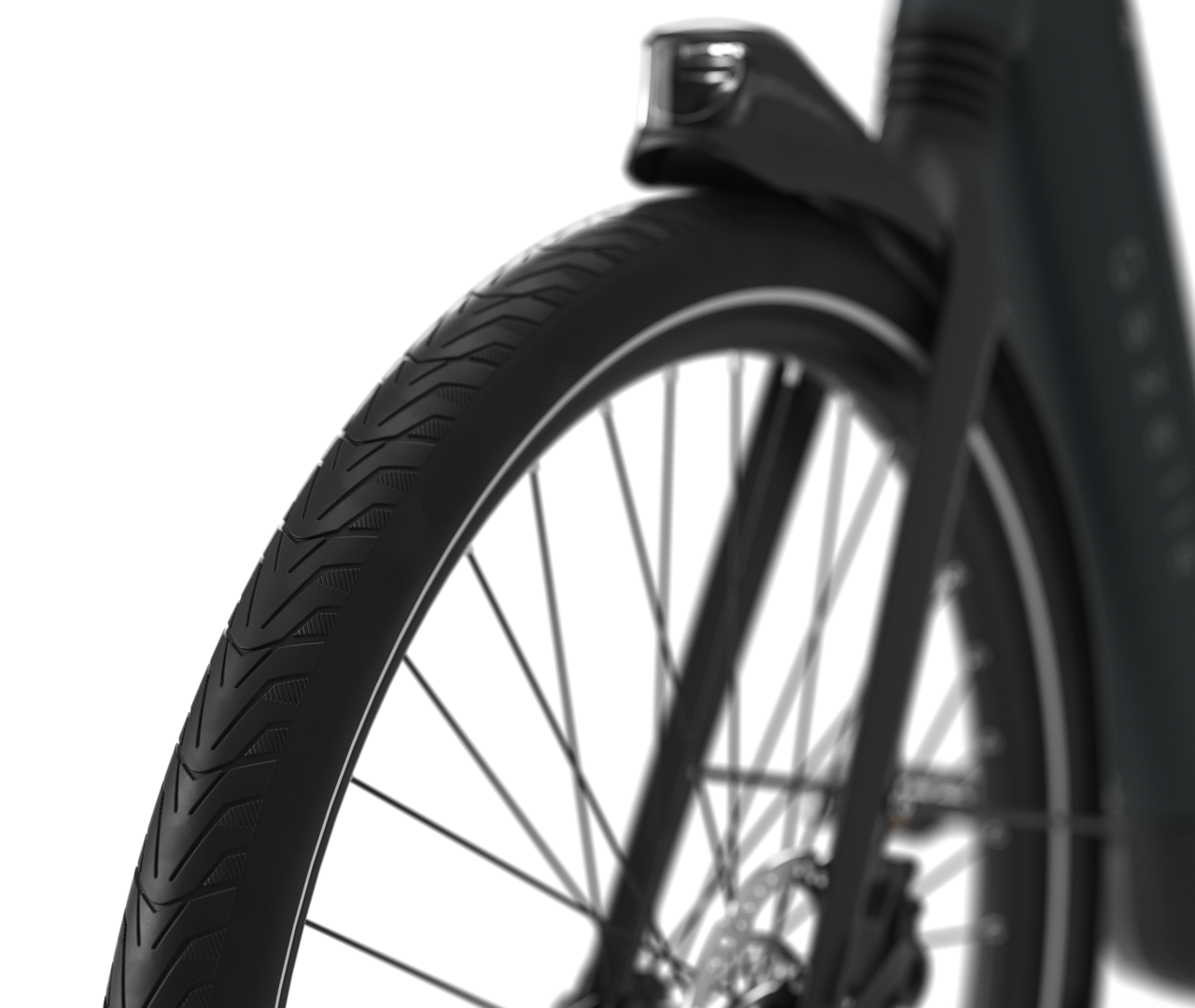

Always in control
The Avignon C380 HMB LTD has extra-wide tyres for good road holding and increased comfort. The Magura disc brakes guarantee excellent braking power, which is easy to control in all conditions. With the large brake levers, that goes without saying. This means you are always in control.

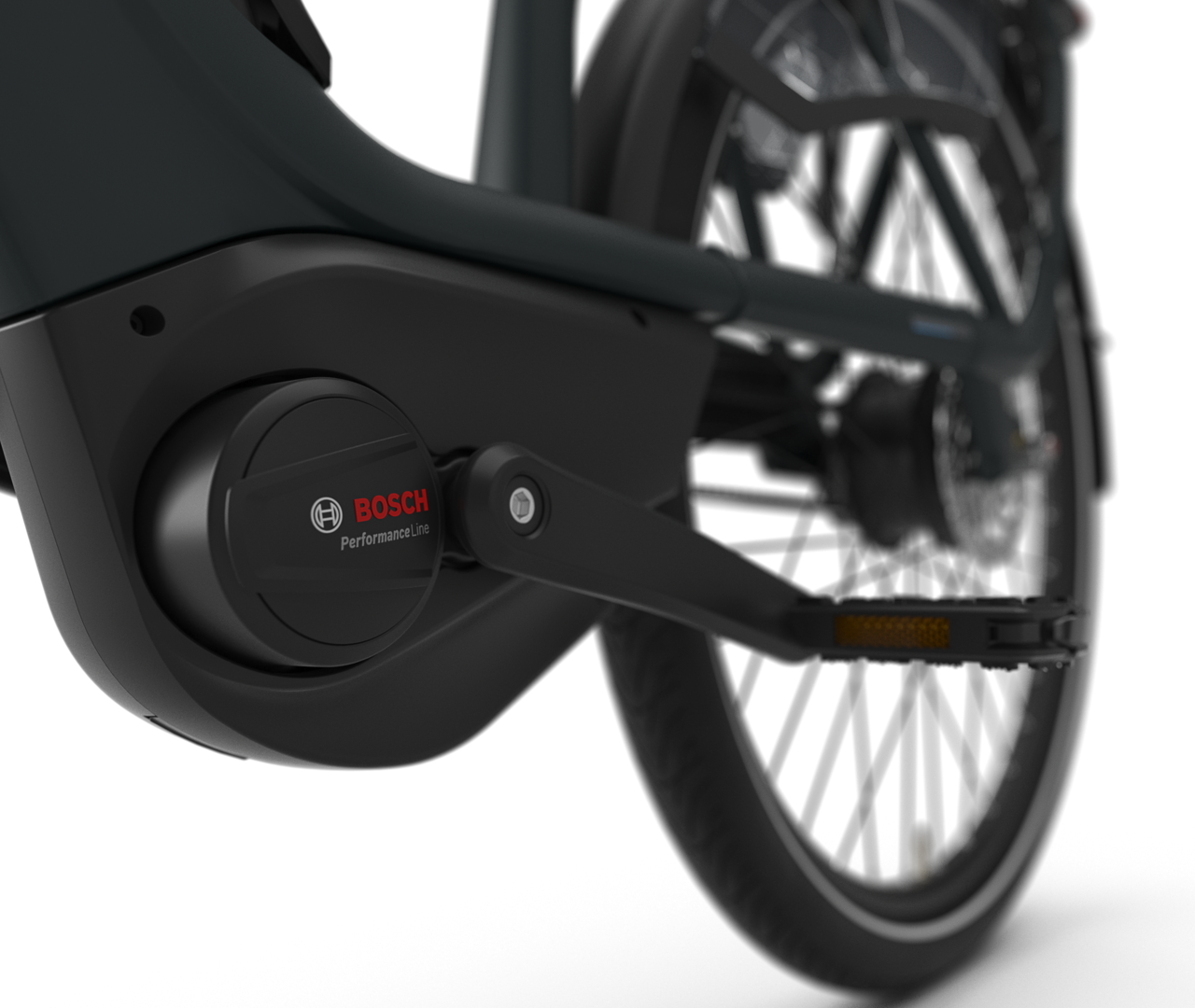

Powerful, mid-drive motor
The Avignon C380 HMB LTD features a powerful Bosch Performance Line mid-drive motor. Neither headwinds nor hills are a problem with this bike. And for longer rides, this Avignon boasts a battery capacity of up to 625 watt hours.
"Stable bike with a strong Bosch motor, a range of about 160 km with varied use of assistance."
Gazelle's customer
)
Specifications
- Gear system description
- Enviolo 380 Trekking Manual stepless gear system
- Engine model
- Bosch Performance Line (75Nm)
- Model
- Avignon
- Colorname
- Pebble grey, teal grey
- Fork suspension type
- Internal to headset
- Model
- Avignon
- Weight in kg.
- 28.6 kgs
- Colorname
- Pebble grey, teal grey
- Segment
- Electric bicycles
- Sitting position
- Upright
- Integrated lights
- Yes
- Frame shape
- Low-step
- Size
- 46, 49, 53, 57, 61, 65
- Frame description
- Stable aluminium frame with 68.5° head tube angle and 69.5° saddle tube angle. Cables are nicely concealed through the unique cable integration system. Battery integrated in the frame for large capacity (625 Wh)
- Frame material
- Aluminium
- Cabels integrated
- Yes
- Fork material
- Aluminium
- Fork suspension type
- Internal to headset
- Travel of suspension fork
- 40 mm
Frame
Fork
- Wheelsize
- 28"
- Rims
- Ryde Zac 25, Double-walled aluminium for extra strong and efficient cycling performance
- Spoke description
- Stainless steel, extra strong
- Tires
- Scalato Mondano
- Tire color
- Black
- Tires puncture resistant
- Yes
Wheels
Tires
- Gear system description
- Enviolo 380 Trekking Manual stepless gear system
- Gear type
- Hub
- Gears
- Stepless
- Front chainwheel
- 46
- Rear chainwheel
- 22
- Drivetrain
- Belt
- Brake Front
- Disc brake
- Brake Rear
- Disc brake with hydraulic control
- Disc brake rotor size front
- 180 mm
- Disc brake rotor size rear
- 160 mm
- Brake system description front
- Magura MT-C4, 2 piston
- Brake system description rear
- Magura MT-C4 2 piston
Number of gears
Drivetrain
Brakes
- Handlebar description
- Aluminium, comfort curved model
- Adjustable stem
- Yes
- Grip type
- Gazelle Aero leather
- Grips
- Luxury leather handlebar grips for a sophisticated feel and extra comfort
- Saddle
- Selle Royal Essenza Plus gel
- Seatpost description
- Sprung
- Seatpost diameter
- 27,2 mm
Handlebar
Saddle
- Light front description
- LED headlight with daytime running lights, always on
- Front light powersource
- Battery
- Front light lux
- 70
- Front light type
- Gazelle Fendervision
- Rear light powersource
- Battery
Front light
Rear light
- Ebike system short description
- Bosch smart system
- Engine location
- Mid-drive motor
- Torque
- 75
- Engine model
- Bosch Performance Line (75Nm)
- Ebike sensors
- Pedal force sensor, rotation sensor, speed sensor
- Max Speed (km/h)
- 25 km/h
- Battery type
- Li-ion
- Battery position
- Integrated into frame
- Battery replaceable
- Yes
- Battery system
- Bosch
- Ebike charger description
- 4 Ah
- Amount of support levels
- 4
- Display control unit
- Yes
- Walk assist
- Yes
- Display Model
- Bosch Intuvia 100
- Display detachable
- Yes
Engine
Battery
Display
- Warranty frame
- 10 years’ warranty
- Warranty fork
- 5 years’ warranty
- Warranty paint
- 5 years’ warranty
- Warranty other parts
- 2 years’ warranty
- Warranty battery
- 2 years’ warranty
- Warranty motor
- 2 years’ warranty
- Warranty diplay
- 2 years’ warranty
Garantie
- Lock description
- Ring lock
- Lock safety level
- ART ** certified
- Lock Type
- Abus 4750L
- Chaincase description
- 100% recycled plastic, with automatic chain tensioner
- Coat protector
- Yes
- Kickstand type
- Drop-down rear stand
- Kickstand
- Ursus Mooi
- Chaincase type
- Chain guard
- Rear carrier description
- Aluminum MIK HD system carrier
- Carrier MIK system
- Yes
Lock
Other
Carrier
Made by hand, for a superb result every single time.
Awards
Our Avignon C380 HMB surprised our judges
Take our word for it. Or take a ride.
We've done our best to capture the Gazelle experience in words, but there is nothing like the real thing. So why not book a test ride at one of our Gazelle bike stores?
)
