Gazelle AvignonC5
£3,899Maximum range 185 km
Avignon C5
Maximum range
185 km
Frame shape
Low-Step
Number of gears
5

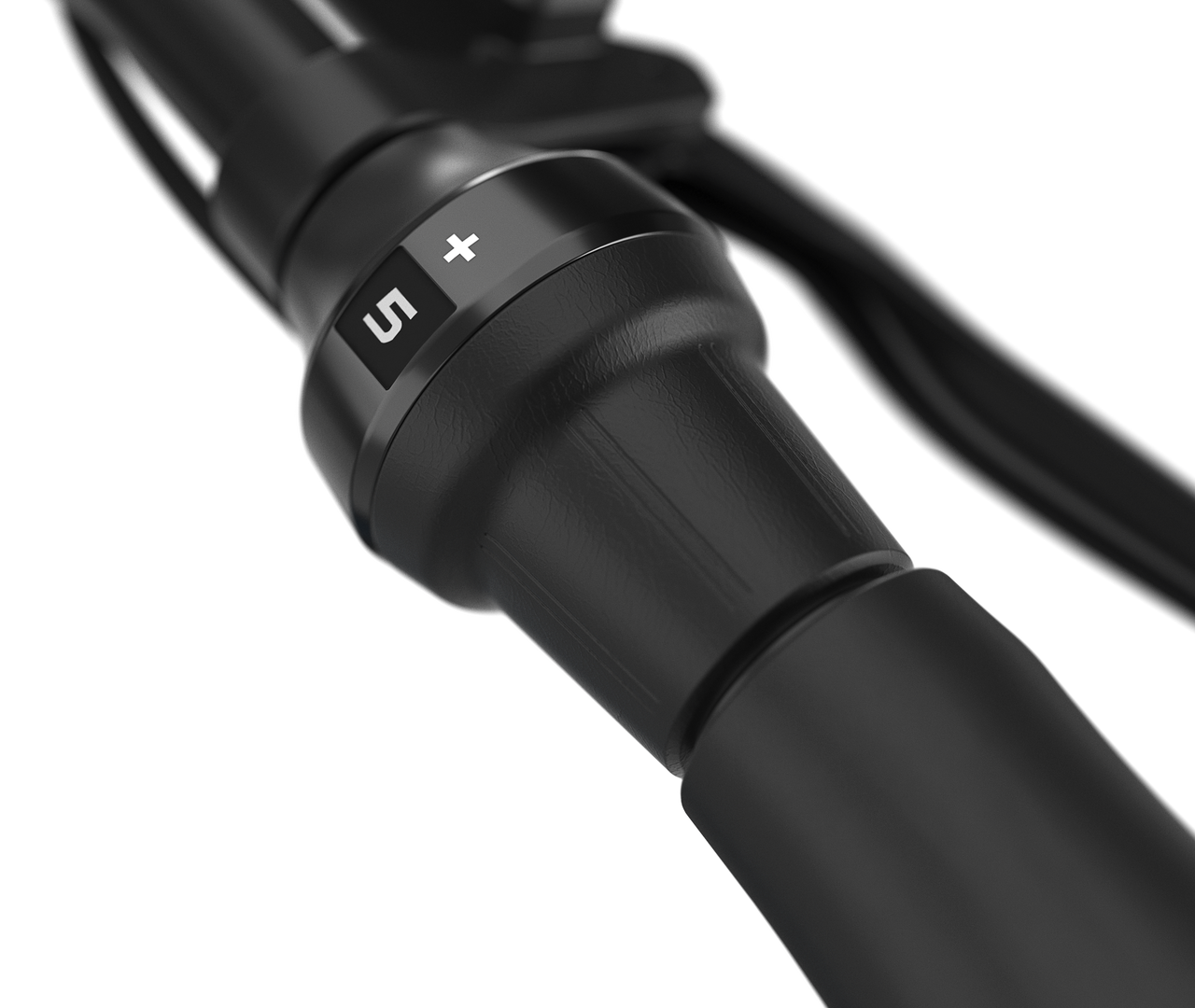

Long-lasting shifting pleasure
Shimano's Nexus 5 hub gear is specially developed for e-bikes. This hub can effortlessly handle the higher forces acting on the drivetrain, thanks to its stronger and more durable internal mechanism. With the familiar click system, you also shift very precisely between the five gears. Even while pedaling.

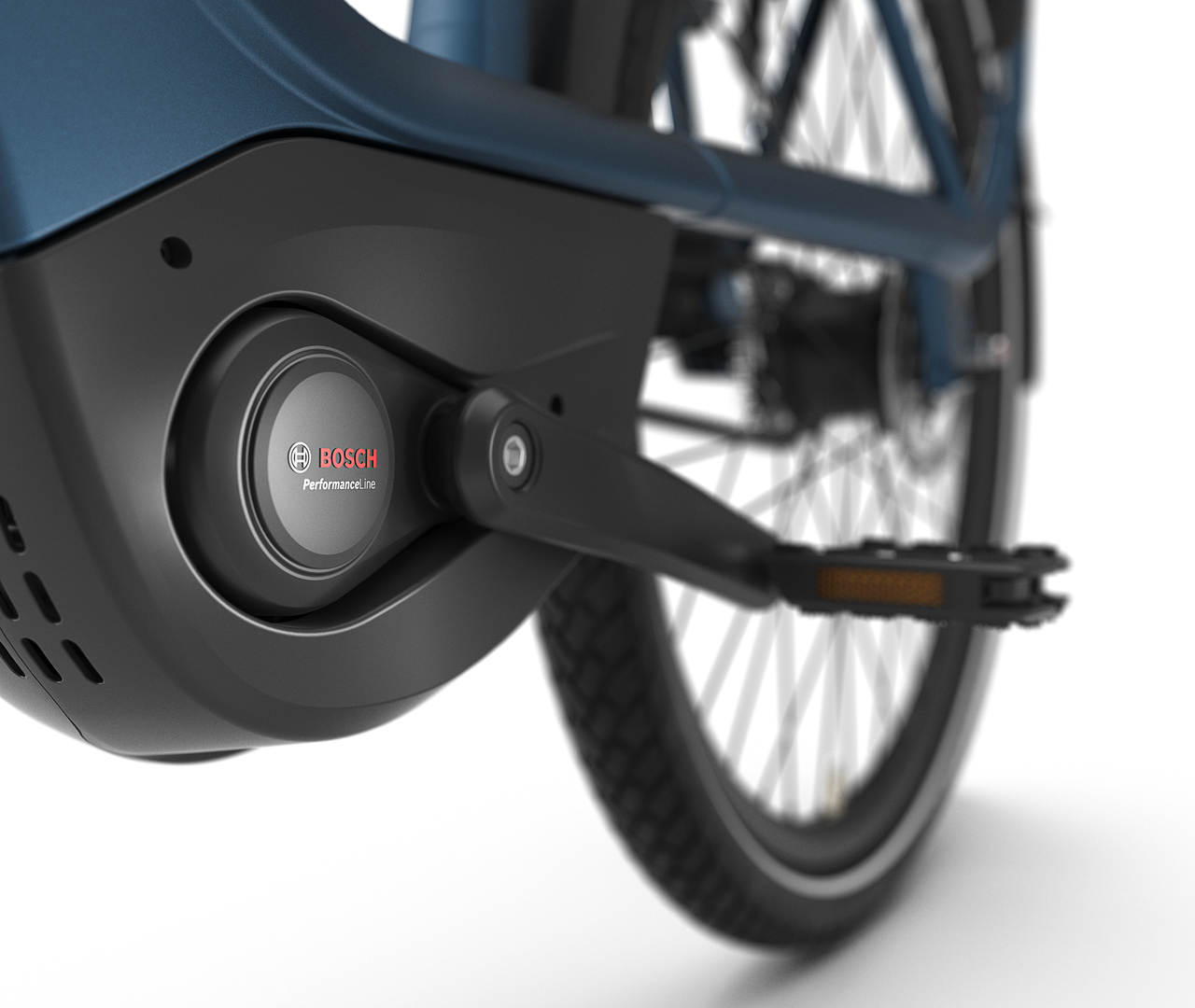

Whisper-quiet motor
The Bosch Performance Line mid-motor gives you exactly the smooth, powerful support you're looking for. With a torque of 75 Nm, you cycle effortlessly everywhere. And the best part? It's so quiet. Whisper-quiet. This way, you fully enjoy every ride.

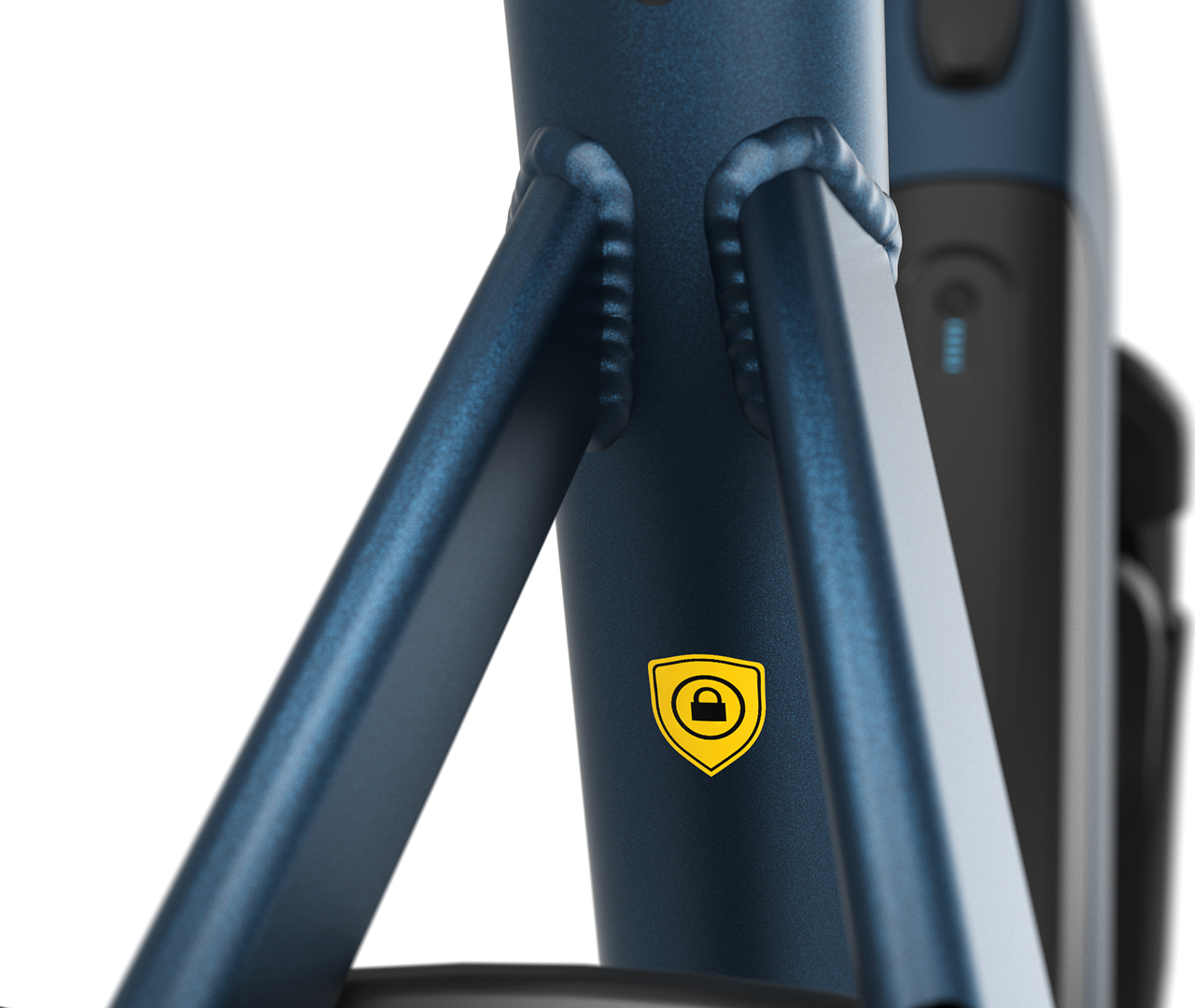

GPS built-in
With Gazelle Protect, you park your Avignon without worries. Thanks to the built-in GPS, you always know where your bike is. Does your Avignon unexpectedly move? Then you'll receive a notification via the Gazelle App. Good to know: to activate the GPS, you choose a data subscription from Gazelle.

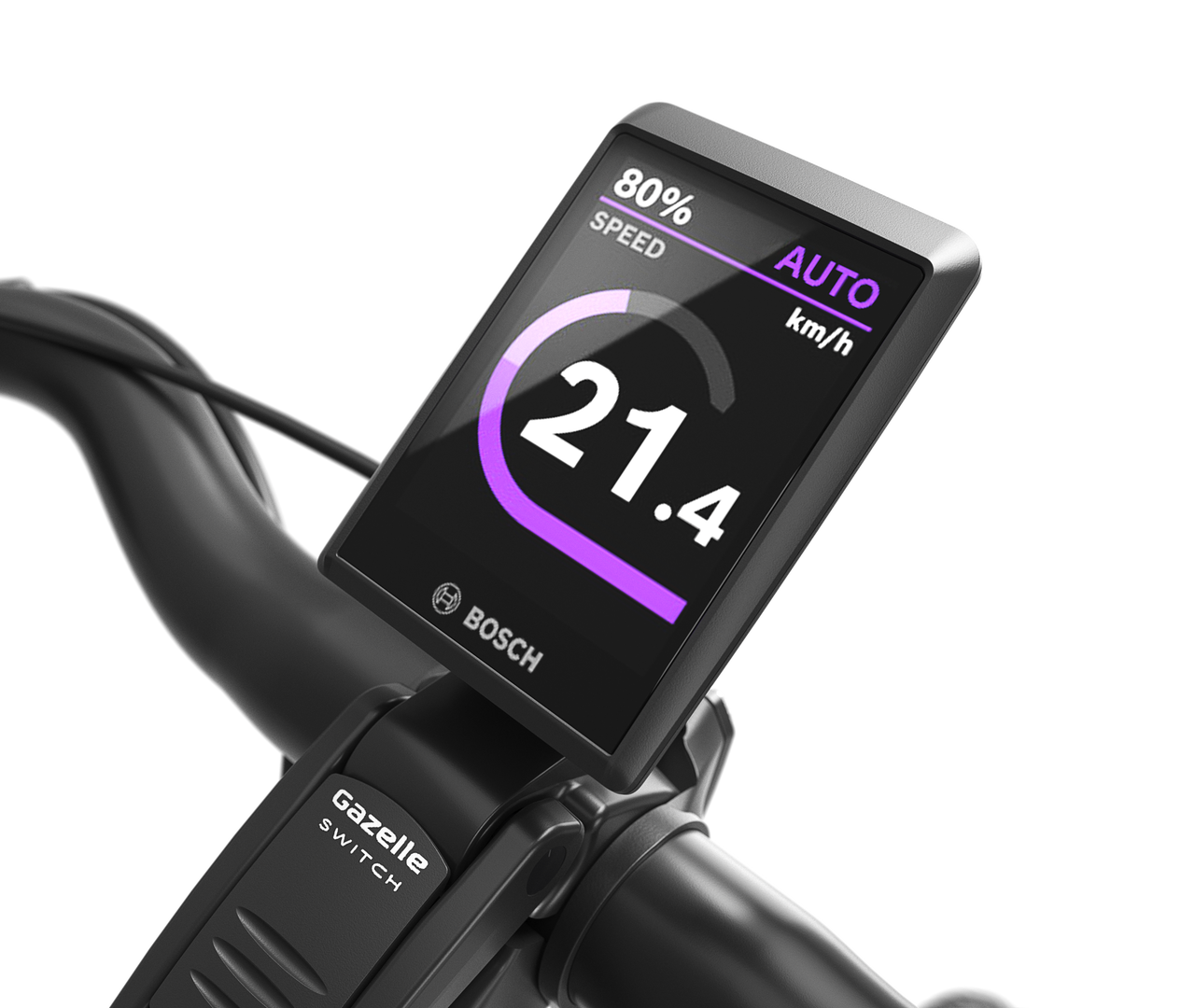

Extra large display
All at a glance with the large Kiox 500 colour display from Bosch. This display offers extensive functions such as navigation. Via Bluetooth, you can easily connect your phone to the Avignon.
)
:focus(true):quality(70))

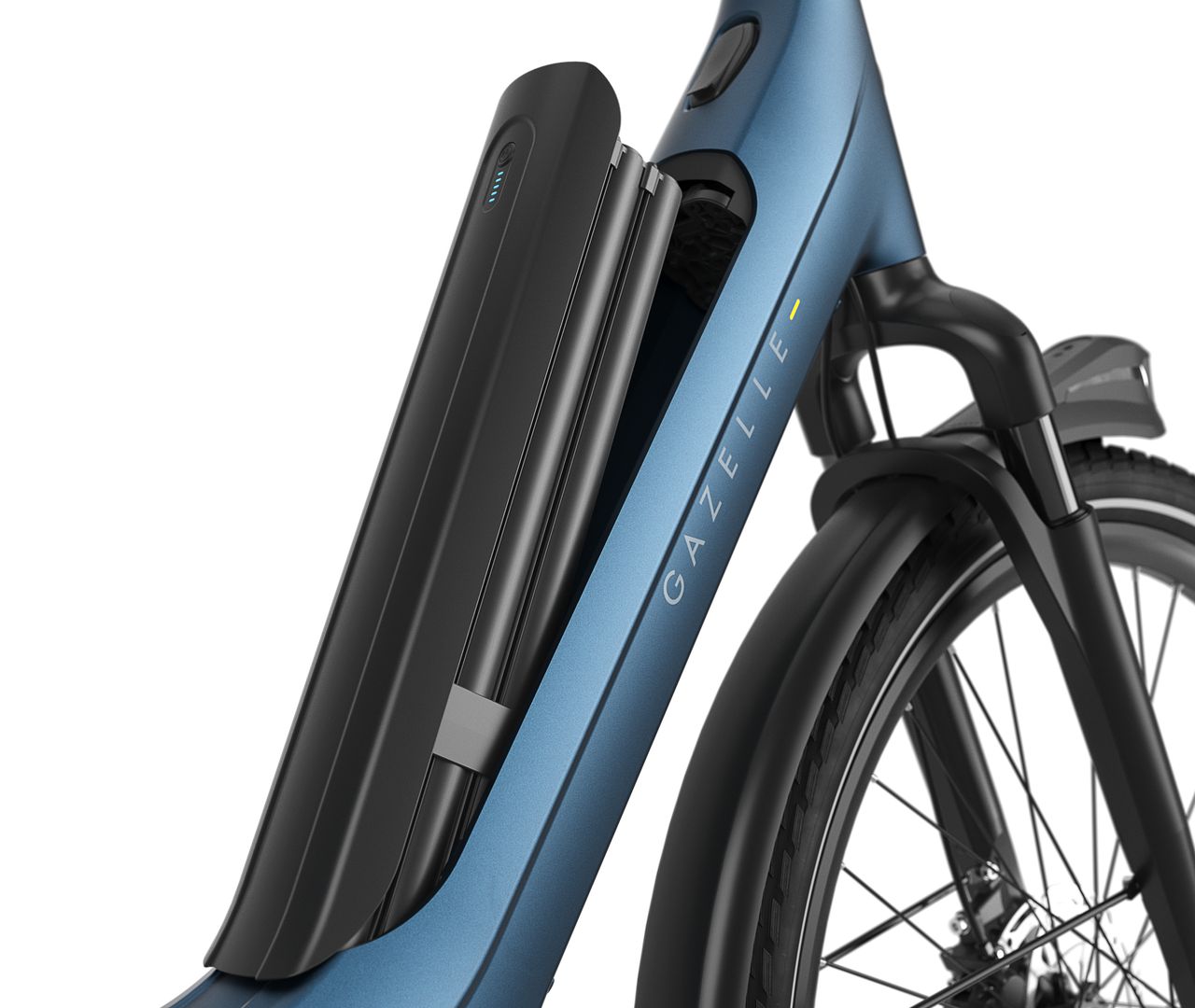

Endless riding
Bosch's lithium-ion batteries are among the most modern batteries on the market. Their intelligent battery management system guarantees a long lifespan, and efficient energy control ensures optimal range. You have the choice between 540, 600, or even 800 Wh.

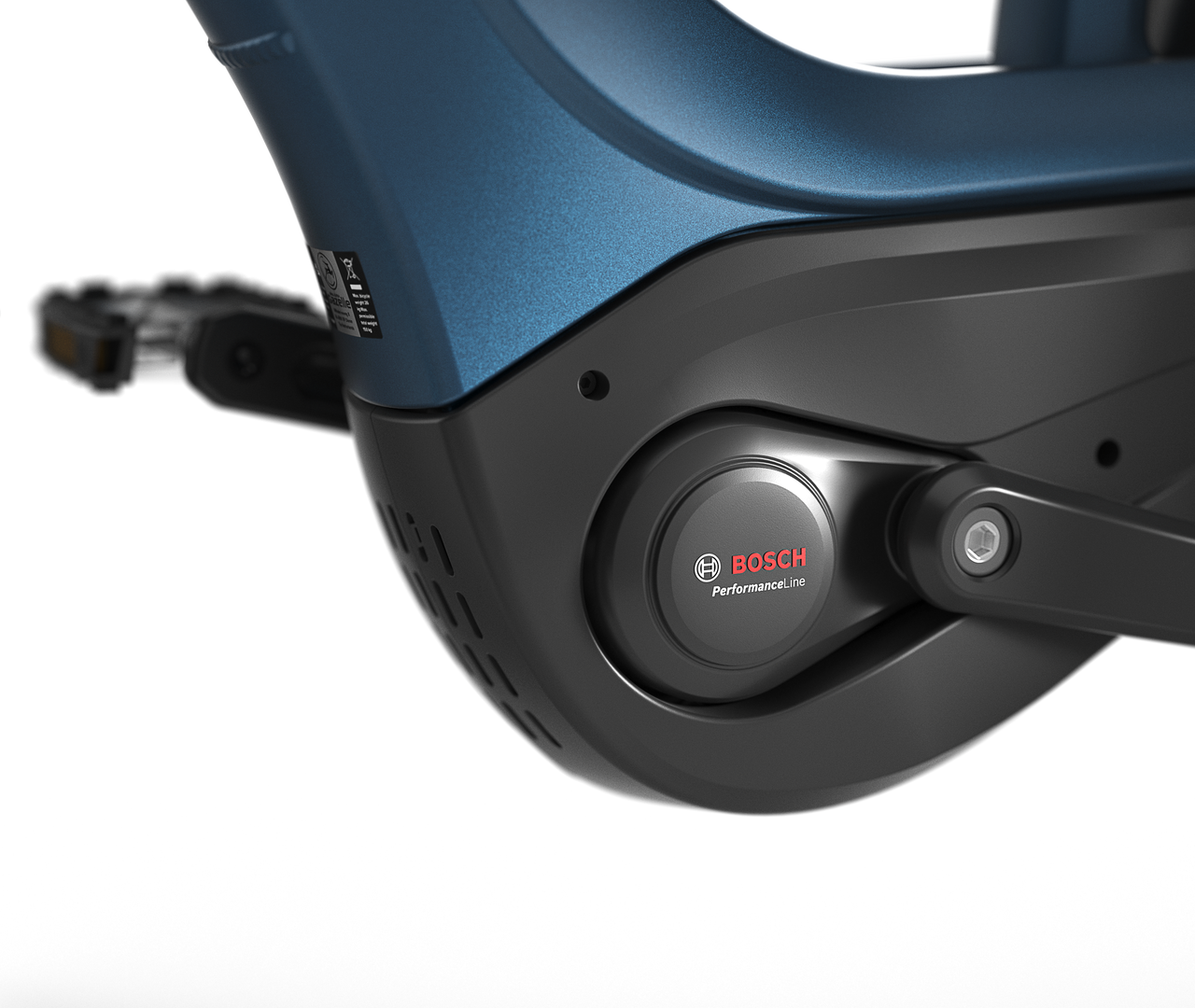

Always a tailwind with a Bosch Performance Line motor
With the smooth Bosch Performance Line mid-motor, you always have a tailwind. The 75 Nm of torque gives you the support you're looking for. The motor is above all whisper-quiet. This means that you fully enjoy your surroundings during every ride. No disturbing motor noise, just you, your bike, and the road.
Battery and range
Bosch Powertube 600 Wh without faceplate
- Watt-hours600 Wh
- Capacity16,7 Ah
- Ebike battery charging time with 2A charger9 h 18 m
- Ebike battery charging time with 4A charger5 h 24 m
- Battery positionintegrated in the frame
- Battery brandBosch
- Battery modelIntube
- Voltage36V
- Eco140 km
- Tour80 km
- Auto65 km
- Turbo55 km
Bosch PowerTube Li-Ion (800 Wh)
- Watt-hours800 Wh
- Capacity22,2 Ah
- Ebike battery charging time with 2A charger12 h 24 m
- Ebike battery charging time with 4A charger6 h 54 m
- Battery positionintegrated in the frame
- Battery brandBosch
- Battery modelIntube
- Voltage36V
- Eco185 km
- Tour110 km
- Auto90 km
- Turbo70 km
Bosch PowerTube Li-Ion
- Watt-hours540 Wh
- Capacity15 Ah
- Ebike battery charging time with 2A charger7 h 42 m
- Ebike battery charging time with 4A charger4 h 54 m
- Battery positionintegrated in the frame
- Battery brandBosch
- Battery modelIntube
- Voltage36V
- Eco120 km
- Tour70 km
- Auto55 km
- Turbo50 km
Watt-hours
600 Wh
800 Wh
540 Wh
Capacity
16,7 Ah
22,2 Ah
15 Ah
Ebike battery charging time with 2A charger
9 h 18 m
12 h 24 m
7 h 42 m
Ebike battery charging time with 4A charger
5 h 24 m
6 h 54 m
4 h 54 m
Battery position
integrated in the frame
integrated in the frame
integrated in the frame
Battery brand
Bosch
Bosch
Bosch
Battery model
Intube
Intube
Intube
Voltage
36V
36V
36V
Eco
140 km
185 km
120 km
Tour
80 km
110 km
70 km
Auto
65 km
90 km
55 km
Turbo
55 km
70 km
50 km
Specifications
- Color
- Orion blue matte
- Fork suspension
- Telescope, spiral spring
- Weight
- 28.2 excl. battery
- Color
- Orion blue matte
- Bike Max. Total Weight (kg)
- 150
- Sitting Position
- Upright
- Frame description
- Stable aluminium frame with 68.5° head tube angle and 69.5° saddle tube angle. Cables are nicely concealed through the unique cable integration system. Battery integrated in the frame for large capacity
- Frame material
- Aluminum
- Cockpit Cable Integration
- Yes
- Frame shape
- Low-Step
- Frame Size CM
- 49, 53, 57, 61, 65
- Fork
- Gazelle
- Fork Material
- Aluminum
- Fork suspension
- Telescope, spiral spring
- Fork lockout
- No
Frame
Fork
- Front wheel
- 46, Gates
- Rear wheel
- 34, Gates
- Front rim
- Ryde ZAC 25, double-walled aluminium for extra strong and efficient cycling performance
- Rear rim
- Ryde ZAC 25, double-walled aluminium for extra strong and efficient cycling performance
- Rear hub
- Shimano Nexus 5
- WheelSize Front
- 28"
- Wheels Tire Front Etrto
- 55-622
- Front tyre
- Schwalbe The Green Marathon
- Rear tyre
- Schwalbe The Green Marathon
- Wheels Tire Front Description
- 80% recycled and renewable materials
Wheels
Tires
- Brand shifters
- Shimano
- Gear Type
- Hub
- Number of gears
- 5
- Front chainwheel
- 46
- Drivetrain
- Belt
- Front Brake Type
- Hydraulic disc brake
- Brake sytem code
- S5
- Front Brake Brand
- Tektro
- Primary Rear Brake Model
- HD-R3021
- Front brake
- Tektro HD-T3021, 180 mm
- Rear brake
- Tektro HD-R3021, 160 mm
- Rear Brake Lever
- Tektro
Gears
Drivetrain
Brakes
- Handlebar
- Gazelle Aero Leather, luxury leather handlebar grips for a sophisticated feel and extra comfort
- Stem adjustable
- Yes
- Steering lock
- Yes
- Cockpit Handlebar Grip Brand
- Gazelle
- Saddle
- Selle Royal Lena Gel
- Seatpost suspension
- Yes
Handlebar
Saddle
- Front light
- Gazelle Fendervision
- Front Light Energy Source
- Battery
- Front Light Lux
- 70
- Rear Light Energy Source
- Battery
- Rear light
- Spanninga Commuter Glow
Front light
Rear light
- Motor
- Bosch Smart System Performance Line
- System Model
- Performance Line
- Ebike System Brand
- Bosch Smart System
- Ebike Engine Position
- Mid
- Ebike Max Speed kmh
- 25
- Ebike Max Speed mph
- 15
- Engine Max Torque (Nm)
- 75
- Charger
- Bosch Standard Charger,
- Ebike Battery Charger Description
- 4 Ah
- Battery Position
- Integrated in the frame
- Display
- Bosch Kiox 500
- Display Removable
- Yes
- Ebike Walk Assist
- Yes
- Display Type
- LCDc
Engine
Battery
Display
- Frame warranty
- 10 year's warranty
- Fork warranty
- 5 year's warranty
- Paint warranty
- 5 year's warranty
- Other parts warranty
- 2 year's warranty
- Battery warranty
- 2 year's warranty
- Motor warranty
- 2 year's warranty
- Display warranty
- 2 year's warranty
Warranty
- Lock
- Axa
- Lock brand
- Axa
- ART classification
- ART**
- Chain guard
- Chain guard
- Kickstand
- Ursus Mooi
- pim_productchaincase
- Yes
- Chaincase type
- Chain guard
- Rear carrier description
- Aluminum MIK HD system carrier
- Carrier MIK Profile
- Yes
- Rear carrier max load (kg)
- 27
- Rear carrier
- Yes
Lock
Other
Carrier
)
Made by hand, for a superb result every single time.
Take our word for it. Or take a ride.
We've done our best to capture the Gazelle experience in words, but there is nothing like the real thing. So why not book a test ride at one of our Gazelle bike stores?
