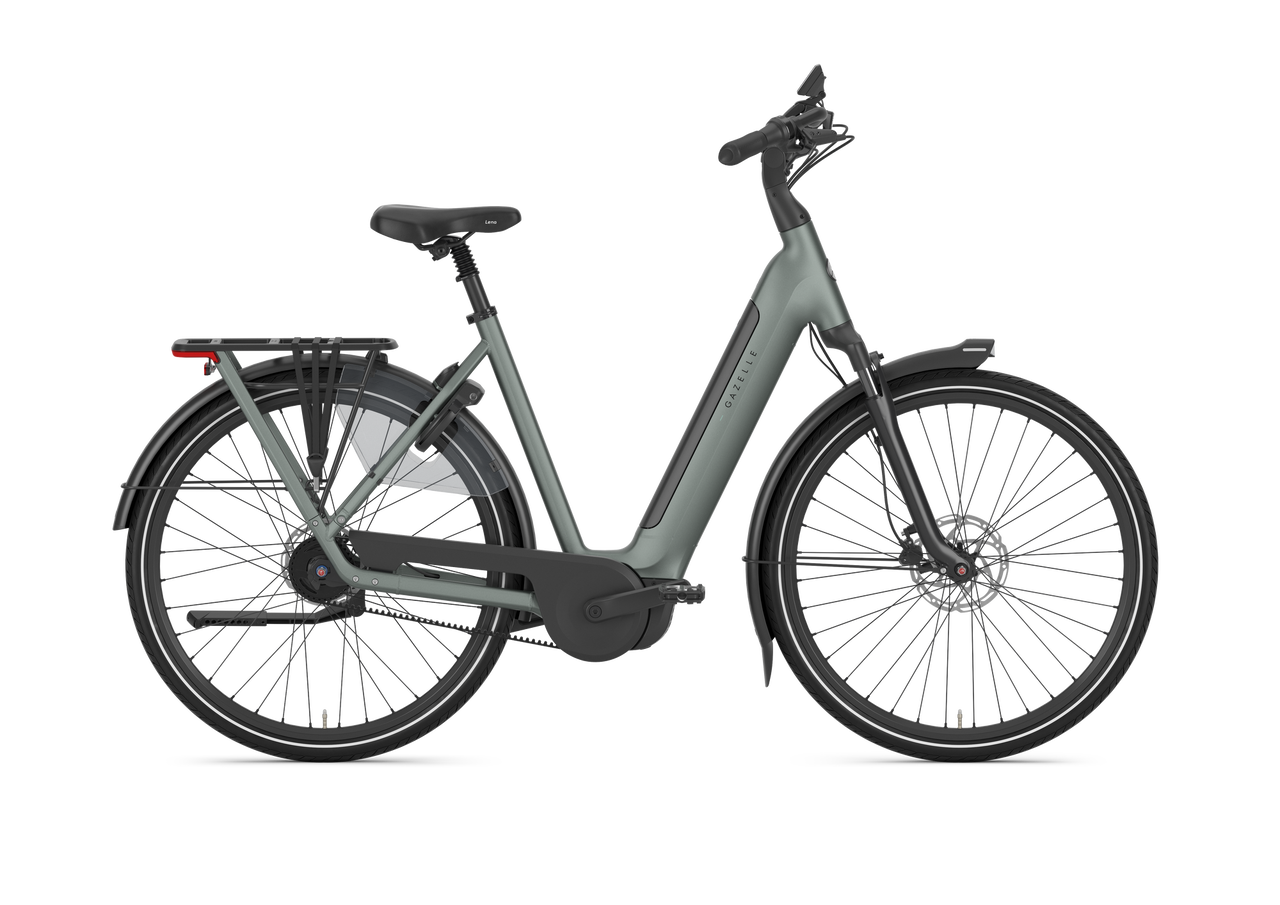

Gazelle GrenobleC5+ First Edition
£3,499Maximum range 150 km
Grenoble C5+ First Edition
Effortlessly climb every hill with the powerful Bosch motor, enjoy quiet belt drive and premium lighting. This stylish e-bike combines comfort and safety, so you always ride ahead in style!
Maximum range
150 km
Frame shape
High-Step, Low-Step
Number of gears
5
Specifications
Model
Grenoble
Weight
27.6 excl. battery
Color
twilight green matte
Segment
Electric bicycles, City bikes
Sitting Position
Upright
Motor
Ebike System Brand
Bosch Smart System
Motor
Performance Line
Engine Max Torque (Nm)
75
Ebike Engine Position
Mid
Ebike Max Speed kmh
25
Battery
Battery Position
integrated in the frame
Charger
Bosch Standard Charger, 4 Ah
Display
Support levels
4
Support modes
Eco, Tour, Auto, Turbo
Ebike Walk Assist
Yes
Display model
Bosch Kiox 300
Display Type
Colour
Display Removable
Yes
Wheels
WheelSize Front
28"
WheelSize Rear
28"
Front rim
Ryde ZAC 25
Rear rim
Ryde ZAC 25
Front hub
Joytech D763DSE
Rear hub
Shimano Nexus 5
Tires
Front tyre
Schwalbe Energizer Active Plus
Rear tyre
Schwalbe Energizer Active Plus
Wheels Tire Front Etrto
50-622
Wheels Tire Rear Etrto
50-622
Gears
Number of gears
5
Gear Type
Hub
Gear
Shimano Nexus 5
Brakes
Front Brake Type
hydraulic disc brake
Rear brake type
hydraulic disc brake/
Front brake
Tektro HD-T280
Rear brake
Tektro HD-T280
Front brake piston number
2
Rear brake piston number
2
Front brake disc diameter
180 mm
Rear brake disc diameter
160 mm
Front brake lever
Tektro
Rear Brake Lever
Tektro
Drivetrain
Drivetrain
belt
Drivetrain
Gates CDC
Front sprocket
46, Gates CDC
Rear sprocket
34, Gates CDX
Frame
Frame shape
High-Step, Low-Step
Frame Size CM
XL(61), L(57), M(53), S(49)
Frame description
Stable, lightweight hydro-formed aluminium frame with 68.5° headset angle and 69.5° saddle tube angle for relaxed and comfortable riding. This is a low-step and spacious frame, single tube and lovely integrated cables
Frame material
aluminum
Fork
Fork
Gazelle
Fork Material
aluminum
Fork suspension
Telescope, spiral spring
Fork travel
40 mm
Fork lockout
No
Handlebar
Handlebar description
aluminium, comfort curved model
Stem adjustable
Yes
Grips
Gazelle Aero Leather, luxury leather handlebar grips for a sophisticated feel and extra comfort
Saddle
Saddle
Selle Royal Lena Gel
Seatpost suspension
Yes
Front light
Front light
Gazelle Fendervision Compact, start every ride in style with a captivating start-up animation, Gazelle Fendervision Compact, with daytime running lights
Front Light Energy Source
battery
Rear light
Rear light
Gazelle Slimvision
Rear Light Energy Source
battery
Frame warranty
10 year's warranty
Fork warranty
5 year's warranty
Paint warranty
5 year's warranty
Battery warranty
2 year's warranty
Motor warranty
2 year's warranty
Display warranty
2 year's warranty
Other parts warranty
2 year's warranty
Lock
Lock
Axa
Lock description
Robust ring lock with the latest anti-theft technology and the option for an additional insert lock.
ART classification
ART**
Other
Chain guard
Chain guard
Kickstand
Ursus Mooi
Kickstand type
drop-down rear stand
Carrier
Rear carrier
Yes
Carrier MIK Profile
Yes
Rear carrier description
aluminum MIK HD system carrier
Front carrier
No
| 600 Wh | 540 Wh | |
|---|---|---|
| Capacity | 16,7 Ah | 15 Ah |
| Battery charging time with 2A | 9 h 18 m | 7 h 42 m |
| Battery charging time with 4A | 5 h 24 m | 4 h 54 m |
| Battery brand | Bosch | Bosch |
| Battery model | Intube | Intube |
| Voltage | 36V | 36V |
| Eco | 175 | 150 |
| Tour | 100 | 90 |
| Auto | 80 | 70 |
| Turbo | 70 | 60 |
600 Wh
Capacity
16,7 Ah
Battery charging time with 2A
9 h 18 m
Battery charging time with 4A
5 h 24 m
Battery brand
Bosch
Battery model
Intube
Voltage
36V
Eco
175
Tour
100
Auto
80
Turbo
70
540 Wh
Capacity
15 Ah
Battery charging time with 2A
7 h 42 m
Battery charging time with 4A
4 h 54 m
Battery brand
Bosch
Battery model
Intube
Voltage
36V
Eco
150
Tour
90
Auto
70
Turbo
60
Battery and range
Bosch PowerTube Li-Ion
- Watt-hours540 Wh
- Capacity15 Ah
- Ebike battery charging time with 2A charger7 h 42 m
- Ebike battery charging time with 4A charger4 h 54 m
- Battery positionintegrated in the frame
- Battery brandBosch
- Battery modelIntube
- Voltage36V
- Eco130 km
- Tour75 km
- Auto60 km
- Turbo50 km
Bosch Powertube 600 Wh without faceplate
- Watt-hours600 Wh
- Capacity16,7 Ah
- Ebike battery charging time with 2A charger9 h 18 m
- Ebike battery charging time with 4A charger5 h 24 m
- Battery positionintegrated in the frame
- Battery brandBosch
- Battery modelIntube
- Voltage36V
- Eco150 km
- Tour85 km
- Auto70 km
- Turbo60 km
Watt-hours
540 Wh
600 Wh
Capacity
15 Ah
16,7 Ah
Ebike battery charging time with 2A charger
7 h 42 m
9 h 18 m
Ebike battery charging time with 4A charger
4 h 54 m
5 h 24 m
Battery position
integrated in the frame
integrated in the frame
Battery brand
Bosch
Bosch
Battery model
Intube
Intube
Voltage
36V
36V
Eco
130 km
150 km
Tour
75 km
85 km
Auto
60 km
70 km
Turbo
50 km
60 km
Craftsmanship
With over 130 years of expertise, we know precisely what we're doing. Creating bicycles that you can rely on. What begins with a design comes together in our factory. Where we work everyday to create the perfect Gazelle for you.
)
Discover the Grenoble
)
)
)
Made by hand, for a superb result every single time.
Take our word for it. Or take a ride.
We've done our best to capture the Gazelle experience in words, but there is nothing like the real thing. So why not book a test ride at one of our Gazelle bike stores?
