Specifications
Battery
Charger
Bosch Compact Charger, 2A
Battery Position
integrated in the frame
Display
Display model
Bosch Purion 200
Display Removable
false
Display Type
LCD colour
Support levels
4
Support modes
Eco, Tour, Auto, Turbo
Ebike Walk Assist
true

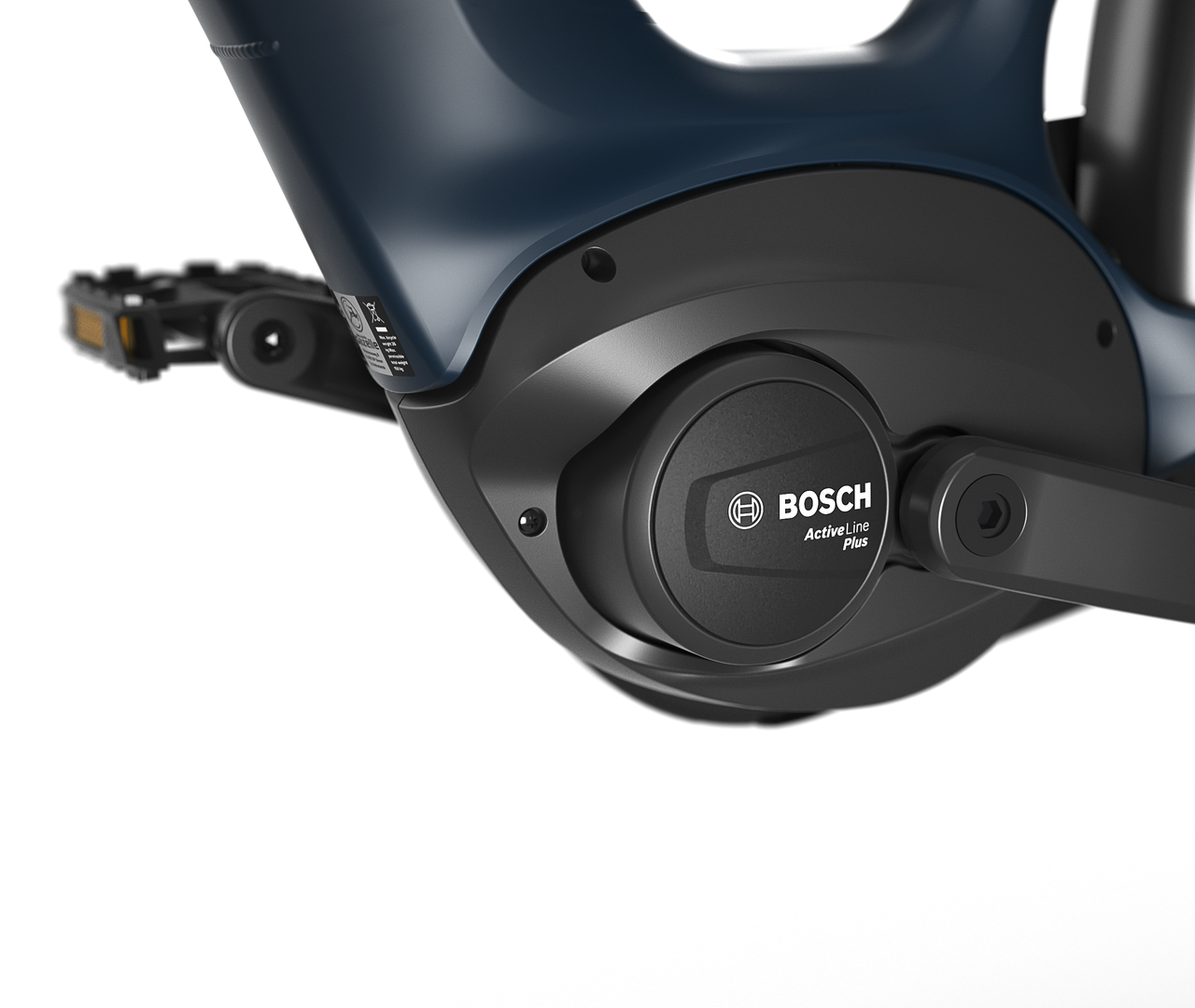

Motor
Maximum Speed
25 km/h
Engine Max Torque (Nm)
50
Motor
Active Line Plus
Ebike Engine Position
Mid
Ebike System Brand
Bosch Smart System

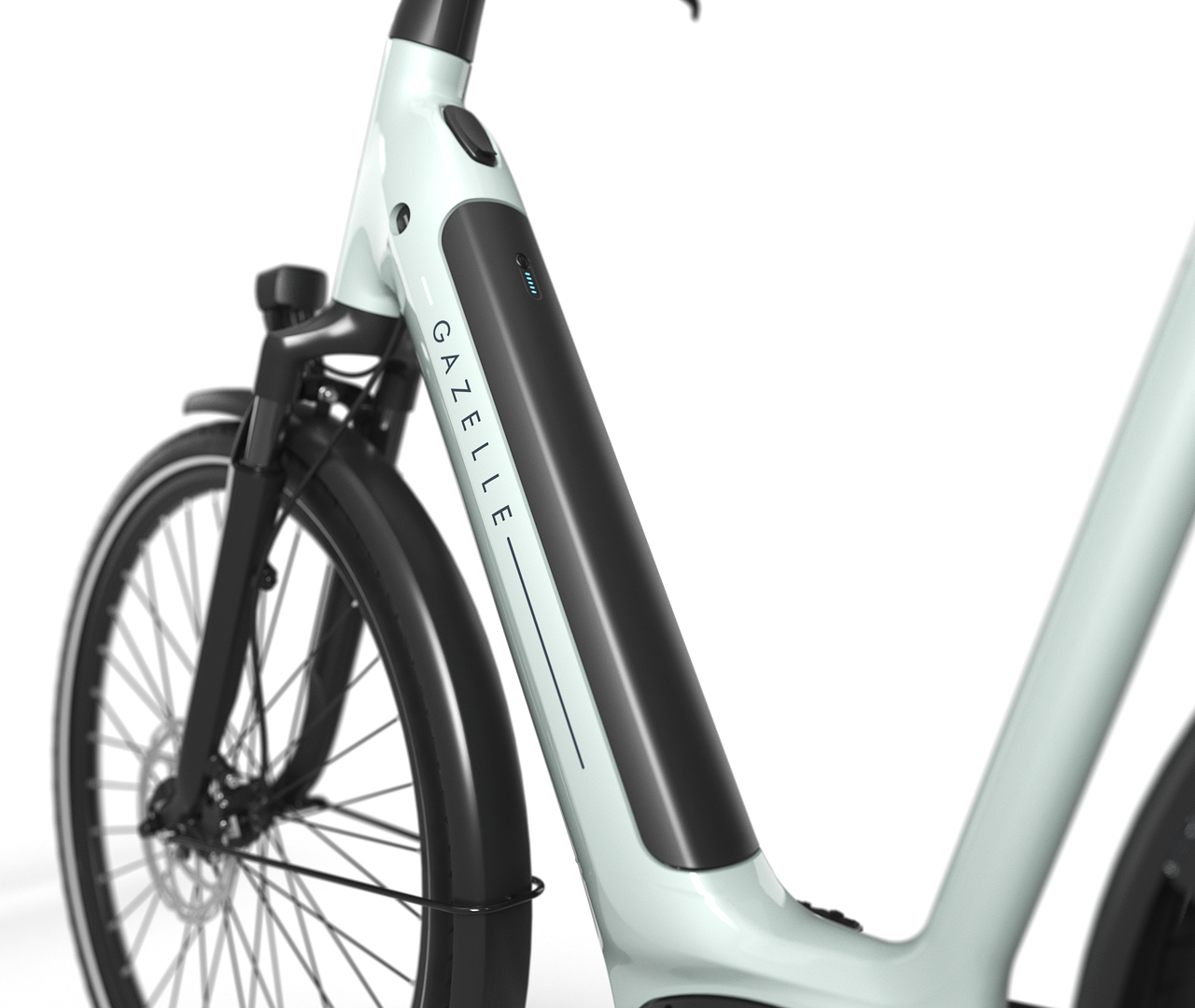

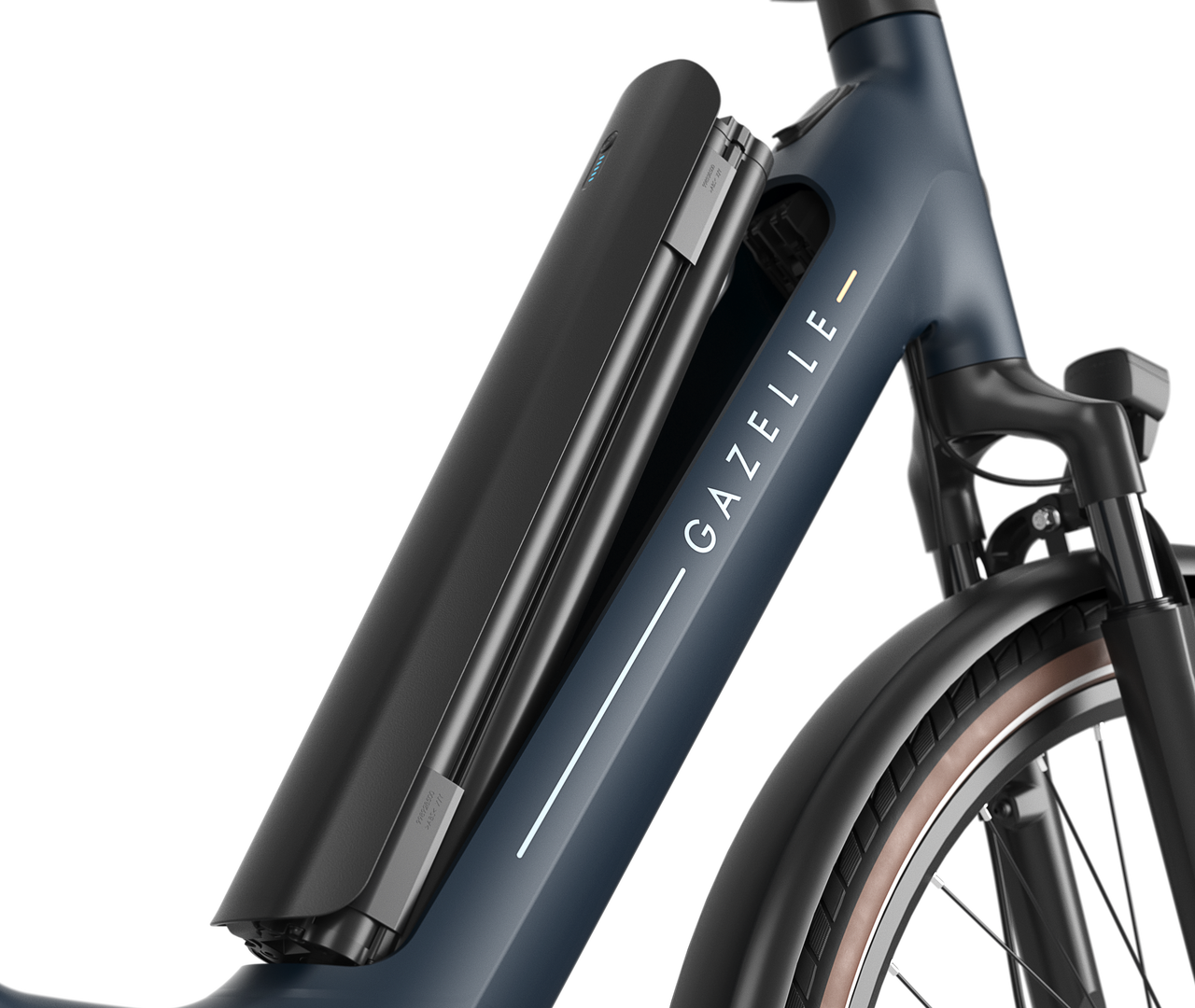

Battery and range
| 600 Wh | 540 Wh | |
|---|---|---|
| Capacity | 16,7 Ah | 15 Ah |
| Battery brand | Bosch | Bosch |
| Battery charging time with 2A | 9 h 18 m | 7 h 42 m |
| Battery charging time with 4A | 5 h 24 m | 4 h 54 m |
| Battery model | Intube | Intube |
| Eco | 109 mi | 94 mi |
| Tour | 63 mi | 56 mi |
| Auto | 50 mi | 44 mi |
| Turbo | 44 mi | 38 mi |
| Voltage | 36V | 36V |
600 Wh
Capacity
16,7 Ah
Battery brand
Bosch
Battery charging time with 2A
9 h 18 m
Battery charging time with 4A
5 h 24 m
Battery model
Intube
Eco
109 mi
Tour
63 mi
Auto
50 mi
Turbo
44 mi
Voltage
36V
540 Wh
Capacity
15 Ah
Battery brand
Bosch
Battery charging time with 2A
7 h 42 m
Battery charging time with 4A
4 h 54 m
Battery model
Intube
Eco
94 mi
Tour
56 mi
Auto
44 mi
Turbo
38 mi
Voltage
36V
Fork
Fork
Gazelle
Fork lockout
false
Fork Material
aluminum
Fork suspension
Telescope, spiral spring
Fork travel
40 mm
Frame
Frame description
Stable, lightweight hydro-formed aluminium frame with 68.5° headset angle and 69.5° saddle tube angle for relaxed and comfortable riding. This is a low-step and spacious frame, single tube and lovely integrated cables
Frame material
aluminum
Frame shape
Low-Step, High-Step
Frame Size CM
XL(61), L(57), M(53), S(49), XS(46)
Weight
60.2 lbs excl. battery
Color
light olive gloss, between blue matte
Model
Grenoble
Segment
Electric bicycles, City bikes
Sitting Position
Upright
Handlebar
Handlebar description
aluminium, comfort curved model
Grips
Gazelle Aerowing, plastic wear-resistant handlebar grips for a firm grasp
Stem adjustable
true
Saddle
Saddle
Selle Royal Lena
Seatpost suspension
true
Front light
Front Light Energy Source
battery
Front light
AXA NXT 60
Rear light
Rear Light Energy Source
battery
Rear light
Spanninga Solo
Carrier
Front carrier
false
Rear carrier
true
Rear carrier description
aluminum MIK HD system carrier
Carrier MIK Profile
true
Lock
Lock
Axa
ART classification
ART**
Other
Chain guard
Chain case
Kickstand
Ursus Mooi
Kickstand type
drop-down rear stand
Battery warranty
2 year's warranty
Display warranty
2 year's warranty
Fork warranty
5 year's warranty
Frame warranty
10 year's warranty
Motor warranty
2 year's warranty
Paint warranty
5 year's warranty
Other parts warranty
2 year's warranty

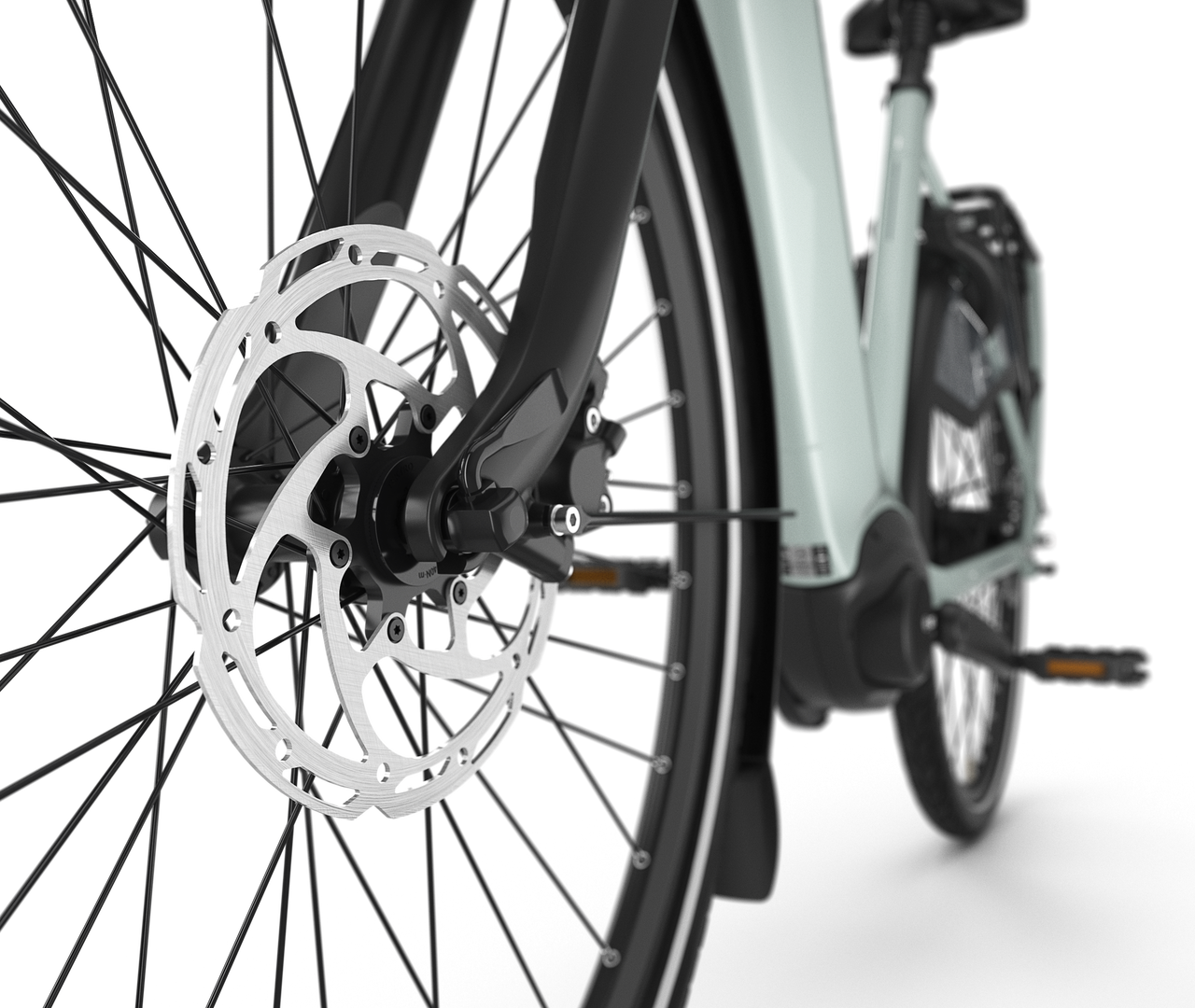

Brakes
Front brake
Tektro HD-T280
Front brake disc diameter
180 mm
Front brake lever
Tektro
Front brake piston number
2
Front Brake Type
hydraulic disc brake
Rear brake
Tektro HD-T280
Rear brake disc diameter
160 mm
Rear Brake Lever
Tektro
Rear brake piston number
2
Rear brake type
hydraulic disc brake/
Drivetrain
Drivetrain
KMC X8
Drivetrain
chain
Front sprocket
38
Rear sprocket
18
Gears
Gear
Shimano Nexus 8
Gear Type
Hub
Number of gears
8

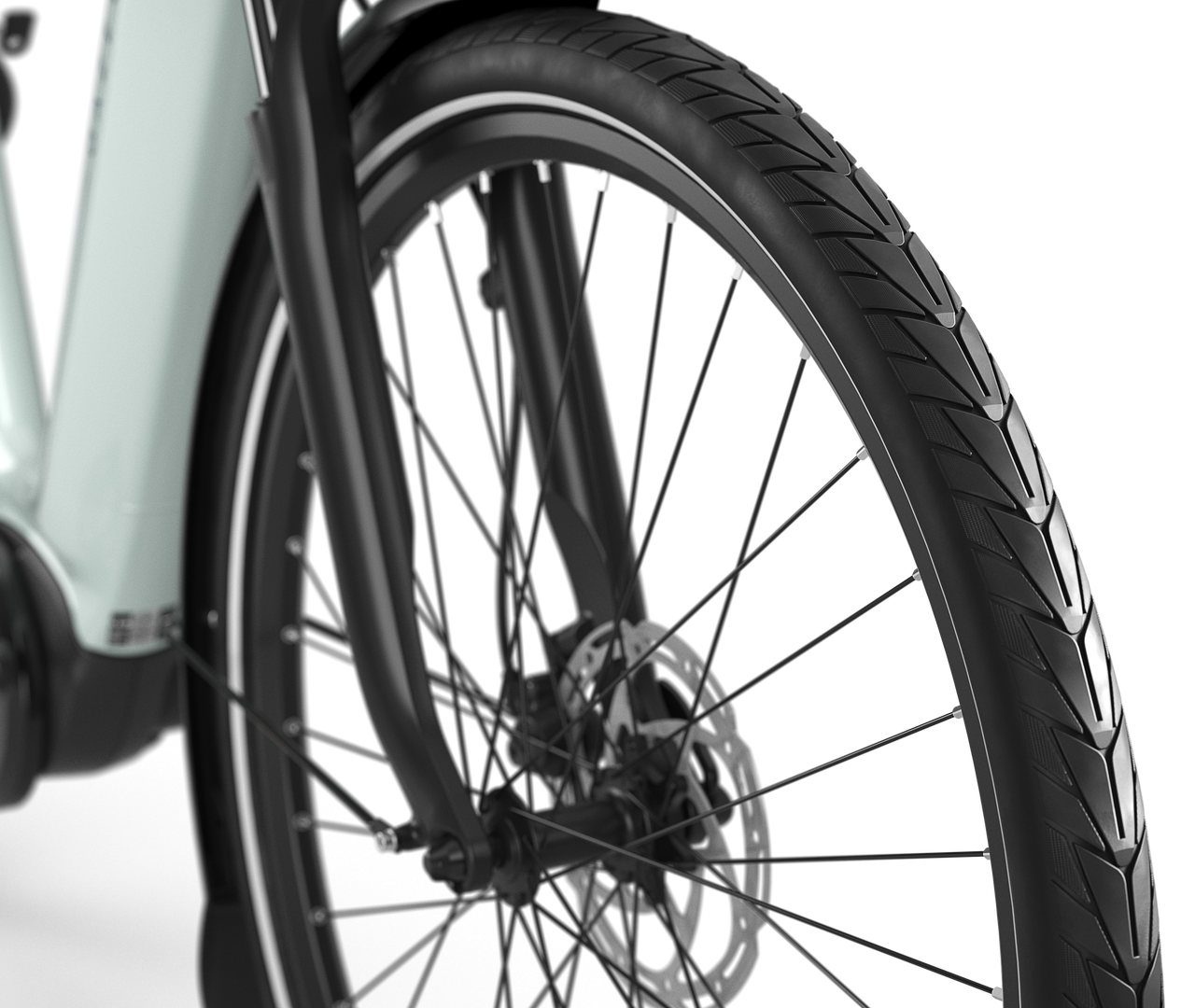

Tires
Wheels Tire Front Etrto
50-622
Wheels Tire Rear Etrto
50-622
Front tyre
Schwalbe Energizer Active Plus
Rear tyre
Schwalbe Energizer Active Plus
Wheels
Front hub
Shimano
Front rim
Ryde ZAC 421, double-walled aluminium for extra strong and efficient cycling performance
WheelSize Front
28"
Rear hub
Shimano Nexus 8
Rear rim
Ryde ZAC 421, double-walled aluminium for extra strong and efficient cycling performance
WheelSize Rear
28"
