Gazelle OrangeC7+ HMB 26"
Gazelle Orange C7+ HMB 26"
From £2,599Maximum range 145 km

Extra manoeuvrability thanks to smaller 26-inch tyres

Orange C7+ HMB 26"

Orange C7+ HMB 26"

Go for stability and comfort with the Orange C7+ 26". Running a quick errand in town or going on a nice ride through nature? It will take you everywhere!

Maximum range
145 km
Frame shape
Low-Step
Number of gears
7
From £2,599

Craftsmanship

With over 130 years of expertise, we know precisely what we're doing. Creating bicycles that you can rely on. What begins with a design comes together in our factory. Where we work everyday to create the perfect Gazelle for you.

Discover the Orange

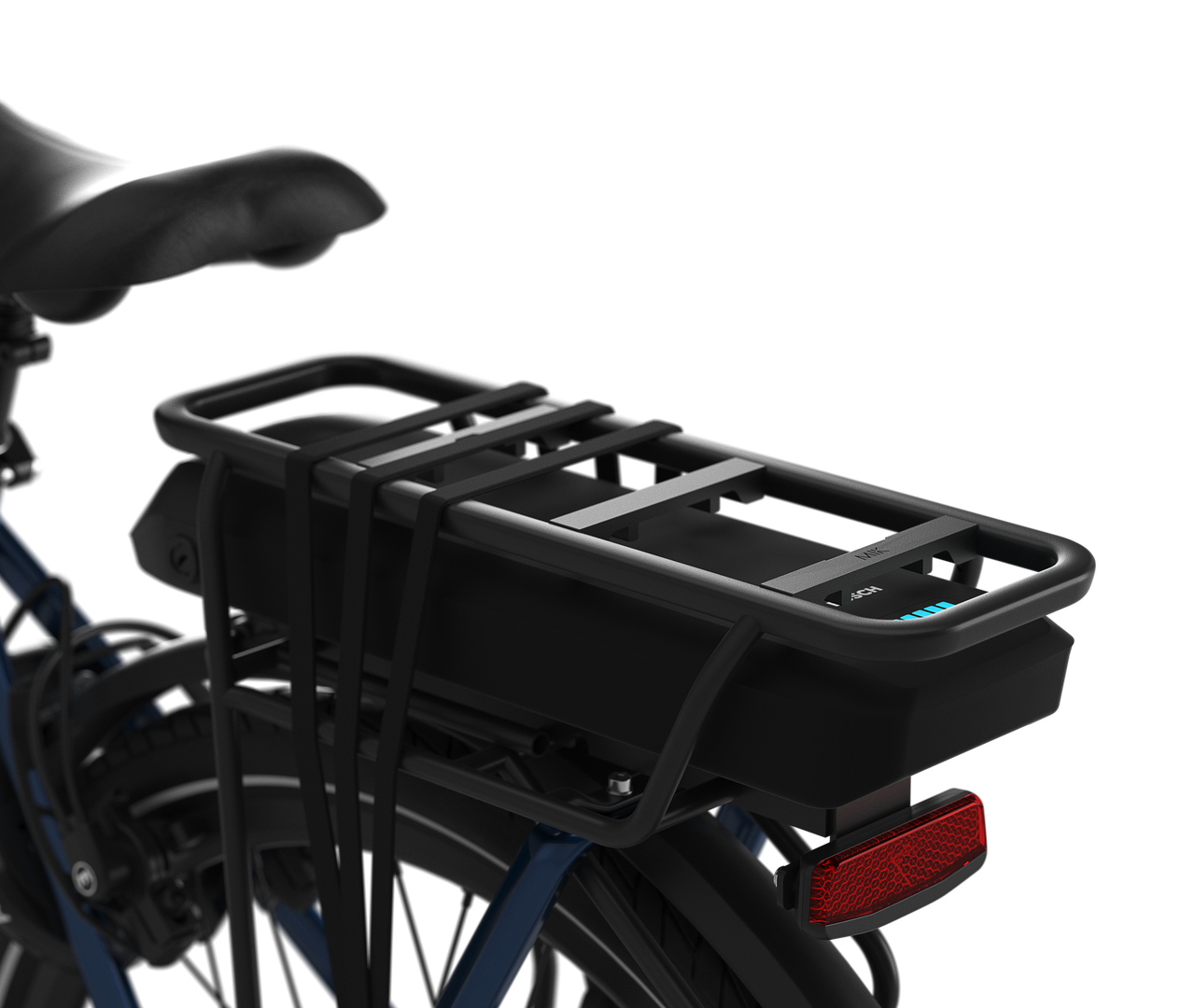

Choose the battery that's right for you

De lithium-ion-accu's van Bosch behoren tot de modernste accu's op de markt. Hun intelligente battery-managementsysteem garandeert een lange levensduur en de efficiënte aansturing van energie zorgt voor een optimale actieradius. Je kiest zelf welke accu-capaciteit bij je past: 400 of 500 Wh. De accu zit vast met een slot op je achterdrager en is met je fietssleutel makkelijk uitneembaar. Handig, zo kan je de accu zowel in je fiets als buiten je fiets opladen
Choose the battery that's right for you Gazelle Orange C7+ HMB 26" E-bike low-step mallard blue
Active Line Plus Gazelle Orange C7+ HMB 26" E-bike low-step mallard blue

The wind is always at your back with a Bosch Active Line Plus motor

The Bosch Active Line Plus gives natural and silent assistance. With a torque of 50 Nm you can handle practically any terrain. Whether flat or hilly, with this motor you arrive comfortably at your destination.

Battery and range

  • Watt-hours400 Wh
  • Capacity11,1 Ah
  • Ebike battery charging time with 2A charger6 h 30 m
  • Ebike battery charging time with 4A charger3 h 30 m
  • Battery positionintergrated in the carrier
  • Battery brandBosch
  • Battery modelRack
  • Voltage36V
  • Eco115 km
  • Tour65 km
  • Auto50 km
  • Turbo45 km

  • Watt-hours500 Wh
  • Capacity13,4 Ah
  • Ebike battery charging time with 2A charger7 h 30 m
  • Ebike battery charging time with 4A charger4 h 30 m
  • Battery positionintergrated in the carrier
  • Battery brandBosch
  • Battery modelRack
  • Voltage36V
  • Eco145 km
  • Tour85 km
  • Auto65 km
  • Turbo55 km
Watt-hours
400 Wh
500 Wh
Capacity
11,1 Ah
13,4 Ah
Ebike battery charging time with 2A charger
6 h 30 m
7 h 30 m
Ebike battery charging time with 4A charger
3 h 30 m
4 h 30 m
Battery position
intergrated in the carrier
intergrated in the carrier
Battery brand
Bosch
Bosch
Battery model
Rack
Rack
Voltage
36V
36V
Eco
115 km
145 km
Tour
65 km
85 km
Auto
50 km
65 km
Turbo
45 km
55 km
Logo Gazelle

"Fine step-through, good sitting position that is perfectly customisable due to the fully adjustable handlebar."

Gazelle's customer
We make 300,000 bikes a year, assembled by hand.
Our bicycles are consistently checked for quality, from paint job to performance.

Specifications

Color
Mallard blue gloss

Fork suspension
Telescope, spiral spring

System Model
Active Line Plus

Motor
Bosch Smart System Active Line Plus

Bike weight description
Excl. battery

Weight (kg)
22.8 kgs

Weight
22.8 excl. battery

Color
Mallard blue gloss

Bike Max. Total Weight (kg)
130

Sitting Position
Upright


Frame

Frame description
Lightweight aluminium frame with comfort geometry for stable and comfortable handling. Rear carrier integrated into the frame, low step-through frame with a single down tube for a low spacious step-through. Integrated cable routing.
Frame material
Aluminum
Cockpit Cable Integration
Yes
Frame shape
Low-Step
Frame Size CM
42, 46

Fork

Fork description
Aluminium, telescopic sprung
Fork Material
Aluminum
Fork suspension
Telescope, spiral spring
Fork lockout
No

Wheels

Front wheel
38
Rear wheel
18
Front rim
Ryde X-plorer, double-walled aluminium for extra strong and efficient cycling performance
Rear rim
Ryde X-plorer, double-walled aluminium for extra strong and efficient cycling performance
Front hub
Shimano
Rear hub
Shimano Nexus 7
WheelSize Front
26"

Tires

Wheels Tire Front Etrto
47-559
Front tyre
Schwalbe Energizer Active Plus
Rear tyre
Schwalbe Energizer Active Plus
Wheels Tire Front Description
Schwalbe Energizer Active Plus

Number of gears

Brand shifters
Shimano
Front chainwheel
38
Gear Type
Hub
Number of gears
7

Drivetrain

Drivetrain
Chain

Brakes

Front Brake Type
Rim brake
Brake sytem code
H7
Front Brake Brand
Magura
Primary Rear Brake Model
HS11
Front brake
Magura HS11
Rear brake
Magura HS11
Rear Brake Lever
HS11

Handlebar

Handlebar
Gazelle Aerowing, plastic wear-resistant handlebar grips for a firm grasp
Stem adjustable
Yes
Cockpit Handlebar Grip Brand
Gazelle

Saddle

Saddle
Selle Royal Herz

Front light

Front light
Trelock Veo 50
Front Light Energy Source
Battery
Front Light Lux
50

Rear light

Rear Light Energy Source
Battery
Rear light
Spanninga Solo

Engine

System Model
Active Line Plus
Motor
Bosch Smart System Active Line Plus
Ebike System Brand
Bosch Smart System
Ebike Engine Position
Mid
Ebike Max Speed kmh
25
Ebike Max Speed mph
20
Engine Max Torque (Nm)
50

Battery

Charger
Bosch
Ebike Battery Charger Description
2 Ah
Battery Position
Intergrated in the carrier

Display

Display
Bosch Purion 200
Ebike Walk Assist
Yes
Display Type
LCD

Garantie

Frame warranty
10 year's warranty
Fork warranty
5 year's warranty
Paint warranty
5 year's warranty
Other parts warranty
2 year's warranty
Battery warranty
2 year's warranty
Motor warranty
2 year's warranty
Display warranty
2 year's warranty

Lock

Lock
Axa
Lock brand
Axa
ART classification
ART**

Other

Kickstand
Ursus Mooi

Carrier

Rear carrier description
Aluminum MIK system carrier
Carrier MIK Profile
Yes
Rear carrier max load (kg)
25
Rear carrier
Yes
Made by hand, for a superb result every single time.

Awards

  • IF Design Award 2022

Take our word for it. Or take a ride.

We've done our best to capture the Gazelle experience in words, but there is nothing like the real thing. So why not book a test ride at one of our Gazelle bike stores?
