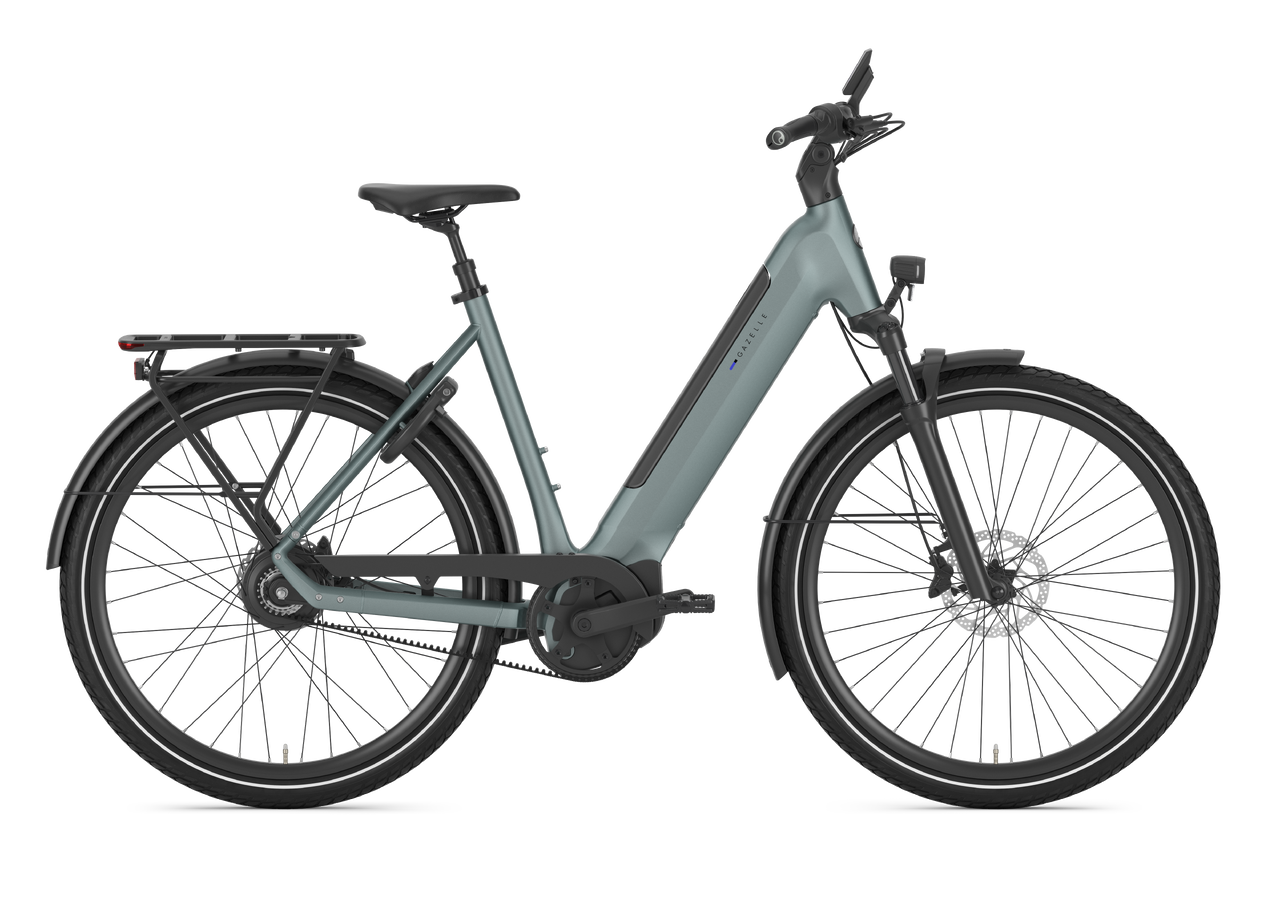

Gazelle UltimateC380
£4,099Maximum range 185 km
Ultimate C380
Maximum range
185 km
Frame shape
High-Step, Low-Step
Number of gears
Stepless
Craftsmanship
With over 130 years of expertise, we know precisely what we're doing. Creating bicycles that you can rely on. What begins with a design comes together in our factory. Where we work everyday to create the perfect Gazelle for you.
)
Discover the Ultimate
)
)

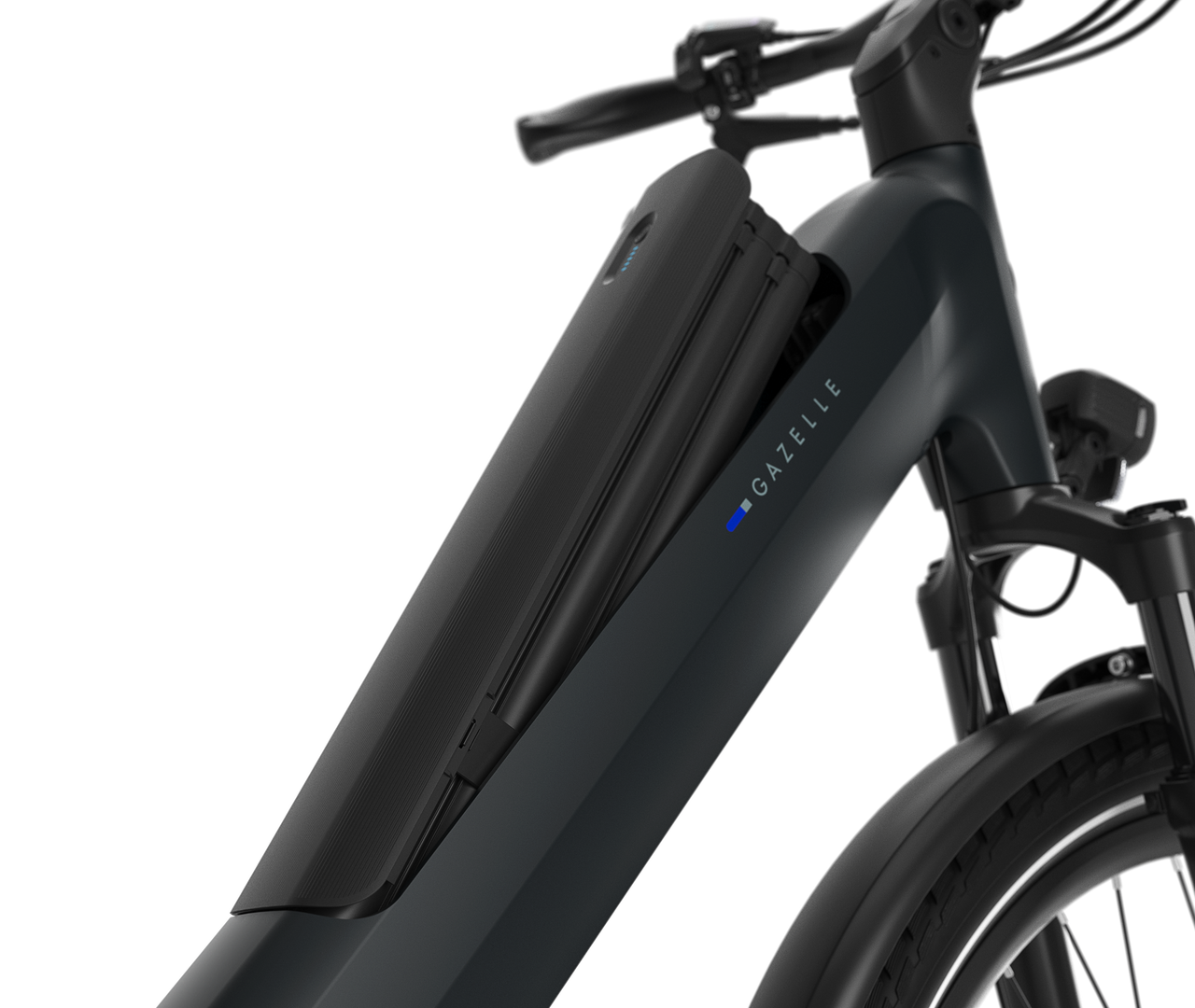

Endless riding
Bosch's lithium-ion batteries are among the most modern batteries on the market. Their intelligent battery management system guarantees a long lifespan, and efficient energy control ensures optimal range. You have the choice between 540, 600, or even 800 Wh. Thanks to the charging plug behind the saddle, you can even attach the Bosch Powermore 250 battery to your seat tube and have over 1000 Wh capacity. For endless riding pleasure!

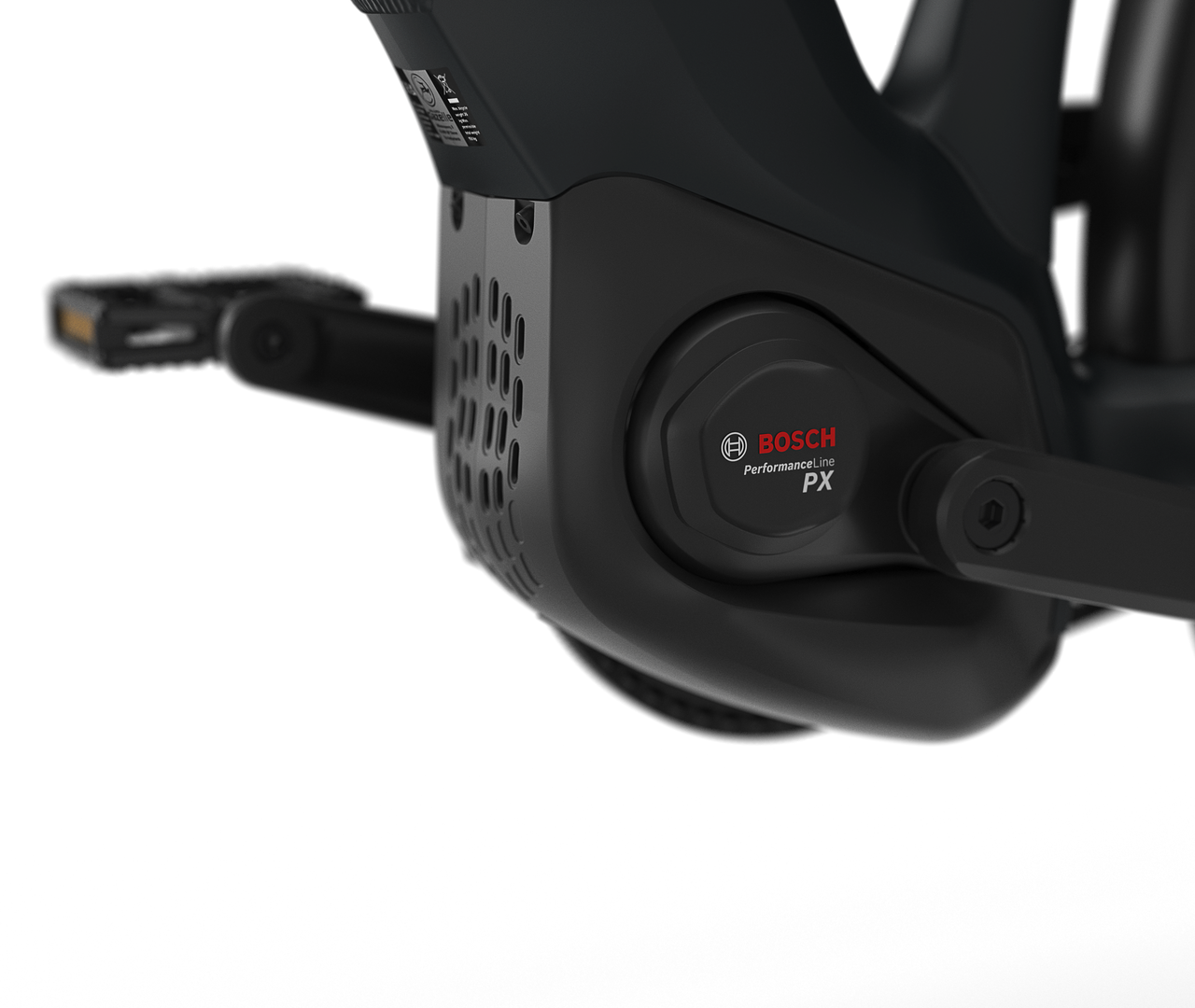

High motor power, enormous range and large display
The Performance Line PX is Bosch's premium drive and specially designed for demanding bike tours and unforgettable weekend trips. This mid-motor with 85 Nm of support is enormously powerful. Upgrading to as much as 90 Nm is possible in the Bosch app. The motor makes little noise. This means that you optimally enjoy the surroundings during every ride.
Battery and range
Bosch Powertube 600 Wh without faceplate
- Watt-hours600 Wh
- Capacity16,7 Ah
- Ebike battery charging time with 2A charger9 h 18 m
- Ebike battery charging time with 4A charger5 h 24 m
- Battery positionintegrated in the frame
- Battery brandBosch
- Battery modelIntube
- Voltage36V
- Eco140 km
- Tour80 km
- Auto65 km
- Turbo55 km
Bosch PowerTube Li-Ion (800 Wh)
- Watt-hours800 Wh
- Capacity22,2 Ah
- Ebike battery charging time with 2A charger12 h 24 m
- Ebike battery charging time with 4A charger6 h 54 m
- Battery positionintegrated in the frame
- Battery brandBosch
- Battery modelIntube
- Voltage36V
- Eco185 km
- Tour110 km
- Auto90 km
- Turbo70 km
Bosch PowerTube Li-Ion
- Watt-hours540 Wh
- Capacity15 Ah
- Ebike battery charging time with 2A charger7 h 42 m
- Ebike battery charging time with 4A charger4 h 54 m
- Battery positionintegrated in the frame
- Battery brandBosch
- Battery modelIntube
- Voltage36V
- Eco120 km
- Tour70 km
- Auto55 km
- Turbo50 km
Watt-hours
600 Wh
800 Wh
540 Wh
Capacity
16,7 Ah
22,2 Ah
15 Ah
Ebike battery charging time with 2A charger
9 h 18 m
12 h 24 m
7 h 42 m
Ebike battery charging time with 4A charger
5 h 24 m
6 h 54 m
4 h 54 m
Battery position
integrated in the frame
integrated in the frame
integrated in the frame
Battery brand
Bosch
Bosch
Bosch
Battery model
Intube
Intube
Intube
Voltage
36V
36V
36V
Eco
140 km
185 km
120 km
Tour
80 km
110 km
70 km
Auto
65 km
90 km
55 km
Turbo
55 km
70 km
50 km

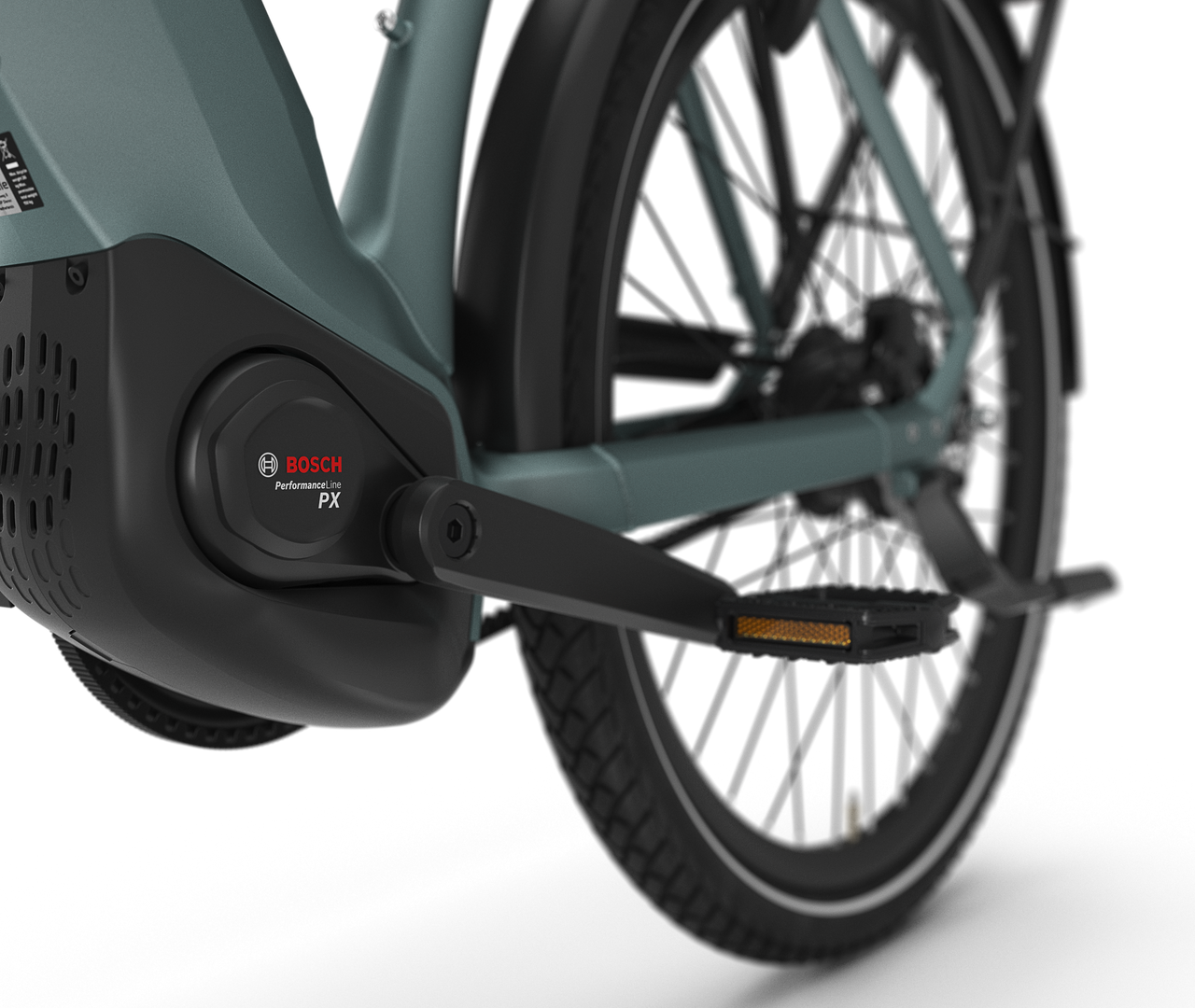

Lots of motor power
The Ultimate C380 is equipped with the enormously powerful Bosch Performance Line PX mid-motor. Do you even want more than 85 Nm of support? Then upgrade to 90 Nm in the Bosch app. The PX motor is a silent force: it makes little noise and has a lot of motor power. This way, you fully enjoy every ride.

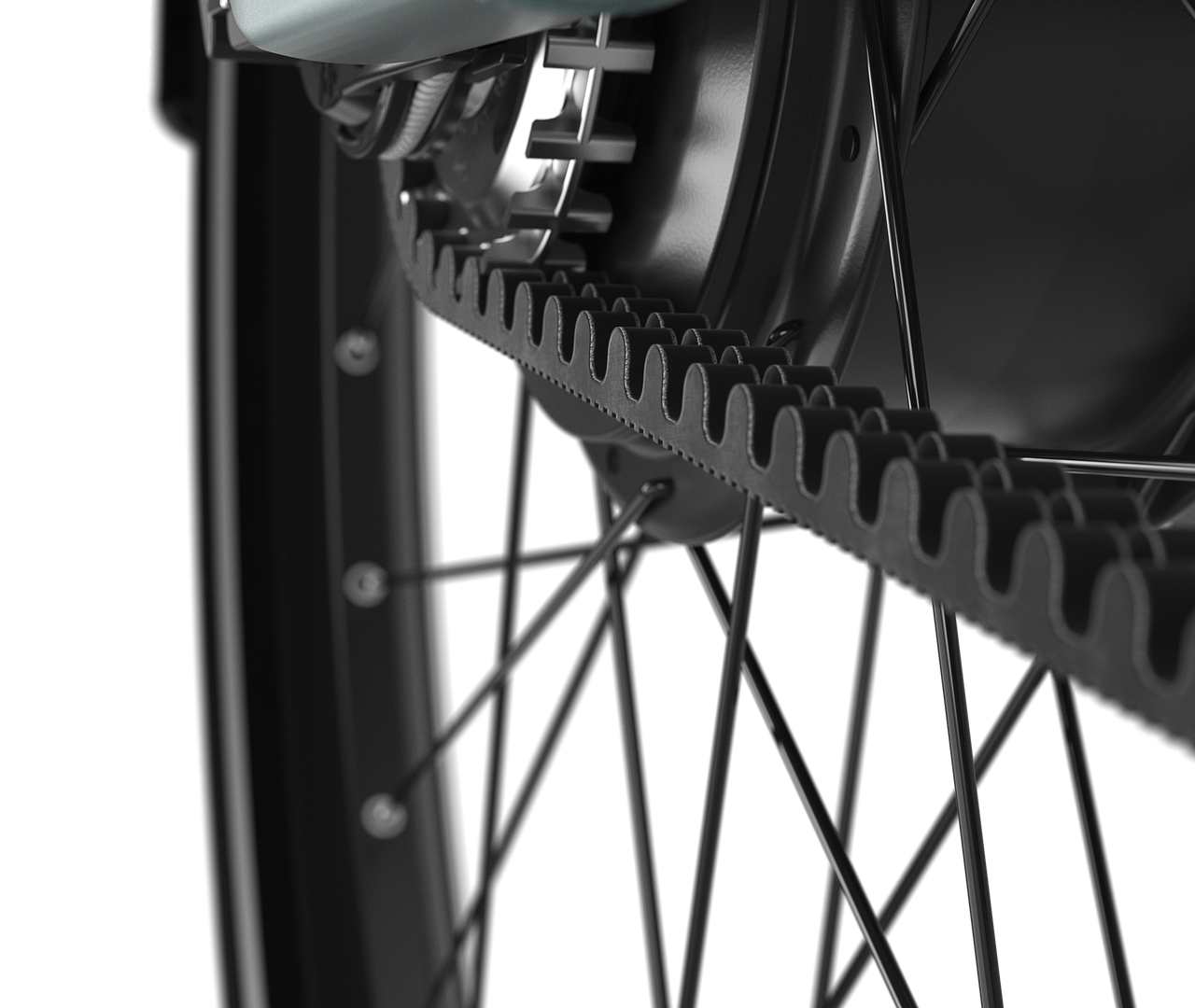

Silent belt
The robust Gates belt is low-maintenance. Unlike a chain, you don't need to lubricate a belt, and it lasts 3 to 5 times longer. The belt is also silent as a mouse and matches the sporty design of the Ultimate.

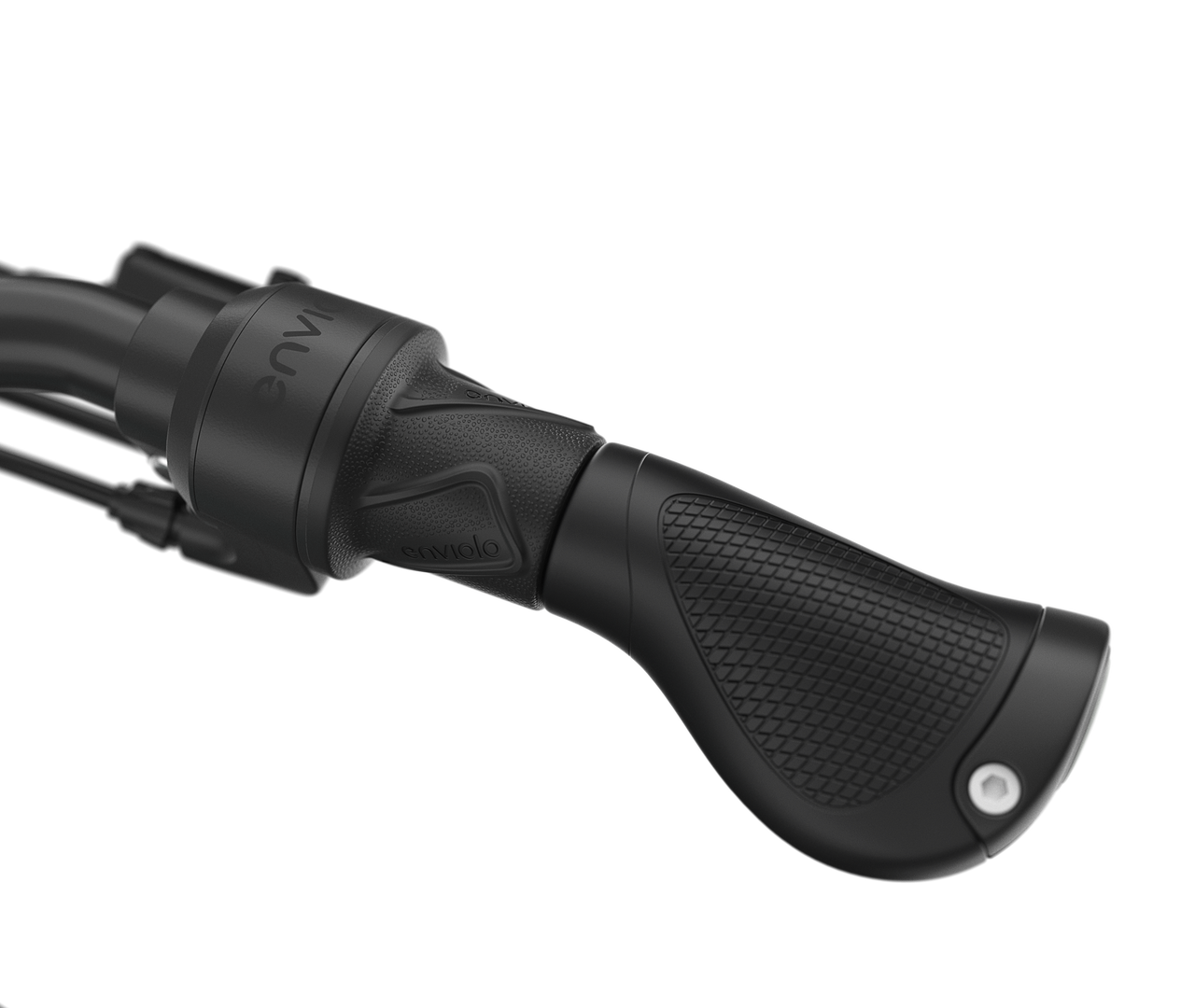

Stepless in the right gear
With Enviolo's robust, continuously variable hub gear, you have infinitely many gears. You shift effortlessly without fixed positions: just turn to cycle lighter or heavier. Even while pedaling. Whatever your ride brings, you shift steplessly to the perfect cadence.
Extra large display
All at a glance with the large Kiox 500 colour display from Bosch. This display offers extensive functions such as navigation. Via Bluetooth, you can easily connect your phone to the Ultimate and even choose to use your phone as a display. With an Intellimount, you can use both SP Connect and Quad Lock.
)
:focus(true):quality(70))
Specifications
Model
Ultimate
Weight
27 excl. battery
Color
dew green matte, teal grey matte
Segment
Electric bicycles, City bikes, Trekking
Sitting Position
Active, Upright
Motor
Ebike System Brand
Bosch Smart System
Motor
Performance Line PX
Engine Max Torque (Nm)
85
Ebike Engine Position
Mid
Ebike Max Speed kmh
25
Ebike Max Speed mph
15
Battery
Battery Position
integrated in the frame
Charger
Bosch Standard Charger, 4 Ah
Display
Support levels
4
Support modes
Eco, Tour, Auto, Turbo
Ebike Walk Assist
Yes
Display model
Bosch Kiox 500
Display Type
LCD colour
Display Removable
Yes
Wheels
WheelSize Front
28"
WheelSize Rear
28"
Front rim
Ryde ZAC 25, double-walled aluminium for extra strong and efficient cycling performance
Rear rim
Ryde ZAC 25, double-walled aluminium for extra strong and efficient cycling performance
Front hub
Shimano
Rear hub
Enviolo Trekking Manual
Tires
Front tyre
Schwalbe The Green Marathon, 80% recycled and renewable materials
Rear tyre
Schwalbe The Green Marathon, 80% recycled and renewable materials
Wheels Tire Front Etrto
55-622
Wheels Tire Rear Etrto
55-622
Gears
Number of gears
Stepless
Gear Type
Hub
Gear
Enviolo Trekking Manual
Brakes
Front Brake Type
hydraulic disc brake
Rear brake type
hydraulic disc brake/
Front brake
Shimano MT420
Rear brake
Shimano MT420
Front brake piston number
4
Rear brake piston number
4
Front brake disc diameter
180 mm
Rear brake disc diameter
160 mm
Front brake lever
Shimano BL-MT420
Rear Brake Lever
Shimano BL-MT420
Drivetrain
Drivetrain
belt
Drivetrain
Gates CDX
Front sprocket
55, Gates CDX
Rear sprocket
24, Gates CDX
Frame
Frame shape
Low-Step, High-Step
Frame Size CM
XL(61), L(57), M(53), S(49), XXL(65), XS(46)
Frame description
Stable aluminium frame with 70, 5° headset angle and 71, 5° saddle tube angle for sporty cycling characteristics. Battery, motor and cables harmoniously integrated into the frame. High-quality finish with attention to detail.
Frame material
aluminum
Fork
Fork
SR Suntour MOBIE 34, AIR
Fork Material
aluminum
Fork suspension
Telescope, air
Fork travel
80 mm
Fork lockout
Yes
Handlebar
Handlebar description
aluminium, slightly curved
Stem adjustable
Yes
Grips
Ergon GP1-L ergonomic, plastic handlebar grips with ergonomic form for a better distribution of pressure on the hands
Saddle
Saddle
Selle Royal Essenza Plus gel
Seatpost suspension
Yes
Front light
Front light
Herrmans MR10
Front Light Energy Source
battery
Rear light
Rear light
Spanninga Commuter Glow
Rear Light Energy Source
battery
Frame warranty
10 year's warranty
Fork warranty
5 year's warranty
Paint warranty
5 year's warranty
Battery warranty
2 year's warranty
Motor warranty
2 year's warranty
Display warranty
2 year's warranty
Other parts warranty
2 year's warranty
Lock
Lock
Axa
ART classification
ART**
Other
Chain guard
Chain guard
Kickstand
Ursus Mooi
Kickstand type
drop-down rear stand
Carrier
Rear carrier
Yes
Carrier MIK Profile
Yes
Rear carrier description
aluminium MIK HD system carrier
Front carrier
No
| 600 Wh | 800 Wh | 540 Wh | |
|---|---|---|---|
| Capacity | 16,7 Ah | 22,2 Ah | 15 Ah |
| Battery charging time with 2A | 9 h 18 m | 12 h 24 m | 7 h 42 m |
| Battery charging time with 4A | 5 h 24 m | 6 h 54 m | 4 h 54 m |
| Battery brand | Bosch | Bosch | Bosch |
| Battery model | Intube | Intube | Intube |
| Voltage | 36V | 36V | 36V |
| Eco | 175 | 230 | 150 |
| Tour | 100 | 135 | 90 |
| Auto | 80 | 110 | 70 |
| Turbo | 70 | 90 | 60 |
600 Wh
Capacity
16,7 Ah
Battery charging time with 2A
9 h 18 m
Battery charging time with 4A
5 h 24 m
Battery brand
Bosch
Battery model
Intube
Voltage
36V
Eco
175
Tour
100
Auto
80
Turbo
70
800 Wh
Capacity
22,2 Ah
Battery charging time with 2A
12 h 24 m
Battery charging time with 4A
6 h 54 m
Battery brand
Bosch
Battery model
Intube
Voltage
36V
Eco
230
Tour
135
Auto
110
Turbo
90
540 Wh
Capacity
15 Ah
Battery charging time with 2A
7 h 42 m
Battery charging time with 4A
4 h 54 m
Battery brand
Bosch
Battery model
Intube
Voltage
36V
Eco
150
Tour
90
Auto
70
Turbo
60
)
Made by hand, for a superb result every single time.
Take our word for it. Or take a ride.
We've done our best to capture the Gazelle experience in words, but there is nothing like the real thing. So why not book a test ride at one of our Gazelle bike stores?
