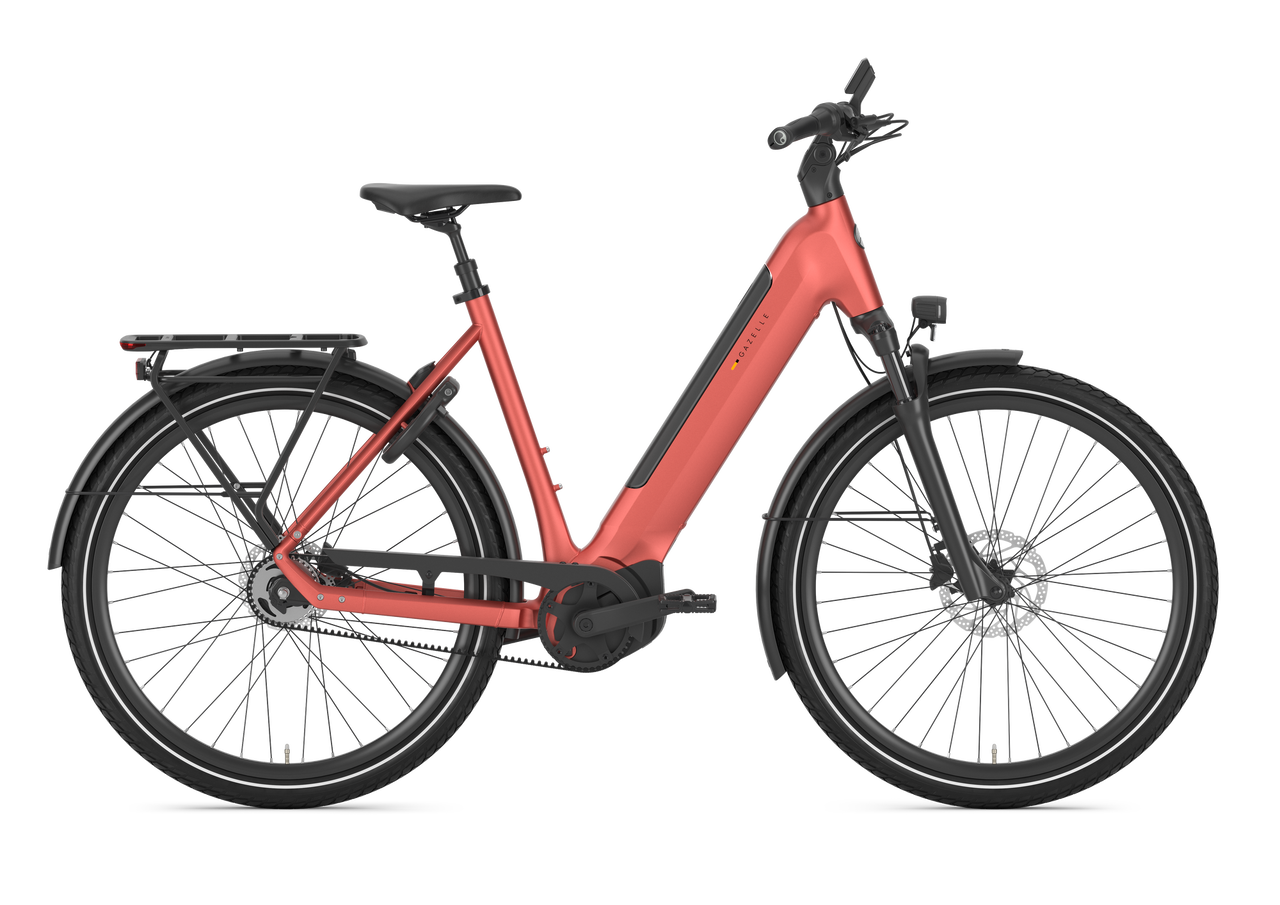

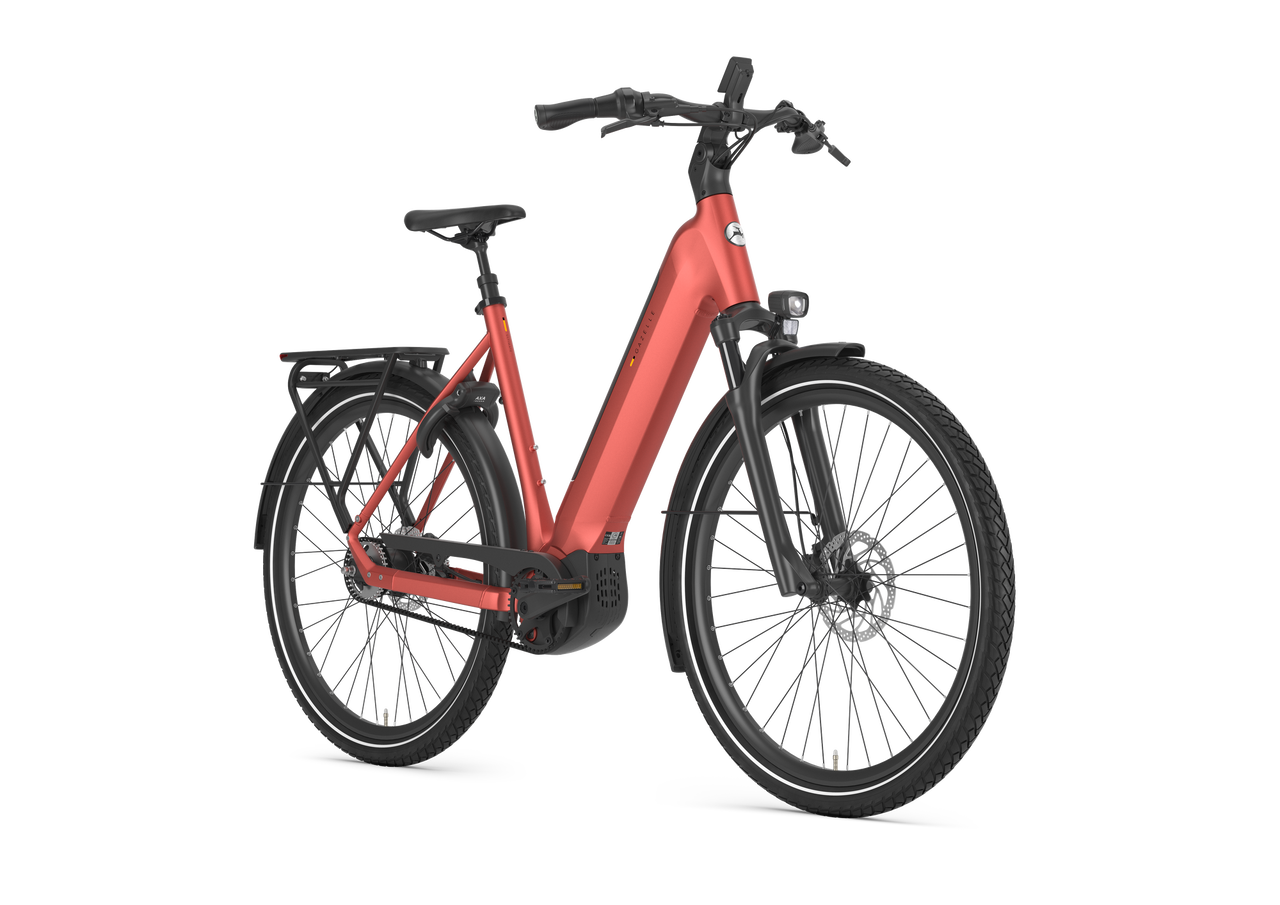

Gazelle UltimateC5+

£3,699Maximum range 195 km

Ultimate C5+
Maximum range
195 km
Frame shape
High-Step, Low-Step
Number of gears
5
Craftsmanship
With over 130 years of expertise, we know precisely what we're doing. Creating bicycles that you can rely on. What begins with a design comes together in our factory. Where we work everyday to create the perfect Gazelle for you.

Discover the Ultimate

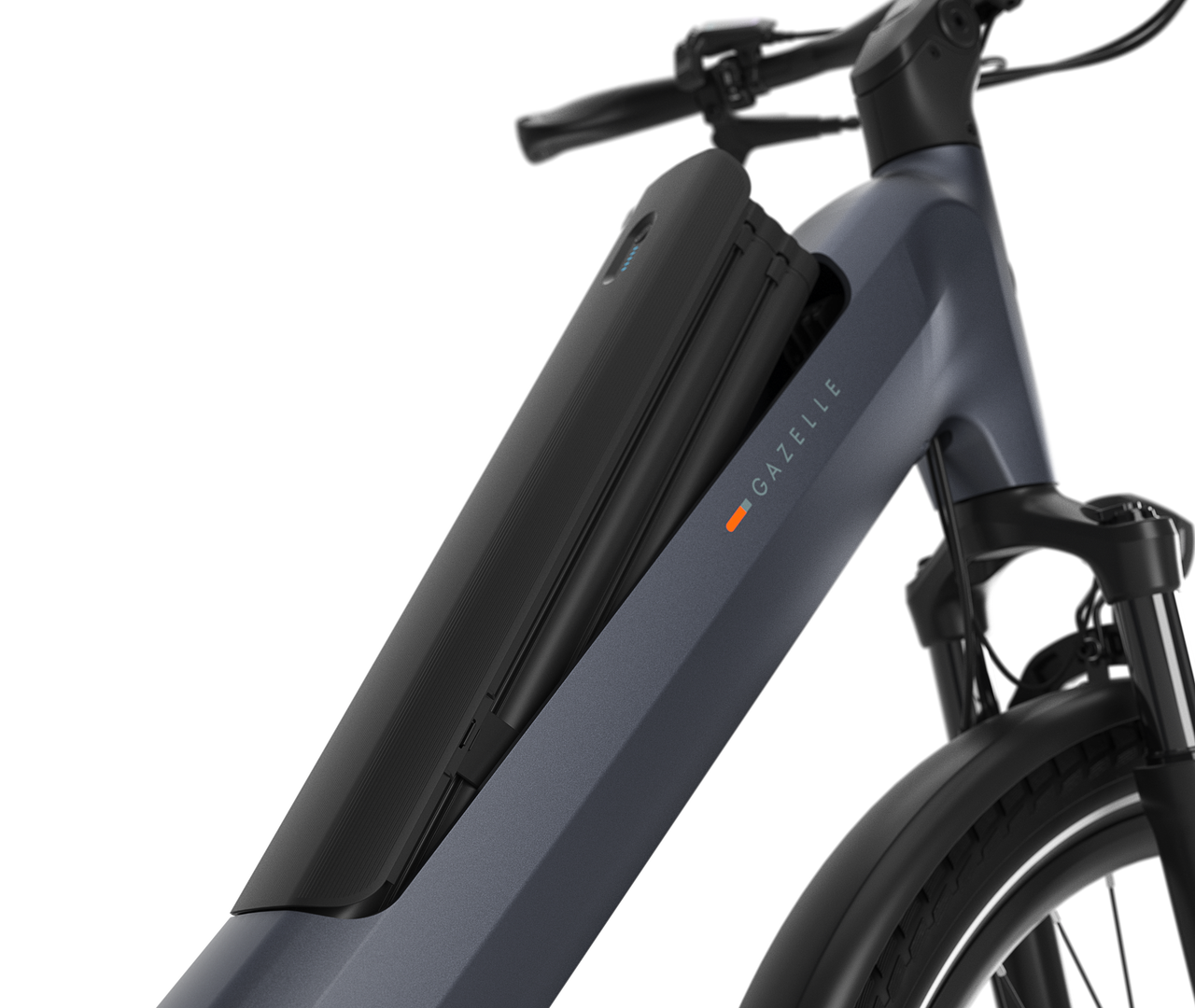

Endless riding
Bosch's lithium-ion batteries are among the most modern batteries on the market. Their intelligent battery management system guarantees a long lifespan, and efficient energy control ensures optimal range. You have the choice between 540, 600, or even 800 Wh. Thanks to the charging plug behind the saddle, you can even attach the Bosch Powermore 250 battery to your seat tube and have over 1000 Wh capacity. For endless riding pleasure!


Always a tailwind with a Bosch Performance Line motor
With the smooth Bosch Performance Line mid-motor, you always have a tailwind. The 75 Nm of torque gives you the support you're looking for. The motor is above all whisper-quiet. This means that you fully enjoy your surroundings during every ride. No disturbing motor noise, just you, your bike, and the road.
Battery and range
Bosch Powertube 600 Wh without faceplate
- Watt-hours600 Wh
- Capacity16,7 Ah
- Ebike battery charging time with 2A charger9 h 18 m
- Ebike battery charging time with 4A charger5 h 24 m
- Battery positionintegrated in the frame
- Battery brandBosch
- Battery modelIntube
- Voltage36V
- Eco150 km
- Tour85 km
- Auto70 km
- Turbo60 km
Bosch PowerTube Li-Ion (800 Wh)
- Watt-hours800 Wh
- Capacity22,2 Ah
- Ebike battery charging time with 2A charger12 h 24 m
- Ebike battery charging time with 4A charger6 h 54 m
- Battery positionintegrated in the frame
- Battery brandBosch
- Battery modelIntube
- Voltage36V
- Eco195 km
- Tour115 km
- Auto95 km
- Turbo75 km
Bosch PowerTube Li-Ion
- Watt-hours540 Wh
- Capacity15 Ah
- Ebike battery charging time with 2A charger7 h 42 m
- Ebike battery charging time with 4A charger4 h 54 m
- Battery positionintegrated in the frame
- Battery brandBosch
- Battery modelIntube
- Voltage36V
- Eco130 km
- Tour75 km
- Auto60 km
- Turbo50 km
Watt-hours
600 Wh
800 Wh
540 Wh
Capacity
16,7 Ah
22,2 Ah
15 Ah
Ebike battery charging time with 2A charger
9 h 18 m
12 h 24 m
7 h 42 m
Ebike battery charging time with 4A charger
5 h 24 m
6 h 54 m
4 h 54 m
Battery position
integrated in the frame
integrated in the frame
integrated in the frame
Battery brand
Bosch
Bosch
Bosch
Battery model
Intube
Intube
Intube
Voltage
36V
36V
36V
Eco
150 km
195 km
130 km
Tour
85 km
115 km
75 km
Auto
70 km
95 km
60 km
Turbo
60 km
75 km
50 km

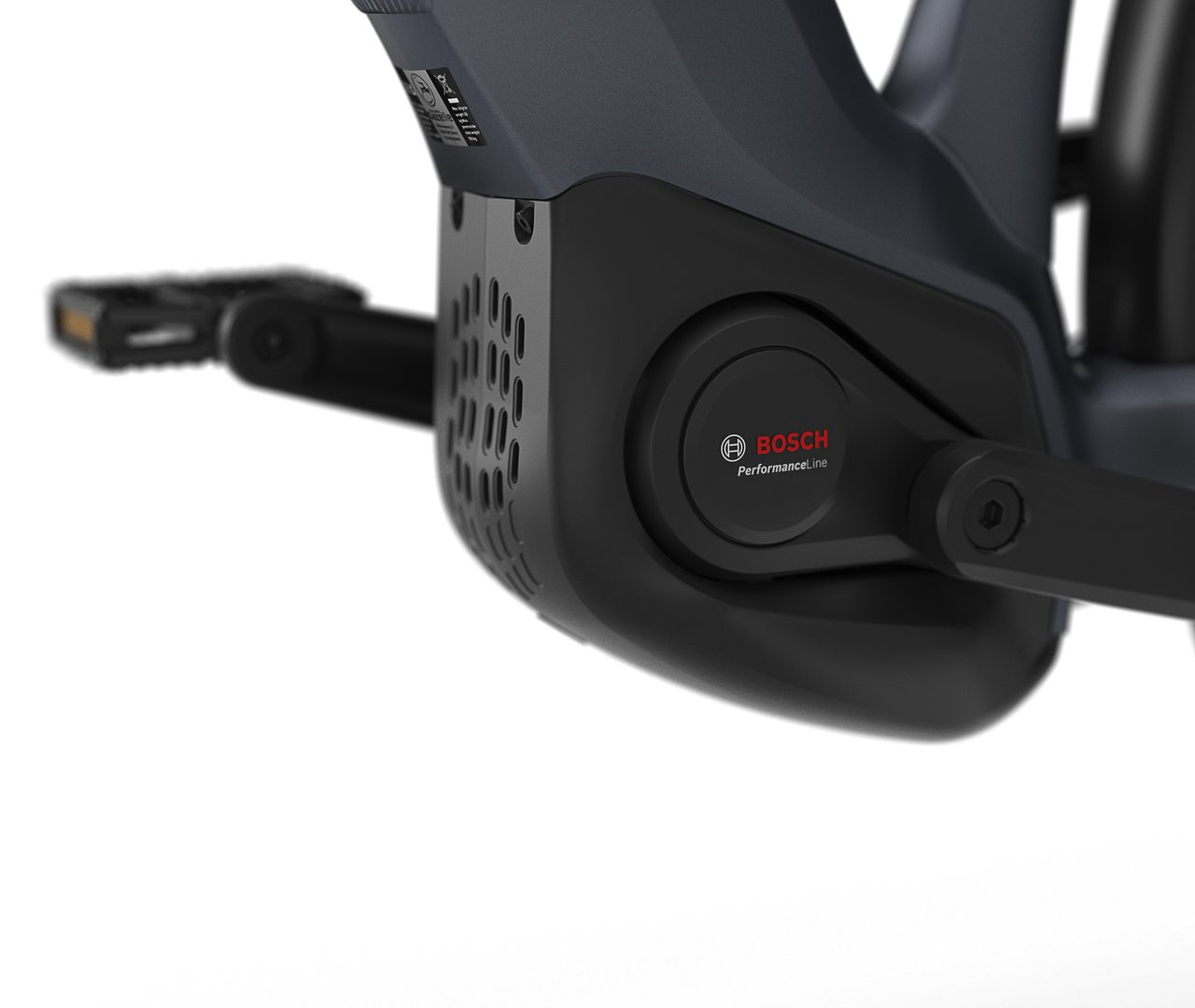

Whisper-quiet motor
The Bosch Performance Line mid-motor gives you exactly the smooth, powerful support you're looking for. With a torque of 75 Nm, you cycle effortlessly everywhere. And the best part? It's so quiet. Whisper-quiet. This way, you fully enjoy every ride.

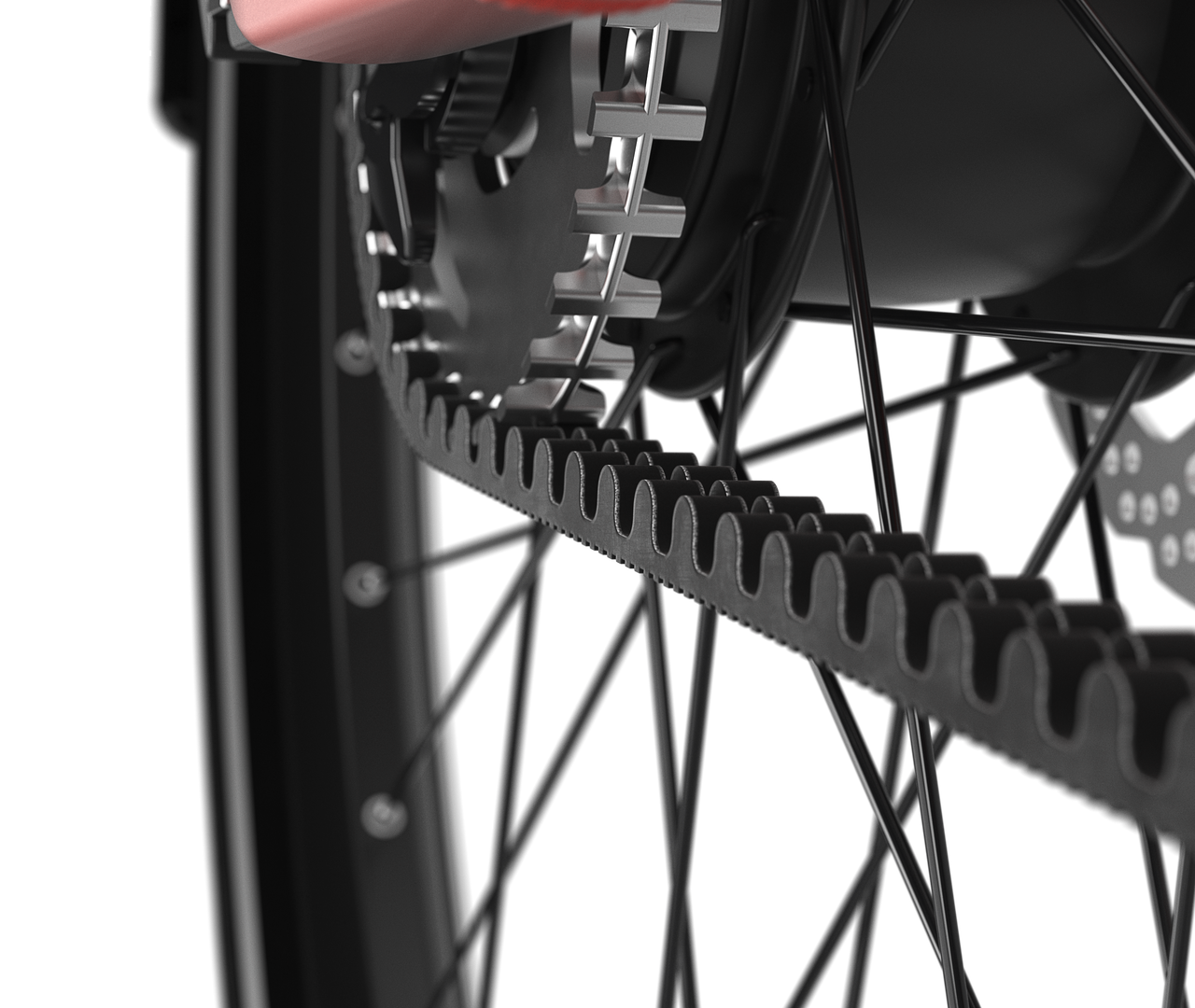

Silent belt
The robust Gates belt is low-maintenance. Unlike a chain, you don't need to lubricate a belt, and it lasts 3 to 5 times longer. The belt is also silent as a mouse and matches the sporty design of the Ultimate.

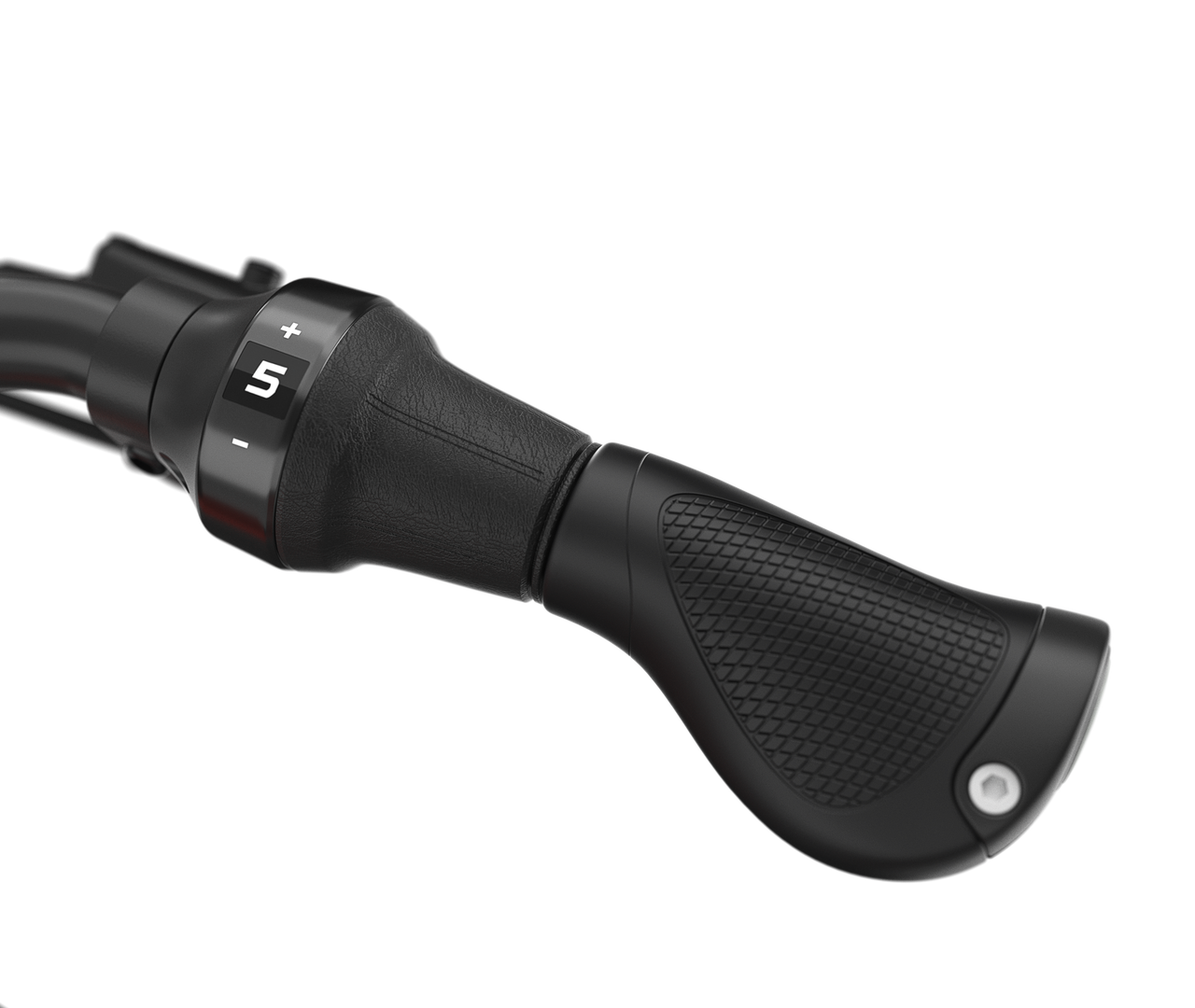

Long-lasting shifting pleasure
Shimano's Nexus 5 hub gear is specially developed for e-bikes. This hub can effortlessly handle the higher forces acting on the drivetrain, thanks to its stronger and more durable internal mechanism. With the familiar click system, you also shift very precisely between the five gears. Even while pedaling.

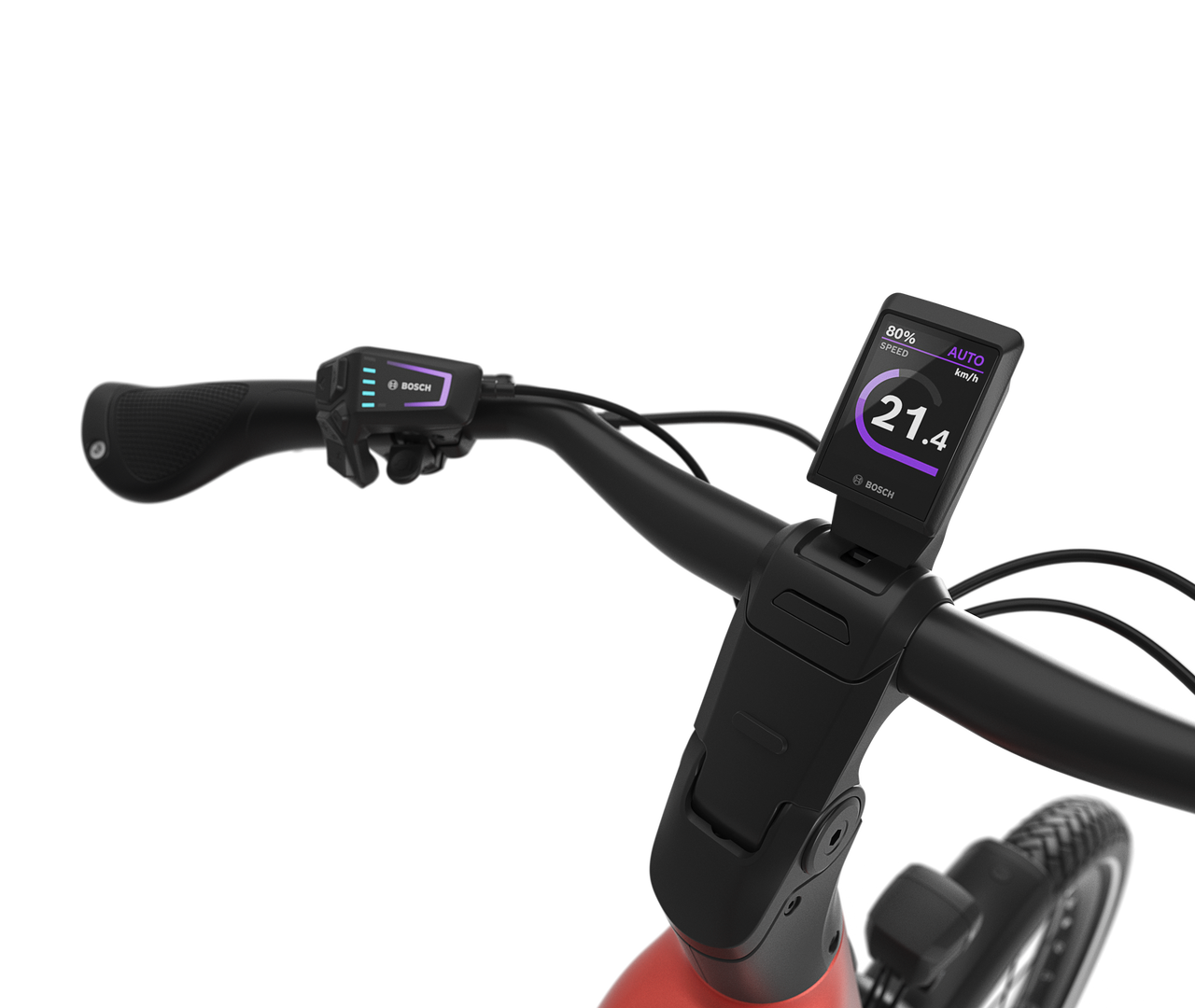

Modern and clear
On the robust Kiox 300 colour display from Bosch, you have all information clearly in one place. This display offers extensive functions such as navigation. Via Bluetooth, you can easily connect your smartphone to the Ultimate and even choose to use your phone as a display. With an Intellimount, you can use both SP Connect and Quad Lock.


:focus(true))
Specifications
- Color
- Metallic orange matte, meteor grey matte
- Fork suspension
- Telescope, air
- Weight
- 26.4 excl. battery
- Color
- Metallic orange matte, meteor grey matte
- Bike Max. Total Weight (kg)
- 150
- Sitting Position
- Active, Upright
- Frame description
- Stable aluminium frame with 70,5° headset angle and 71,5° saddle tube angle for sporty cycling characteristics. Battery, motor and cables harmoniously integrated into the frame. High-quality finish with attention to detail.
- Frame material
- Aluminum
- Cockpit Cable Integration
- Yes
- Frame shape
- High-Step, Low-Step
- Frame Size CM
- 46, 49, 53, 57, 61, 65
- Fork
- SR Suntour NVX32 Air
- Fork Material
- Aluminum
- Fork suspension
- Telescope, air
- Fork lockout
- Yes
Frame
Fork
- Front wheel
- 46, Gates
- Rear wheel
- 34, Gates
- Front rim
- Ryde ZAC 25, double-walled aluminium for extra strong and efficient cycling performance
- Rear rim
- Ryde ZAC 25, double-walled aluminium for extra strong and efficient cycling performance
- Front hub
- Shimano
- Rear hub
- Shimano Nexus 5
- WheelSize Front
- 28"
- Wheels Tire Front Etrto
- 55-622
- Front tyre
- Schwalbe The Green Marathon
- Rear tyre
- Schwalbe The Green Marathon
- Wheels Tire Front Description
- 80% recycled and renewable materials
Wheels
Tires
- Brand shifters
- Shimano
- Gear Type
- Hub
- Number of gears
- 5
- Front chainwheel
- 46
- Drivetrain
- Belt
- Crankset Model
- Delta
- Front Brake Type
- Hydraulic disc brake
- Brake sytem code
- S5
- Front Brake Brand
- Shimano
- Primary Rear Brake Model
- MT200
- Front brake
- Shimano MT200, 180 mm
- Rear brake
- Shimano MT200, 160 mm
- Rear Brake Lever
- BLMT200
Gears
Drivetrain
Brakes
- Handlebar
- Ergon GP1-L ergonomic, plastic handlebar grips with ergonomic form for a better distribution of pressure on the hands
- Stem adjustable
- Yes
- Steering lock
- Yes
- Cockpit Handlebar Grip Brand
- Ergon
- Saddle
- Selle Royal Essenza Plus gel
- Seatpost suspension
- Yes
Handlebar
Saddle
- Front light
- Herrmans MR9
- Front Light Energy Source
- Battery
- Front Light Lux
- 60
- Rear Light Energy Source
- Battery
- Rear light
- Spanninga Commuter Glow
Front light
Rear light
- Motor
- Bosch Smart System Performance Line
- System Model
- Performance Line
- Ebike System Brand
- Bosch Smart System
- Ebike Engine Position
- Mid
- Ebike Max Speed kmh
- 25
- Ebike Max Speed mph
- 15
- Engine Max Torque (Nm)
- 75
- Charger
- Bosch Standard Charger,
- Ebike Battery Charger Description
- 4 Ah
- Battery Position
- Integrated in the frame
- Display
- Bosch Kiox 300
- Display Removable
- Yes
- Display Type
- LCDc
Engine
Battery
Display
- Frame warranty
- 10 year's warranty
- Fork warranty
- 5 year's warranty
- Paint warranty
- 5 year's warranty
- Other parts warranty
- 2 year's warranty
- Battery warranty
- 2 year's warranty
- Motor warranty
- 2 year's warranty
- Display warranty
- 2 year's warranty
Garantie
- Lock
- Axa
- Lock brand
- Axa
- Chain guard
- Chain guard
- Kickstand
- Ursus Mooi
- pim_productchaincase
- Yes
- Chaincase type
- Chain guard
- Rear carrier description
- Aluminum MIK HD system carrier
- Carrier MIK Profile
- Yes
- Rear carrier max load (kg)
- 27
- Rear carrier
- Yes
Lock
Other
Carrier
Made by hand, for a superb result every single time.
Take our word for it. Or take a ride.
We've done our best to capture the Gazelle experience in words, but there is nothing like the real thing. So why not book a test ride at one of our Gazelle bike stores?
