Gazelle EclipseC380
From $5,499Maximum range 160 km
Easy maintenance thanks to belt drive and stepless shifting
Eclipse C380

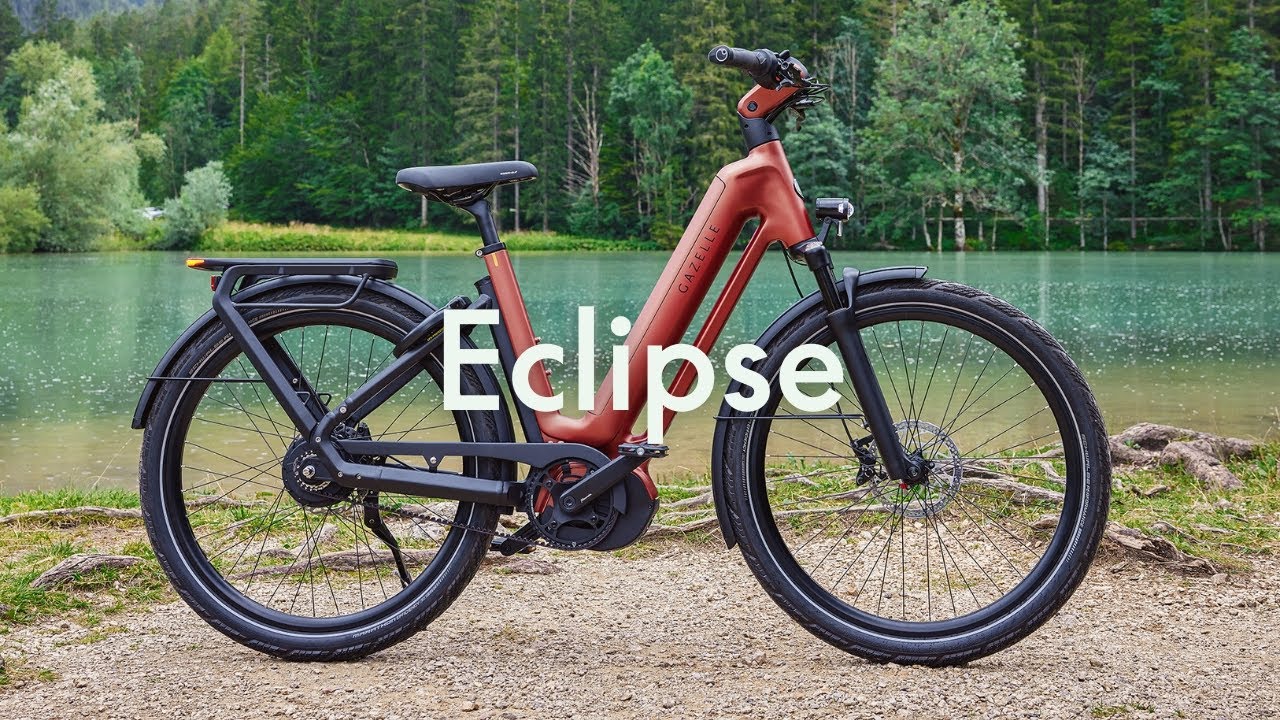

You can take the Eclipse C380 on any adventure. No hill is too steep and no ride is too long. The Eclipse C380 is easy to use on daily commutes and perfect for biking tours. The suspension fork, strong disc brakes and extra-wide tyres allow you to take corners on any surface and stop in no time.
Maximum range
160 km
Frame shape
High-Step, Low-Step
Number of gears
Stepless
Craftsmanship
With over 130 years of expertise, we know precisely what we're doing. Creating bicycles that you can rely on. What begins with a design comes together in our factory. Where we work everyday to create the perfect Gazelle for you.
Discover the Eclipse
:focus(true))
Neatly integrated and long-lasting battery
Bosch's lithium-ion batteries are among the most advanced on the market. The integrated 750-Wh battery ensures that you never come to a standstill. The battery is locked into the frame and can be easily removed using the bike key. This is convenient, as you can charge the battery either on or off the bike. Because the battery is quite large, we have developed a special carry handle. As an added bonus, this better protects the battery against being stolen from the bike. It's a win-win situation!
The sky's the limit with this powerful Bosch motor
With the Bosch Performance Line CX motor, you can overcome any challenge you may face. The torque of 85 Nm means you'll never come to a standstill on steep hills or mountains and you'll be able to embark on any adventure with confidence.
Battery and range
Bosch PowerTube Li-Ion
- Watt-hours750 Wh
- Capacity20,1 Ah
- Battery positionintergrated in the frame
- Battery brandBosch
- Battery modelIntube
- Voltage36V
- Eco160 km
- Tour115 km
- Auto95 km
- Turbo85 km
Watt-hours
750 Wh
Capacity
20,1 Ah
Battery position
intergrated in the frame
Battery brand
Bosch
Battery model
Intube
Voltage
36V
Eco
160 km
Tour
115 km
Auto
95 km
Turbo
85 km
No slope is too steep
Taking on one or more hills is no problem for the Eclipse C380 HMB. This e-bike features Bosch's most powerful mid-drive motor, the Performance Line CX. It has a maximum torque of 85 Nm that allows you to effortlessly tackle even the steepest of slopes. The motor is powered by the battery that is neatly integrated into the frame. Its capacity (750 Wh) is sufficient for long rides with support, without needing to recharge along the way.
Always in the right gear
Switching gears is a breeze, which means a pleasant riding experience for you. The Eclipse C380 HMB features Enviolo's stepless shifting gear hub. It has no fixed shifting positions, you simply twist the shifter for a slightly higher or lower gear. You can even do this without having to stop pedalling, which is ideal for shifting gears while on steep slopes. As you can see, the Eclipse C380 HMB offers amazing convenience!
Low maintenance: no need to lubricate
If doing maintenance isn't the first thing on your mind after a nice, relaxed ride, then the Eclipse C380 HMB is the right model for you. It has a belt drive instead of a chain — which, unlike a chain, doesn't need to be lubricated. Use a cloth to wipe off coarse dirt from time to time. An additional advantage: the belt drive is as quiet as a whisper, so you don't hear any squeaks and creaks. It lasts up to five times longer than a chain. It can't rust.
Protected against theft
The Eclipse C380 HMB is a bike with Gazelle Connect. It's a smart e-bike with theft protection. A module connected to the Internet is built into the e-bike. This module ensures that the bike is always traceable using GPS. This is also clearly marked on the bike frame, so thieves will think twice before trying to make off with it. If the bike starts moving, you will receive a notification via the Gazelle App.
Focus on design and integration
The iconic, single-coloured Gazelle V-shaped handlebar stem not only makes for a beautiful design, but also integrates the Bosch Kiox 300 display. The cables are also neatly tucked away in the headset.
Well-designed active riding position
The unique design makes for the perfect combination of an active riding position and a large battery of up to 750 Wh, so you can focus on the world around you.
:focus(true))
Specifications
- Color
- Anthracite grey matte, metallic orange matte
- Fork suspension
- Telescope, air
- Bike weight description
- Excl. battery
- Weight (kg)
- 28.3 kgs
- Weight
- 28.3 excl. battery
- Color
- Anthracite grey matte, metallic orange matte
- Bike Max. Total Weight (kg)
- 150
- Bike Max. Rider Weight (kg)
- 150
- Sitting Position
- Active
- Frame description
- Aluminium frame with 71.5° seat tube angle and 70.5° head tube angle. Sporty seat and dynamic handling. Battery capacity of up to 750 Wh available for each ride.
- Frame material
- Aluminum
- Cockpit Cable Integration
- Yes
- Frame shape
- High-Step, Low-Step
- Frame Size CM
- 45, 50, 55, 60
- Fork
- SR Suntour MOBIE25
- Fork description
- Suntour MOBIE25
- Fork Material
- Aluminum
- Fork suspension
- Telescope, air
- Fork lockout
- Yes
Frame
Fork
- Front wheel
- 50, Gates
- Rear wheel
- 22, Gates
- Front rim
- Ryde ZAC 25, double-walled aluminium for extra strong and efficient cycling performance
- Rear rim
- Ryde ZAC 25, double-walled aluminium for extra strong and efficient cycling performance
- Front hub
- Shimano
- Rear hub
- Enviolo Trekking Manual, continuously variable gears
- WheelSize Front
- 27.5"
- Wheels Tire Front Etrto
- 60-584
- Front tyre
- Schwalbe Marathon Efficiency
- Rear tyre
- Schwalbe Marathon Efficiency
- Wheels Tire Front Description
- Schwalbe Marathon Efficiency
Wheels
Tires
- Brand shifters
- Enviolo
- Front chainwheel
- 50
- Gear Type
- Hub
- Number of gears
- Stepless
- Drivetrain
- Belt
- Crankset Model
- Delta
- Crankset description
- Miranda Delta
- Front Brake Type
- Hydraulic disc brake
- Brake sytem code
- SE
- Front Brake Brand
- Shimano
- Primary Rear Brake Model
- BR-MT420
- Front brake
- Shimano BR-MT420, 180 mm
- Rear brake
- Shimano BR-MT420, 180 mm
- Rear Brake Lever
- BLMT420
Number of gears
Drivetrain
Brakes
- Handlebar
- Ergon GP1-L ergonomic, plastic handlebar grips with ergonomic form for a better distribution of pressure on the hands
- Stem adjustable
- Yes
- Cockpit Handlebar Grip Brand
- Ergon
- Saddle
- Selle Royal Essenza Plus gel
- Seatpost suspension
- No
Handlebar
Saddle
- Front light
- Herrmans H-black PRO
- Front Light Energy Source
- Battery
- Front Light Lux
- 100
- Rear Light Energy Source
- Battery
- Rear light
- Spanninga Commuter Glow
Front light
Rear light
- Motor
- Bosch Smart System Performance Line CX
- System Model
- Performance Line CX
- Ebike System Brand
- Bosch Smart System
- Ebike Engine Position
- Mid
- Ebike Max Speed kmh
- 25
- Ebike Max Speed mph
- 28
- Engine Max Torque (Nm)
- 85
- Charger
- Bosch Standard charger,
- Ebike Battery Charger Description
- 4 Ah
- Battery Position
- Intergrated in the frame
- Display
- Bosch Kiox 300
- Display Removeable
- Yes
- Ebike Walk Assist
- Yes
- Display Type
- LCDc
Engine
Battery
Display
- Frame warranty
- 10 year's warranty
- Fork warranty
- 5 year's warranty
- Paint warranty
- 5 year's warranty
- Other parts warranty
- 2 year's warranty
- Battery warranty
- 2 year's warranty
- Motor warranty
- 2 year's warranty
- Display warranty
- 2 year's warranty
Garantie
- Lock
- Axa
- Lock brand
- Axa
- ART classification
- ART**
- Kickstand
- Ursus Mooi
- Rear carrier description
- Aluminum MIK HD system carrier
- Carrier MIK Profile
- Yes
- Rear carrier max load (kg)
- 27
- Rear carrier
- Yes
Lock
Other
Carrier
Made by hand, for a superb result every single time.
Awards
Eclipse C380 HMB wins iF Design Award 2023
Take our word for it. Or take a ride.
We've done our best to capture the Gazelle experience in words, but there is nothing like the real thing. So why not book a test ride at one of our Gazelle bike stores?
