Gazelle EclipseC380 HMB
Gazelle Eclipse C380 HMB
From £5,499Maximum range 160 km

Easy maintenance thanks to belt drive and stepless shifting

Eclipse C380 HMB

Eclipse C380 HMB

You can take the Eclipse C380 HMB on any adventure. No hill is too steep and no ride is too long. The Eclipse C380 HMB is easy to use on daily commutes and perfect for biking tours. The suspension fork, strong disc brakes and extra-wide tires allow you to take corners on any surface and stop in no time.

Maximum range
160 km
Frame shape
High-Step, Low-Step
Number of gears
Stepless
From £5,499

Craftsmanship

With over 130 years of expertise, we know precisely what we're doing. Creating bicycles that you can rely on. What begins with a design comes together in our factory. Where we work everyday to create the perfect Gazelle for you.

Discover the Eclipse

Neatly integrated and long-lasting battery

Bosch's lithium-ion batteries are among the most advanced on the market. The integrated 750-Wh battery ensures that you never come to a standstill. The battery is locked into the frame and can be easily removed using the bike key. This is convenient, as you can charge the battery either on or off the bike. Because the battery is quite large, we have developed a special carry handle. As an added bonus, this better protects the battery against being stolen from the bike. It's a win-win situation!
Neatly integrated and long-lasting battery Gazelle Eclipse C380 HMB E-bike high-step anthracite grey
Performance Line CX Gazelle Eclipse C380 HMB E-bike high-step anthracite grey

The sky's the limit with this powerful Bosch motor

With the Bosch Performance Line CX motor, you can overcome any challenge you may face. The torque of 85 Nm means you'll never come to a standstill on steep hills or mountains and you'll be able to embark on any adventure with confidence.

Battery and range

Diamant

  • Watt-hours750 Wh
  • Capacity20,1 Ah
  • Battery positionIntergrated in the frame
  • Battery brandBosch
  • Battery modelIntube
  • Battery voltage36V
  • Eco160 km
  • Tour115 km
  • Auto95 km
  • Turbo85 km
Diamant
Watt-hours
750 Wh
Capacity
20,1 Ah
Battery position
Intergrated in the frame
Battery brand
Bosch
Battery model
Intube
Battery voltage
36V
Eco
160 km
Tour
115 km
Auto
95 km
Turbo
85 km
No slope is too steep Gazelle Eclipse C380 HMB E-bike low-step metallic orange

No slope is too steep

Taking on one or more hills is no problem for the Eclipse C380 HMB. This e-bike features Bosch's most powerful mid-drive motor, the Performance Line CX. It has a maximum torque of 85 Nm that allows you to effortlessly tackle even the steepest of slopes. The motor is powered by the battery that is neatly integrated into the frame. Its capacity (750 Wh) is sufficient for long rides with support, without needing to recharge along the way.

Always in the right gear

Switching gears is a breeze, which means a pleasant riding experience for you. The Eclipse C380 HMB features Enviolo's stepless shifting gear hub. It has no fixed shifting positions, you simply twist the shifter for a slightly higher or lower gear. You can even do this without having to stop pedalling, which is ideal for shifting gears while on steep slopes. As you can see, the Eclipse C380 HMB offers amazing convenience!
Always in the right gear Gazelle Eclipse C380 HMB E-bike low-step metallic orange
Low maintenance: no need to lubricate Gazelle Eclipse C380 HMB E-bike low-step metallic orange

Low maintenance: no need to lubricate

If doing maintenance isn't the first thing on your mind after a nice, relaxed ride, then the Eclipse C380 HMB is the right model for you. It has a belt drive instead of a chain — which, unlike a chain, doesn't need to be lubricated. Use a cloth to wipe off coarse dirt from time to time. An additional advantage: the belt drive is as quiet as a whisper, so you don't hear any squeaks and creaks. It lasts up to five times longer than a chain. It can't rust.

Protected against theft

The Eclipse C380 HMB is a bike with Gazelle Connect. It's a smart e-bike with theft protection. A module connected to the Internet is built into the e-bike. This module ensures that the bike is always traceable using GPS. This is also clearly marked on the bike frame, so thieves will think twice before trying to make off with it. If the bike starts moving, you will receive a notification via the Gazelle App.
Protected against theft Gazelle Eclipse C380 HMB E-bike low-step metallic orange

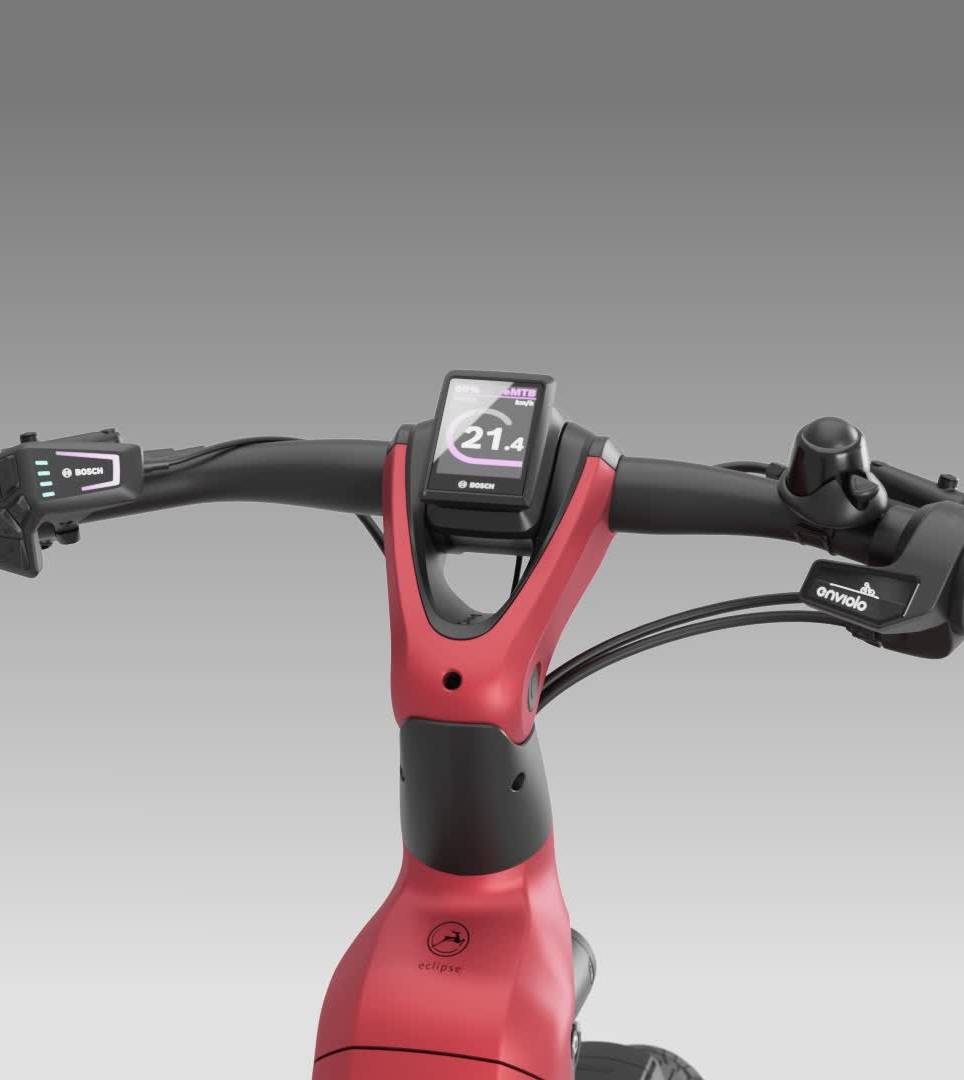

Focus on design and integration

The iconic, single-coloured Gazelle V-shaped handlebar stem not only makes for a beautiful design, but also integrates the Bosch Kiox 300 display. The cables are also neatly tucked away in the headset.

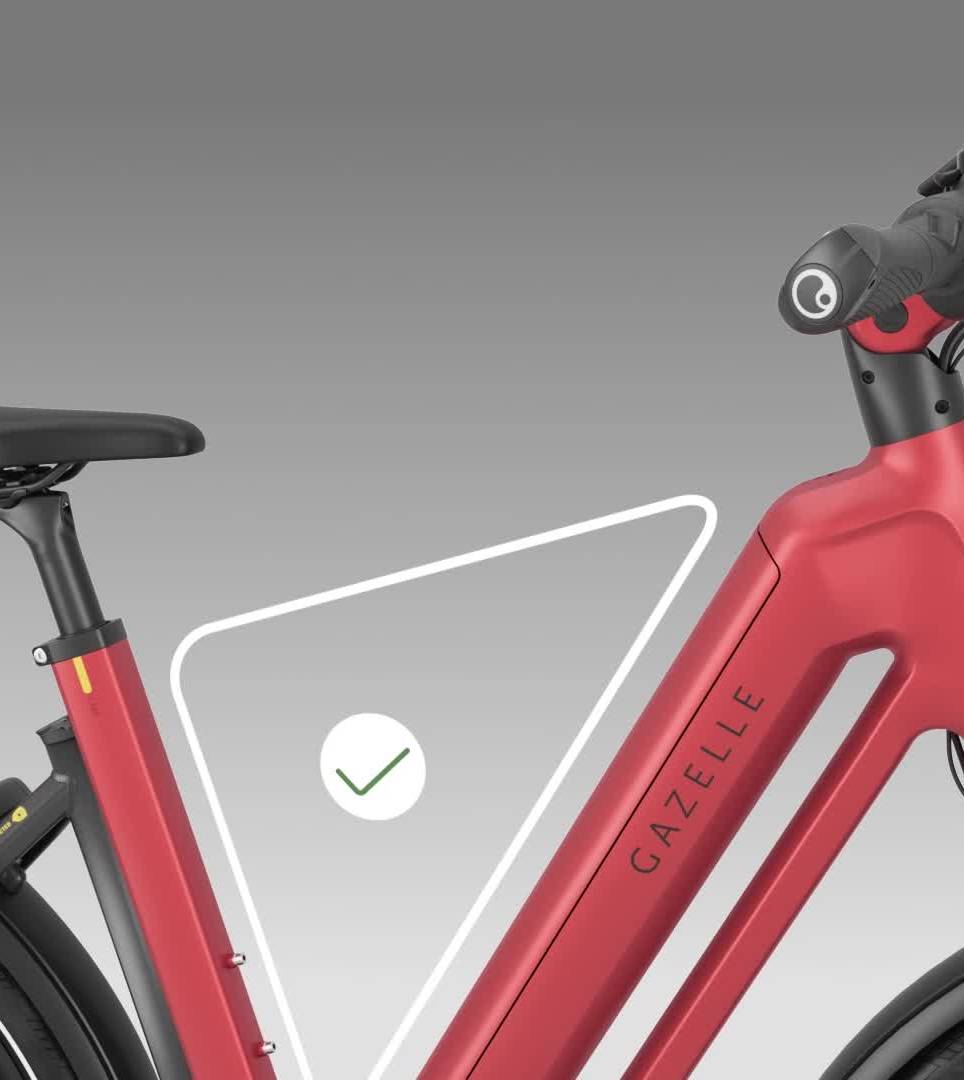

Well-designed active riding position

The unique design makes for the perfect combination of an active riding position and a large battery of up to 750 Wh, so you can focus on the world around you.

We make 300,000 bikes a year, assembled by hand.
Our bicycles are consistently checked for quality, from paint job to performance.

Specifications

Color
Anthracite grey matte, metallic orange matte

Fork suspension
Telescope, spiral spring

Ebike System Model
Performance Line CX

Motor
Bosch Smart System Performance Line CX

Bike weight description
Excl. battery

Weight (kg)
28.3 kgs

Weight
28.3 excl. battery

Color
Anthracite grey matte, metallic orange matte

Bike Max. Total Weight (kg)
150

Bike Max. Rider Weight (kg)
150

Sitting Position
Active


Frame

Frame description
Aluminium frame with 71.5° seat tube angle and 70.5° head tube angle. Sporty seat and dynamic handling. Battery capacity of up to 750 Wh available for each ride.
Frame material
Aluminum
Cockpit Cable Integration
Yes
Frame shape
High-Step, Low-Step
Frame Size CM
45, 50, 55, 60

Fork

Fork
SR Suntour MOBIE25
Fork description
Suntour MOBIE25
Fork Material
Aluminum
Fork suspension
Telescope, spiral spring
Fork lockout
Yes

Wheels

Front wheel
50, Gates
Rear wheel
22, Gates
Front rim
Ryde Zac 25, Double-walled aluminium for extra strong and efficient cycling performance
Rear rim
Ryde Zac 25, Double-walled aluminium for extra strong and efficient cycling performance
Front hub
Shimano
Rear hub
Enviolo Trekking Manual, continuously variable gears
WheelSize Front
27.5"

Tires

Wheels Tire Front Etrto
60-584
Front tyre
Schwalbe Marathon Efficiency
Rear tyre
Schwalbe Marathon Efficiency
Wheels Tire Front Description
Schwalbe Marathon Efficiency

Number of gears

Brand shifters
Enviolo
Front chainwheel
50
Gear Type
Hub
Number of gears
Stepless

Drivetrain

Drivetrain
Belt
Crankset Model
Delta
Crankset description
Miranda Delta

Brakes

Front Brake Type
Hydraulic Disc Brake
Brake sytem code
SE
Front Brake Brand
Shimano
Primary Rear Brake Model
BR-MT420
Front brake
Shimano BR-MT420, 180 mm
Rear brake
Shimano BR-MT420, 180 mm
Rear Brake Lever
BLMT420

Handlebar

Handlebar
Ergon GP1-L ergonomic, Plastic handlebar grips with ergonomic form for a better distribution of pressure on the hands
Stem adjustable
Yes
Cockpit Handlebar Grip Brand
Ergon

Saddle

Saddle
Selle Royal Essenza Plus gel

Front light

Front light
Herrmans H-black PRO
Front Light Energy Source
Battery
Front Light Lux
100

Rear light

Rear Light Energy Source
Battery
Rear light
Spanninga Commuter Glow

Engine

Ebike System Model
Performance Line CX
Motor
Bosch Smart System Performance Line CX
Ebike System Brand
Bosch Smart System
Ebike Engine Position
Mid
Ebike Max Speed kmh
25
Ebike Max Speed mph
28
Ebike Engine Max Torque (Nm)
85

Battery

Charger
Bosch Standard charger,
Ebike Battery Charger Description
4 Ah
Ebike Battery Position
Intergrated in the frame

Display

Display
Bosch Kiox 300
Ebike Display Removeable
Yes
Ebike Walk Assist
Yes
Ebike Display Type
LCDc

Garantie

Frame warranty
10 year's warranty
Fork warranty
5 year's warranty
Paint warranty
5 year's warranty
Other parts warranty
2 year's warranty
Battery warranty
2 year's warranty
Motor warranty
2 year's warranty
Display warranty
2 year's warranty

Lock

Lock
Axa
Lock brand
Axa
ART classification
ART**

Other

Kickstand
Ursus Mooi

Carrier

Rear carrier description
Aluminum MIK HD system carrier
Carrier MIK Profile
Yes
Rear carrier max load (kg)
27
Rear carrier
Yes
Made by hand, for a superb result every single time.

Awards

  • Eclipse C380 HMB wins iF Design Award 2023

    IF Design Award 2023

Take our word for it. Or take a ride.

We've done our best to capture the Gazelle experience in words, but there is nothing like the real thing. So why not book a test ride at one of our Gazelle bike stores?

Book a test ride
