Gazelle EclipseT11 HMB
Gazelle Eclipse T11 HMB
From £4,999Maximum range 135 km

Adventurous with large gear range thanks to derailleur

Eclipse T11 HMB

Eclipse T11 HMB

The Eclipse T11 HMB stands for adventure. The unique character and true Gazelle geometry combined with a powerful e-bike system make the Eclipse T11 the ideal partner to embark on any adventure.

Maximum range
135 km
Frame shape
High-step, Low-step
Gears
11
Brake Rear
Disc brake with hydraulic control
From £4,999

Craftsmanship

With over 130 years of expertise, we know precisely what we're doing. Creating bicycles that you can rely on. What begins with a design comes together in our factory. Where we work everyday to create the perfect Gazelle for you.

Discover the Eclipse

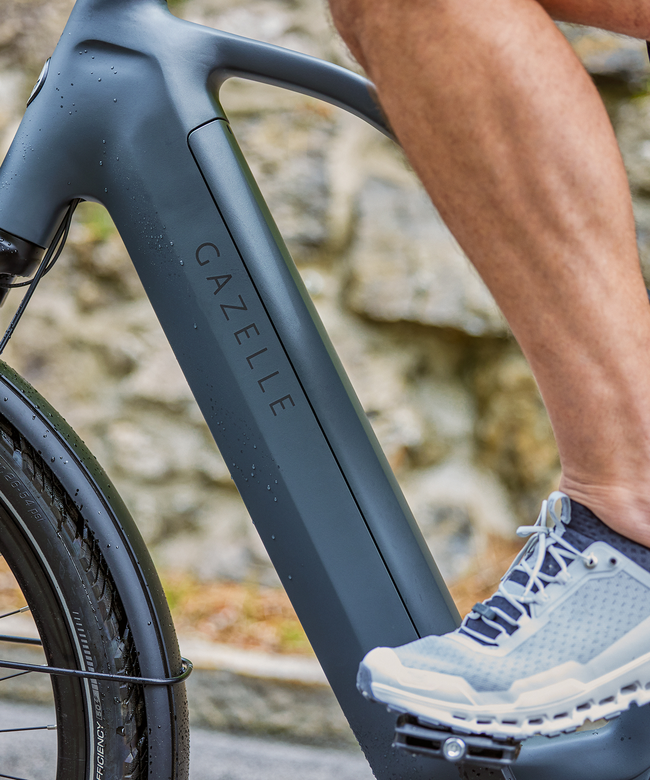

Neatly integrated and long-lasting battery

Bosch's lithium-ion batteries are among the most advanced on the market. The integrated 750-Wh battery ensures that you never come to a standstill. The battery is locked into the frame and can be easily removed using the bike key. This is convenient, as you can charge the battery either on or off the bike. Because the battery is quite large, we have developed a special carry handle. As an added bonus, this better protects the battery against being stolen from the bike. It's a win-win situation!
Neatly integrated and long-lasting battery Gazelle Eclipse T11 HMB E-bike high-step anthracite grey
Bosch Performance Line CX Smart System (85 Nm) Gazelle Eclipse T11 HMB E-bike high-step anthracite grey

The sky's the limit with this powerful Bosch motor

With the Bosch Performance Line CX motor, you can overcome any challenge you may face. The torque of 85 Nm means you'll never come to a standstill on steep hills or mountains and you'll be able to embark on any adventure with confidence.

Battery and range

Diamond

  • Maximum range135 km
  • Watt-hours750 wh
  • Capacity20.8
  • Eco range135 km
  • Tour range90 km
  • Turbo range70 km
  • Auto range80 km
  • Additional price (excluding disposal fee)Price: This is included in the MSRP
Diamond
Maximum range
135 km
Watt-hours
750 wh
Capacity
20.8
Eco range
135 km
Tour range
90 km
Turbo range
70 km
Auto range
80 km
Additional price (excluding disposal fee)
Price: This is included in the MSRP

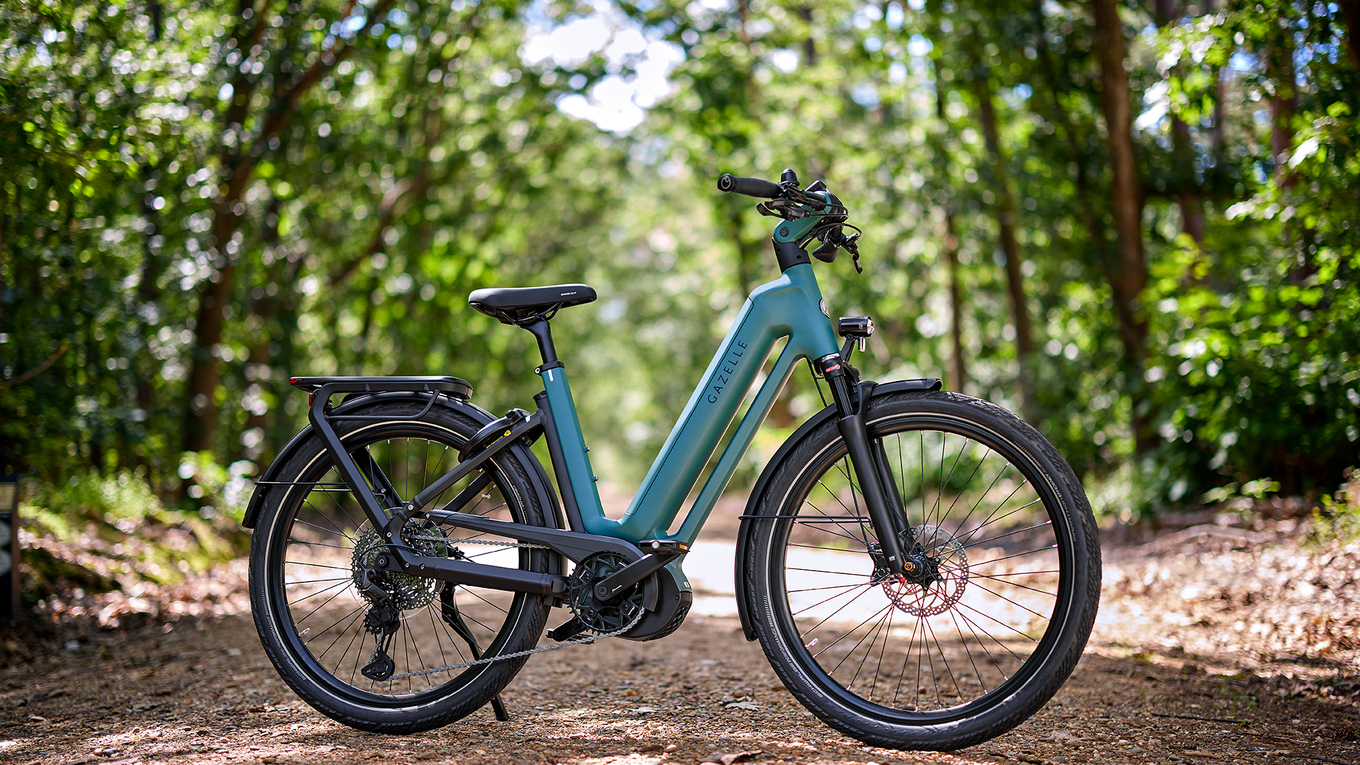

No slope is too steep Gazelle Eclipse T11 HMB E-bike low-step thyme green

No slope is too steep

Taking on one or more hills is no problem for the Eclipse C380 HMB. This e-bike features Bosch's most powerful mid-drive motor, the Performance Line CX. It has a maximum torque of 85 Nm that allows you to effortlessly tackle even the steepest of slopes. The motor is powered by the battery that is neatly integrated into the frame. Its capacity (750 Wh) is sufficient for long rides with support, without needing to recharge along the way.

Comfort on paved and unpaved paths

The Eclipse T11 HMB has 27.5-inch wheels with extra-wide tyres from Schwalbe designed specifically for e-bikes. This is a fantastic combination if you're looking for adventure. Why? Whether you stay on tarmac or tackle unpaved trails, you're guaranteed good grip and excellent manoeuvrability. The width of the tyres—in combination with a slightly lower tyre pressure—makes it easier to roll over uneven terrain. You'll feel little to no vibrations, but what you will experience is comfort.
Comfort on paved and unpaved paths Gazelle Eclipse T11 HMB E-bike low-step thyme green
Smooth derailleur drive Gazelle Eclipse T11 HMB E-bike low-step thyme green

Smooth derailleur drive

Climbing slopes, cycling into a headwind or riding on unpaved trails — you can do it all with ease thanks to the Shimano XT derailleur gears. This group, specially developed for e-bikes, is all about durability and longevity. The system offers a total of eleven gears. With such a wide range of gears, you'll always have the perfect gear to hand.

Protected against theft

The Eclipse T11 HMB is a bike with Gazelle Connect. It's a smart e-bike with theft protection. A module connected to the Internet is built into the e-bike. This module ensures that the bike is always traceable using GPS. This is also clearly marked on the bike frame, so thieves will think twice before trying to make off with it. If the bike starts moving, you will receive a notification via the Gazelle App.
Protected against theft Gazelle Eclipse T11 HMB E-bike low-step thyme green

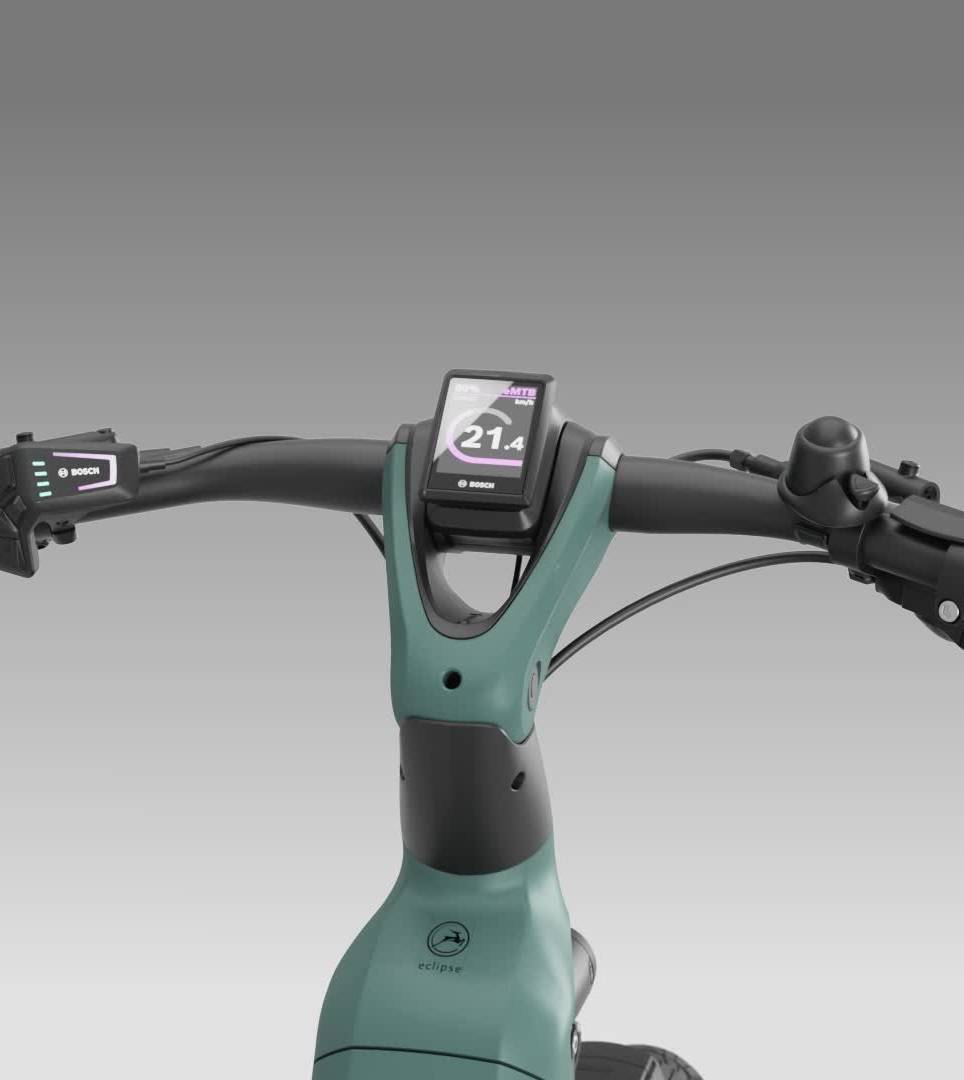

Focus on design and integration

The iconic, single-coloured Gazelle V-shaped handlebar stem not only makes for a beautiful design, but also integrates the Bosch Kiox 300 display. The cables are also neatly tucked away in the headset.

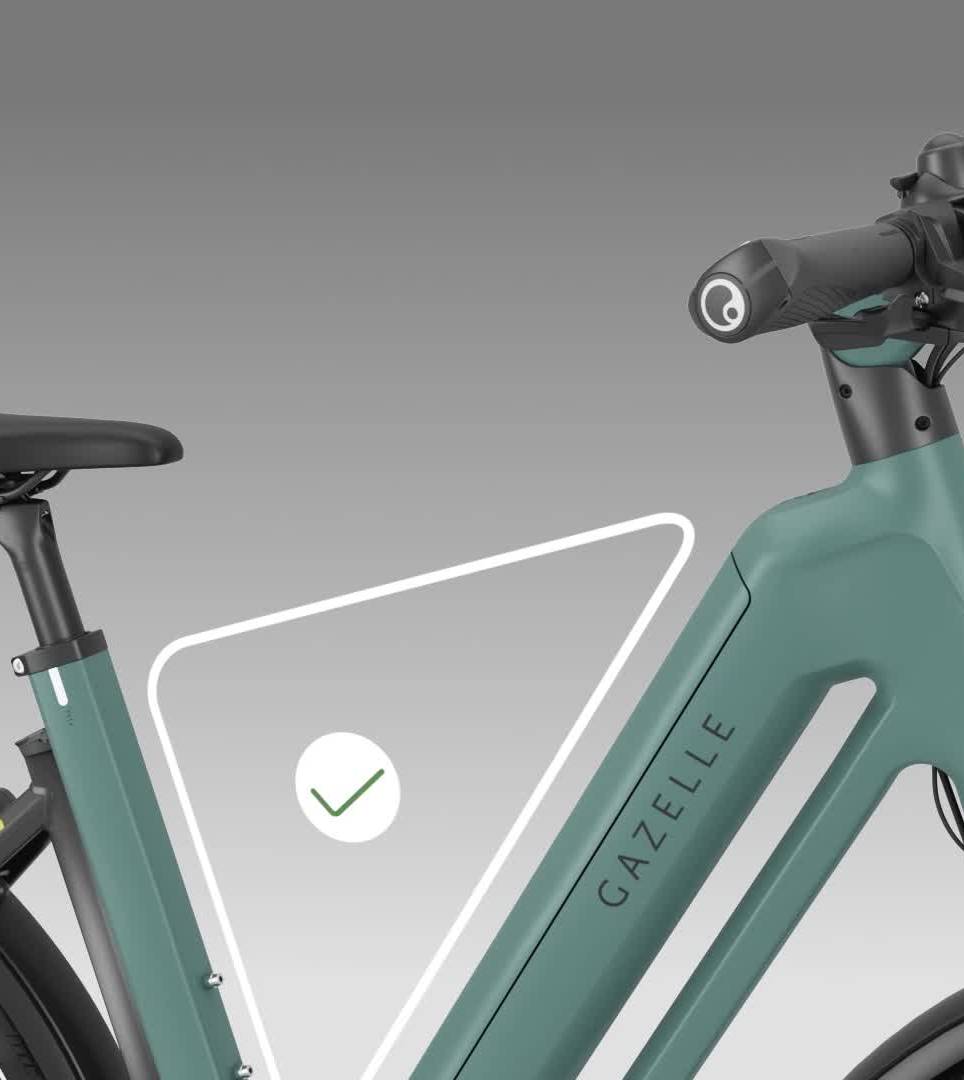

Well-designed active riding position

The unique design makes for the perfect combination of an active riding position and a large battery of up to 750 Wh, so you can focus on the world around you.

We make 300,000 bikes a year, assembled by hand.
Our bicycles are consistently checked for quality, from paint job to performance.

Specifications

Gear system description
11 Shimano Deore XT

Engine model
Bosch Performance Line CX Smart System (85 Nm)

Model
Eclipse

Colorname
Anthracite grey, thyme green

Fork suspension type
Telescopic, spiral spring

Model
Eclipse

Weight in kg.
27.2 kgs

Colorname
Anthracite grey, thyme green

Segment
Electric bicycles

Sitting position
Active

Maximum permissible weight
130 kg

Maximum permissible weight
330 Lbs


Frame

Frame shape
High-step, Low-step
Size
45, 50, 55, 60
Frame description
Aluminium frame with 71.5° seat tube angle and 70.5° head tube angle. Sporty seat and dynamic handling. Battery capacity of up to 750 Wh available for each ride.
Frame material
Aluminium
Cabels integrated
Yes

Fork

Fork material
Aluminium
Fork suspension type
Telescopic, spiral spring
Travel of suspension fork
75 mm
Front fork suspension lock-out
Yes

Wheels

Wheelsize
27,5"
Rims
Ryde Zac 25, Double-walled aluminium for extra strong and efficient cycling performance
Spoke description
Stainless steel, extra strong

Tires

Tires
Schwalbe Marathon Efficiency
Tires puncture resistant
Yes

Number of gears

Gear system description
11 Shimano Deore XT
Gear type
Derailleur
Gears
11
Rear derailleur
Shimano Deore XT M8130
Front chainwheel
42
Rear chainwheel
11-50

Brakes

Brake Front
Disc brake with hydraulic control
Brake Rear
Disc brake with hydraulic control
Disc brake rotor size front
180 mm
Disc brake rotor size rear
180 mm
Brake system description front
Shimano BR-MT420, 4 piston
Brake system description rear
Shimano BR-MT420, 4 piston

Handlebar

Handlebar description
Aluminium, slightly curved model
Adjustable stem
Yes
Grip type
Ergon GP1-L, ergonomic
Grips
Plastic handlebar grips with ergonomic form for a better distribution of pressure on the hands

Saddle

Saddle
Selle Royal Essenza Plus gel
Seatpost description
Fixed
Seatpost diameter
31,6 mm

Front light

Light front description
LED headlamp, on/off switching via display
Front light type
Herrmans H-black PRO

Engine

Ebike system short description
Bosch smart system
Engine location
Mid-drive motor
Max Speed (km/h)
25 km/h
Max speed (mph)
Class 3 (28 mph)
Torque
85
Engine model
Bosch Performance Line CX Smart System (85 Nm)
Ebike sensors
Pedal force sensor, rotation sensor, speed sensor

Battery

Battery type
Li-ion
Battery position
Integrated into frame
Battery replaceable
Yes
Battery system
Bosch
Ebike charger description
4 Ah

Display

Amount of support levels
4
Display control unit
Yes
Walk assist
Yes
Display Model
Bosch Kiox 300
Display detachable
Yes

Garantie

Warranty frame
10 years’ warranty
Warranty fork
5 years’ warranty
Warranty paint
5 years’ warranty
Warranty other parts
2 years’ warranty
Warranty battery
2 years’ warranty
Warranty motor
2 years’ warranty
Warranty diplay
2 years’ warranty

Lock

Lock description
Ring lock
Lock safety level
ART ** certified
Lock Type
Axa Imenso

Other

Chaincase description
Plastic
Kickstand type
Drop-down rear stand
Kickstand
Ursus Mooi
Chaincase type
Chain guard

Carrier

Rear carrier description
Aluminum MIK HD system carrier
Carrier MIK system
Yes
