Gazelle GrenobleC5 HMB
Gazelle Grenoble C5 HMB
From £3,399Maximum range 130 km

More comfort thanks to powerful engine, belt drive and Nexus 5-speed hub

Grenoble C5 HMB

Grenoble C5 HMB

Touring is a pleasure with the Grenoble C5 HMB. You can get on and off easily, sit upright comfortably and have a good view of your surroundings. Thanks to the powerful motor you can stop and go wherever you want.

Maximum range
130 km
Frame shape
High-Step, Low-Step
Number of gears
5
From £3,399

Craftsmanship

With over 130 years of expertise, we know precisely what we're doing. Creating bicycles that you can rely on. What begins with a design comes together in our factory. Where we work everyday to create the perfect Gazelle for you.

Discover the Grenoble

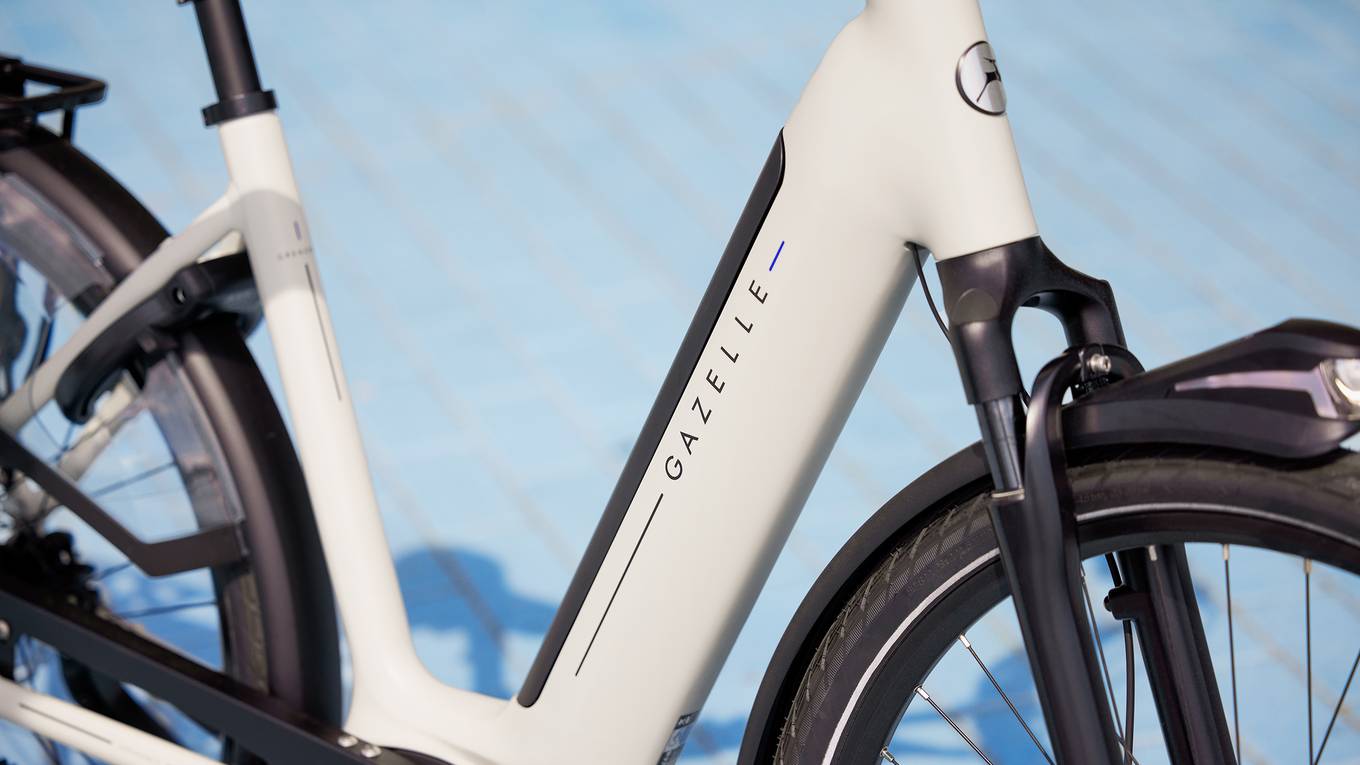

Efficient, integrated power source

Bosch's lithium-ion batteries are among the most advanced on the market. Their intelligent battery management system guarantees a long life, while the efficient energy control optimises your bike's range. With the integrated 500-Wh battery, you'll always have enough range. The battery is secured in the frame with a lock. You can easily remove it from the bike with the bike key. Convenient, as you can charge the battery either on or off the bike.
Efficient, integrated power source Gazelle Grenoble C5 HMB E-bike high-step anthracite grey
Performance Line Gazelle Grenoble C5 HMB E-bike high-step anthracite grey

Discover new places with Bosch's quiet, yet powerful motor

The Bosch Performance Line gives you everything your cyclist's heart desires. Smooth and powerful assistance that will never let you down. With 75 Nm torque you can handle any terrain. Highly recommended for the demanding cyclist.

Battery and range

Platina

  • Watt-hours500 Wh
  • Capacity13,4 Ah
  • Battery charging time with 2A7 h 30 m
  • Battery charging time with 4A4 h 30 m
  • Battery positionIntergrated in the frame
  • Battery brandBosch
  • Battery modelIntube
  • Battery voltage36V
  • Eco130 km
  • Tour75 km
  • Auto60 km
  • Turbo50 km
Platina
Watt-hours
500 Wh
Capacity
13,4 Ah
Battery charging time with 2A
7 h 30 m
Battery charging time with 4A
4 h 30 m
Battery position
Intergrated in the frame
Battery brand
Bosch
Battery model
Intube
Battery voltage
36V
Eco
130 km
Tour
75 km
Auto
60 km
Turbo
50 km
Belt drive: quiet and low maintenance Gazelle Grenoble C5 HMB E-bike low-step petrol blue

Belt drive: quiet and low maintenance

A big plus of the Grenoble C5 HMB is the Gates belt drive. In fact, a belt drive has several advantages over the classic chain drive. To begin with, a belt drive is very quiet and requires little maintenance. Unlike a chain, you don't have to lubricate it and it lasts three to five times longer.

Powerful and controlled braking

If you're cycling downhill or in busy city traffic, then you'll want to be able to brake safely without thinking about it. Hydraulic disc brakes offer braking power and precision, so you can slow down in a controlled manner at any time — even when it's raining.
Powerful and controlled braking Gazelle Grenoble C5 HMB E-bike low-step petrol blue
Luxurious finish, more comfort Gazelle Grenoble C5 HMB E-bike low-step petrol blue

Luxurious finish, more comfort

Details often make the difference. That's also true of the Grenoble C5 HMB. This e-bike has leather handlebar grips. They not only fit nicely in the hand, but also give the e-bike a luxurious touch. The gel seat also improves the appearance and comfort level. This saddle absorbs the bumps, which will certainly be welcome when you are on a longer ride.

Powerful, mid-drive motor

The Grenoble C5 HMB features a powerful Bosch Performance Line mid-drive motor. Neither headwinds nor hills are a problem with this bike. The battery is integrated into the frame design and therefore completely hidden. This lowers the centre of gravity and thus improves road holding.
Powerful, mid-drive motor Gazelle Grenoble C5 HMB E-bike low-step petrol blue
Logo Gazelle

"Really great bikes. Quiet, high power and perfect assistance."

Gazelle's customer
We make 300,000 bikes a year, assembled by hand.
Our bicycles are consistently checked for quality, from paint job to performance.

Specifications

Color
Anthracite grey gloss, petrol blue matte

Fork suspension
Mono Integrated

Ebike System Model
Performance Line

Motor
Bosch Smart System Performance Line

Bike weight description
Excl. battery

Weight (kg)
24.7 kgs

Weight
24.7 excl. battery

Color
Anthracite grey gloss, petrol blue matte

Front Light Integrated
Yes

Bike Max. Total Weight (kg)
130

Sitting Position
Upright


Frame

Frame description
Stable, lightweight hydro-formed aluminium frame with 68.5° headset angle and 69.5° saddle tube angle for relaxed and comfortable riding. This is a low-step and spacious frame, single tube and lovely integrated cables.
Frame material
Aluminum
Cockpit Cable Integration
Yes
Frame shape
High-Step, Low-Step
Frame Size CM
46, 49, 53, 57, 61

Fork

Fork description
Aluminium, springing in headset, lightweight
Fork Material
Aluminum
Fork suspension
Mono Integrated

Wheels

Front wheel
46, Gates
Rear wheel
34, Gates
Front rim
Rodi Viper, Double-walled aluminium for extra strong and efficient cycling performance
Rear rim
Rodi Viper, Double-walled aluminium for extra strong and efficient cycling performance
Front hub
Shimano
Rear hub
Shimano Nexus 5
WheelSize Front
28"

Tires

Wheels Tire Front Etrto
47-622
Front tyre
Schwalbe Energizer Active Plus
Rear tyre
Schwalbe Energizer Active Plus
Wheels Tire Front Description
Schwalbe Energizer Active Plus

Number of gears

Brand shifters
Shimano
Front chainwheel
46
Gear Type
Hub
Number of gears
5

Drivetrain

Drivetrain
Belt

Brakes

Front Brake Type
Hydraulic Disc Brake
Brake sytem code
S5
Front Brake Brand
Tektro
Primary Rear Brake Model
HD-T280
Front brake
Tektro HD-T280, 180 mm
Rear brake
Tektro HD-T280, 160 mm
Rear Brake Lever
Tektro

Handlebar

Handlebar
Gazelle Aero leather, Luxury leather handlebar grips for a sophisticated feel and extra comfort
Stem adjustable
Yes
Cockpit Handlebar Grip Brand
Gazelle

Saddle

Saddle
Selle Royal Essenza Plus, Royalgel

Front light

Front light
Gazelle Fendervision
Front Light Energy Source
Battery
Front Light Lux
50

Rear light

Rear Light Energy Source
Battery
Rear light
Spanninga Brasa

Engine

Ebike System Model
Performance Line
Motor
Bosch Smart System Performance Line
Ebike System Brand
Bosch Smart System
Ebike Engine Position
Mid
Ebike Max Speed kmh
25
Ebike Engine Max Torque (Nm)
75

Battery

Charger
Bosch
Ebike Battery Charger Description
4 Ah
Ebike Battery Position
Intergrated in the frame

Display

Display
Bosch Intuvia
Ebike Display Removeable
Yes
Ebike Walk Assist
Yes
Ebike Display Type
LCDc

Garantie

Frame warranty
10 year's warranty
Fork warranty
5 year's warranty
Paint warranty
5 year's warranty
Other parts warranty
2 year's warranty
Battery warranty
2 year's warranty
Motor warranty
2 year's warranty
Display warranty
2 year's warranty

Lock

Lock
Axa
Lock brand
Axa
ART classification
ART**

Other

Kickstand
Ursus Mooi
Coat protector
Yes

Carrier

Rear carrier description
Aluminum MIK HD system carrier
Carrier MIK Profile
Yes
Rear carrier max load (kg)
27
Rear carrier
Yes
Made by hand, for a superb result every single time.

Take our word for it. Or take a ride.

We've done our best to capture the Gazelle experience in words, but there is nothing like the real thing. So why not book a test ride at one of our Gazelle bike stores?

Book a test ride
