Gazelle MedeoT10 HMB
Gazelle Medeo T10 HMB
From £3,099Maximum range 155 km

Multi-purpose sporty model with 10 derailleur gears and wide tyres

Medeo T10 HMB

Medeo T10 HMB

You are sporty, versatile and stylish. Just like the Medeo T10 HMB. With its derailleur system, beautiful styling and powerful motor, it's as versatile as you are.

Maximum range
155 km
Frame shape
High-Step, Mid-Step
Number of gears
10
From £3,099

Craftsmanship

With over 130 years of expertise, we know precisely what we're doing. Creating bicycles that you can rely on. What begins with a design comes together in our factory. Where we work everyday to create the perfect Gazelle for you.

Discover the Medeo

Efficient, integrated power source

Bosch's lithium-ion batteries are among the most advanced on the market. Their intelligent battery management system guarantees a long life, while the efficient energy control optimises your bike's range. With the integrated 500- or 625-Wh battery, you'll always have enough range. The battery is secured in the frame with a lock. You can easily remove it from the bike using the bike key, so you can recharge the battery anywhere.
Efficient, integrated power source Gazelle Medeo T10 HMB E-bike mid-step pine green
Performance Line Gazelle Medeo T10 HMB E-bike mid-step pine green

Discover new places with Bosch's quiet, yet powerful motor

The Bosch Performance Line gives you everything your cyclist's heart desires. Smooth and powerful assistance that will never let you down. With 75 Nm torque you can handle any terrain. Highly recommended for the demanding cyclist.

Battery and range

Diamant

  • Watt-hours625 Wh
  • Capacity17,4 Ah
  • Battery charging time with 2A-
  • Battery charging time with 4A4 h 54 m
  • Battery positionIntergrated in the frame
  • Battery brandBosch
  • Battery modelIntube
  • Battery voltage36V
  • Eco155 km
  • Tour95 km
  • Auto70 km
  • Turbo65 km

Platina

  • Watt-hours500 Wh
  • Capacity13,4 Ah
  • Battery charging time with 2A7 h 30 m
  • Battery charging time with 4A4 h 30 m
  • Battery positionIntergrated in the frame
  • Battery brandBosch
  • Battery modelIntube
  • Battery voltage36V
  • Eco130 km
  • Tour75 km
  • Auto60 km
  • Turbo50 km
Diamant
Platina
Watt-hours
625 Wh
500 Wh
Capacity
17,4 Ah
13,4 Ah
Battery charging time with 2A
-
7 h 30 m
Battery charging time with 4A
4 h 54 m
4 h 30 m
Battery position
Intergrated in the frame
Intergrated in the frame
Battery brand
Bosch
Bosch
Battery model
Intube
Intube
Battery voltage
36V
36V
Eco
155 km
130 km
Tour
95 km
75 km
Auto
70 km
60 km
Turbo
65 km
50 km
Logo Gazelle

A very nice and sporty bike for cycling long distances. The heavier battery allows you to cycle for a long time.

Gazelle's customer
We make 300,000 bikes a year, assembled by hand.
Our bicycles are consistently checked for quality, from paint job to performance.

Specifications

Color
Pine green gloss, turmeric yellow gloss

Fork suspension
Telescope, spiral spring

Ebike System Model
Performance Line

Motor
Bosch Smart System Performance Line

Bike weight description
Excl. battery

Weight (kg)
25.2 kgs

Weight
25.2 excl. battery

Color
Pine green gloss, turmeric yellow gloss

Bike Max. Total Weight (kg)
130

Sitting Position
Sportive


Frame

Frame description
Stable lightweight aluminium sloping frame with 70,5° headset angle and 73° saddle tube angle for a sporty posture and precise handling. Cables beautifully integrated into the frame.
Frame material
Aluminum
Cockpit Cable Integration
Yes
Frame shape
High-Step, Mid-Step
Frame Size CM
45, 50, 55, 60

Fork

Fork
SR Suntour MOBIE A32 DS
Fork description
Suntour MOBIE A32 DS
Fork Material
Aluminum
Fork suspension
Telescope, spiral spring
Fork lockout
Yes

Wheels

Front wheel
38
Rear wheel
Front rim
Ryde Big Bull, Double-walled aluminium for extra strong and efficient cycling performance
Rear rim
Ryde Big Bull, Double-walled aluminium for extra strong and efficient cycling performance
Front hub
Shimano
WheelSize Front
28"

Tires

Wheels Tire Front Etrto
62-584

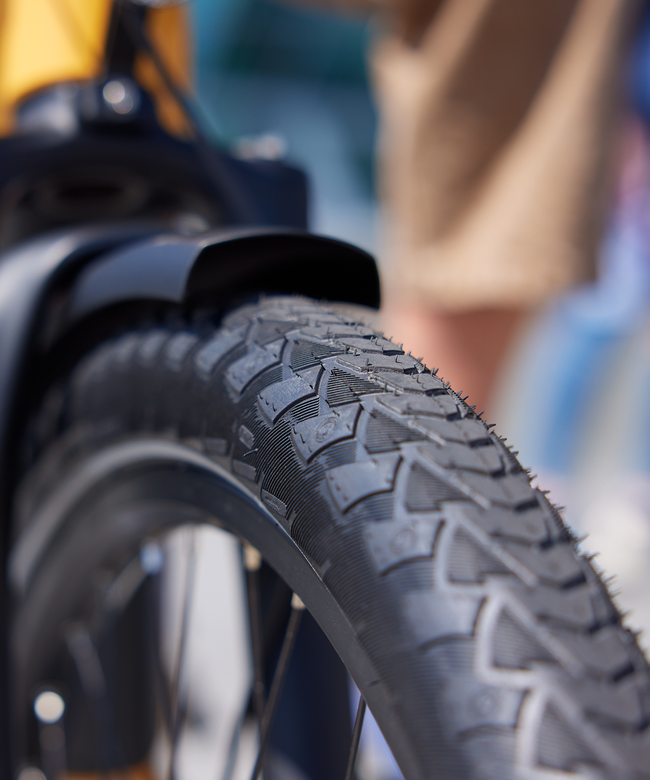

Front tyre
Continental Contact Plus
Rear tyre
Continental Contact Plus
Wheels Tire Front Description
Continental Contact Plus

Number of gears

Brand shifters
Shimano
Front chainwheel
38
Cassette Range
11-48
Gear Type
Derailleur
Number of gears
10

Drivetrain

Rear derailleur
Shimano Deore
Drivetrain
Chain

Brakes

Front Brake Type
Hydraulic Disc Brake
Brake sytem code
S10
Front Brake Brand
Shimano
Primary Rear Brake Model
BR-MT200
Front brake
Shimano BR-MT200, 180 mm
Rear brake
Shimano BR-MT200, 160 mm
Rear Brake Lever
BLMT200

Handlebar

Handlebar
Herrmans DD36, Plastic wear-resistant handlebar grips for a firm grasp
Stem adjustable
Yes
Cockpit Handlebar Grip Brand
Herrmans

Saddle

Saddle
DDK

Front light

Front light
AXA Compactline 35
Front Light Energy Source
Battery
Front Light Lux
35

Rear light

Rear Light Energy Source
Battery
Rear light
AXA Blueline

Engine

Ebike System Model
Performance Line
Motor
Bosch Smart System Performance Line
Ebike System Brand
Bosch Smart System
Ebike Engine Position
Mid
Ebike Max Speed kmh
25
Ebike Engine Max Torque (Nm)
75

Battery

Charger
Bosch
Ebike Battery Charger Description
2 Ah
Ebike Battery Position
Intergrated in the frame

Display

Display
Bosch Purion 200
Ebike Walk Assist
Yes
Ebike Display Type
LCD

Garantie

Frame warranty
10 year's warranty
Fork warranty
5 year's warranty
Paint warranty
5 year's warranty
Other parts warranty
2 year's warranty
Battery warranty
2 year's warranty
Motor warranty
2 year's warranty
Display warranty
2 year's warranty

Lock

Lock
Axa
Lock brand
Axa
ART classification
ART**

Other

Kickstand
Ursus Mooi

Carrier

Rear carrier description
Aluminum MIK HD system carrier
Carrier MIK Profile
Yes
Rear carrier max load (kg)
27
Rear carrier
Yes
Made by hand, for a superb result every single time.

Take our word for it. Or take a ride.

We've done our best to capture the Gazelle experience in words, but there is nothing like the real thing. So why not book a test ride at one of our Gazelle bike stores?

Book a test ride
