Gazelle MedeoT9 HMB
Gazelle Medeo T9 HMB
From £2,399Maximum range 155 km

Sporty, lightweight e-bike with 9 derailleur gears

Medeo T9 HMB

Medeo T9 HMB

Are you looking for an elegant e-bike with sporty DNA that's also good value for money? Then take a look at the Medeo T9 HMB: powerful motor, 9-speed derailleur and plenty of riding comfort.

Maximum range
155 km
Frame shape
High-Step, Low-Step
Number of gears
9
From £2,399

Craftsmanship

With over 130 years of expertise, we know precisely what we're doing. Creating bicycles that you can rely on. What begins with a design comes together in our factory. Where we work everyday to create the perfect Gazelle for you.

Discover the Medeo

Modern efficient energy source

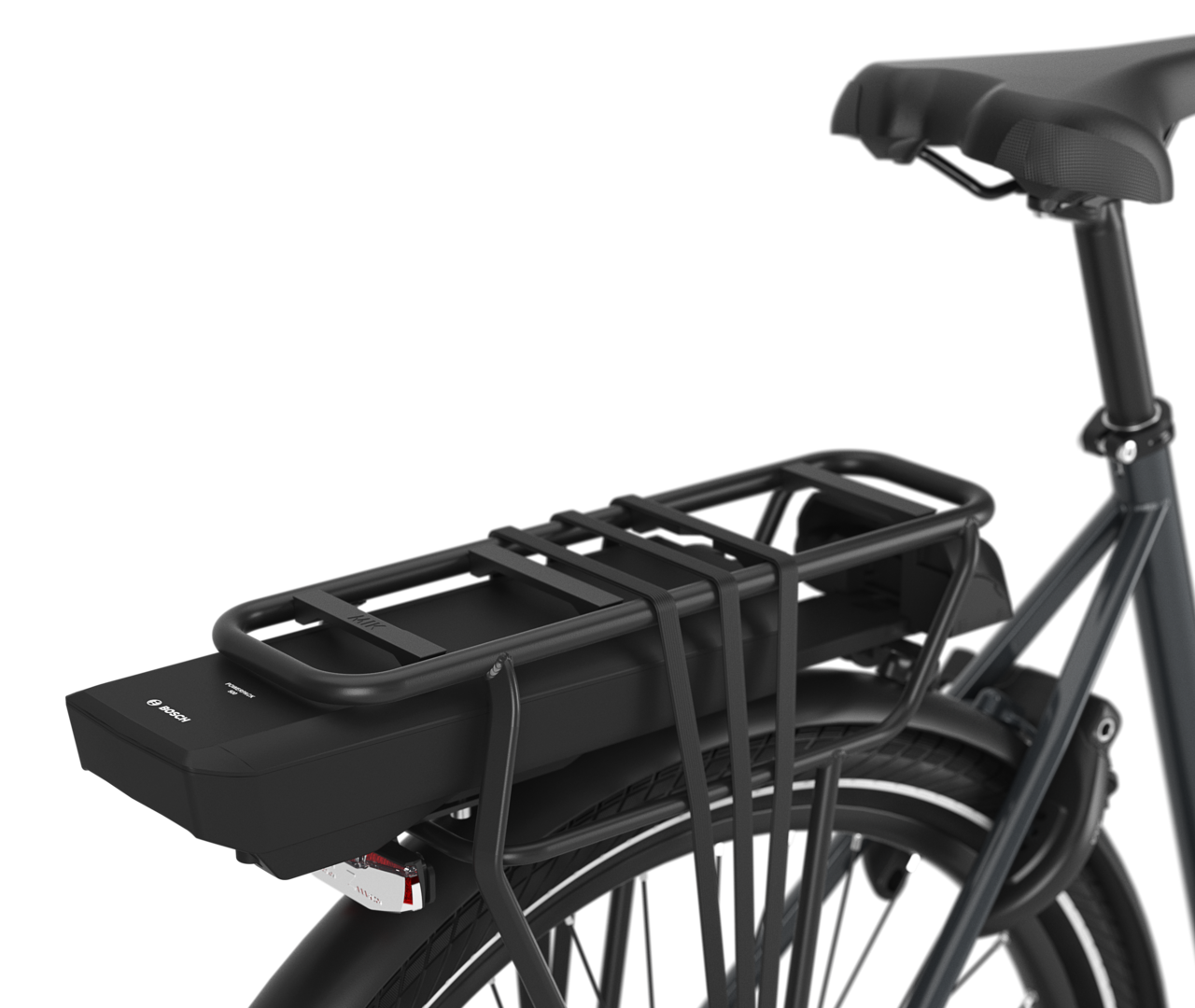

Bosch's lithium-ion batteries are among the most advanced on the market. Their intelligent battery management system guarantees a long life, while the efficient energy control optimises your bike's range. You can choose the battery capacity that suits you: 400 or 500 Wh. The battery is secured with a lock on your rear carrier and is easily removed using your bike key. Convenient, as you can charge the battery either on or off the bike.
Modern efficient energy source Gazelle Medeo T9 HMB E-bike low-step champion red
Active Line Plus Gazelle Medeo T9 HMB E-bike low-step champion red

Discover new places with Bosch's quiet, yet powerful motor

The Bosch Active Line Plus gives natural and silent assistance. With a torque of 50 Nm you can handle practically any terrain. Whether flat or hilly, with this motor you arrive comfortably at your destination.

Battery and range

  • Watt-hours545 Wh
  • Capacity14,4 Ah
  • Battery charging time with 2A-
  • Battery charging time with 4A-
  • Battery positionOn the frame
  • Battery brandBosch
  • Battery modelOntube
  • Battery voltage36V
  • Eco155 km
  • Tour95 km
  • Auto75 km
  • Turbo60 km

Goud

  • Watt-hours400 Wh
  • Capacity11,1 Ah
  • Battery charging time with 2A6 h 30 m
  • Battery charging time with 4A3 h 30 m
  • Battery positionOn the frame
  • Battery brandBosch
  • Battery modelOntube
  • Battery voltage36V
  • Eco115 km
  • Tour65 km
  • Auto50 km
  • Turbo45 km
Goud
Watt-hours
545 Wh
400 Wh
Capacity
14,4 Ah
11,1 Ah
Battery charging time with 2A
-
6 h 30 m
Battery charging time with 4A
-
3 h 30 m
Battery position
On the frame
On the frame
Battery brand
Bosch
Bosch
Battery model
Ontube
Ontube
Battery voltage
36V
36V
Eco
155 km
115 km
Tour
95 km
65 km
Auto
75 km
50 km
Turbo
60 km
45 km
Choose your optimum gear Gazelle Medeo T9 HMB E-bike low-step champion red

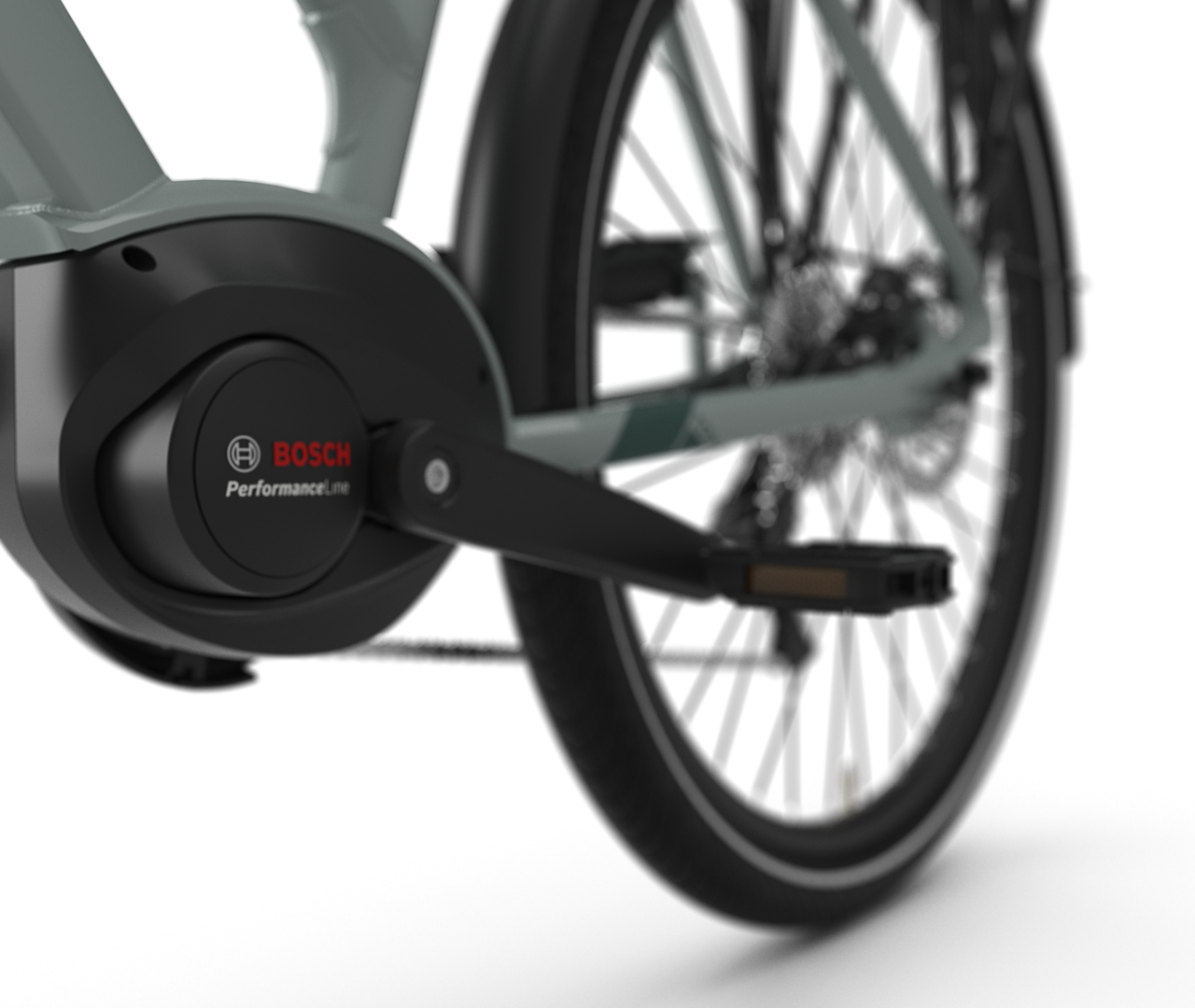

Choose your optimum gear

With the tried-and-tested Shimano derailleur gearing system, you can choose the gear that feels right for you, at any time. Shimano guarantees reliable shifting performance and years of flawless operation. You have 9 gears at your disposal that are easy to operate from the handlebars. The chain is specially reinforced for e-bikes and is designed to cope with the forces generated when shifting gears under load.

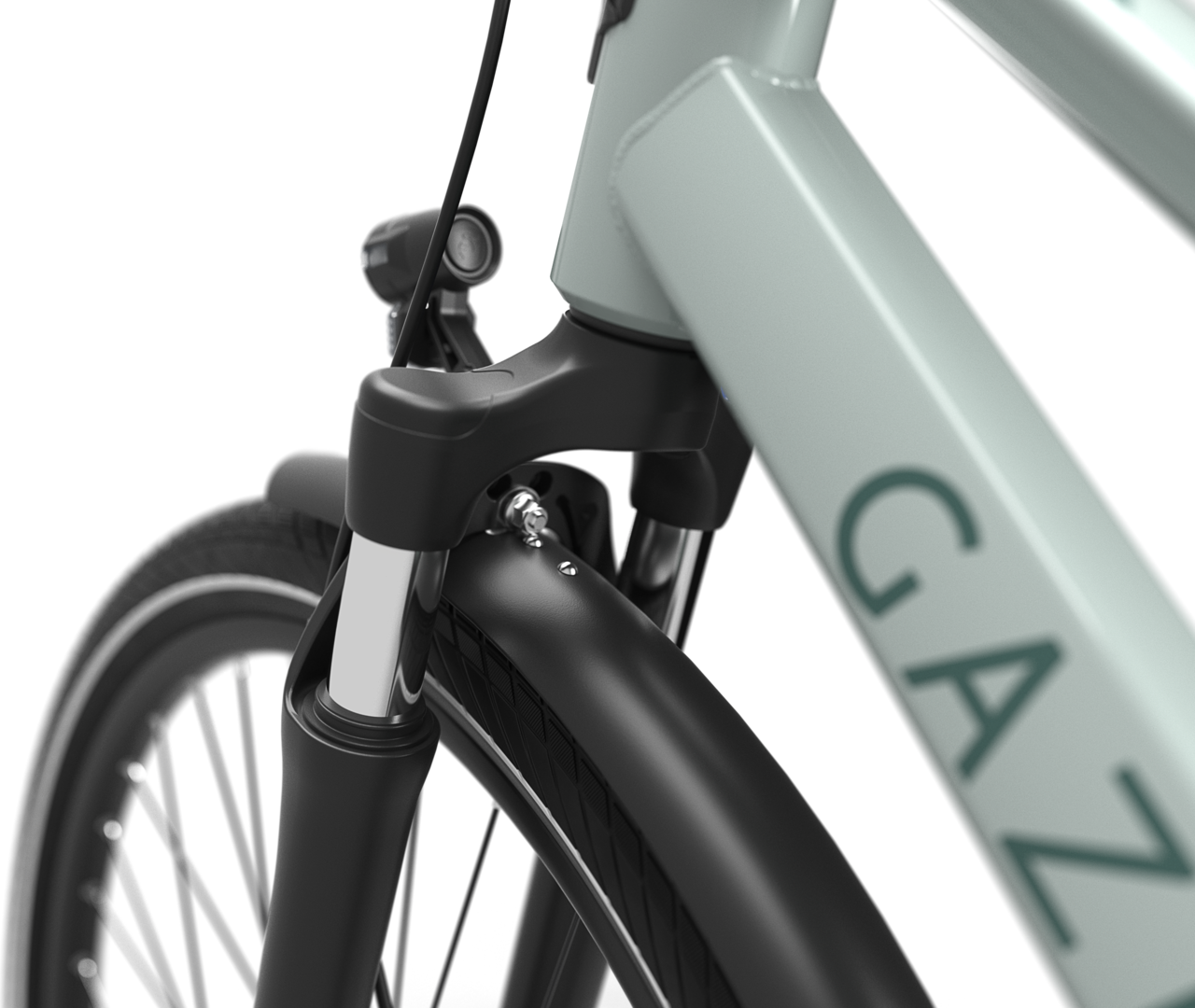

Less jarring on bumpy roads

In terms of comfort, the Medeo T9 HMB is a great choice. The e-bike has wide, anti-puncture tyres that make it a little bit easier to ride over bumps in the road surface. In addition, the bike has a front suspension fork. A cobbled path will feel like cycling on a smooth tarmacked road. With such great riding comfort, you'll also get off the bike fresher and fitter after your commute or a long ride.
Less jarring on bumpy roads Gazelle Medeo T9 HMB E-bike low-step champion red
Powerful and controlled braking Gazelle Medeo T9 HMB E-bike low-step champion red

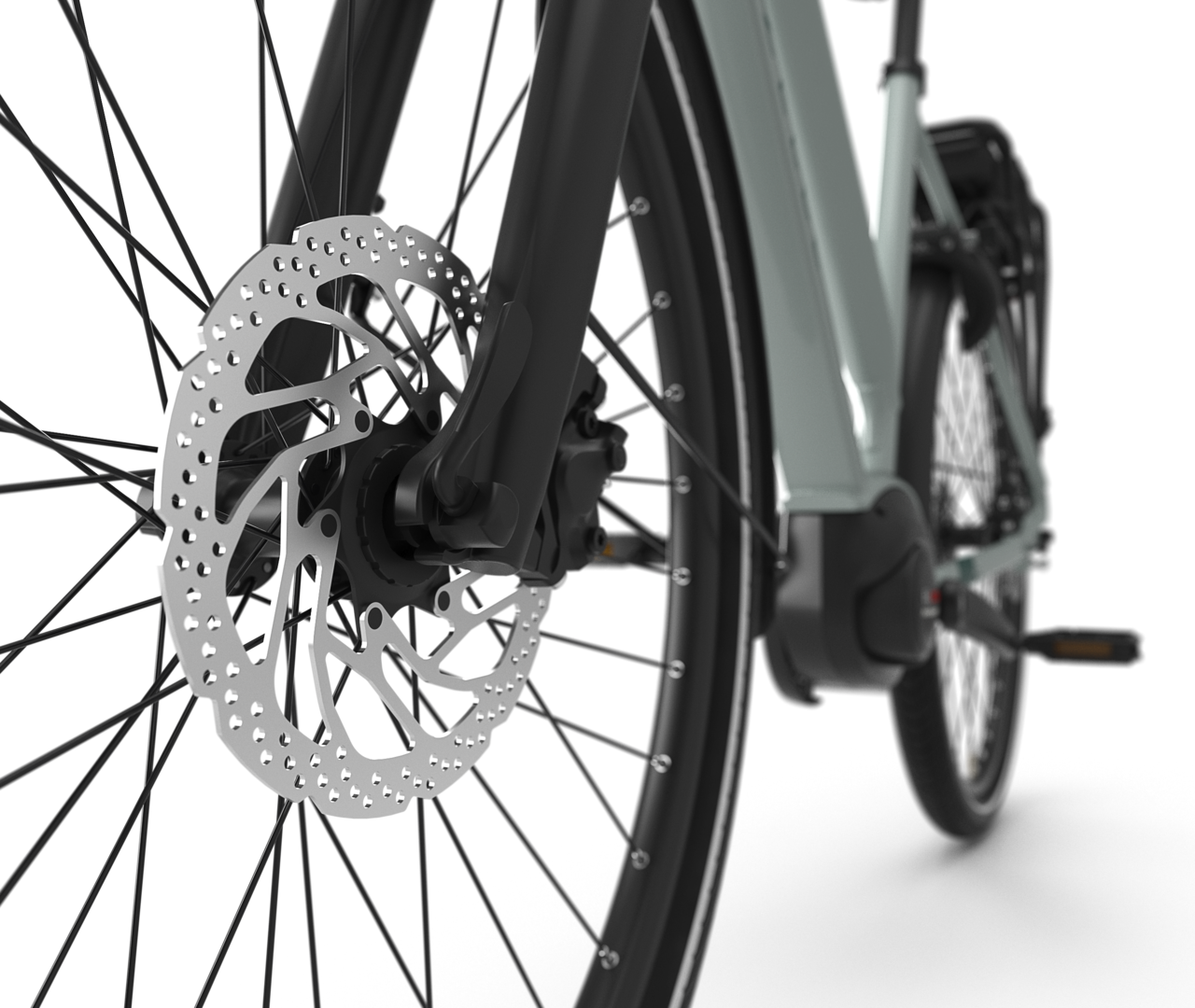

Powerful and controlled braking

With an advanced e-bike like the Medeo T9 HMB, you want to be able to brake safely without even thinking about it. Hydraulic disc brakes are therefore indispensable, as they provide the braking power and the precision for controlled braking at all times — even when it's raining or the roads are wet.

Hit the road with confidence

The battery is mounted on the frame for a sporty look and feel. But that's not all. The battery on the Medeo T9 HMB is also strategically positioned. This creates a low step-through on the version without top tube — allowing you to get on and off with ease
Hit the road with confidence Gazelle Medeo T9 HMB E-bike low-step champion red
Logo Gazelle

"A nice sporty model and rides like a dream. I should have bought this bike a long time ago."

Gazelle's customer
We make 300,000 bikes a year, assembled by hand.
Our bicycles are consistently checked for quality, from paint job to performance.

Specifications

Color
Champion red gloss, ink blue gloss, thunder grey gloss

Fork suspension
Telescope, spiral spring

Ebike System Model
Active Line Plus

pim_motor
Bosch Smart System Active Line Plus

Bike weight description
Excl. battery

Weight (kg)
23.1 kgs

Weight
23.1 excl. battery

Color
Champion red gloss, ink blue gloss, thunder grey gloss

Bike Max. Total Weight (kg)
130

Sitting Position
Sportive


Frame

Frame description
Stable lightweight aluminium sloping frame with 70,5° headset angle and 73° saddle tube angle for a sporty posture and precise handling. Cables beautifully integrated into the frame.
Frame material
Aluminum
Cockpit Cable Integration
Yes
Frame shape
High-Step, Low-Step
Frame Size CM
40, 45, 50, 55, 60

Fork

Fork
SR Suntour MOBIE A32 DS
Fork description
Suntour MOBIE A32 DS
Fork Material
Aluminum
Fork suspension
Telescope, spiral spring
Fork lockout
Yes

Wheels

Front wheel
38
Rear wheel
Front rim
Ryde Big Bull, Double-walled aluminium for extra strong and efficient cycling performance
Rear rim
Ryde Big Bull, Double-walled aluminium for extra strong and efficient cycling performance
Front hub
Shimano
WheelSize Front
27.5"

Tires

Wheels Tire Front Etrto
62-584
Front tyre
Continental Contact Plus
Rear tyre
Continental Contact Plus
Wheels Tire Front Description
Continental eContact Plus

Number of gears

Brand shifters
Shimano
Front chainwheel
38
Cassette Range
11-36
Gear Type
Derailleur
Number of gears
9

Drivetrain

Drivetrain
Chain

Brakes

Front Brake Type
Hydraulic Disc Brake
Brake sytem code
S9
Front Brake Brand
Shimano
Primary Rear Brake Model
BR-MT200
Front brake
Shimano BR-MT200, 180 mm
Rear brake
Shimano BR-MT200, 160 mm
Rear Brake Lever
BLMT200

Handlebar

Handlebar
Herrmans DD36, Plastic wear-resistant handlebar grips for a firm grasp
Stem adjustable
Yes
Cockpit Handlebar Grip Brand
Herrmans

Saddle

Saddle
DDK

Front light

Front light
AXA Compactline 35
Front Light Energy Source
Battery
Front Light Lux
35

Rear light

Rear Light Energy Source
Battery
Rear light
AXA Blueline

Engine

Ebike System Model
Active Line Plus
pim_motor
Bosch Smart System Active Line Plus
Ebike System Brand
Bosch Smart System
Ebike Engine Position
Mid
Ebike Max Speed kmh
25
Ebike Max Speed mph
20
Ebike Engine Max Torque (Nm)
50

Battery

Charger
Bosch
Ebike Battery Charger Description
2 Ah
Ebike Battery Position
On the frame

Display

Display
Bosch Purion 200
Ebike Walk Assist
Yes
Ebike Display Type
LCD

Garantie

Frame warranty
10 year's warranty
Fork warranty
5 year's warranty
Paint warranty
5 year's warranty
Other parts warranty
2 year's warranty
Battery warranty
2 year's warranty
Motor warranty
2 year's warranty
Display warranty
2 year's warranty

Lock

Lock
Axa
Lock brand
Axa
ART classification
ART**

Other

Kickstand
Ursus Mooi

Carrier

Rear carrier description
Aluminum MIK system carrier
Carrier MIK Profile
Yes
Rear carrier max load (kg)
25
Rear carrier
Yes
Made by hand, for a superb result every single time.

Take our word for it. Or take a ride.

We've done our best to capture the Gazelle experience in words, but there is nothing like the real thing. So why not book a test ride at one of our Gazelle bike stores?

Book a test ride
