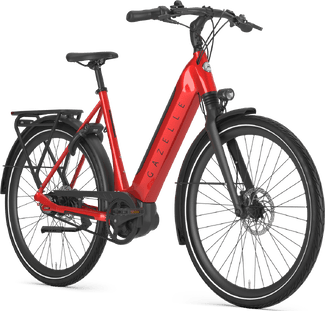

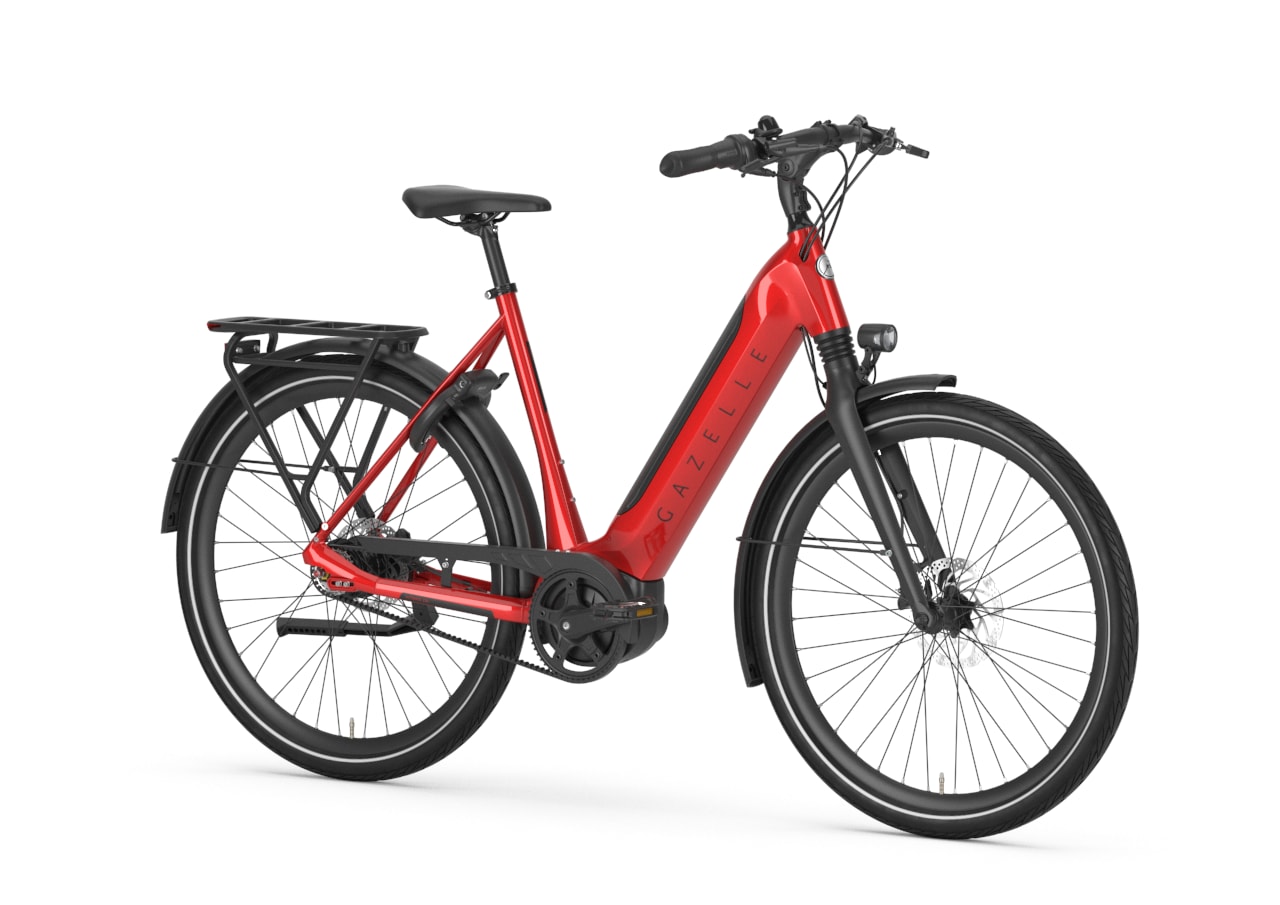

Gazelle Ultimate C8 HMB
- Stable and rigid frame with an integrated battery
- Little maintenance required with the Nexus hub and Gates belt drive
- Powerful, hydraulic disc brakes
- Front fork with integrated suspension
Discover the Gazelle Ultimate C8 HMB
The Ultimate C8 HMB combines a dynamic appearance with exceptional comfort. In an active riding position, you will experience excellent stability thanks to the bike's low center of gravity. Low-maintenance components such as the Nexus gear hub and the durable belt drive guarantee ease of operation and flawless functioning — as well as carefree cycling pleasure!
Available in 2 color(s)
Meet the Gazelle Ultimate C8
Meet the Gazelle Ultimate C8, our sporty and comfortable touring bike, perfect for short jaunts and longer adventures alike.
The Ultimate C8 Reviewed
See what people are saying about this ebike:
-
Cycle Volta - Gazelle Ultimate C8 HMB Ebike Review >
Our powerful battery provides excellent range
Platinum |
70 mi |
500 Wh |
13,4 Ah |
70 mi |
45 mi |
35 mi |
25 mi |
Price: This is included in the MSRP |
Bosch Active Line Plus (50Nm)
The Bosch Active Line Plus gives natural and silent assistance. With a torque of 50 Nm you can handle practically any terrain. Whether flat or hilly, with this motor you arrive comfortably at your destination.
Accessories for Gazelle Ultimate C8 HMB
“I bought my Ultimate T10+ instead of a second car for my commute to work. It’s opened up a whole new world for me and I’m enjoying burning calories instead of gas!” - Adam
We are Gazelle and we make over 300,000 bikes a year, with passion and dedication. This same passion is shared by Gazelle riders around the world. Discover their stories, plus get tips and tricks to enjoy your ride to the fullest.
Read more“I bought my Ultimate T10+ instead of a second car for my commute to work. It’s opened up a whole new world for me and I’m enjoying burning calories instead of gas!” - Adam
Frequently asked questions about the Gazelle Ultimate C8 HMB
How does an electric bike work?
An electric system consists of a number of main components:
- The battery: integrated into the luggage carrier or or integrated with the frame (depending on the model);
- The motor: built into the frame at the bottom bracket;
- The display: fitted on the handlebar;
- Sensors: Every electric system has a speed sensor, which measures how fast the bike is moving. In addition, pedaling input is determined by a rotation sensor or a pedal force sensor depending on the model. The Impulse system has a fourth sensor, namely the shift sensor. This sensor cuts out assistance for a quarter of a second while you are shifting, which enables you to keep on pedaling while shifting.
Together the sensors determine the amount of assistance provided by the motor based on your assistance level setting and the pedal force you are applying. You set the assistance level yourself using the handlebar grip control.
How does an electric bike work?
Which factors affect range?
Range is dependent on various factors. Thus, the speed at which you ride the bike will have a major impact. See below for the average range at various speeds. In addition to speed, there are other external factors that affect the range. The range advertised in our brochures and manuals is based on averages. Thus, it is assumed that the average rider weighs 70 kg or 155lbs, cycles on relatively flat terrain, and shifts gears actively. Below you will find that leading factors that affect range:
- Weight: The total weight of the bike, the rider, and load will affect the range.
- Gear-shifting behaviour: Actively shifting gears increases the range. Just like a car, when setting off from a standstill, you should start in the lowest gear. Never start in the highest gear; this will adversely affect your range.
- Type of sensor: eBikes are fitted with a pedal force sensor or a rotation sensor. A pedal force sensor amplifies your own effort, whereas a rotation sensor only provides assistance while pedaling. In other words, the rider will always get maximum assistance with a rotation sensor, which results in less range.
- Type of road surface: The surface over which you are cycling has a substantial effect on your range. Thus, cycling along an unpaved road surface will reduce your range.
- The weather: Cycling with a tailwind or into a headwind will increase or reduce your range. Temperature will also affect it. Thus, at extremely low temperatures (< 32 degrees Fahrenheit) the battery is able to store less energy, which reduces the distance you can ride.
- Hilly terrain: You can cycle further on flat terrain than on hills. The magnitude of the impact will also depend on the type of electric system. Thus, a mid-mounted motor is better suited to hills due to the motor’s thermal stability.
- Tyre pressure: Under Inflated tires increase rolling resistance, which draws more power from the motor.
Considering that you will probably experience a number of the abovementioned factors, here are a few examples of the magnitude of their impact:
- For example, a rider weighing 210 lbs (95 kg) cycling on good pavement in hilly terrain may find the battery range reduced by up to 20% compared to what is shown for the average range.
- If you are cycling into a strong headwind, it can make a difference of up to approximately 40%.
- If you are cycling along an unpaved road, your range will be reduced by approximately 30% as compared to cycling on pavement.
Specifications of Gazelle Ultimate C8 HMB
Frame & Fork
- Frame shape low-step
- Size 46, 53, 57
- Frame description Stable aluminium frame with 70,5° headset angle and 71,5° saddle tube angle for sporty cycling characteristics. Battery, motor and cables harmoniously integrated into the frame. High-quality finish with attention to detail.
- Frame material Aluminium
- Cabels integrated Yes
Frame
- Fork material Aluminium
- Fork suspension type internal to headset
- Travel of suspension fork 40 mm
Fork
Brake & transmission
- Gear system description 8-speed Shimano Nexus
- Gear type hub
- Gears 8
- Front chainwheel 55
- Rear chainwheel 26
Number of gears
- Drivetrain Belt
Drivetrain
- Brake Front Disc brake with hydraulic control
- Brake Rear Disc brake with hydraulic control
- Disc brake rotor size front 180 mm
- Disc brake rotor size rear 160 mm
- Brake system description front Shimano BR-MT200, 2 piston
- Brake system description rear Shimano BR-MT200, 2 piston
Brakes
Handlebar & Seat
- Handlebar description Aluminium, slightly curved model
- Adjustable stem Yes
- Grip type Gazelle Aero leather
- Grips Luxury leather handlebar grips for a sophisticated feel and extra comfort
Handlebar
- Saddle Selle Royal Loire
- Seatpost suspension Yes
- Seatpost description Sprung
Saddle
Lighting
- Light front description LED headlamp, on/off switching via display
- Front light powersource Battery
- Front light lux 50
- Front light type Axa Blue Line 50
Front light
- Rear light powersource Battery
Rear light
E-bike technology
- Ebike system short description Bosch
- Engine location mid-drive motor
- Max speed (mph) Class 1 (20 mph)
- Torque 50
- Engine model Bosch Active Line Plus (50Nm)
- Ebike sensors pedal force sensor, rotation sensor, speed sensor
Engine
Service
- Warranty frame 10 years’ warranty
- Warranty fork 5 years’ warranty
- Warranty paint 5 years’ warranty
- Warranty other parts 2 years’ warranty
- Warranty battery 2 years’ warranty
- Warranty motor 2 years’ warranty
- Warranty diplay 2 years’ warranty
Garantie
Other
- Lock description Ring lock with an option for a plug-in cable to attach your bike to a fixed object for extra protection against theft
- Lock safety level ART ** certified
- Lock Type Axa Block XXL
Lock
- Chaincase description Aluminum
- Kickstand type drop-down rear stand
- Kickstand Ursus Mooi
- Chaincase type Chain guard
Other
- Rear carrier description Gazelle commuter, aluminium
Carrier
The specifications of each Gazelle are drawn up with the greatest of care. However, we may, for example due to scarcity, temporarily replace a part with another, at least equivalent, part. We hope for your understanding in this matter.
